Toyota Hiace KDH222 POWER STEERING TUBE

Manufacturers Home
Toyota
GR
HIACE
KDH222R-LEMNYN (2013)
4503 - POWER STEERING TUBE

KDH222R-LEMNYN (2013)

Toyota Hiace

Production Dec 2013 - Sep 9999

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1312- )TRH213,22#..RHD

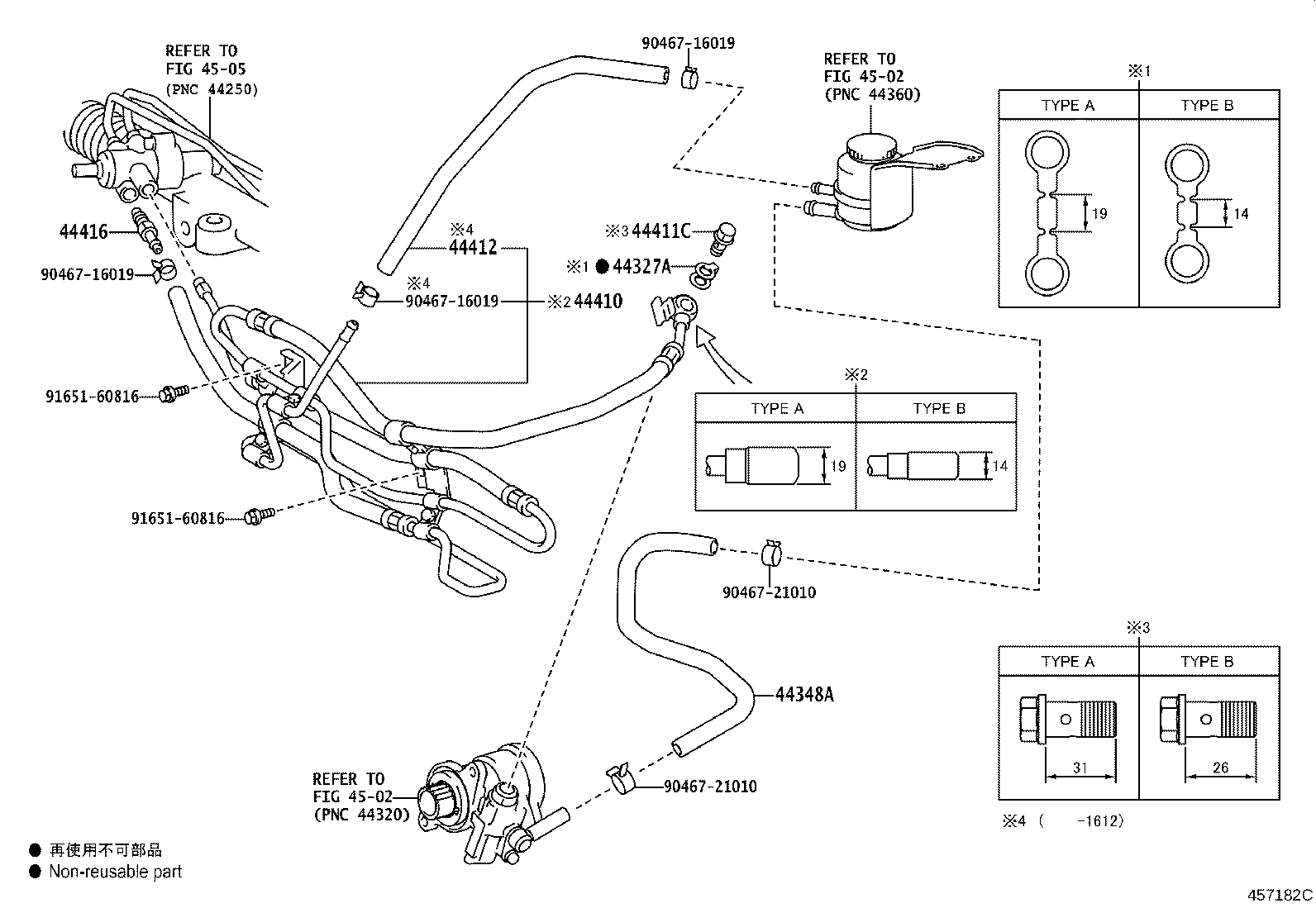

Click highlighted areas on diagram

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-30040	TRH223..6FC;TRH213..LHD..STD..GEN;KDH201,TRH213..RHD..SG;TRH223..(13S,14S,16S)..(GCC,GEN,SA,TH);KDH212,22#,LH222..02S,03S,06S,10S,12S,14S,16S;KDH212,TRH200,201,221..(02S,03S,05S,06S,13S)..(5F,6FC)..STD;KDH20#,213,LH20#,212,TRH203..(SMRF,SRF)..(02S,03S,05S,10S,11S,12S,13S,15S,16S) TYPE A:REFER ILLUST.	12/2013 - 12/2016	1
44327-30030	TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;KDH220,222,TRH201,22#;KDH200,TRH213..GCC,MA,TH;GDH201,KDH201,202,203,21#,221,223,LH202,212,222,TRH200..ARL,GCC,GEN,RUS,TH,VN TYPE B:REFER ILLUST.	12/2016 - 02/2019	1
44327-30040	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) TYPE A:REFER ILLUST.	11/2019 - 12/2999	1
44410 - TUBE ASSY, PRESSURE FEED
44410-26A60	KDH21#,22#..RHD TYPE A:REFER ILLUST.	12/2013 - 12/2016	1
44410-26A10	LH212,222..RHD TYPE A:REFER ILLUST.	12/2013 - 12/2016	1
44410-26A61	KDH21#,22#..RHD..(02S,03S,06S,11S,14S,16S) TYPE B:REFER ILLUST.	12/2016 - 02/2019	1
44410-26A11	LH212,222..RHD TYPE B:REFER ILLUST.	12/2016 - 02/2019	1
44410-26A60	KDH213,222..RHD..GL TYPE A:REFER ILLUST.	11/2019 - 12/2999	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
96341-41603	TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;KDH220,222,TRH201,22#;KDH200,TRH213..GCC,MA,TH;GDH201,KDH201,202,203,21#,221,223,LH202,212,222,TRH200..ARL,GCC,GEN,RUS,TH,VN TYPE B:REFER ILLUST.	12/2016 - 02/2019	1
90401-16034	TRH223..6FC;TRH213..LHD..STD..GEN;KDH201,TRH213..RHD..SG;TRH223..(13S,14S,16S)..(GCC,GEN,SA,TH);KDH212,22#,LH222..02S,03S,06S,10S,12S,14S,16S;KDH212,TRH200,201,221..(02S,03S,05S,06S,13S)..(5F,6FC)..STD;KDH20#,213,LH20#,212,TRH203..(SMRF,SRF)..(02S,03S,05S,10S,11S,12S,13S,15S,16S) TYPE A:REFER ILLUST.	12/2013 - 12/2016	1
90401-16034	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) TYPE A:REFER ILLUST.	11/2019 - 12/2999	1
44412 - HOSE, RETURN
44412-26410	KDH21#,22#..RHD	12/2013 - 12/2016	1
44412-26440	LH212,222;KDH21#,220,222,223..LHD	12/2013 - 12/2016	1
44412-26450	TRH213,22#;TRH20#..RHD	12/2013 - 12/2016	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60370	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
44416-60370	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
Common parts
90467-16019
91651-60816
Linked diagrams
4502
4505

(1312- )KDH21#,22#..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-30040	TRH223..6FC;TRH213..LHD..STD..GEN;KDH201,TRH213..RHD..SG;TRH223..(13S,14S,16S)..(GCC,GEN,SA,TH);KDH212,22#,LH222..02S,03S,06S,10S,12S,14S,16S;KDH212,TRH200,201,221..(02S,03S,05S,06S,13S)..(5F,6FC)..STD;KDH20#,213,LH20#,212,TRH203..(SMRF,SRF)..(02S,03S,05S,10S,11S,12S,13S,15S,16S) TYPE A:REFER ILLUST.	12/2013 - 12/2016	1
44327-30030	TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;KDH220,222,TRH201,22#;KDH200,TRH213..GCC,MA,TH;GDH201,KDH201,202,203,21#,221,223,LH202,212,222,TRH200..ARL,GCC,GEN,RUS,TH,VN TYPE B:REFER ILLUST.	12/2016 - 02/2019	1
44327-30040	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) TYPE A:REFER ILLUST.	11/2019 - 12/2999	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-26230	KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC	12/2013 - 02/2019	1
44348-26220	LH212,222..RHD	12/2013 - 02/2019	1
44348-26230	KDH222..STD..GCC;KDH213,222..RHD..GL	11/2019 - 12/2999	1
44410 - TUBE ASSY, PRESSURE FEED
44410-26A60	KDH21#,22#..RHD TYPE A:REFER ILLUST.	12/2013 - 12/2016	1
44410-26A10	LH212,222..RHD TYPE A:REFER ILLUST.	12/2013 - 12/2016	1
44410-26A61	KDH21#,22#..RHD..(02S,03S,06S,11S,14S,16S) TYPE B:REFER ILLUST.	12/2016 - 02/2019	1
44410-26A11	LH212,222..RHD TYPE B:REFER ILLUST.	12/2016 - 02/2019	1
44410-26A60	KDH213,222..RHD..GL TYPE A:REFER ILLUST.	11/2019 - 12/2999	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
96341-41603	TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;KDH220,222,TRH201,22#;KDH200,TRH213..GCC,MA,TH;GDH201,KDH201,202,203,21#,221,223,LH202,212,222,TRH200..ARL,GCC,GEN,RUS,TH,VN TYPE B:REFER ILLUST.	12/2016 - 02/2019	1
90401-16034	TRH223..6FC;TRH213..LHD..STD..GEN;KDH201,TRH213..RHD..SG;TRH223..(13S,14S,16S)..(GCC,GEN,SA,TH);KDH212,22#,LH222..02S,03S,06S,10S,12S,14S,16S;KDH212,TRH200,201,221..(02S,03S,05S,06S,13S)..(5F,6FC)..STD;KDH20#,213,LH20#,212,TRH203..(SMRF,SRF)..(02S,03S,05S,10S,11S,12S,13S,15S,16S) TYPE A:REFER ILLUST.	12/2013 - 12/2016	1
90401-16034	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH) TYPE A:REFER ILLUST.	11/2019 - 12/2999	1
44412 - HOSE, RETURN
44412-26410	KDH21#,22#..RHD	12/2013 - 12/2016	1
44412-26440	LH212,222;KDH21#,220,222,223..LHD	12/2013 - 12/2016	1
44412-26450	TRH213,22#;TRH20#..RHD	12/2013 - 12/2016	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60370	KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)	12/2013 - 02/2019	1
44416-60370	KDH222,TRH223..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)	11/2019 - 12/2999	1
Common parts
90467-16019
90467-21010
91651-60816
Linked diagrams
4502
4505
