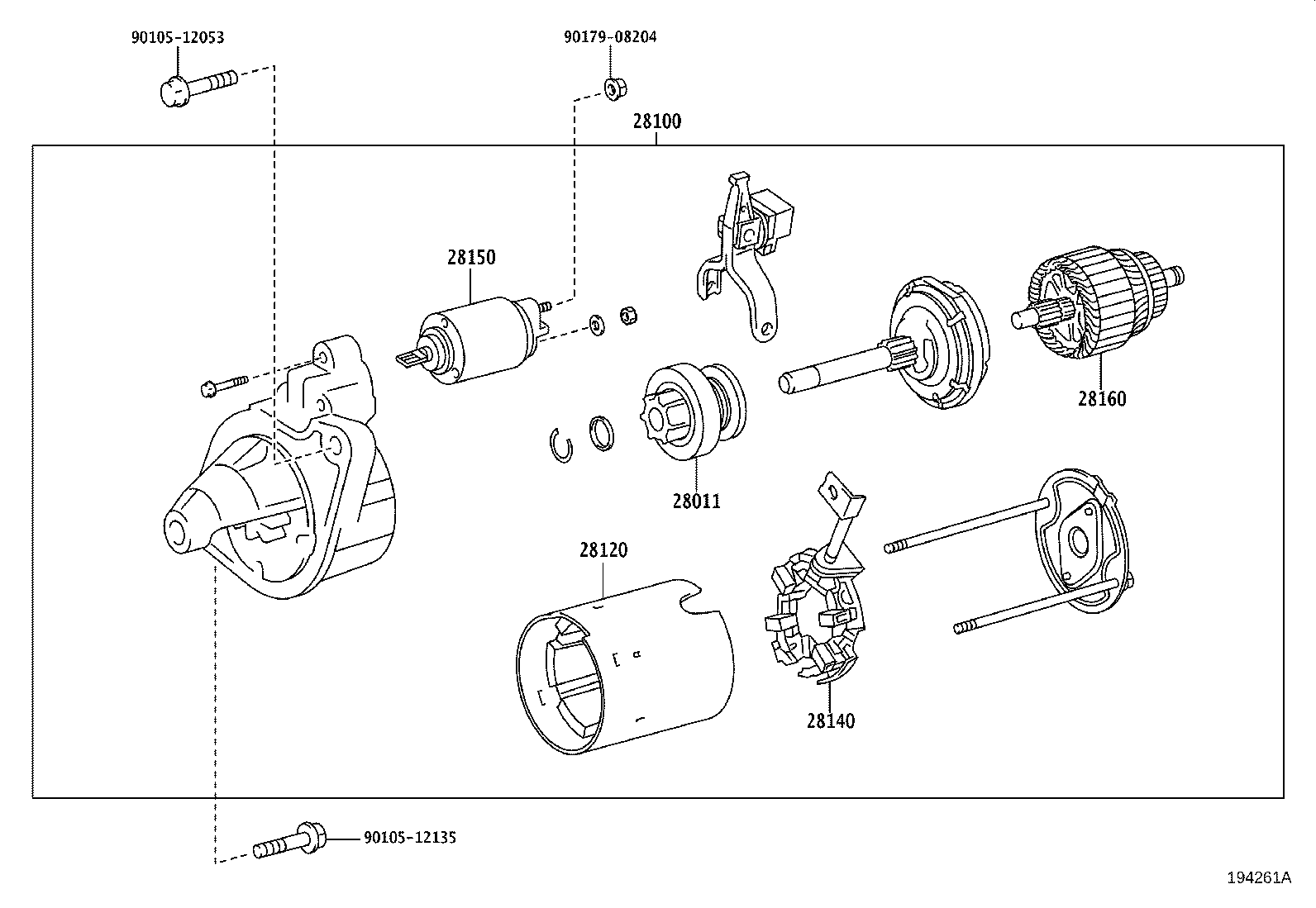

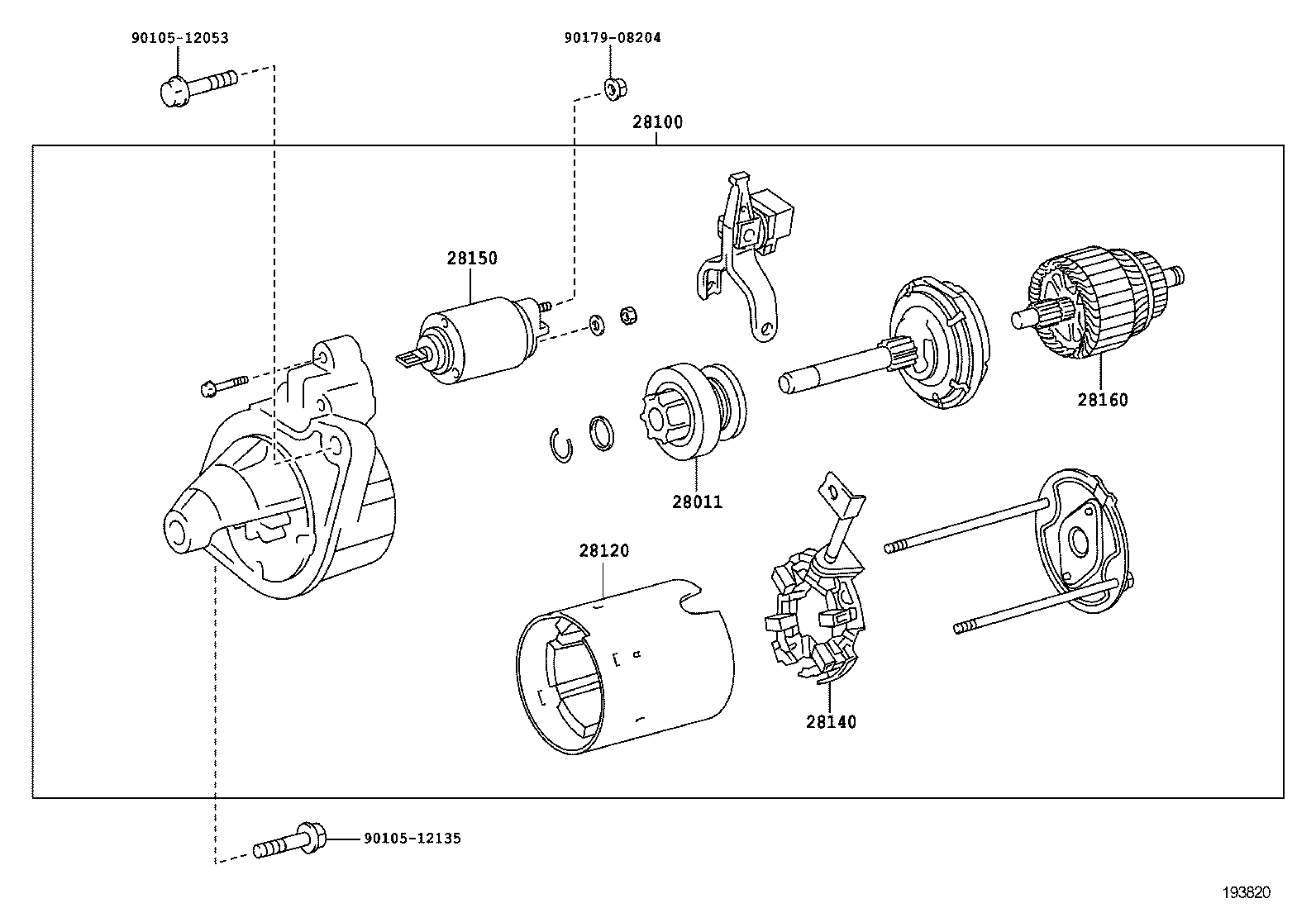

Toyota Hiace KDH222 STARTER - JDM Part Detective

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-0L082	2KDFTV..KDH222..STD..SA	05/2012 - 12/2999	1
28011-30040	2KDFTV..KDH222..STD..SA	01/2005 - 05/2012	1
28011-0L082	2KDFTV..KDH222..STD..SA CKD PACKAGE(SOUTH AFRICA)	04/2012 - 05/2012	1
28100 - STARTER ASSY
28100-0L082	2KDFTV..KDH222..STD..SA 12V 2.2KW,CKD PACKAGE(SOUTH AFRICA)	04/2012 - 05/2012	1
28100-30040	2KDFTV..KDH222..STD..SA 12V 2.0KW	01/2005 - 05/2012	1
28100-0L082	2KDFTV..KDH222..STD..SA 12V 2.2KW	05/2012 - 02/2014	1
28120 - YOKE ASSY, STARTER
28120-54380	2KDFTV..KDH222..STD..SA	01/2005 - 05/2012	1
28120-0L081	2KDFTV..KDH222..STD..SA CKD PACKAGE(SOUTH AFRICA)	04/2012 - 05/2012	1
28120-0L081	2KDFTV..KDH222..STD..SA	05/2012 - 02/2014	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0L070	2KDFTV..KDH222..STD..SA CKD PACKAGE(SOUTH AFRICA)	04/2012 - 05/2012	1
28140-0L070	2KDFTV..KDH222..STD..SA	05/2012 - 02/2014	1
28140-54380	2KDFTV..KDH222..STD..SA	01/2005 - 05/2012	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-30040	2KDFTV..KDH222..STD..SA	01/2005 - 05/2012	1
28150-0L071	2KDFTV..KDH222..STD..SA CKD PACKAGE(SOUTH AFRICA)	04/2012 - 05/2012	1
28150-0L071	2KDFTV..KDH222..STD..SA	05/2012 - 02/2014	1
28160 - ARMATURE ASSY, STARTER
28160-54380	2KDFTV..KDH222..STD..SA	01/2005 - 05/2012	1
28160-0L070	2KDFTV..KDH222..STD..SA CKD PACKAGE(SOUTH AFRICA)	04/2012 - 05/2012	1
28160-0L070	2KDFTV..KDH222..STD..SA	05/2012 - 02/2014	1
Common parts
90105-12053
90105-12135
90179-08204

KDH222R-LEMDYN (2010)
