KDH222R-LEMDYN (2014)

Toyota Hiace

Production Feb 2014 - Sep 9999
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312-2005)KDH213,221..V ; (1312-2005)KDH222,223..STD..ARL,GEN,TH ; (1506-2005)KDH2

Click highlighted areas on diagram

FRONT:DUAL A/C

diagram 1703 1703 8714 8719 88374B 88374C 88375B 88375D 88450 88474 886882F280 886882F290 886882F300 886882F310 886882F320 88711 88712 88715A 88716A 88716B 88717A 887182F120 887182F120 887182F120 887182F140 887182F180 887182F250 887182F330 887182F350 88719A 9009120512 9009120512 9009120512 9009120512 9009120609 9009120619 9009900264 9009914119 9009914120 9009914121 9009914122 90105T0193 90105T0194 9155380616 9155380622 9155380622 9155380625 9155380625 9155380814 9167380618
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2F202

LH212,222

AIR CONDITIONER-DUAL AIR CONDITIONER

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2F221

LH212,222

AIR CONDITIONER-DUAL AIR CONDITIONER

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2F580

LH212,222

AIR CONDITIONER-DUAL AIR CONDITIONER

 1
Common parts
88688-2F280
88688-2F290
88688-2F300
88688-2F310
88688-2F320
88718-2F120
88718-2F140
88718-2F180
88718-2F250
88718-2F330
88718-2F350
90091-20512
90091-20609
90091-20619
90099-00264
90099-14119
90099-14120
90099-14121
90099-14122
90105-T0193
90105-T0194
91553-80616
91553-80622
91553-80625
91553-80814
91673-80618
Linked diagrams
1703
8714
8719

(1312-2005)LH212,222

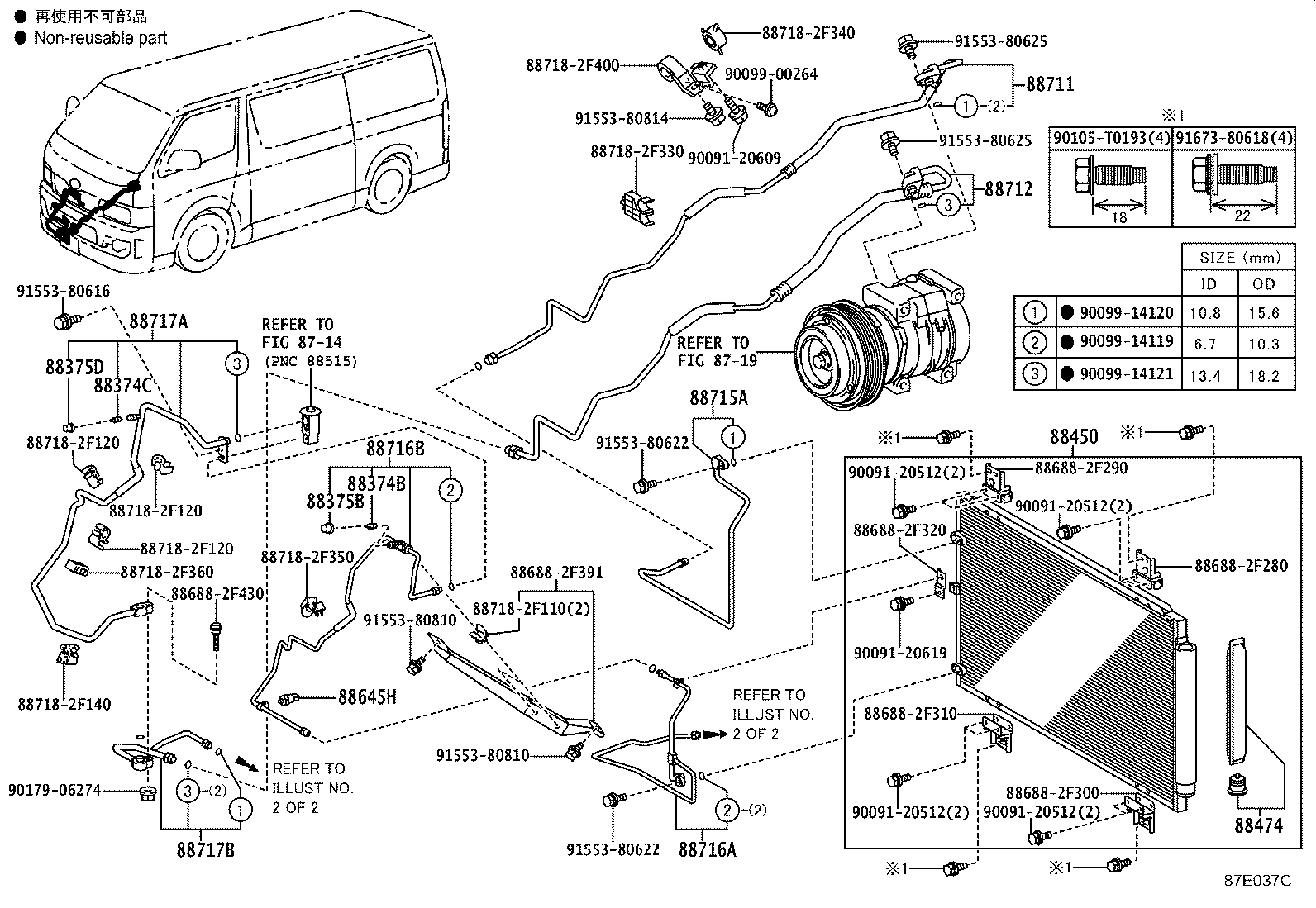

Click highlighted areas on diagram

FRONT:DUAL A/C

diagram 8714 8719 88374B 88374C 88375B 88375D 88450 88474 88645H 886882F280 886882F290 886882F300 886882F310 886882F320 886882F391 886882F430 88711 88712 88715A 88716A 88716B 88717A 88717B 887182F110 887182F120 887182F120 887182F120 887182F140 887182F330 887182F340 887182F350 887182F360 887182F400 9009120512 9009120512 9009120512 9009120512 9009120609 9009120619 9009900264 9009914119 9009914120 9009914121 90105T0193 9017906274 9155380616 9155380622 9155380622 9155380625 9155380625 9155380810 9155380810 9155380814 9167380618
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2F202

LH212,222

AIR CONDITIONER-DUAL AIR CONDITIONER

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2F221

LH212,222

AIR CONDITIONER-DUAL AIR CONDITIONER

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2F580

LH212,222

AIR CONDITIONER-DUAL AIR CONDITIONER

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2F551

LH212,222

AIR CONDITIONER-DUAL AIR CONDITIONER

 1
Common parts
88688-2F280
88688-2F290
88688-2F300
88688-2F310
88688-2F320
88688-2F391
88688-2F430
88718-2F110
88718-2F120
88718-2F140
88718-2F330
88718-2F340
88718-2F350
88718-2F360
88718-2F400
90091-20512
90091-20609
90091-20619
90099-00264
90099-14119
90099-14120
90099-14121
90105-T0193
90179-06274
91553-80616
91553-80622
91553-80625
91553-80810
91553-80814
91673-80618
Linked diagrams
8714
8719

(2005- )TRH213,22#..RHD..03S,10S,16S

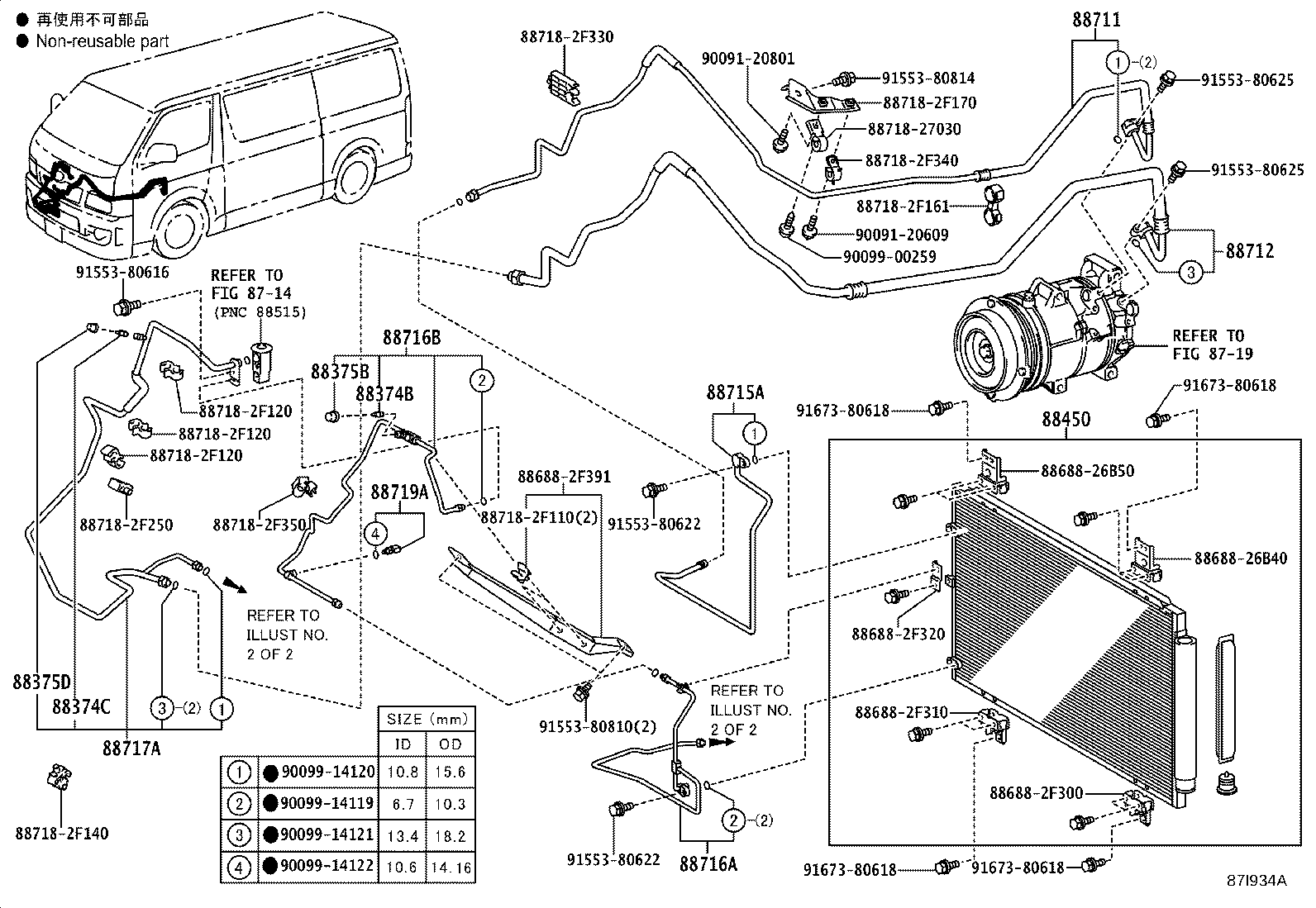

Click highlighted areas on diagram

FRONT:DUAL A/C

diagram 8714 8719 88374B 88374C 88375B 88375D 88450 8868826B40 8868826B50 886882F300 886882F310 886882F320 886882F391 88711 88712 88715A 88716A 88716B 88717A 8871827030 887182F110 887182F120 887182F120 887182F120 887182F140 887182F161 887182F170 887182F250 887182F330 887182F340 887182F350 88719A 9009120609 9009120801 9009900259 9009914119 9009914120 9009914121 9009914122 9155380616 9155380622 9155380622 9155380625 9155380625 9155380810 9155380814 9167380618 9167380618 9167380618 9167380618
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2F202

LH212,222

AIR CONDITIONER-DUAL AIR CONDITIONER

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2F221

LH212,222

AIR CONDITIONER-DUAL AIR CONDITIONER

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2F580

LH212,222

AIR CONDITIONER-DUAL AIR CONDITIONER

 1
Common parts
88688-26B40
88688-26B50
88688-2F300
88688-2F310
88688-2F320
88688-2F391
88718-27030
88718-2F110
88718-2F120
88718-2F140
88718-2F161
88718-2F170
88718-2F250
88718-2F330
88718-2F340
88718-2F350
90091-20609
90091-20801
90099-00259
90099-14119
90099-14120
90099-14121
90099-14122
91553-80616
91553-80622
91553-80625
91553-80810
91553-80814
91673-80618
Linked diagrams
8714
8719
