Toyota Hiace KDH222 WIRING & CLAMP

KDH222R-LEMDYN (2014)

Toyota Hiace

Production Feb 2014 - Sep 9999

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

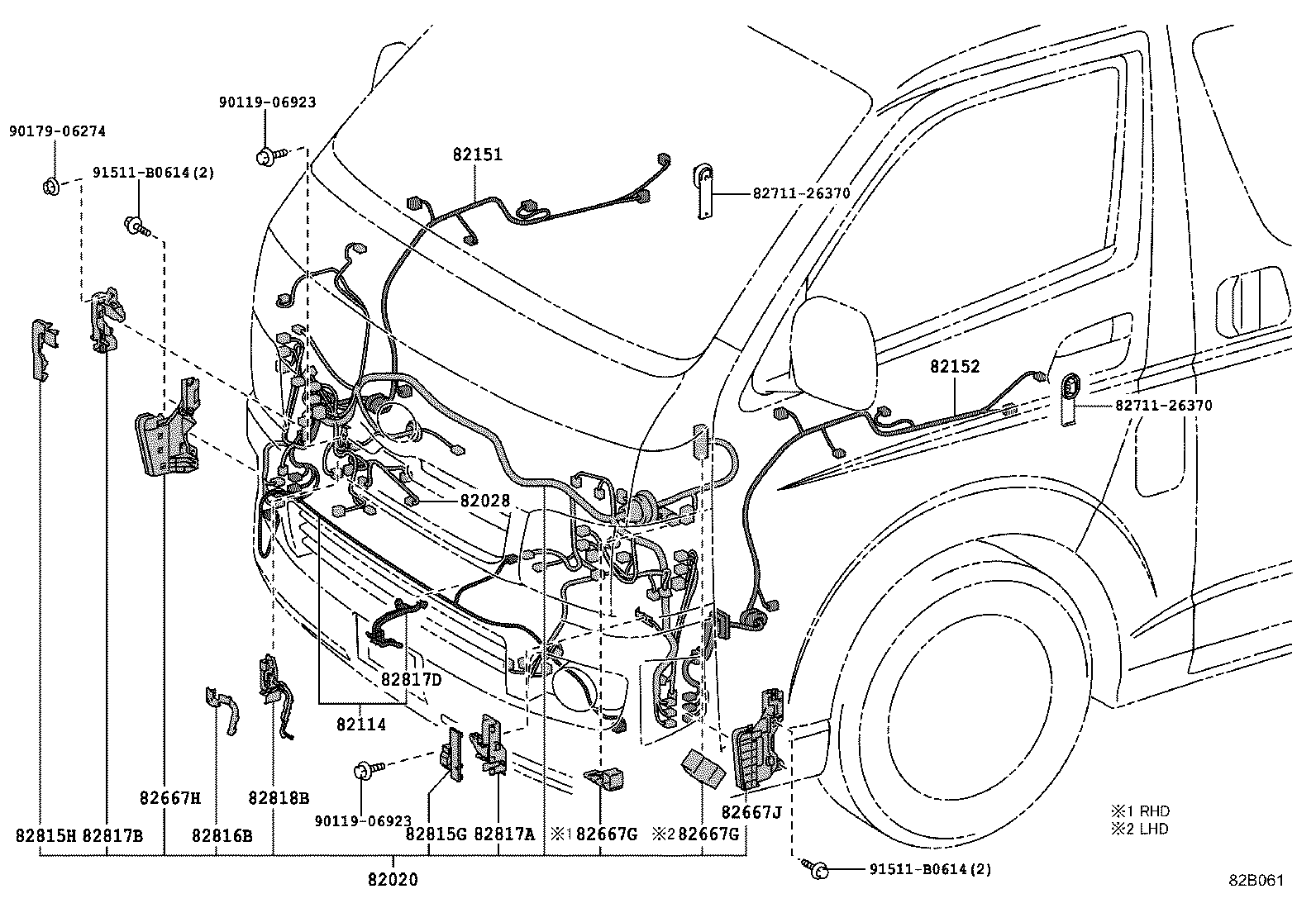

ILLUST NO. 5 OF11(1312-1612)

Click highlighted areas on diagram

FRONT DOOR & HEADLAMP

Part #	Description	Period	Qty
82020 - HARNESS ASSY, WIRING COWL TO HEADLAMP
82020-26405	LH212,222..RHD POWER DOOR LOCK-WITH	12/2013 - 01/2015	1
82020-26A40	LH212,222..RHD	12/2013 - 01/2015	1
82020-26792	KDH222..STD..SA	02/2014 - 02/2015	1
82020-26376	KDH222..STD..SA CKD PACKAGE(TSAM SOUTH AFRICA)	02/2015 - 04/2015	1
82020-26375	KDH222..STD..SA CKD PACKAGE(TSAM SOUTH AFRICA)	02/2014 - 02/2015	1
82020-0L040	KDH222..STD..SA	02/2015 - 12/2016	1
82020-26406	LH212,222..RHD POWER DOOR LOCK-WITH	01/2015 - 01/2017	1
82020-26A41	LH212,222..RHD	01/2015 - 01/2017	1
82020-26407	LH212,222..RHD POWER DOOR LOCK-WITH	01/2017 - 12/2017	1
82020-0L041	KDH222..STD..SA	12/2016 - 04/2017	1
82020-26A42	LH212,222..RHD	01/2017 - 12/2017	1
82020-0L042	KDH222..STD..SA	04/2017 - 02/2018	1
82020-26408	LH212,222..RHD POWER DOOR LOCK-WITH	12/2017 - 02/2019	1
82020-26A43	LH212,222..RHD	12/2017 - 02/2019	1
82020-0L043	KDH222..STD..SA	02/2018 - 12/2999	1
82151 - WIRE, FRONT DOOR, RH
82151-26522	KDH222,TRH223..STD..SA	12/2013 - 01/2015	1
82151-26511	KDH201..LHD;TRH201..03S;TRH201..06S..GCC;TRH223..STD..(GCC,GEN);KDH201,222..4D..(03S,16S)..5F..STD..(GCC,GEN,TH);KDH200,202,203,212,220,223,LH20#,212,222,TRH203,213,221..(03S,06S,10S,12S,13S,15S,16S)..STD..(GCC,GEN,MA,SA)	12/2013 - 12/2015	1
82151-26571	KDH200,201..MA,TH;KDH222..RHD..STD..GEN;LH200,TRH201..RHD..4D..03S;KDH202,212,220,LH202,212,222,TRH203,221..RHD..(06S,10S,15S,16S)..STD POWER DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)	12/2013 - 05/2020	1
82151-26522	TRH201..03S;KDH222..STD..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;KDH220,TRH201,221..06S..(GCC,SA);KDH201,223,TRH213..LHD..STD..(GCC,GEN);KDH201,202,203,212,LH20#,212,222,TRH203..4D..(03S,10S,12S,13S,15S,16S)..5F..STD POWER DOOR LOCK-WITH	12/2013 - 12/2999	1
82151-0L020	KDH222,TRH223..STD..SA	03/2015 - 12/2999	1
82151-26512	TRH201..03S;KDH222..STD..GEN;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH220,TRH201,221..06S..(GCC,SA);KDH201,220,223,TRH213..LHD..STD..(GCC,GEN);KDH201,202,203,212,LH20#,212,222,TRH203..4D..(03S,10S,12S,13S,15S,16S)..5F..STD	12/2015 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-26481	KDH222,TRH223..STD..SA	12/2013 - 01/2015	1
82152-26421	KDH201..LHD;TRH201..03S;TRH201..06S..GCC;TRH223..STD..(GCC,GEN);KDH201,222..4D..(03S,16S)..5F..STD..(GCC,GEN,TH);KDH200,202,203,212,220,223,LH20#,212,222,TRH203,213,221..(03S,06S,10S,12S,13S,15S,16S)..STD..(GCC,GEN,MA,SA)	12/2013 - 12/2015	1
82152-26502	KDH200,201..MA,TH;KDH222..RHD..STD..GEN;LH200,TRH201..RHD..4D..03S;KDH202,212,220,LH202,212,222,TRH203,221..RHD..(06S,10S,15S,16S)..STD POWER DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)	12/2013 - 05/2020	1
82152-26422	TRH201..03S;KDH222..STD..GEN;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH220,TRH201,221..06S..(GCC,SA);KDH201,220,223,TRH213..LHD..STD..(GCC,GEN);KDH201,202,203,212,LH20#,212,222,TRH203..4D..(03S,10S,12S,13S,15S,16S)..5F..STD	12/2015 - 12/2999	1
82152-26481	TRH201..03S;KDH222..STD..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;KDH220,TRH201,221..06S..(GCC,SA);KDH201,223,TRH213..LHD..STD..(GCC,GEN);KDH201,202,203,212,LH20#,212,222,TRH203..4D..(03S,10S,12S,13S,15S,16S)..5F..STD POWER DOOR LOCK-WITH	12/2013 - 12/2999	1
82152-0L020	KDH222,TRH223..STD..SA	03/2015 - 12/2999	1
82667G - HOLDER, CONNECTOR, NO.22
82666-26300	KDH223..4FC..TH;KDH221,TRH200,213..5D..(4FC,5F);KDH201,TRH223..(03S,14S,16S)..(ARL,TH);KDH212,222,TRH201..RHD..(02S,03S,05S,06S,16S);GDH201,KDH201,202,220,223,LH212,222,TRH203,221..RHD..(02S,05S,06S,10S,14S,15S,16S)..(ARL,GEN,MA,SA)	12/2013 - 12/2999	1
82667G - HOLDER, CONNECTOR, NO.22
82666-26300	KDH223..4FC..TH;KDH221,TRH200,213..5D..(4FC,5F);KDH201,TRH223..(03S,14S,16S)..(ARL,TH);KDH212,222,TRH201..RHD..(02S,03S,05S,06S,16S);GDH201,KDH201,202,220,223,LH212,222,TRH203,221..RHD..(02S,05S,06S,10S,14S,15S,16S)..(ARL,GEN,MA,SA)	12/2013 - 12/2999	1
82667H - HOLDER, CONNECTOR, NO.23
82666-26312	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH201..ARL,GCC,GEN;KDH200,201..LHD..5D;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;TRH213,221..ARL,GCC,TH;KDH201,220..02S,05S,06S;KDH201,LH200,TRH203..4D..(03S,10S,15S)..5F;KDH221,222,TRH200..(02S,03S,06S,16S)..(4FC,5F)..(ARL,GEN,KEN,SA);GDH201,KDH202,203,21#,220,223,LH202,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)	12/2013 - 12/2999	1
82667J - HOLDER, CONNECTOR, NO.24
82666-26322	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH201..ARL,GCC,GEN;KDH200,201..LHD..5D;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;TRH213,221..ARL,GCC,TH;KDH201,220..02S,05S,06S;KDH201,LH200,TRH203..4D..(03S,10S,15S)..5F;KDH221,222,TRH200..(02S,03S,06S,16S)..(4FC,5F)..(ARL,GEN,KEN,SA);GDH201,KDH202,203,21#,220,223,LH202,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)	12/2013 - 12/2999	1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-26620	TRH223..TH;KDH222..STD..SA;KDH201..RHD..03S..GEN;KDH203,213,223..RHD..(GEN,TH)	12/2013 - 12/2016	1
82815-26620	KDH222..GL;TRH213..RHD;TRH223..6FC;KDH212,221..02S,03S,10S,16S;KDH201,222..SG..STD..(GCC,GEN);KDH201,TRH223..(03S,14S)..(SA,TH);KDH201,TRH213..LHD..(03S,16S)..GEN;KDH201,TRH223..(02S,05S,13S,16S)..(ARL,GCC,GEN);KDH212,TRH200,201,221..(02S,03S,05S,06S,13S)..(5F,6FC)..STD;KDH200,202,203,213,220,223,LH20#,212,222,TRH203..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA)	12/2013 - 01/2017	1
82815-26A90	TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH223..5F..GL..GCC;TRH213,223..LHD..STD..GEN;KDH220,TRH213,221..02S,06S,11S;KDH213,220,222,223..ARL,GEN,RUS;KDH201,202,203,212,221,LH202,212,222,TRH201..STD;LH200,TRH203,223..4D..(03S,14S,15S)..(5F,6FC)..STD	01/2017 - 12/2999	1
82815-26A90	TRH223..STD..(SA,TH);KDH222,223..STD..(KEN,SA,VN);GDH201,KDH223..RHD..(4FC,6FC)..(GEN,TH)	12/2016 - 12/2999	1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-26611	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH201..ARL,GCC,GEN;KDH200,201..LHD..5D;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;TRH213,221..ARL,GCC,TH;KDH201,220..02S,05S,06S;KDH201,LH200,TRH203..4D..(03S,10S,15S)..5F;KDH221,222,TRH200..(02S,03S,06S,16S)..(4FC,5F)..(ARL,GEN,KEN,SA);GDH201,KDH202,203,21#,220,223,LH202,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)	12/2013 - 12/2999	1
82816B - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-26360	KDH201..TH;KDH222..GL;TRH200,201,22#..6FC;KDH212,221..02S,03S,10S,16S;KDH201,TRH223..LHD..(03S,13S);KDH201,212..SG..(06S,13S)..STD;KDH201,222..(02S,05S,16S)..STD..(ARL,GCC,GEN);KDH200,202,203,213,220,223,LH20#,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA)	12/2013 - 01/2017	1
82815-26360	KDH201..SP..06S;KDH222..STD..SA;KDH200,202,223..MA,VN;KDH212,TRH213..GL..GEN;KDH223,TRH200,223..(06S,10S,16S)..4FC..(GEN,TH)	12/2013 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-26B30	TRH223..TH;KDH222..STD..SA;KDH201..RHD..03S..GEN;KDH203,213,223..RHD..(GEN,TH)	12/2013 - 12/2016	1
82817-26B30	KDH222..GL;TRH213..RHD;TRH223..6FC;KDH212,221..02S,03S,10S,16S;KDH201,222..SG..STD..(GCC,GEN);KDH201,TRH223..(03S,14S)..(SA,TH);KDH201,TRH213..LHD..(03S,16S)..GEN;KDH201,TRH223..(02S,05S,13S,16S)..(ARL,GCC,GEN);KDH212,TRH200,201,221..(02S,03S,05S,06S,13S)..(5F,6FC)..STD;KDH200,202,203,213,220,223,LH20#,212,222,TRH203..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA)	12/2013 - 01/2017	1
82817-26N20	TRH223..STD..(SA,TH);KDH222,223..STD..(KEN,SA,VN);GDH201,KDH223..RHD..(4FC,6FC)..(GEN,TH)	12/2016 - 12/2999	1
82817-26N20	TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH223..5F..GL..GCC;TRH213,223..LHD..STD..GEN;KDH220,TRH213,221..02S,06S,11S;KDH213,220,222,223..ARL,GEN,RUS;KDH201,202,203,212,221,LH202,212,222,TRH201..STD;LH200,TRH203,223..4D..(03S,14S,15S)..(5F,6FC)..STD	01/2017 - 12/2999	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-26B21	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..ARL,RUS,TH;KDH200,201..LHD..5D;TRH201..ARL,GCC,GEN;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;KDH202,TRH213..LHD..GEN;KDH201,220..02S,05S,06S;KDH202,TRH213,221..ARL,GCC,MA,TH;KDH201,LH200,TRH203..4D..(03S,10S,15S)..5F;KDH221,222,TRH200..(02S,03S,06S,16S)..(4FC,5F)..(ARL,GEN,KEN,SA);GDH201,KDH203,21#,220,223,LH202,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,VN)	12/2013 - 12/2999	1
82818B - PROTECTOR, WIRING HARNESS, NO.3
82817-26J20	KDH201..TH;KDH222..GL;TRH200,201,22#..6FC;KDH212,221..02S,03S,10S,16S;KDH201,TRH223..LHD..(03S,13S);KDH201,212..SG..(06S,13S)..STD;KDH201,222..(02S,05S,16S)..STD..(ARL,GCC,GEN);KDH200,202,203,213,220,223,LH20#,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA)	12/2013 - 01/2017	1
82817-26J20	KDH201..SP..06S;KDH222..STD..SA;KDH200,202,223..MA,VN;KDH212,TRH213..GL..GEN;KDH223,TRH200,223..(06S,10S,16S)..4FC..(GEN,TH)	12/2013 - 12/2999	1
82824K - CONNECTOR, WIRING HARNESS
82824-26080	KDH222..GL;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH201,22#..5F..(ARL,GCC,GEN,RUS,SA);KDH20#,21#,220,221,LH20#,212,222,TRH203,213	12/2013 - 01/2015	1
82824-26080	TRH223..TH;KDH222..STD..SA;TRH201,22#..RHD..4FC;KDH223,TRH200..RHD..(4FC,5F)..(GEN,TH)	12/2013 - 02/2015	1
Common parts
82711-26370
90105-T0194
90119-06923
90178-T0007
90179-06274
91511-B0614

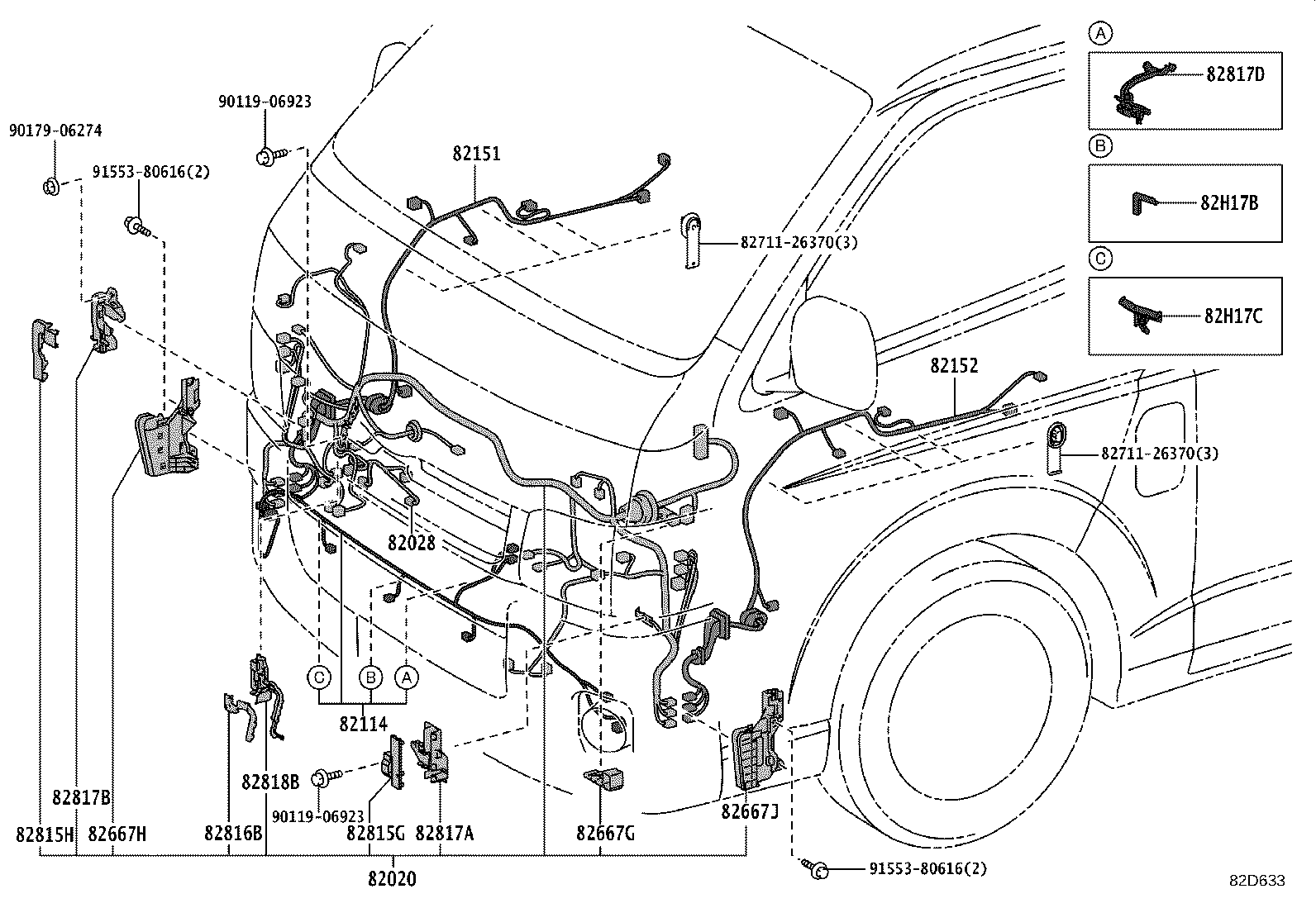

ILLUST NO. 5 OF11(1612-2005)KDH20#,21#,22#,TRH20#,213,22#

Click highlighted areas on diagram

FRONT DOOR & HEADLAMP

Part #	Description	Period	Qty
82020 - HARNESS ASSY, WIRING COWL TO HEADLAMP
82020-26405	LH212,222..RHD POWER DOOR LOCK-WITH	12/2013 - 01/2015	1
82020-26A40	LH212,222..RHD	12/2013 - 01/2015	1
82020-26792	KDH222..STD..SA	02/2014 - 02/2015	1
82020-26376	KDH222..STD..SA CKD PACKAGE(TSAM SOUTH AFRICA)	02/2015 - 04/2015	1
82020-26375	KDH222..STD..SA CKD PACKAGE(TSAM SOUTH AFRICA)	02/2014 - 02/2015	1
82020-0L040	KDH222..STD..SA	02/2015 - 12/2016	1
82020-26406	LH212,222..RHD POWER DOOR LOCK-WITH	01/2015 - 01/2017	1
82020-26A41	LH212,222..RHD	01/2015 - 01/2017	1
82020-26407	LH212,222..RHD POWER DOOR LOCK-WITH	01/2017 - 12/2017	1
82020-0L041	KDH222..STD..SA	12/2016 - 04/2017	1
82020-26A42	LH212,222..RHD	01/2017 - 12/2017	1
82020-0L042	KDH222..STD..SA	04/2017 - 02/2018	1
82020-26408	LH212,222..RHD POWER DOOR LOCK-WITH	12/2017 - 02/2019	1
82020-26A43	LH212,222..RHD	12/2017 - 02/2019	1
82020-0L043	KDH222..STD..SA	02/2018 - 12/2999	1
82028 - WIRING SUB-ASSY, COWL
82028-26030	KDH220..06S;KDH200..LHD..5D;KDH220,222..GEN,KEN;KDH202,212,LH20#,212,222..4D..STD	01/2017 - 12/2999	1
82151 - WIRE, FRONT DOOR, RH
82151-26522	KDH222,TRH223..STD..SA	12/2013 - 01/2015	1
82151-26511	KDH201..LHD;TRH201..03S;TRH201..06S..GCC;TRH223..STD..(GCC,GEN);KDH201,222..4D..(03S,16S)..5F..STD..(GCC,GEN,TH);KDH200,202,203,212,220,223,LH20#,212,222,TRH203,213,221..(03S,06S,10S,12S,13S,15S,16S)..STD..(GCC,GEN,MA,SA)	12/2013 - 12/2015	1
82151-26571	KDH200,201..MA,TH;KDH222..RHD..STD..GEN;LH200,TRH201..RHD..4D..03S;KDH202,212,220,LH202,212,222,TRH203,221..RHD..(06S,10S,15S,16S)..STD POWER DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)	12/2013 - 05/2020	1
82151-26522	TRH201..03S;KDH222..STD..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;KDH220,TRH201,221..06S..(GCC,SA);KDH201,223,TRH213..LHD..STD..(GCC,GEN);KDH201,202,203,212,LH20#,212,222,TRH203..4D..(03S,10S,12S,13S,15S,16S)..5F..STD POWER DOOR LOCK-WITH	12/2013 - 12/2999	1
82151-0L020	KDH222,TRH223..STD..SA	03/2015 - 12/2999	1
82151-26512	TRH201..03S;KDH222..STD..GEN;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH220,TRH201,221..06S..(GCC,SA);KDH201,220,223,TRH213..LHD..STD..(GCC,GEN);KDH201,202,203,212,LH20#,212,222,TRH203..4D..(03S,10S,12S,13S,15S,16S)..5F..STD	12/2015 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-26481	KDH222,TRH223..STD..SA	12/2013 - 01/2015	1
82152-26421	KDH201..LHD;TRH201..03S;TRH201..06S..GCC;TRH223..STD..(GCC,GEN);KDH201,222..4D..(03S,16S)..5F..STD..(GCC,GEN,TH);KDH200,202,203,212,220,223,LH20#,212,222,TRH203,213,221..(03S,06S,10S,12S,13S,15S,16S)..STD..(GCC,GEN,MA,SA)	12/2013 - 12/2015	1
82152-26502	KDH200,201..MA,TH;KDH222..RHD..STD..GEN;LH200,TRH201..RHD..4D..03S;KDH202,212,220,LH202,212,222,TRH203,221..RHD..(06S,10S,15S,16S)..STD POWER DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)	12/2013 - 05/2020	1
82152-26422	TRH201..03S;KDH222..STD..GEN;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH220,TRH201,221..06S..(GCC,SA);KDH201,220,223,TRH213..LHD..STD..(GCC,GEN);KDH201,202,203,212,LH20#,212,222,TRH203..4D..(03S,10S,12S,13S,15S,16S)..5F..STD	12/2015 - 12/2999	1
82152-26481	TRH201..03S;KDH222..STD..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;KDH220,TRH201,221..06S..(GCC,SA);KDH201,223,TRH213..LHD..STD..(GCC,GEN);KDH201,202,203,212,LH20#,212,222,TRH203..4D..(03S,10S,12S,13S,15S,16S)..5F..STD POWER DOOR LOCK-WITH	12/2013 - 12/2999	1
82152-0L020	KDH222,TRH223..STD..SA	03/2015 - 12/2999	1
82667G - HOLDER, CONNECTOR, NO.22
82666-26300	KDH223..4FC..TH;KDH221,TRH200,213..5D..(4FC,5F);KDH201,TRH223..(03S,14S,16S)..(ARL,TH);KDH212,222,TRH201..RHD..(02S,03S,05S,06S,16S);GDH201,KDH201,202,220,223,LH212,222,TRH203,221..RHD..(02S,05S,06S,10S,14S,15S,16S)..(ARL,GEN,MA,SA)	12/2013 - 12/2999	1
82667G - HOLDER, CONNECTOR, NO.22
82666-26300	KDH223..4FC..TH;KDH221,TRH200,213..5D..(4FC,5F);KDH201,TRH223..(03S,14S,16S)..(ARL,TH);KDH212,222,TRH201..RHD..(02S,03S,05S,06S,16S);GDH201,KDH201,202,220,223,LH212,222,TRH203,221..RHD..(02S,05S,06S,10S,14S,15S,16S)..(ARL,GEN,MA,SA)	12/2013 - 12/2999	1
82667H - HOLDER, CONNECTOR, NO.23
82666-26312	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH201..ARL,GCC,GEN;KDH200,201..LHD..5D;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;TRH213,221..ARL,GCC,TH;KDH201,220..02S,05S,06S;KDH201,LH200,TRH203..4D..(03S,10S,15S)..5F;KDH221,222,TRH200..(02S,03S,06S,16S)..(4FC,5F)..(ARL,GEN,KEN,SA);GDH201,KDH202,203,21#,220,223,LH202,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)	12/2013 - 12/2999	1
82667J - HOLDER, CONNECTOR, NO.24
82666-26322	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH201..ARL,GCC,GEN;KDH200,201..LHD..5D;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;TRH213,221..ARL,GCC,TH;KDH201,220..02S,05S,06S;KDH201,LH200,TRH203..4D..(03S,10S,15S)..5F;KDH221,222,TRH200..(02S,03S,06S,16S)..(4FC,5F)..(ARL,GEN,KEN,SA);GDH201,KDH202,203,21#,220,223,LH202,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)	12/2013 - 12/2999	1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-26620	TRH223..TH;KDH222..STD..SA;KDH201..RHD..03S..GEN;KDH203,213,223..RHD..(GEN,TH)	12/2013 - 12/2016	1
82815-26620	KDH222..GL;TRH213..RHD;TRH223..6FC;KDH212,221..02S,03S,10S,16S;KDH201,222..SG..STD..(GCC,GEN);KDH201,TRH223..(03S,14S)..(SA,TH);KDH201,TRH213..LHD..(03S,16S)..GEN;KDH201,TRH223..(02S,05S,13S,16S)..(ARL,GCC,GEN);KDH212,TRH200,201,221..(02S,03S,05S,06S,13S)..(5F,6FC)..STD;KDH200,202,203,213,220,223,LH20#,212,222,TRH203..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA)	12/2013 - 01/2017	1
82815-26A90	TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH223..5F..GL..GCC;TRH213,223..LHD..STD..GEN;KDH220,TRH213,221..02S,06S,11S;KDH213,220,222,223..ARL,GEN,RUS;KDH201,202,203,212,221,LH202,212,222,TRH201..STD;LH200,TRH203,223..4D..(03S,14S,15S)..(5F,6FC)..STD	01/2017 - 12/2999	1
82815-26A90	TRH223..STD..(SA,TH);KDH222,223..STD..(KEN,SA,VN);GDH201,KDH223..RHD..(4FC,6FC)..(GEN,TH)	12/2016 - 12/2999	1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-26611	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH201..ARL,GCC,GEN;KDH200,201..LHD..5D;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;TRH213,221..ARL,GCC,TH;KDH201,220..02S,05S,06S;KDH201,LH200,TRH203..4D..(03S,10S,15S)..5F;KDH221,222,TRH200..(02S,03S,06S,16S)..(4FC,5F)..(ARL,GEN,KEN,SA);GDH201,KDH202,203,21#,220,223,LH202,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)	12/2013 - 12/2999	1
82816B - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-26360	KDH201..TH;KDH222..GL;TRH200,201,22#..6FC;KDH212,221..02S,03S,10S,16S;KDH201,TRH223..LHD..(03S,13S);KDH201,212..SG..(06S,13S)..STD;KDH201,222..(02S,05S,16S)..STD..(ARL,GCC,GEN);KDH200,202,203,213,220,223,LH20#,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA)	12/2013 - 01/2017	1
82815-26360	KDH201..SP..06S;KDH222..STD..SA;KDH200,202,223..MA,VN;KDH212,TRH213..GL..GEN;KDH223,TRH200,223..(06S,10S,16S)..4FC..(GEN,TH)	12/2013 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-26B30	TRH223..TH;KDH222..STD..SA;KDH201..RHD..03S..GEN;KDH203,213,223..RHD..(GEN,TH)	12/2013 - 12/2016	1
82817-26B30	KDH222..GL;TRH213..RHD;TRH223..6FC;KDH212,221..02S,03S,10S,16S;KDH201,222..SG..STD..(GCC,GEN);KDH201,TRH223..(03S,14S)..(SA,TH);KDH201,TRH213..LHD..(03S,16S)..GEN;KDH201,TRH223..(02S,05S,13S,16S)..(ARL,GCC,GEN);KDH212,TRH200,201,221..(02S,03S,05S,06S,13S)..(5F,6FC)..STD;KDH200,202,203,213,220,223,LH20#,212,222,TRH203..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA)	12/2013 - 01/2017	1
82817-26N20	TRH223..STD..(SA,TH);KDH222,223..STD..(KEN,SA,VN);GDH201,KDH223..RHD..(4FC,6FC)..(GEN,TH)	12/2016 - 12/2999	1
82817-26N20	TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH223..5F..GL..GCC;TRH213,223..LHD..STD..GEN;KDH220,TRH213,221..02S,06S,11S;KDH213,220,222,223..ARL,GEN,RUS;KDH201,202,203,212,221,LH202,212,222,TRH201..STD;LH200,TRH203,223..4D..(03S,14S,15S)..(5F,6FC)..STD	01/2017 - 12/2999	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-26B21	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..ARL,RUS,TH;KDH200,201..LHD..5D;TRH201..ARL,GCC,GEN;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;KDH202,TRH213..LHD..GEN;KDH201,220..02S,05S,06S;KDH202,TRH213,221..ARL,GCC,MA,TH;KDH201,LH200,TRH203..4D..(03S,10S,15S)..5F;KDH221,222,TRH200..(02S,03S,06S,16S)..(4FC,5F)..(ARL,GEN,KEN,SA);GDH201,KDH203,21#,220,223,LH202,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,VN)	12/2013 - 12/2999	1
82818B - PROTECTOR, WIRING HARNESS, NO.3
82817-26J20	KDH201..TH;KDH222..GL;TRH200,201,22#..6FC;KDH212,221..02S,03S,10S,16S;KDH201,TRH223..LHD..(03S,13S);KDH201,212..SG..(06S,13S)..STD;KDH201,222..(02S,05S,16S)..STD..(ARL,GCC,GEN);KDH200,202,203,213,220,223,LH20#,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA)	12/2013 - 01/2017	1
82817-26J20	KDH201..SP..06S;KDH222..STD..SA;KDH200,202,223..MA,VN;KDH212,TRH213..GL..GEN;KDH223,TRH200,223..(06S,10S,16S)..4FC..(GEN,TH)	12/2013 - 12/2999	1
Common parts
82711-26370
90119-06923
90179-06274
91511-B0614

ILLUST NO. 5 OF11(1612-2005)LH20#,212,222

Click highlighted areas on diagram

FRONT DOOR & HEADLAMP

Part #	Description	Period	Qty
82020 - HARNESS ASSY, WIRING COWL TO HEADLAMP
82020-26405	LH212,222..RHD POWER DOOR LOCK-WITH	12/2013 - 01/2015	1
82020-26A40	LH212,222..RHD	12/2013 - 01/2015	1
82020-26792	KDH222..STD..SA	02/2014 - 02/2015	1
82020-26376	KDH222..STD..SA CKD PACKAGE(TSAM SOUTH AFRICA)	02/2015 - 04/2015	1
82020-26375	KDH222..STD..SA CKD PACKAGE(TSAM SOUTH AFRICA)	02/2014 - 02/2015	1
82020-0L040	KDH222..STD..SA	02/2015 - 12/2016	1
82020-26406	LH212,222..RHD POWER DOOR LOCK-WITH	01/2015 - 01/2017	1
82020-26A41	LH212,222..RHD	01/2015 - 01/2017	1
82020-26407	LH212,222..RHD POWER DOOR LOCK-WITH	01/2017 - 12/2017	1
82020-0L041	KDH222..STD..SA	12/2016 - 04/2017	1
82020-26A42	LH212,222..RHD	01/2017 - 12/2017	1
82020-0L042	KDH222..STD..SA	04/2017 - 02/2018	1
82020-26408	LH212,222..RHD POWER DOOR LOCK-WITH	12/2017 - 02/2019	1
82020-26A43	LH212,222..RHD	12/2017 - 02/2019	1
82020-0L043	KDH222..STD..SA	02/2018 - 12/2999	1
82028 - WIRING SUB-ASSY, COWL
82028-26030	KDH220..06S;KDH200..LHD..5D;KDH220,222..GEN,KEN;KDH202,212,LH20#,212,222..4D..STD	01/2017 - 12/2999	1
82151 - WIRE, FRONT DOOR, RH
82151-26522	KDH222,TRH223..STD..SA	12/2013 - 01/2015	1
82151-26511	KDH201..LHD;TRH201..03S;TRH201..06S..GCC;TRH223..STD..(GCC,GEN);KDH201,222..4D..(03S,16S)..5F..STD..(GCC,GEN,TH);KDH200,202,203,212,220,223,LH20#,212,222,TRH203,213,221..(03S,06S,10S,12S,13S,15S,16S)..STD..(GCC,GEN,MA,SA)	12/2013 - 12/2015	1
82151-26571	KDH200,201..MA,TH;KDH222..RHD..STD..GEN;LH200,TRH201..RHD..4D..03S;KDH202,212,220,LH202,212,222,TRH203,221..RHD..(06S,10S,15S,16S)..STD POWER DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)	12/2013 - 05/2020	1
82151-26522	TRH201..03S;KDH222..STD..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;KDH220,TRH201,221..06S..(GCC,SA);KDH201,223,TRH213..LHD..STD..(GCC,GEN);KDH201,202,203,212,LH20#,212,222,TRH203..4D..(03S,10S,12S,13S,15S,16S)..5F..STD POWER DOOR LOCK-WITH	12/2013 - 12/2999	1
82151-0L020	KDH222,TRH223..STD..SA	03/2015 - 12/2999	1
82151-26512	TRH201..03S;KDH222..STD..GEN;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH220,TRH201,221..06S..(GCC,SA);KDH201,220,223,TRH213..LHD..STD..(GCC,GEN);KDH201,202,203,212,LH20#,212,222,TRH203..4D..(03S,10S,12S,13S,15S,16S)..5F..STD	12/2015 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-26481	KDH222,TRH223..STD..SA	12/2013 - 01/2015	1
82152-26421	KDH201..LHD;TRH201..03S;TRH201..06S..GCC;TRH223..STD..(GCC,GEN);KDH201,222..4D..(03S,16S)..5F..STD..(GCC,GEN,TH);KDH200,202,203,212,220,223,LH20#,212,222,TRH203,213,221..(03S,06S,10S,12S,13S,15S,16S)..STD..(GCC,GEN,MA,SA)	12/2013 - 12/2015	1
82152-26502	KDH200,201..MA,TH;KDH222..RHD..STD..GEN;LH200,TRH201..RHD..4D..03S;KDH202,212,220,LH202,212,222,TRH203,221..RHD..(06S,10S,15S,16S)..STD POWER DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)	12/2013 - 05/2020	1
82152-26422	TRH201..03S;KDH222..STD..GEN;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH220,TRH201,221..06S..(GCC,SA);KDH201,220,223,TRH213..LHD..STD..(GCC,GEN);KDH201,202,203,212,LH20#,212,222,TRH203..4D..(03S,10S,12S,13S,15S,16S)..5F..STD	12/2015 - 12/2999	1
82152-26481	TRH201..03S;KDH222..STD..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;KDH220,TRH201,221..06S..(GCC,SA);KDH201,223,TRH213..LHD..STD..(GCC,GEN);KDH201,202,203,212,LH20#,212,222,TRH203..4D..(03S,10S,12S,13S,15S,16S)..5F..STD POWER DOOR LOCK-WITH	12/2013 - 12/2999	1
82152-0L020	KDH222,TRH223..STD..SA	03/2015 - 12/2999	1
82667G - HOLDER, CONNECTOR, NO.22
82666-26300	KDH223..4FC..TH;KDH221,TRH200,213..5D..(4FC,5F);KDH201,TRH223..(03S,14S,16S)..(ARL,TH);KDH212,222,TRH201..RHD..(02S,03S,05S,06S,16S);GDH201,KDH201,202,220,223,LH212,222,TRH203,221..RHD..(02S,05S,06S,10S,14S,15S,16S)..(ARL,GEN,MA,SA)	12/2013 - 12/2999	1
82667G - HOLDER, CONNECTOR, NO.22
82666-26300	KDH223..4FC..TH;KDH221,TRH200,213..5D..(4FC,5F);KDH201,TRH223..(03S,14S,16S)..(ARL,TH);KDH212,222,TRH201..RHD..(02S,03S,05S,06S,16S);GDH201,KDH201,202,220,223,LH212,222,TRH203,221..RHD..(02S,05S,06S,10S,14S,15S,16S)..(ARL,GEN,MA,SA)	12/2013 - 12/2999	1
82667H - HOLDER, CONNECTOR, NO.23
82666-26312	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH201..ARL,GCC,GEN;KDH200,201..LHD..5D;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;TRH213,221..ARL,GCC,TH;KDH201,220..02S,05S,06S;KDH201,LH200,TRH203..4D..(03S,10S,15S)..5F;KDH221,222,TRH200..(02S,03S,06S,16S)..(4FC,5F)..(ARL,GEN,KEN,SA);GDH201,KDH202,203,21#,220,223,LH202,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)	12/2013 - 12/2999	1
82667J - HOLDER, CONNECTOR, NO.24
82666-26322	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH201..ARL,GCC,GEN;KDH200,201..LHD..5D;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;TRH213,221..ARL,GCC,TH;KDH201,220..02S,05S,06S;KDH201,LH200,TRH203..4D..(03S,10S,15S)..5F;KDH221,222,TRH200..(02S,03S,06S,16S)..(4FC,5F)..(ARL,GEN,KEN,SA);GDH201,KDH202,203,21#,220,223,LH202,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)	12/2013 - 12/2999	1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-26620	TRH223..TH;KDH222..STD..SA;KDH201..RHD..03S..GEN;KDH203,213,223..RHD..(GEN,TH)	12/2013 - 12/2016	1
82815-26620	KDH222..GL;TRH213..RHD;TRH223..6FC;KDH212,221..02S,03S,10S,16S;KDH201,222..SG..STD..(GCC,GEN);KDH201,TRH223..(03S,14S)..(SA,TH);KDH201,TRH213..LHD..(03S,16S)..GEN;KDH201,TRH223..(02S,05S,13S,16S)..(ARL,GCC,GEN);KDH212,TRH200,201,221..(02S,03S,05S,06S,13S)..(5F,6FC)..STD;KDH200,202,203,213,220,223,LH20#,212,222,TRH203..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA)	12/2013 - 01/2017	1
82815-26A90	TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH223..5F..GL..GCC;TRH213,223..LHD..STD..GEN;KDH220,TRH213,221..02S,06S,11S;KDH213,220,222,223..ARL,GEN,RUS;KDH201,202,203,212,221,LH202,212,222,TRH201..STD;LH200,TRH203,223..4D..(03S,14S,15S)..(5F,6FC)..STD	01/2017 - 12/2999	1
82815-26A90	TRH223..STD..(SA,TH);KDH222,223..STD..(KEN,SA,VN);GDH201,KDH223..RHD..(4FC,6FC)..(GEN,TH)	12/2016 - 12/2999	1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-26611	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH201..ARL,GCC,GEN;KDH200,201..LHD..5D;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;TRH213,221..ARL,GCC,TH;KDH201,220..02S,05S,06S;KDH201,LH200,TRH203..4D..(03S,10S,15S)..5F;KDH221,222,TRH200..(02S,03S,06S,16S)..(4FC,5F)..(ARL,GEN,KEN,SA);GDH201,KDH202,203,21#,220,223,LH202,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)	12/2013 - 12/2999	1
82816B - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-26360	KDH201..TH;KDH222..GL;TRH200,201,22#..6FC;KDH212,221..02S,03S,10S,16S;KDH201,TRH223..LHD..(03S,13S);KDH201,212..SG..(06S,13S)..STD;KDH201,222..(02S,05S,16S)..STD..(ARL,GCC,GEN);KDH200,202,203,213,220,223,LH20#,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA)	12/2013 - 01/2017	1
82815-26360	KDH201..SP..06S;KDH222..STD..SA;KDH200,202,223..MA,VN;KDH212,TRH213..GL..GEN;KDH223,TRH200,223..(06S,10S,16S)..4FC..(GEN,TH)	12/2013 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-26B30	TRH223..TH;KDH222..STD..SA;KDH201..RHD..03S..GEN;KDH203,213,223..RHD..(GEN,TH)	12/2013 - 12/2016	1
82817-26B30	KDH222..GL;TRH213..RHD;TRH223..6FC;KDH212,221..02S,03S,10S,16S;KDH201,222..SG..STD..(GCC,GEN);KDH201,TRH223..(03S,14S)..(SA,TH);KDH201,TRH213..LHD..(03S,16S)..GEN;KDH201,TRH223..(02S,05S,13S,16S)..(ARL,GCC,GEN);KDH212,TRH200,201,221..(02S,03S,05S,06S,13S)..(5F,6FC)..STD;KDH200,202,203,213,220,223,LH20#,212,222,TRH203..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA)	12/2013 - 01/2017	1
82817-26N20	TRH223..STD..(SA,TH);KDH222,223..STD..(KEN,SA,VN);GDH201,KDH223..RHD..(4FC,6FC)..(GEN,TH)	12/2016 - 12/2999	1
82817-26N20	TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH223..5F..GL..GCC;TRH213,223..LHD..STD..GEN;KDH220,TRH213,221..02S,06S,11S;KDH213,220,222,223..ARL,GEN,RUS;KDH201,202,203,212,221,LH202,212,222,TRH201..STD;LH200,TRH203,223..4D..(03S,14S,15S)..(5F,6FC)..STD	01/2017 - 12/2999	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-26B21	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..ARL,RUS,TH;KDH200,201..LHD..5D;TRH201..ARL,GCC,GEN;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;KDH202,TRH213..LHD..GEN;KDH201,220..02S,05S,06S;KDH202,TRH213,221..ARL,GCC,MA,TH;KDH201,LH200,TRH203..4D..(03S,10S,15S)..5F;KDH221,222,TRH200..(02S,03S,06S,16S)..(4FC,5F)..(ARL,GEN,KEN,SA);GDH201,KDH203,21#,220,223,LH202,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,VN)	12/2013 - 12/2999	1
82818B - PROTECTOR, WIRING HARNESS, NO.3
82817-26J20	KDH201..TH;KDH222..GL;TRH200,201,22#..6FC;KDH212,221..02S,03S,10S,16S;KDH201,TRH223..LHD..(03S,13S);KDH201,212..SG..(06S,13S)..STD;KDH201,222..(02S,05S,16S)..STD..(ARL,GCC,GEN);KDH200,202,203,213,220,223,LH20#,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA)	12/2013 - 01/2017	1
82817-26J20	KDH201..SP..06S;KDH222..STD..SA;KDH200,202,223..MA,VN;KDH212,TRH213..GL..GEN;KDH223,TRH200,223..(06S,10S,16S)..4FC..(GEN,TH)	12/2013 - 12/2999	1
Common parts
82711-26370
90119-06923
90179-06274
91511-B0614

ILLUST NO. 5 OF11(2005- )KDH212,22#,TRH213,22#..RHD

Click highlighted areas on diagram

FRONT DOOR & HEADLAMP

Part #	Description	Period	Qty
82020 - HARNESS ASSY, WIRING COWL TO HEADLAMP
82020-26405	LH212,222..RHD POWER DOOR LOCK-WITH	12/2013 - 01/2015	1
82020-26A40	LH212,222..RHD	12/2013 - 01/2015	1
82020-26792	KDH222..STD..SA	02/2014 - 02/2015	1
82020-26376	KDH222..STD..SA CKD PACKAGE(TSAM SOUTH AFRICA)	02/2015 - 04/2015	1
82020-26375	KDH222..STD..SA CKD PACKAGE(TSAM SOUTH AFRICA)	02/2014 - 02/2015	1
82020-0L040	KDH222..STD..SA	02/2015 - 12/2016	1
82020-26406	LH212,222..RHD POWER DOOR LOCK-WITH	01/2015 - 01/2017	1
82020-26A41	LH212,222..RHD	01/2015 - 01/2017	1
82020-26407	LH212,222..RHD POWER DOOR LOCK-WITH	01/2017 - 12/2017	1
82020-0L041	KDH222..STD..SA	12/2016 - 04/2017	1
82020-26A42	LH212,222..RHD	01/2017 - 12/2017	1
82020-0L042	KDH222..STD..SA	04/2017 - 02/2018	1
82020-26408	LH212,222..RHD POWER DOOR LOCK-WITH	12/2017 - 02/2019	1
82020-26A43	LH212,222..RHD	12/2017 - 02/2019	1
82020-0L043	KDH222..STD..SA	02/2018 - 12/2999	1
82028 - WIRING SUB-ASSY, COWL
82028-26030	KDH220..06S;KDH200..LHD..5D;KDH220,222..GEN,KEN;KDH202,212,LH20#,212,222..4D..STD	01/2017 - 12/2999	1
82151 - WIRE, FRONT DOOR, RH
82151-26522	KDH222,TRH223..STD..SA	12/2013 - 01/2015	1
82151-26511	KDH201..LHD;TRH201..03S;TRH201..06S..GCC;TRH223..STD..(GCC,GEN);KDH201,222..4D..(03S,16S)..5F..STD..(GCC,GEN,TH);KDH200,202,203,212,220,223,LH20#,212,222,TRH203,213,221..(03S,06S,10S,12S,13S,15S,16S)..STD..(GCC,GEN,MA,SA)	12/2013 - 12/2015	1
82151-26571	KDH200,201..MA,TH;KDH222..RHD..STD..GEN;LH200,TRH201..RHD..4D..03S;KDH202,212,220,LH202,212,222,TRH203,221..RHD..(06S,10S,15S,16S)..STD POWER DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)	12/2013 - 05/2020	1
82151-26522	TRH201..03S;KDH222..STD..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;KDH220,TRH201,221..06S..(GCC,SA);KDH201,223,TRH213..LHD..STD..(GCC,GEN);KDH201,202,203,212,LH20#,212,222,TRH203..4D..(03S,10S,12S,13S,15S,16S)..5F..STD POWER DOOR LOCK-WITH	12/2013 - 12/2999	1
82151-0L020	KDH222,TRH223..STD..SA	03/2015 - 12/2999	1
82151-26512	TRH201..03S;KDH222..STD..GEN;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH220,TRH201,221..06S..(GCC,SA);KDH201,220,223,TRH213..LHD..STD..(GCC,GEN);KDH201,202,203,212,LH20#,212,222,TRH203..4D..(03S,10S,12S,13S,15S,16S)..5F..STD	12/2015 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-26481	KDH222,TRH223..STD..SA	12/2013 - 01/2015	1
82152-26421	KDH201..LHD;TRH201..03S;TRH201..06S..GCC;TRH223..STD..(GCC,GEN);KDH201,222..4D..(03S,16S)..5F..STD..(GCC,GEN,TH);KDH200,202,203,212,220,223,LH20#,212,222,TRH203,213,221..(03S,06S,10S,12S,13S,15S,16S)..STD..(GCC,GEN,MA,SA)	12/2013 - 12/2015	1
82152-26502	KDH200,201..MA,TH;KDH222..RHD..STD..GEN;LH200,TRH201..RHD..4D..03S;KDH202,212,220,LH202,212,222,TRH203,221..RHD..(06S,10S,15S,16S)..STD POWER DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)	12/2013 - 05/2020	1
82152-26422	TRH201..03S;KDH222..STD..GEN;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH220,TRH201,221..06S..(GCC,SA);KDH201,220,223,TRH213..LHD..STD..(GCC,GEN);KDH201,202,203,212,LH20#,212,222,TRH203..4D..(03S,10S,12S,13S,15S,16S)..5F..STD	12/2015 - 12/2999	1
82152-26481	TRH201..03S;KDH222..STD..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;KDH220,TRH201,221..06S..(GCC,SA);KDH201,223,TRH213..LHD..STD..(GCC,GEN);KDH201,202,203,212,LH20#,212,222,TRH203..4D..(03S,10S,12S,13S,15S,16S)..5F..STD POWER DOOR LOCK-WITH	12/2013 - 12/2999	1
82152-0L020	KDH222,TRH223..STD..SA	03/2015 - 12/2999	1
82667G - HOLDER, CONNECTOR, NO.22
82666-26300	KDH223..4FC..TH;KDH221,TRH200,213..5D..(4FC,5F);KDH201,TRH223..(03S,14S,16S)..(ARL,TH);KDH212,222,TRH201..RHD..(02S,03S,05S,06S,16S);GDH201,KDH201,202,220,223,LH212,222,TRH203,221..RHD..(02S,05S,06S,10S,14S,15S,16S)..(ARL,GEN,MA,SA)	12/2013 - 12/2999	1
82667H - HOLDER, CONNECTOR, NO.23
82666-26312	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH201..ARL,GCC,GEN;KDH200,201..LHD..5D;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;TRH213,221..ARL,GCC,TH;KDH201,220..02S,05S,06S;KDH201,LH200,TRH203..4D..(03S,10S,15S)..5F;KDH221,222,TRH200..(02S,03S,06S,16S)..(4FC,5F)..(ARL,GEN,KEN,SA);GDH201,KDH202,203,21#,220,223,LH202,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)	12/2013 - 12/2999	1
82667J - HOLDER, CONNECTOR, NO.24
82666-26322	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH201..ARL,GCC,GEN;KDH200,201..LHD..5D;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;TRH213,221..ARL,GCC,TH;KDH201,220..02S,05S,06S;KDH201,LH200,TRH203..4D..(03S,10S,15S)..5F;KDH221,222,TRH200..(02S,03S,06S,16S)..(4FC,5F)..(ARL,GEN,KEN,SA);GDH201,KDH202,203,21#,220,223,LH202,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)	12/2013 - 12/2999	1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-26620	TRH223..TH;KDH222..STD..SA;KDH201..RHD..03S..GEN;KDH203,213,223..RHD..(GEN,TH)	12/2013 - 12/2016	1
82815-26620	KDH222..GL;TRH213..RHD;TRH223..6FC;KDH212,221..02S,03S,10S,16S;KDH201,222..SG..STD..(GCC,GEN);KDH201,TRH223..(03S,14S)..(SA,TH);KDH201,TRH213..LHD..(03S,16S)..GEN;KDH201,TRH223..(02S,05S,13S,16S)..(ARL,GCC,GEN);KDH212,TRH200,201,221..(02S,03S,05S,06S,13S)..(5F,6FC)..STD;KDH200,202,203,213,220,223,LH20#,212,222,TRH203..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA)	12/2013 - 01/2017	1
82815-26A90	TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH223..5F..GL..GCC;TRH213,223..LHD..STD..GEN;KDH220,TRH213,221..02S,06S,11S;KDH213,220,222,223..ARL,GEN,RUS;KDH201,202,203,212,221,LH202,212,222,TRH201..STD;LH200,TRH203,223..4D..(03S,14S,15S)..(5F,6FC)..STD	01/2017 - 12/2999	1
82815-26A90	TRH223..STD..(SA,TH);KDH222,223..STD..(KEN,SA,VN);GDH201,KDH223..RHD..(4FC,6FC)..(GEN,TH)	12/2016 - 12/2999	1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-26611	KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH201..ARL,GCC,GEN;KDH200,201..LHD..5D;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;TRH213,221..ARL,GCC,TH;KDH201,220..02S,05S,06S;KDH201,LH200,TRH203..4D..(03S,10S,15S)..5F;KDH221,222,TRH200..(02S,03S,06S,16S)..(4FC,5F)..(ARL,GEN,KEN,SA);GDH201,KDH202,203,21#,220,223,LH202,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,MA,RUS,VN)	12/2013 - 12/2999	1
82816B - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-26360	KDH201..TH;KDH222..GL;TRH200,201,22#..6FC;KDH212,221..02S,03S,10S,16S;KDH201,TRH223..LHD..(03S,13S);KDH201,212..SG..(06S,13S)..STD;KDH201,222..(02S,05S,16S)..STD..(ARL,GCC,GEN);KDH200,202,203,213,220,223,LH20#,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA)	12/2013 - 01/2017	1
82815-26360	KDH201..SP..06S;KDH222..STD..SA;KDH200,202,223..MA,VN;KDH212,TRH213..GL..GEN;KDH223,TRH200,223..(06S,10S,16S)..4FC..(GEN,TH)	12/2013 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-26B30	TRH223..TH;KDH222..STD..SA;KDH201..RHD..03S..GEN;KDH203,213,223..RHD..(GEN,TH)	12/2013 - 12/2016	1
82817-26B30	KDH222..GL;TRH213..RHD;TRH223..6FC;KDH212,221..02S,03S,10S,16S;KDH201,222..SG..STD..(GCC,GEN);KDH201,TRH223..(03S,14S)..(SA,TH);KDH201,TRH213..LHD..(03S,16S)..GEN;KDH201,TRH223..(02S,05S,13S,16S)..(ARL,GCC,GEN);KDH212,TRH200,201,221..(02S,03S,05S,06S,13S)..(5F,6FC)..STD;KDH200,202,203,213,220,223,LH20#,212,222,TRH203..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA)	12/2013 - 01/2017	1
82817-26N20	TRH223..STD..(SA,TH);KDH222,223..STD..(KEN,SA,VN);GDH201,KDH223..RHD..(4FC,6FC)..(GEN,TH)	12/2016 - 12/2999	1
82817-26N20	TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH223..5F..GL..GCC;TRH213,223..LHD..STD..GEN;KDH220,TRH213,221..02S,06S,11S;KDH213,220,222,223..ARL,GEN,RUS;KDH201,202,203,212,221,LH202,212,222,TRH201..STD;LH200,TRH203,223..4D..(03S,14S,15S)..(5F,6FC)..STD	01/2017 - 12/2999	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-26B21	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..ARL,RUS,TH;KDH200,201..LHD..5D;TRH201..ARL,GCC,GEN;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;KDH202,TRH213..LHD..GEN;KDH201,220..02S,05S,06S;KDH202,TRH213,221..ARL,GCC,MA,TH;KDH201,LH200,TRH203..4D..(03S,10S,15S)..5F;KDH221,222,TRH200..(02S,03S,06S,16S)..(4FC,5F)..(ARL,GEN,KEN,SA);GDH201,KDH203,21#,220,223,LH202,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,VN)	12/2013 - 12/2999	1
82818B - PROTECTOR, WIRING HARNESS, NO.3
82817-26J20	KDH201..TH;KDH222..GL;TRH200,201,22#..6FC;KDH212,221..02S,03S,10S,16S;KDH201,TRH223..LHD..(03S,13S);KDH201,212..SG..(06S,13S)..STD;KDH201,222..(02S,05S,16S)..STD..(ARL,GCC,GEN);KDH200,202,203,213,220,223,LH20#,212,222..(03S,06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA)	12/2013 - 01/2017	1
82817-26J20	KDH201..SP..06S;KDH222..STD..SA;KDH200,202,223..MA,VN;KDH212,TRH213..GL..GEN;KDH223,TRH200,223..(06S,10S,16S)..4FC..(GEN,TH)	12/2013 - 12/2999	1
Common parts
82711-26370
90119-06923
90179-06274
91553-80616

KDH222R-LEMDYN (2014)

ILLUST NO. 5 OF11(1312-1612)

ILLUST NO. 5 OF11(1612-2005)KDH20#,21#,22#,TRH20#,213,22#

ILLUST NO. 5 OF11(1612-2005)LH20#,212,222

ILLUST NO. 5 OF11(2005- )KDH212,22#,TRH213,22#..RHD

Part Price Details
