KDH222R-LEMDYN (2014)

Toyota Hiace

Production Feb 2014 - Sep 9999
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1402- )KDH222,TRH223..STD..SA

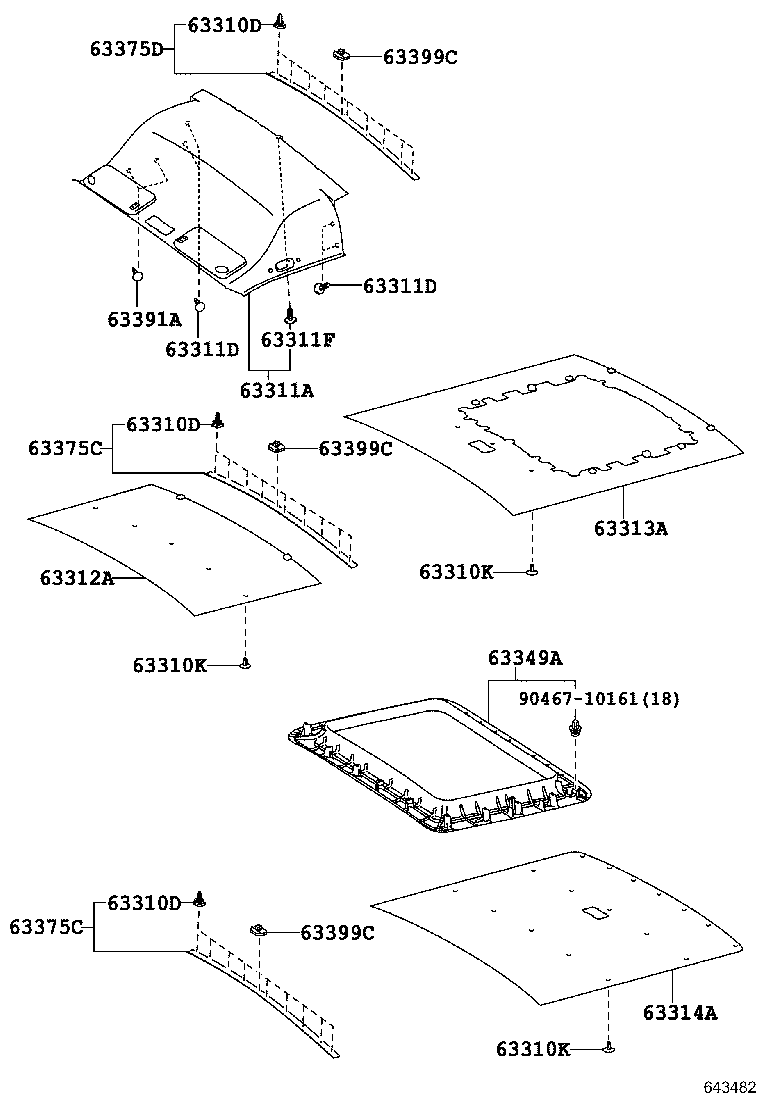

Click highlighted areas on diagram

W(MOON ROOF)

diagram 63310D 63310D 63310D 63310K 63310K 63310K 63311A 63311D 63311D 63311F 63312A 63313A 63314A 63349A 63375C 63375C 63375D 63391A 63399C 63399C 63399C 9046710161
Part # Description Qty Price
63310D - CLIP, ROOF HEADLINING
63399-26030

TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)

 27
63310D - CLIP, ROOF HEADLINING
63399-26030

TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)

 27
63310D - CLIP, ROOF HEADLINING
63399-26030

TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)

 27
63310K - CLIP
63399-26050B0

TRH201;KDH201..SG;KDH200..GCC,MA;KDH201..02S,03S,05S;KDH200..LHD..5D..GEN;KDH222,TRH223..STD..SA;KDH202,203,LH20#,TRH203..SRF..4D..5F..STD

LT.GRAY,TRIM1#

 25
63310K - CLIP
63399-26050B0

TRH201;KDH201..SG;KDH200..GCC,MA;KDH201..02S,03S,05S;KDH200..LHD..5D..GEN;KDH222,TRH223..STD..SA;KDH202,203,LH20#,TRH203..SRF..4D..5F..STD

LT.GRAY,TRIM1#

 25
63310K - CLIP
63399-26050B0

TRH201;KDH201..SG;KDH200..GCC,MA;KDH201..02S,03S,05S;KDH200..LHD..5D..GEN;KDH222,TRH223..STD..SA;KDH202,203,LH20#,TRH203..SRF..4D..5F..STD

LT.GRAY,TRIM1#

 25
63311A - HEADLINING, ROOF NO.1
63310-26A30B1

KDH222,TRH223..STD..SA

LIGHT GRAY,TRIM1#

 1
63310-0L090B0

KDH222,TRH223..STD..SA

LIGHT GRAY,TRIM1#

 1
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0

KDH223..4FC..TH;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH22#..(02S,06S,16S)..(ARL,SA,TH);KDH223,LH200,TRH203..4D..5F..(GCC,GEN,MA);GDH201,KDH201,202,203,221,LH202,222,TRH201;KDH220,222,TRH200..(06S,16S)..(4FC,5F)..STD..(GEN,SA)

LT.GRAY,TRIM1#

 4
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0

KDH223..4FC..TH;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH22#..(02S,06S,16S)..(ARL,SA,TH);KDH223,LH200,TRH203..4D..5F..(GCC,GEN,MA);GDH201,KDH201,202,203,221,LH202,222,TRH201;KDH220,222,TRH200..(06S,16S)..(4FC,5F)..STD..(GEN,SA)

LT.GRAY,TRIM1#

 4
63311F - CLIP, ROOF HEADLINING, NO.1
63399-26050B0

KDH222,TRH223..STD..SA

LT.GRAY,TRIM1#

 1
63312A - HEADLINING, ROOF, NO.2
63312-26200B1

TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)

LIGHT GRAY,TRIM1#

 1
63313A - HEADLINING, ROOF, NO.3
63313-26230B0

KDH222,TRH223..STD..SA

LIGHT GRAY,TRIM1#

 1
63314A - HEADLINING, ROOF, NO.4
63314-26060B1

TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,LH222..ARL,GEN;KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)

LIGHT GRAY,TRIM1#

 1
63349A - GARNISH, ROOF HEADLINING, REAR
63349-26040B0

KDH222,TRH223..STD..SA

LT.GRAY,TRIM1#

 1
63349-0L010B0

KDH222,TRH223..STD..SA

LT.GRAY,TRIM1#

 1
63375C - RETAINER, ROOF HEADLINING SUPPORT, CENTER
63375-26120B0

TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)

LT.GRAY,TRIM1#

 2
63375C - RETAINER, ROOF HEADLINING SUPPORT, CENTER
63375-26120B0

TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)

LT.GRAY,TRIM1#

 2
63375D - MOULDING, ROOF HEADLINING
63375-26110B0

TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)

LT.GRAY,TRIM1#

 1
63391A - CLIP(FOR ROOF HEADLINING TRIM)
90467-06177B5

TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH201,220,TRH200..SP..06S..(4FC,5F);KDH223,TRH221..(02S,06S,12S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH202,220,221,LH222,TRH203..(02S,03S,06S,10S,16S)..(ARL,GEN,MA)

LT.GRAY,TRIM1#

 2
63399C - CLIP, ROOF HEADLINING
63399-26040

TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)

 3
63399C - CLIP, ROOF HEADLINING
63399-26040

TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)

 3
63399C - CLIP, ROOF HEADLINING
63399-26040

TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(SA,TH);TRH223..LHD..STD..GEN;KDH220,221,223,LH222..(02S,03S,12S,16S)..(ARL,GEN);KDH220,222,TRH221..(02S,06S,16S)..STD..(ARL,GEN,SA)

 3
Common parts
90467-10161
