Toyota Hiace KDH222 BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
GR
HIACE
KDH222L-LEMDY (2013)
4708 - BRAKE TUBE & CLAMP

KDH222L-LEMDY (2013)

Toyota Hiace

Production Dec 2013 - Sep 9999

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1312- )TRH201,22#..4FC,5F ; (1312- )GDH201,KDH20#,21#,22#,LH20#,212,222,TRH2

Click highlighted areas on diagram

Part #	Description	Period	Qty
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-26090	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
31478D - CAP, BLEEDER PLUG(FOR LSPV)
31478-30010	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26570	TRH223..LHD..STD..GEN;KDH222,223,LH222..(03S,14S,16S)..(GEN,KEN,VN)	12/2013 - 12/2999	1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-26510	KDH200..MA;TRH201..4FC;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;KDH201,TRH200,201..SP..(4FC,5F)..(GEN,SA,TH);KDH222,223,LH200..4D..(03S,14S,16S)..(GEN,KEN,VN);GDH201,KDH202,203,LH202,222,TRH203..(5F,6FC)..(GCC,GEN,TH)	12/2013 - 12/2999	1
47910B - PLUG, BLEEDER
47547-27030	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47920 - SPRING ASSY, LOAD SENSING
47920-26570	TRH223..LHD..STD..GEN;KDH222,223,LH222..(03S,14S,16S)..(GEN,KEN,VN)	12/2013 - 12/2999	1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	3
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	3
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	3
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	2
47924 - BUSH, LOAD SENSING VALVE
47924-35010	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	2
47924 - BUSH, LOAD SENSING VALVE
47924-35010	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	2
47931 - BRACKET, LOAD SENSING VALVE
47931-26510	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35030	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35050	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47937 - PLATE, LOAD SENSING VALVE SET
47937-26020	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47938 - INSULATOR, LOAD SENSING SPRING SHACKLE HAET
47938-26010	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
Common parts
90015-AA103
90170-08016
90201-23360
94130-00802
94512-00800
94612-10800

ILLUST NO. 2 OF 3(1312- )TRH201,22#..4FC,5F ; (1312- )GDH201,KDH20#,21#,22#,LH20#,212,222,TRH2

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-26180	LH222..LHD;KDH222..LHD..GL..GEN;KDH222,TRH223..5F..(GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26170	12/2013 - 01/2015	1
44050-26260	KDH222..LHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26250	01/2015 - 08/2021	1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	3
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44590-26040	KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 08/2021	1
44590-26040	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
44590-26040	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
44598A - COVER, BRAKE ACTUATOR
44598-26010	KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 08/2021	1
44598-26010	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
44598-26010	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
Common parts
90099-05278
91673-80820

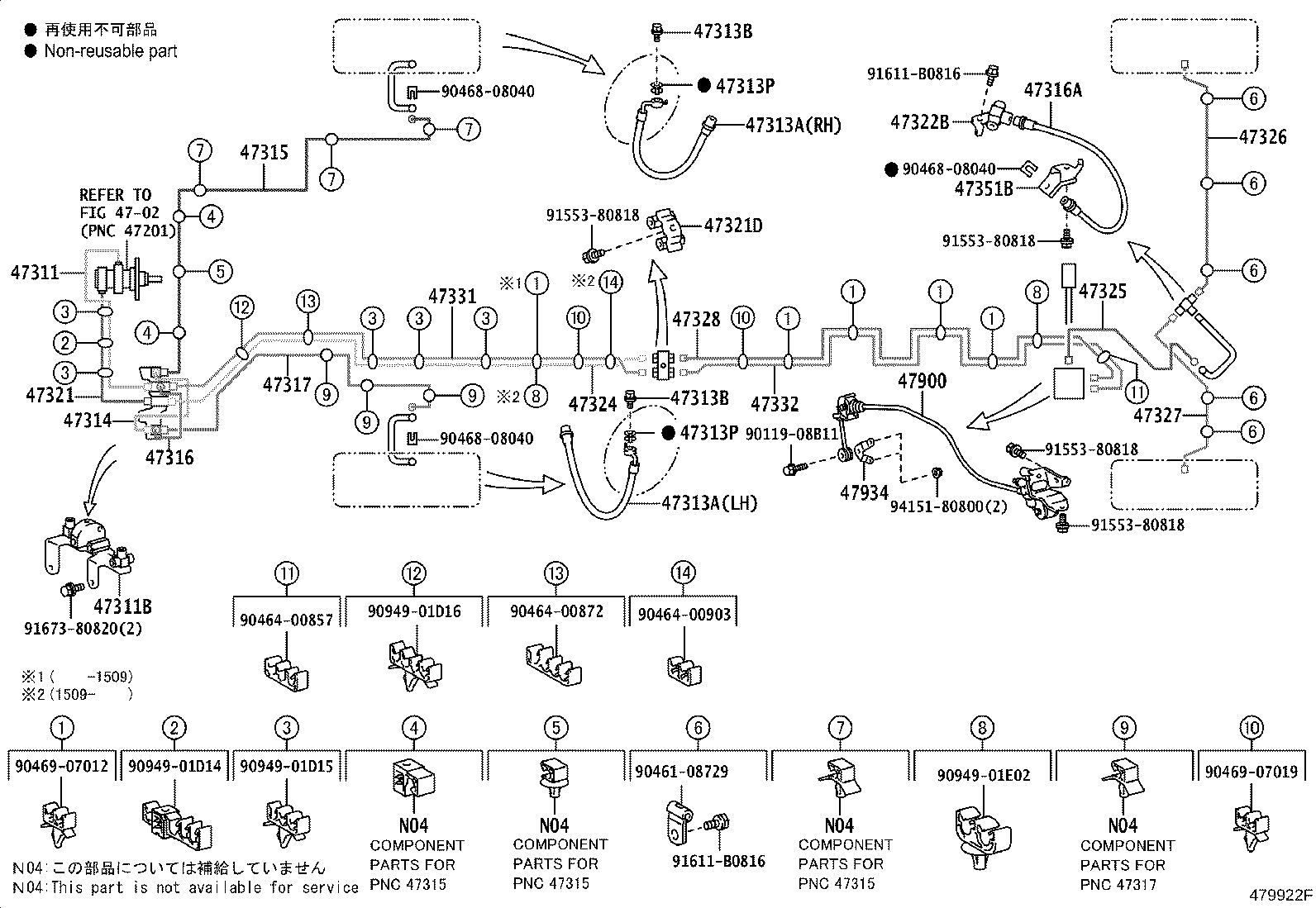

ILLUST NO. 1 OF 3(1501- )KDH220,222,223,LH222,TRH22#..LHD..GCC,GEN,VN

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-26A20	KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD	12/2013 - 01/2015	1
47311-26A50	TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)	01/2015 - 12/2999	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10305	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
90413-10306	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
90413-10338	KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	1
90413-10339	LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)	01/2015 - 12/2999	1
90413-10338	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
90413-10338	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26320	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47313-26390	KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	1
47313-26390	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47313-26390	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26370	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47314-26380	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47314-26390	KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	1
47314-26400	LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)	01/2015 - 12/2999	1
47314-26390	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47314-26390	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26301	TRH221..5F;KDH222..GL;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH21#,220,221,LH212,222,TRH213	12/2013 - 01/2015	1
47315-26340	TRH221..GCC;KDH222..GEN,KEN;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH21#,220,221,223,LH212,222..ARL,GCC,GEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH)	01/2015 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26490	KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	1
47316-26470	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47316-26480	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47316-26500	LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)	01/2015 - 12/2999	1
47316-26490	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47316-26490	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90947-02H57	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-26360	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47317-26340	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47321 - TUBE, REAR BRAKE, NO.1
47321-26770	KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD	12/2013 - 01/2015	1
47321-26800	TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)	01/2015 - 12/2999	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
90412-10285	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-26420	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47322-26430	KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	1
47322-26430	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47322-26430	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10307	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90413-10337	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-26410	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47323-26420	KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	1
47323-26420	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47323-26420	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-26560	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47324-26550	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47324-26570	TRH223..LHD..16S;KDH222..LHD..GL..GEN;KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH201,203,213,221..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 01/2016	1
47324-26580	KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)	01/2015 - 01/2016	1
47324-26571	KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2016 - 08/2021	1
47324-26581	LH222..RHD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,TRH213..LHD..(03S,16S);KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)	01/2016 - 12/2999	1
47324-26571	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47324-26571	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-26410	TRH221..5F;KDH222..GL;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH21#,220,221,LH212,222,TRH213	12/2013 - 01/2015	1
47325-26430	TRH213..LHD;KDH222..GEN,KEN;TRH223..LHD..STD..GEN;KDH220,TRH22#..06S,10S,13S;KDH21#,220,223,LH212,222..GCC,GEN,VN	01/2015 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-26490	TRH223..GL..SA;KDH222..GL..(GEN,SA);KDH222,223,LH222,TRH223..5F..GEN	12/2013 - 01/2015	1
47326-26520	TRH223..LHD..STD..GEN;KDH222,223,LH222..GEN,KEN,VN	01/2015 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-26340	TRH223..GL..SA;KDH222..GL..(GEN,SA);KDH222,223,LH222,TRH223..5F..GEN	12/2013 - 01/2015	1
47327-26370	TRH223..LHD..STD..GEN;KDH222,223,LH222..GEN,KEN,VN	01/2015 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-26160	TRH221..5F;KDH222..GL;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH220,221,223,LH222..ARL,GEN,RUS,SA	12/2013 - 01/2015	1
47328-26180	TRH223..LHD..STD..GEN;KDH220,TRH22#..06S,10S,13S;KDH220,222,223,LH222..GEN,KEN,VN	01/2015 - 12/2999	1
47331 - TUBE, REAR BRAKE, NO.10
47331-26260	KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)	01/2015 - 01/2016	1
47331-26250	TRH223..LHD..16S;KDH222..LHD..GL..GEN;KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH201,203,213,221..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 01/2016	1
47331-26251	KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2016 - 08/2021	1
47331-26261	LH222..RHD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,TRH213..LHD..(03S,16S);KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)	01/2016 - 12/2999	1
47331-26251	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47331-26251	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47332 - TUBE, REAR BRAKE, NO.11
47332-26170	TRH223..LHD..STD..GEN;KDH220,TRH22#..06S,10S,13S;KDH220,222,223,LH222..GEN,KEN,VN	01/2015 - 12/2999	1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26210	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-26200	KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 08/2021	4
47371-26200	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	4
47371-26200	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	4
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26570	TRH223..LHD..STD..GEN;KDH222,223,LH222..(03S,14S,16S)..(GEN,KEN,VN)	12/2013 - 12/2999	1
47934 - BRACKET, LOAD SENSING
47934-26110	KDH223..4FC..TH;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	12/2013 - 12/2999	1
Common parts
90119-08B11
90461-08729
90464-00857
90464-00872
90464-00903
90468-08040
90469-07012
90469-07019
90480-01621
90949-01D14
90949-01D15
90949-01D16
90949-01D92
90949-01E02
91553-80818
91611-B0816
91673-80820
94151-80800
Linked diagrams
4702

ILLUST NO. 1 OF 3(1501- )KDH220,222,LH222,TRH22#..LHD..03S,16S

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-26A20	KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD	12/2013 - 01/2015	1
47311-26A50	TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)	01/2015 - 12/2999	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10305	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
90413-10306	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
90413-10338	KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	1
90413-10339	LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)	01/2015 - 12/2999	1
90413-10338	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
90413-10338	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26370	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47314-26380	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47314-26390	KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	1
47314-26400	LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)	01/2015 - 12/2999	1
47314-26390	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47314-26390	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26301	TRH221..5F;KDH222..GL;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH21#,220,221,LH212,222,TRH213	12/2013 - 01/2015	1
47315-26340	TRH221..GCC;KDH222..GEN,KEN;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH21#,220,221,223,LH212,222..ARL,GCC,GEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH)	01/2015 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26490	KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	1
47316-26470	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47316-26480	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47316-26500	LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)	01/2015 - 12/2999	1
47316-26490	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47316-26490	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90947-02H57	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-26360	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47317-26340	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47321 - TUBE, REAR BRAKE, NO.1
47321-26770	KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD	12/2013 - 01/2015	1
47321-26800	TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)	01/2015 - 12/2999	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
90412-10285	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10307	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90413-10337	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-26560	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47324-26550	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47324-26570	TRH223..LHD..16S;KDH222..LHD..GL..GEN;KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH201,203,213,221..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 01/2016	1
47324-26580	KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)	01/2015 - 01/2016	1
47324-26571	KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2016 - 08/2021	1
47324-26581	LH222..RHD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,TRH213..LHD..(03S,16S);KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)	01/2016 - 12/2999	1
47324-26571	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47324-26571	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-26560	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47324-26550	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47324-26570	TRH223..LHD..16S;KDH222..LHD..GL..GEN;KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH201,203,213,221..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 01/2016	1
47324-26580	KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)	01/2015 - 01/2016	1
47324-26571	KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2016 - 08/2021	1
47324-26581	LH222..RHD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,TRH213..LHD..(03S,16S);KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)	01/2016 - 12/2999	1
47324-26571	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47324-26571	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-26410	TRH221..5F;KDH222..GL;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH21#,220,221,LH212,222,TRH213	12/2013 - 01/2015	1
47325-26430	TRH213..LHD;KDH222..GEN,KEN;TRH223..LHD..STD..GEN;KDH220,TRH22#..06S,10S,13S;KDH21#,220,223,LH212,222..GCC,GEN,VN	01/2015 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-26490	TRH223..GL..SA;KDH222..GL..(GEN,SA);KDH222,223,LH222,TRH223..5F..GEN	12/2013 - 01/2015	1
47326-26520	TRH223..LHD..STD..GEN;KDH222,223,LH222..GEN,KEN,VN	01/2015 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-26340	TRH223..GL..SA;KDH222..GL..(GEN,SA);KDH222,223,LH222,TRH223..5F..GEN	12/2013 - 01/2015	1
47327-26370	TRH223..LHD..STD..GEN;KDH222,223,LH222..GEN,KEN,VN	01/2015 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-26160	TRH221..5F;KDH222..GL;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH220,221,223,LH222..ARL,GEN,RUS,SA	12/2013 - 01/2015	1
47328-26180	TRH223..LHD..STD..GEN;KDH220,TRH22#..06S,10S,13S;KDH220,222,223,LH222..GEN,KEN,VN	01/2015 - 12/2999	1
47331 - TUBE, REAR BRAKE, NO.10
47331-26260	KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)	01/2015 - 01/2016	1
47331-26250	TRH223..LHD..16S;KDH222..LHD..GL..GEN;KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH201,203,213,221..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 01/2016	1
47331-26251	KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2016 - 08/2021	1
47331-26261	LH222..RHD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,TRH213..LHD..(03S,16S);KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)	01/2016 - 12/2999	1
47331-26251	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47331-26251	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47332 - TUBE, REAR BRAKE, NO.11
47332-26170	TRH223..LHD..STD..GEN;KDH220,TRH22#..06S,10S,13S;KDH220,222,223,LH222..GEN,KEN,VN	01/2015 - 12/2999	1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26210	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26570	TRH223..LHD..STD..GEN;KDH222,223,LH222..(03S,14S,16S)..(GEN,KEN,VN)	12/2013 - 12/2999	1
47934 - BRACKET, LOAD SENSING
47934-26110	KDH223..4FC..TH;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	12/2013 - 12/2999	1
Common parts
90119-08B11
90461-08729
90464-00857
90464-00872
90464-00903
90468-08040
90469-07012
90469-07019
90949-01D14
90949-01D15
90949-01D16
90949-01E02
91553-80818
91611-B0816
91673-80820
94151-80800
Linked diagrams
4702

ILLUST NO. 1 OF 3(1501- )KDH223..4FC..ARL ; (1501- )KDH222,LH222,TRH22#..RHD..GEN,KEN,SA,TH ;

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-26A20	KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD	12/2013 - 01/2015	1
47311-26A50	TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)	01/2015 - 12/2999	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10305	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
90413-10306	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
90413-10338	KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	1
90413-10339	LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)	01/2015 - 12/2999	1
90413-10338	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
90413-10338	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26320	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47313-26390	KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	1
47313-26390	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47313-26390	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH RH	12/2013 - 01/2015	1
90947-02F54	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH LH	12/2013 - 01/2015	1
90947-02G74	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S RH	01/2015 - 12/2999	1
90947-02H54	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S LH	01/2015 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)	12/2013 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 11/2017	2
47389-50021	KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S	12/2017 - 12/2999	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26370	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47314-26380	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47314-26390	KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	1
47314-26400	LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)	01/2015 - 12/2999	1
47314-26390	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47314-26390	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26301	TRH221..5F;KDH222..GL;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH21#,220,221,LH212,222,TRH213	12/2013 - 01/2015	1
47315-26340	TRH221..GCC;KDH222..GEN,KEN;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH21#,220,221,223,LH212,222..ARL,GCC,GEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH)	01/2015 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26490	KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	1
47316-26470	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47316-26480	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47316-26500	LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)	01/2015 - 12/2999	1
47316-26490	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47316-26490	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90947-02H57	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-26360	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47317-26340	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
47321 - TUBE, REAR BRAKE, NO.1
47321-26770	KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD	12/2013 - 01/2015	1
47321-26800	TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)	01/2015 - 12/2999	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166	KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH	12/2013 - 01/2015	1
90412-10285	TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	01/2015 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-26420	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47322-26430	KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	1
47322-26430	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47322-26430	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10307	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#	12/2013 - 01/2015	1
90413-10337	KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	01/2015 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-26410	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47323-26420	KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	1
47323-26420	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47323-26420	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-26560	TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)	12/2013 - 01/2015	1
47324-26550	KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 01/2015	1
47324-26570	TRH223..LHD..16S;KDH222..LHD..GL..GEN;KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH201,203,213,221..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 01/2016	1
47324-26580	KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)	01/2015 - 01/2016	1
47324-26571	KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2016 - 08/2021	1
47324-26581	LH222..RHD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,TRH213..LHD..(03S,16S);KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)	01/2016 - 12/2999	1
47324-26571	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47324-26571	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-26410	TRH221..5F;KDH222..GL;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH21#,220,221,LH212,222,TRH213	12/2013 - 01/2015	1
47325-26430	TRH213..LHD;KDH222..GEN,KEN;TRH223..LHD..STD..GEN;KDH220,TRH22#..06S,10S,13S;KDH21#,220,223,LH212,222..GCC,GEN,VN	01/2015 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-26490	TRH223..GL..SA;KDH222..GL..(GEN,SA);KDH222,223,LH222,TRH223..5F..GEN	12/2013 - 01/2015	1
47326-26520	TRH223..LHD..STD..GEN;KDH222,223,LH222..GEN,KEN,VN	01/2015 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-26340	TRH223..GL..SA;KDH222..GL..(GEN,SA);KDH222,223,LH222,TRH223..5F..GEN	12/2013 - 01/2015	1
47327-26370	TRH223..LHD..STD..GEN;KDH222,223,LH222..GEN,KEN,VN	01/2015 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-26160	TRH221..5F;KDH222..GL;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH220,221,223,LH222..ARL,GEN,RUS,SA	12/2013 - 01/2015	1
47328-26180	TRH223..LHD..STD..GEN;KDH220,TRH22#..06S,10S,13S;KDH220,222,223,LH222..GEN,KEN,VN	01/2015 - 12/2999	1
47331 - TUBE, REAR BRAKE, NO.10
47331-26260	KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)	01/2015 - 01/2016	1
47331-26250	TRH223..LHD..16S;KDH222..LHD..GL..GEN;KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH201,203,213,221..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 01/2016	1
47331-26251	KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2016 - 08/2021	1
47331-26261	LH222..RHD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,TRH213..LHD..(03S,16S);KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)	01/2016 - 12/2999	1
47331-26251	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
47331-26251	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
47332 - TUBE, REAR BRAKE, NO.11
47332-26170	TRH223..LHD..STD..GEN;KDH220,TRH22#..06S,10S,13S;KDH220,222,223,LH222..GEN,KEN,VN	01/2015 - 12/2999	1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26210	KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)	12/2013 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-26200	KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 08/2021	4
47371-26200	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	4
47371-26200	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	4
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26570	TRH223..LHD..STD..GEN;KDH222,223,LH222..(03S,14S,16S)..(GEN,KEN,VN)	12/2013 - 12/2999	1
47934 - BRACKET, LOAD SENSING
47934-26110	KDH223..4FC..TH;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S	12/2013 - 12/2999	1
Common parts
90119-08B11
90461-08729
90464-00857
90464-00872
90464-00903
90468-08040
90469-07012
90469-07019
90480-01621
90949-01D14
90949-01D15
90949-01D16
90949-01D92
90949-01E02
91553-80818
91611-B0816
91673-80820
94151-80800
Linked diagrams
4702

ILLUST NO. 2 OF 3(1501- )KDH201..SG ; (1501- )KDH201,223,TRH223..ARL,RUS ; (1501- )KDH202,2

Click highlighted areas on diagram

W(VSC)

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-26180	LH222..LHD;KDH222..LHD..GL..GEN;KDH222,TRH223..5F..(GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26170	12/2013 - 01/2015	1
44050-26180	LH222..LHD;KDH222..LHD..GL..GEN;KDH222,TRH223..5F..(GEN,TH) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26170	12/2013 - 01/2015	1
44050-26260	KDH222..LHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26250	01/2015 - 08/2021	1
44050-26260	KDH222..LHD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26250	01/2015 - 08/2021	1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	3
44546-60060	KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	3
44546-60060	KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060	KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	3
44546-60060	KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	01/2015 - 08/2021	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	3
44546-60060	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	3
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44590-26040	KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 08/2021	1
44590-26040	KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)	12/2013 - 08/2021	1
44590-26040	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
44590-26040	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)	05/2020 - 12/2999	1
44590-26040	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
44590-26040	TRH203..LHD;TRH201,213,22#..LHD..GEN SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)	05/2020 - 12/2999	1
Common parts
44521-12050
90119-06844
91673-80820

KDH222L-LEMDY (2013)

ILLUST NO. 3 OF 3(1312- )TRH201,22#..4FC,5F ; (1312- )GDH201,KDH20#,21#,22#,LH20#,212,222,TRH2

ILLUST NO. 2 OF 3(1312- )TRH201,22#..4FC,5F ; (1312- )GDH201,KDH20#,21#,22#,LH20#,212,222,TRH2

ILLUST NO. 1 OF 3(1501- )KDH220,222,223,LH222,TRH22#..LHD..GCC,GEN,VN

ILLUST NO. 1 OF 3(1501- )KDH220,222,LH222,TRH22#..LHD..03S,16S

ILLUST NO. 1 OF 3(1501- )KDH223..4FC..ARL ; (1501- )KDH222,LH222,TRH22#..RHD..GEN,KEN,SA,TH ;

ILLUST NO. 2 OF 3(1501- )KDH201..SG ; (1501- )KDH201,223,TRH223..ARL,RUS ; (1501- )KDH202,2

Part Price Details
