Toyota Hiace KDH221 HEATING & AIR CONDITIONING - COMPRESSOR

Manufacturers Home
Toyota
GR
HIACE
KDH221R-MFPDY (2013)
8719 - HEATING & AIR CONDITIONING - COMPRESSOR

KDH221R-MFPDY (2013)

Toyota Hiace

Production Dec 2013 - Feb 2019

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1312- )TRH20#,213,22#

Click highlighted areas on diagram

Part #	Description	Period	Qty
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35250	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88431-35250	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
Common parts
90105-08403
90119-08C78
91552-81090
91552-B1040

(1312- )KDH203,222..02S,12S,16S..5F..GEN,TH ;(1312- )KDH200,201,202,212,220,

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-2F020	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88320-2F020	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88320-2F020	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88320-25110	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88320-25110	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88320-25110	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	LH200..4D;KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88335-14020	LH200..4D;KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88335-14020	LH200..4D;KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88335-14020	LH200..4D;KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88335-14020	LH200..4D;KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88335-14020	LH200..4D;KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88410 - CLUTCH ASSY, MAGNET
88410-28200	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88410-28200	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88410-28200	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88410-28200	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88410-28200	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88410-28200	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35250	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88431-35250	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88431-35250	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88431-35250	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88431-35250	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88431-35250	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88440D - PULLEY ASSY, IDLE NO.2
88440-35120	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88440-35120	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88440-35120	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88440-35120	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88440-35120	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88440-35120	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
Common parts
88569-35170
90099-04349
90099-07065
90099-07114
90119-08C78
91552-B1040
93319-15008
Linked diagrams
1601

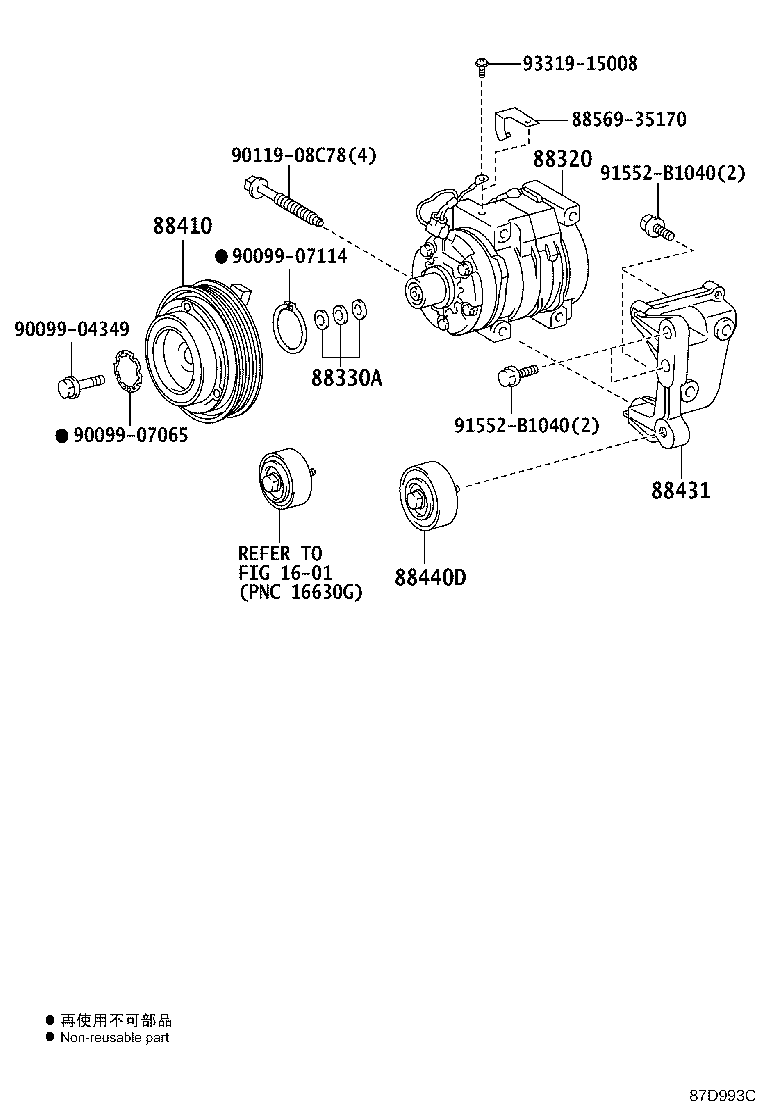

(1312- )KDH222..GL..GEN,SA ; (1312- )KDH213,223..GL..RUS,TH ; (1312- )KDH2

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-2F020	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88320-2F020	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88320-2F020	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88320-25110	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88320-25110	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88320-25110	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	LH200..4D;KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88335-14020	LH200..4D;KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88335-14020	LH200..4D;KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88335-14020	LH200..4D;KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88335-14020	LH200..4D;KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88335-14020	LH200..4D;KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88410 - CLUTCH ASSY, MAGNET
88410-28200	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88410-28200	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88410-28200	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88410-28200	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88410-28200	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88410-28200	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35250	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88431-35250	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88431-35250	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88431-35250	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88431-35250	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88431-35250	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88440D - PULLEY ASSY, IDLE NO.2
88440-35120	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88440-35120	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88440-35120	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER	12/2013 - 12/2999	1
88440-35120	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88440-35120	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
88440-35120	KDH201..SG;KDH220..06S;KDH200..LHD..5D..GEN;KDH201,220,221..(02S,03S,05S)..(ARL,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER	12/2013 - 12/2999	1
Common parts
88569-35170
90099-04349
90099-07065
90099-07114
90119-08C78
91552-B1040
93319-15008
Linked diagrams
1601

KDH221R-MFPDY (2013)

(1312- )TRH20#,213,22#

(1312- )KDH203,222..02S,12S,16S..5F..GEN,TH ;(1312- )KDH200,201,202,212,220,

(1312- )KDH222..GL..GEN,SA ; (1312- )KDH213,223..GL..RUS,TH ; (1312- )KDH2
