KDH221R-MBPDYQ (2006)

Toyota Hiace

Production Oct 2006 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501-1110)1KDFTV,2KDFTV ; (1008-1212)1KDFTV..KDH201,203..LHD ; (1110- )1KDFTV..

Click highlighted areas on diagram

diagram 1701 1701 26100G 26171 90105T0121 90178T0019 9155180825 9415180800
Part # Description Qty Price
26100G - BODY ASSY, DIESEL THROTTLE
26100-30060

1KDFTV..KDH201..03S;1KDFTV,2KDFTV..KDH200,202,203,212,220,221,223;1KDFTV,2KDFTV..KDH201,222..SG..(ARL,GCC,GEN,SA)

 1
26100-30060

1KDFTV..KDH201..03S;1KDFTV,2KDFTV..KDH200,202,203,212,220,221,223;1KDFTV,2KDFTV..KDH201,222..SG..(ARL,GCC,GEN,SA)

 1
26171 - GASKET, VENTURI
26171-30020

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 1
26171-30020

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 1
Common parts
90105-T0121
90178-T0019
91551-80825
94151-80800
Linked diagrams
1701

(1110- )1KDFTV,2KDFTV..KDH200,202,212,22#

Click highlighted areas on diagram

diagram 1701 1701 26100G 26171 90105T0121 90178T0019 9155180825 9415180800
Part # Description Qty Price
26100G - BODY ASSY, DIESEL THROTTLE
26100-30060

1KDFTV..KDH201..03S;1KDFTV,2KDFTV..KDH200,202,203,212,220,221,223;1KDFTV,2KDFTV..KDH201,222..SG..(ARL,GCC,GEN,SA)

 1
26100-30060

1KDFTV..KDH201..03S;1KDFTV,2KDFTV..KDH200,202,203,212,220,221,223;1KDFTV,2KDFTV..KDH201,222..SG..(ARL,GCC,GEN,SA)

 1
26171 - GASKET, VENTURI
26171-30020

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 1
26171-30020

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 1
Common parts
90105-T0121
90178-T0019
91551-80825
94151-80800
Linked diagrams
1701

(1312-1606)1KDFTV..KDH221..ARL ; (1312-1606)1KDFTV..KDH223..4FC..ARL

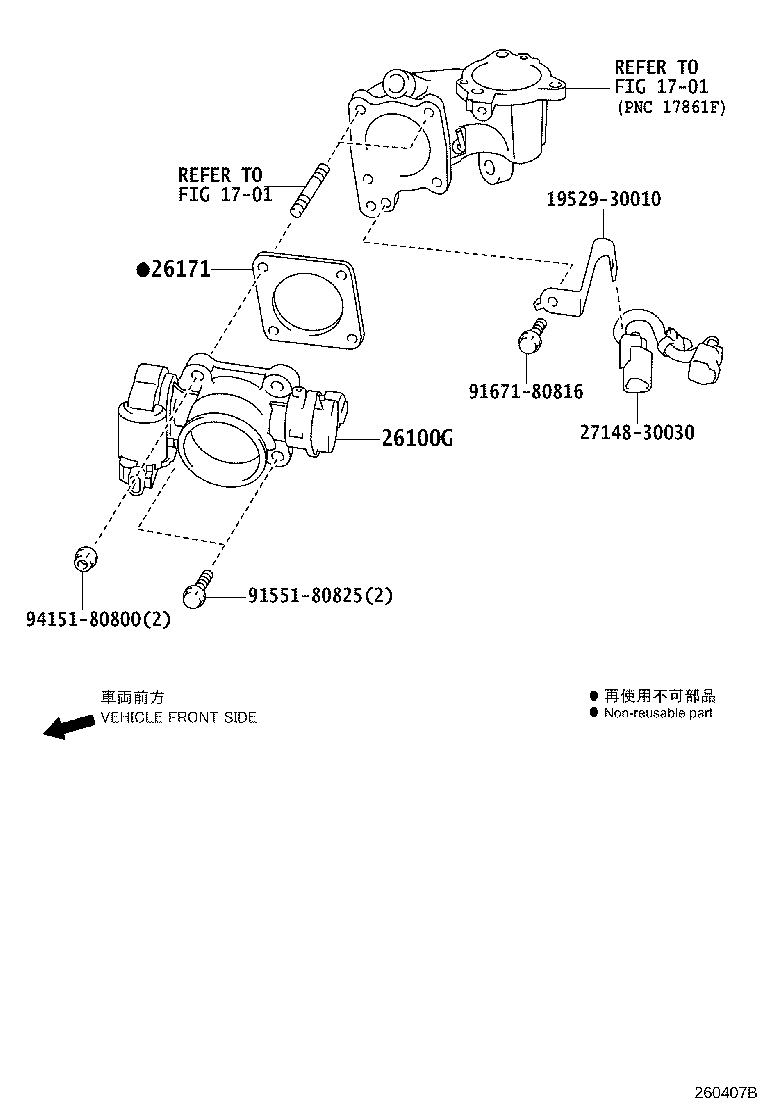

Click highlighted areas on diagram

SINGAPOLE SPEC

diagram 1701 1701 1952930010 26100G 26171 2714830030 9155180825 9167180816 9415180800
Part # Description Qty Price
Common parts
19529-30010
27148-30030
91551-80825
91671-80816
94151-80800
Linked diagrams
1701
