KDH221R-MBPDYQ (2006)

Toyota Hiace

Production Oct 2006 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610-1008)1KDFTV

Click highlighted areas on diagram

diagram 1104 1603 1603 1603 1603 1701 1701 1701 1701 1701 25627 25628 25680 25800 8405 9011906749 9017906298 9046910007 9155180814 9155180814
Part # Description Qty Price
25627 - GASKET, EGR VALVE
25627-30010

1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223

 1
25628 - GASKET, EGR INLET
25628-30010

1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223

 1
25680 - COOLER ASSY, EGR
25680-30010

1KDFTV..KDH201,203,221,223

 1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-30140

1KDFTV..KDH201,203,221,223

 1
Common parts
90119-06749
90179-06298
90469-10007
91551-80814
Linked diagrams
1104
1603
1701
8405

(1008-1110)1KDFTV ; (1110-1212)1KDFTV..KDH201,203..LHD ; (1110- )1KDFTV..KDH201,

Click highlighted areas on diagram

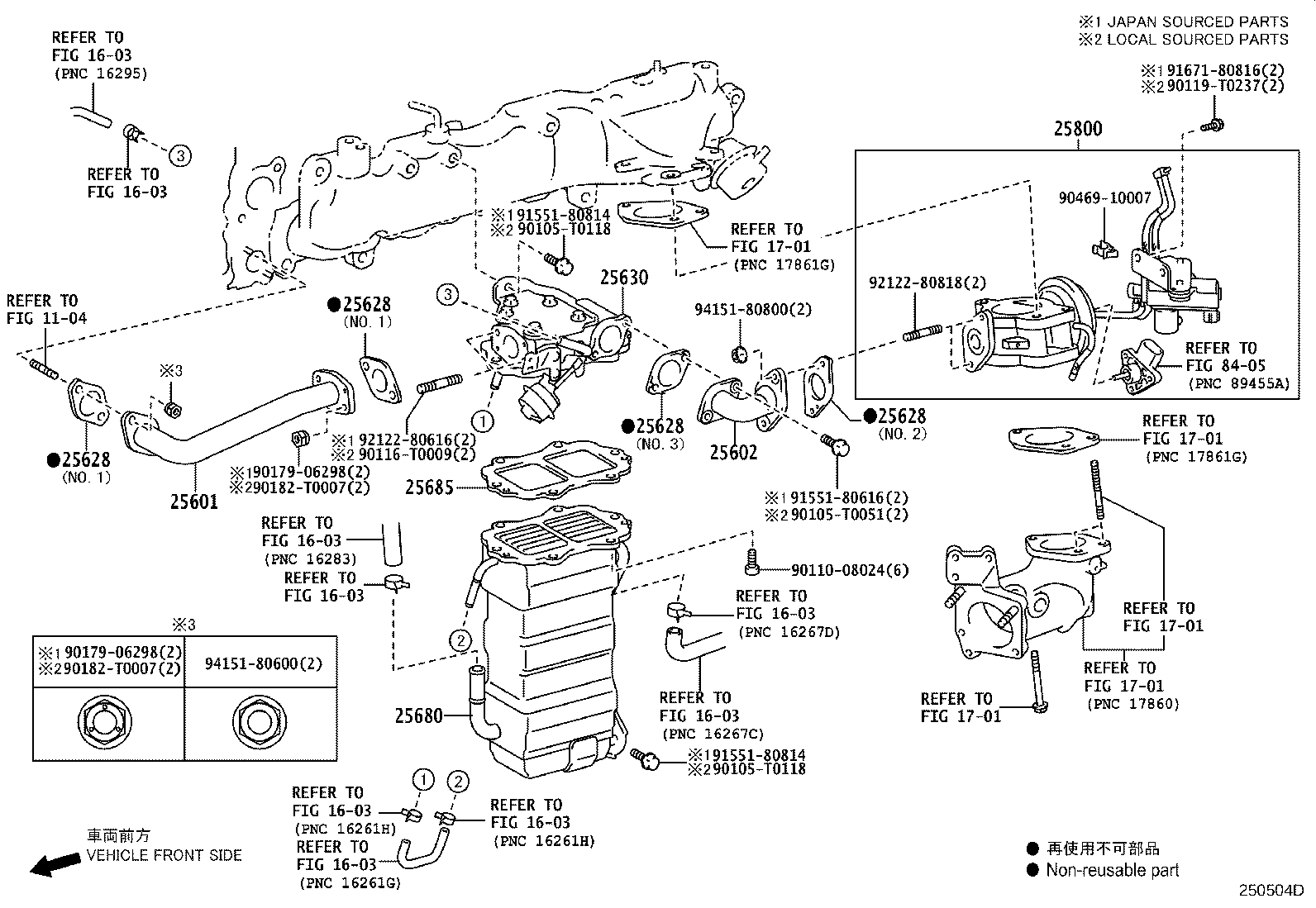

diagram 1104 1603 1603 1603 1603 1603 1603 1603 1603 1603 1701 1701 1701 1701 1701 1708 1708 25601 25601 25601J 25601J 25602 25629A 25630 25639 25680 25685 25800 8405 90105T0051 90105T0118 90105T0118 9011008024 90116T0009 90119T0237 9017906298 9017906298 9017908040 90182T0007 90182T0007 9046910007 9155180616 9155180814 9155180814 9167180816 9212280616 9212280818
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-30090

1KDFTV..KDH201,203,221,223

 1
25601-30091

1KDFTV..KDH201..SG;1KDFTV..KDH201,203,221,223..03S,12S,14S

 1
25601-30092

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-30090

1KDFTV..KDH201,203,221,223

 1
25601-30091

1KDFTV..KDH201..SG;1KDFTV..KDH201,203,221,223..03S,12S,14S

 1
25601-30092

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
25602 - PIPE SUB-ASSY, EGR, NO.2
25612-30010

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
25680 - COOLER ASSY, EGR
25680-30010

1KDFTV..KDH201,203,221,223

 1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-30140

1KDFTV..KDH201,203,221,223

 1
Common parts
90105-T0051
90105-T0118
90110-08024
90116-T0009
90119-T0237
90179-06298
90179-08040
90182-T0007
90469-10007
91551-80616
91551-80814
91671-80816
92122-80616
92122-80818
Linked diagrams
1104
1603
1701
1708
8405

(1312-1501)1KDFTV..KDH223..RUS ; (1312-1606)1KDFTV..KDH201..ARL ; (1312-1606)1KDFTV

Click highlighted areas on diagram

EURO 4 REGULATION

diagram 1104 1603 1603 1603 1603 1603 1603 1603 1603 1603 1701 1701 1701 1701 1701 25601 25602 25628 25628 25628 25628 25630 25680 25685 25800 8405 90105T0051 90105T0118 90105T0118 9011008024 90116T0009 90119T0237 9017906298 9017906298 90182T0007 90182T0007 9046910007 9155180616 9155180814 9155180814 9167180816 9212280616 9212280818 9415180600 9415180800
Part # Description Qty Price
Common parts
90105-T0051
90105-T0118
90110-08024
90116-T0009
90119-T0237
90179-06298
90182-T0007
90469-10007
91551-80616
91551-80814
91671-80816
92122-80616
92122-80818
94151-80600
94151-80800
Linked diagrams
1104
1603
1701
8405

(1312-1606)1KDFTV..KDH221..ARL ; (1312-1606)1KDFTV..KDH223..4FC..ARL

Click highlighted areas on diagram

SINGAPOLE SPEC

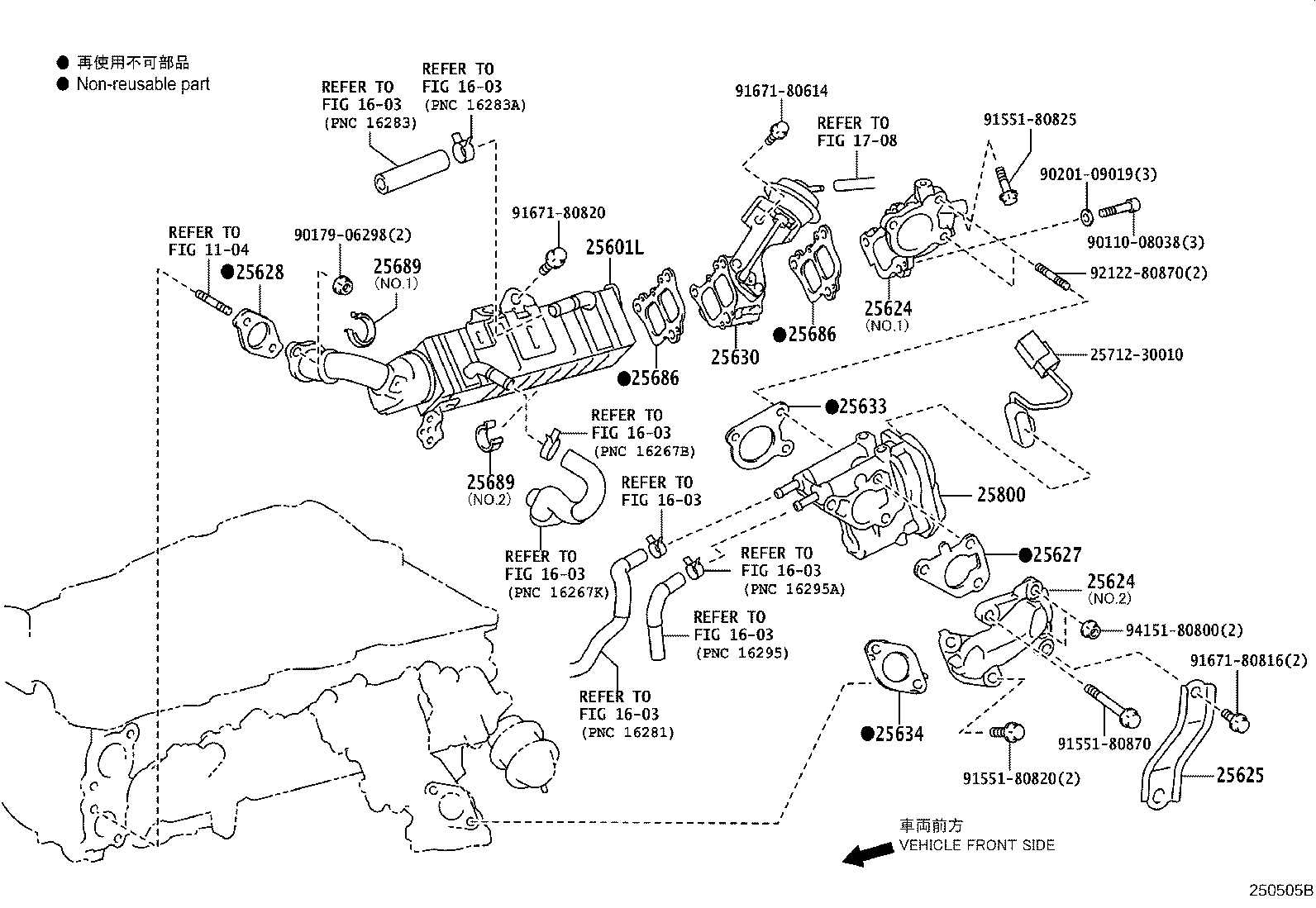

diagram 1104 1603 1603 1603 1603 1603 1603 1603 1603 1708 25601L 25624 25624 25625 25627 25628 25630 25633 25634 25686 25686 25689 25689 2571230010 25800 9011008038 9017906298 9020109019 9155180820 9155180825 9155180870 9167180614 9167180816 9167180820 9212280870 9415180800
Part # Description Qty Price
Common parts
25712-30010
90110-08038
90179-06298
90201-09019
91551-80820
91551-80825
91551-80870
91671-80614
91671-80816
91671-80820
92122-80870
94151-80800
Linked diagrams
1104
1603
1708
