KDH221R-MBPDYQ (2006)

Toyota Hiace

Production Oct 2006 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0610-1008)1KDFTV

Click highlighted areas on diagram

diagram 04226 04226 1301 1301 1301 2201 2201 2201 22100 2302 23271H 23273H 23681A 23681A 23681A 23681A 23701 23702 23703 23704 23741 23742 23742 23742 23742A 23742A 23742A 23804C 23810A 7751 8405 9017908022 9030149003 9046400723 9046400723 9046613003 9092901441 9155281045 9163160625 9163160625 9163160625 91631G0614 9613251300 9613551300 9613551300
Part # Description Qty Price
04226 - VALVE KIT, SUCTION CONTROL
04226-30010

1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223

 1
04226 - VALVE KIT, SUCTION CONTROL
04226-30010

1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223

 1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-30040

1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223

 1
23271H - HOSE, FUEL, NO.1
23271-30150

1KDFTV,2KDFTV..KDH212,22#

 1
23273H - HOSE, FUEL, NO.2
23273-30130

1KDFTV,2KDFTV..KDH212,22#..ARL,GCC,GEN,SA,TH,VN

 1
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-30010

2KDFTV..KDH212..GCC;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,212..RHD..(03S,16S);1KDFTV,2KDFTV..KDH201,222,223..SG..(ARL,GCC,GEN,RUS,SA);1KDFTV,2KDFTV..KDH200,203,212,220,221..(03S,06S,10S,11S,14S,15S)..(ARL,GCC,GEN,SA,TH)

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS

 3
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS

 3
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS

 3
23742A - CLAMP, INJECTION PIPE, NO.3
23742-58020

1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS

 3
23742A - CLAMP, INJECTION PIPE, NO.3
23742-58020

1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS

 3
23742A - CLAMP, INJECTION PIPE, NO.3
23742-58020

1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS

 3
23804C - PIPE SUB-ASSY, FUEL INLET
23804-39015

1KDFTV..KDH201,203,221,223

 1
Common parts
90179-08022
90301-49003
90464-00723
90466-13003
90929-01441
91552-81045
91631-60625
91631-G0614
96132-51300
96135-51300
Linked diagrams
1301
2201
2302
7751
8405

(0705- )2KDFTV..KDH202..15S..GEN ; (0705-)2KDFTV..KDH202..HRF..GEN ; (0705-

Click highlighted areas on diagram

diagram 04226 1301 1301 1301 2201 2201 22100 22100S 2302 2302 23271H 23271H 23273H 23274D 23681A 23681A 23681A 23681A 23701 23702 23703 23704 23741 23742 23742A 23743 23743 23804C 23810A 7751 7751 8405 90105T0170 9011606173 9011906775 90119T0064 90119T0306 90178T0018 9017906208 9017908022 90182T0009 9025313008 90253T0003 9030149003 90301T0011 9046400723 9046400723 9046400723 90464T0004 90464T0004 9046613003 9046613003 9092901441 9092901441 9155281060 9163160625 91631G0614 9415180600 9613251300 9613251300 9613551300 9613551300 9613551300 9613551300 9613551300 9613551300
Part # Description Qty Price
04226 - VALVE KIT, SUCTION CONTROL
04226-30010

1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223

 1
04226-30010

1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223

 1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-30040

1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223

 1
22100-30040

1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223

 1
23271H - HOSE, FUEL, NO.1
23271-30150

1KDFTV,2KDFTV..KDH212,22#

 1
23271-30150

1KDFTV,2KDFTV..KDH212,22#

 1
23271H - HOSE, FUEL, NO.1
23271-30150

1KDFTV,2KDFTV..KDH212,22#

 1
23271-30150

1KDFTV,2KDFTV..KDH212,22#

 1
23273H - HOSE, FUEL, NO.2
23273-30130

1KDFTV,2KDFTV..KDH212,22#..ARL,GCC,GEN,SA,TH,VN

 1
23273-30130

1KDFTV,2KDFTV..KDH212,22#..ARL,GCC,GEN,SA,TH,VN

 1
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 4
23681-30010

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 4
23681-30010

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 4
23681-30010

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 4
23681-30010

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-30010

2KDFTV..KDH212..GCC;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,212..RHD..(03S,16S);1KDFTV,2KDFTV..KDH201,222,223..SG..(ARL,GCC,GEN,RUS,SA);1KDFTV,2KDFTV..KDH200,203,212,220,221..(03S,06S,10S,11S,14S,15S)..(ARL,GCC,GEN,SA,TH)

 1
23741-30010

2KDFTV..KDH212..GCC;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,212..RHD..(03S,16S);1KDFTV,2KDFTV..KDH201,222,223..SG..(ARL,GCC,GEN,RUS,SA);1KDFTV,2KDFTV..KDH200,203,212,220,221..(03S,06S,10S,11S,14S,15S)..(ARL,GCC,GEN,SA,TH)

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS

 3
23742-27010

1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS

 3
23742A - CLAMP, INJECTION PIPE, NO.3
23742-58020

1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS

 3
23742-58020

1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS

 3
23804C - PIPE SUB-ASSY, FUEL INLET
23804-39015

1KDFTV..KDH201,203,221,223

 1
23804-39015

1KDFTV..KDH201,203,221,223

 1
Common parts
90105-T0170
90116-06173
90119-06775
90119-T0064
90119-T0306
90178-T0018
90179-06208
90179-08022
90182-T0009
90253-13008
90253-T0003
90301-49003
90301-T0011
90464-00723
90464-T0004
90466-13003
90929-01441
91552-81060
91631-60625
91631-G0614
94151-80600
96132-51300
96135-51300
Linked diagrams
1301
2201
2302
7751
8405

(1008-1110)1KDFTV ; (1110-1212)1KDFTV..KDH201,203..LHD ; (1110- )1KDFTV..KDH201,

Click highlighted areas on diagram

diagram 04226 1301 1301 1301 2201 2201 2201 22100 22100S 2302 2302 23271H 23271H 23273H 23274D 23681A 23681A 23681A 23681A 23701 23702 23703 23704 23741 23742 23742 23742 23742A 23742A 23742A 23804C 23810A 7751 7751 8405 90105T0079 90119T0136 9017908022 90182T0009 9030149003 90301T0011 9046400723 9046400723 9046400723 90464T0004 90464T0004 9046613003 9046613003 9092901441 9092901441 9155281045 9163160625 9163160625 9163160625 9167180614 9613251300 9613251300 9613251300 9613551300 9613551300 9613551300 9613551300 9613551300
Part # Description Qty Price
04226 - VALVE KIT, SUCTION CONTROL
04226-30010

1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223

 1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-30040

1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223

 1
23271H - HOSE, FUEL, NO.1
23271-30150

1KDFTV,2KDFTV..KDH212,22#

 1
23271H - HOSE, FUEL, NO.1
23271-30150

1KDFTV,2KDFTV..KDH212,22#

 1
23273H - HOSE, FUEL, NO.2
23273-30130

1KDFTV,2KDFTV..KDH212,22#..ARL,GCC,GEN,SA,TH,VN

 1
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 4
23681A - SEAL, NOZZLE HOLDER
23681-30010

1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-30010

2KDFTV..KDH212..GCC;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,212..RHD..(03S,16S);1KDFTV,2KDFTV..KDH201,222,223..SG..(ARL,GCC,GEN,RUS,SA);1KDFTV,2KDFTV..KDH200,203,212,220,221..(03S,06S,10S,11S,14S,15S)..(ARL,GCC,GEN,SA,TH)

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS

 3
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS

 3
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS

 3
23742A - CLAMP, INJECTION PIPE, NO.3
23742-58020

1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS

 3
23742A - CLAMP, INJECTION PIPE, NO.3
23742-58020

1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS

 3
23742A - CLAMP, INJECTION PIPE, NO.3
23742-58020

1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS

 3
23804C - PIPE SUB-ASSY, FUEL INLET
23804-39015

1KDFTV..KDH201,203,221,223

 1
Common parts
90105-T0079
90119-T0136
90179-08022
90182-T0009
90301-49003
90301-T0011
90464-00723
90464-T0004
90466-13003
90929-01441
91552-81045
91631-60625
91671-80614
96132-51300
96135-51300
Linked diagrams
1301
2201
2302
7751
8405

(1312-1606)1KDFTV..KDH221..ARL ; (1312-1606)1KDFTV..KDH223..4FC..ARL

Click highlighted areas on diagram

SINGAPOLE SPEC

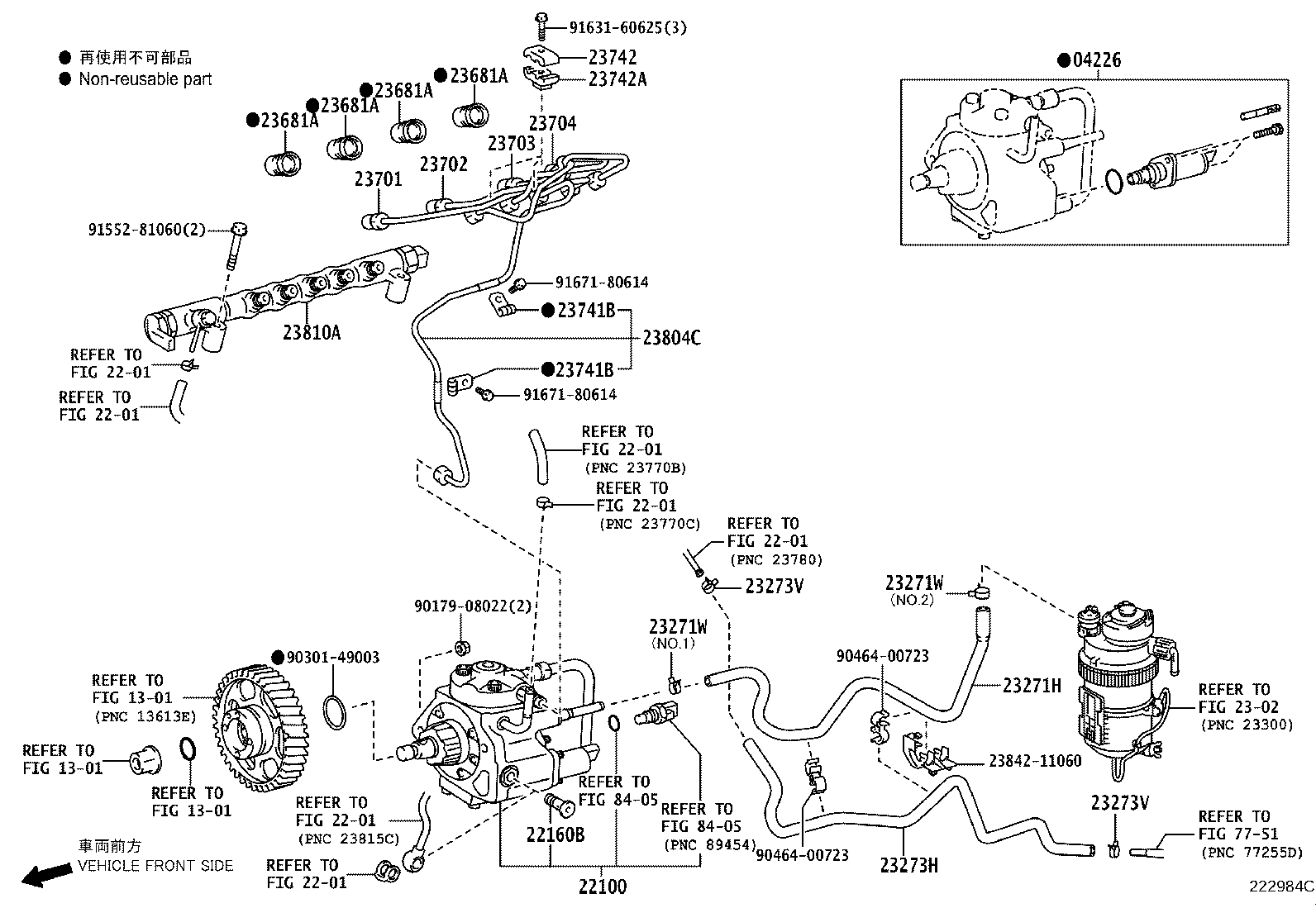

diagram 04226 1301 1301 1301 2201 2201 2201 2201 2201 2201 2201 22100 22160B 2302 23271H 23271W 23271W 23273H 23273V 23273V 23681A 23681A 23681A 23681A 23701 23702 23703 23704 23741B 23741B 23742 23742A 23804C 23810A 2384211060 7751 8405 8405 9017908022 9030149003 9046400723 9046400723 9155281060 9163160625 9167180614 9167180614
Part # Description Qty Price
Common parts
23842-11060
90179-08022
90301-49003
90464-00723
91552-81060
91631-60625
91671-80614
Linked diagrams
1301
2201
2302
7751
8405
