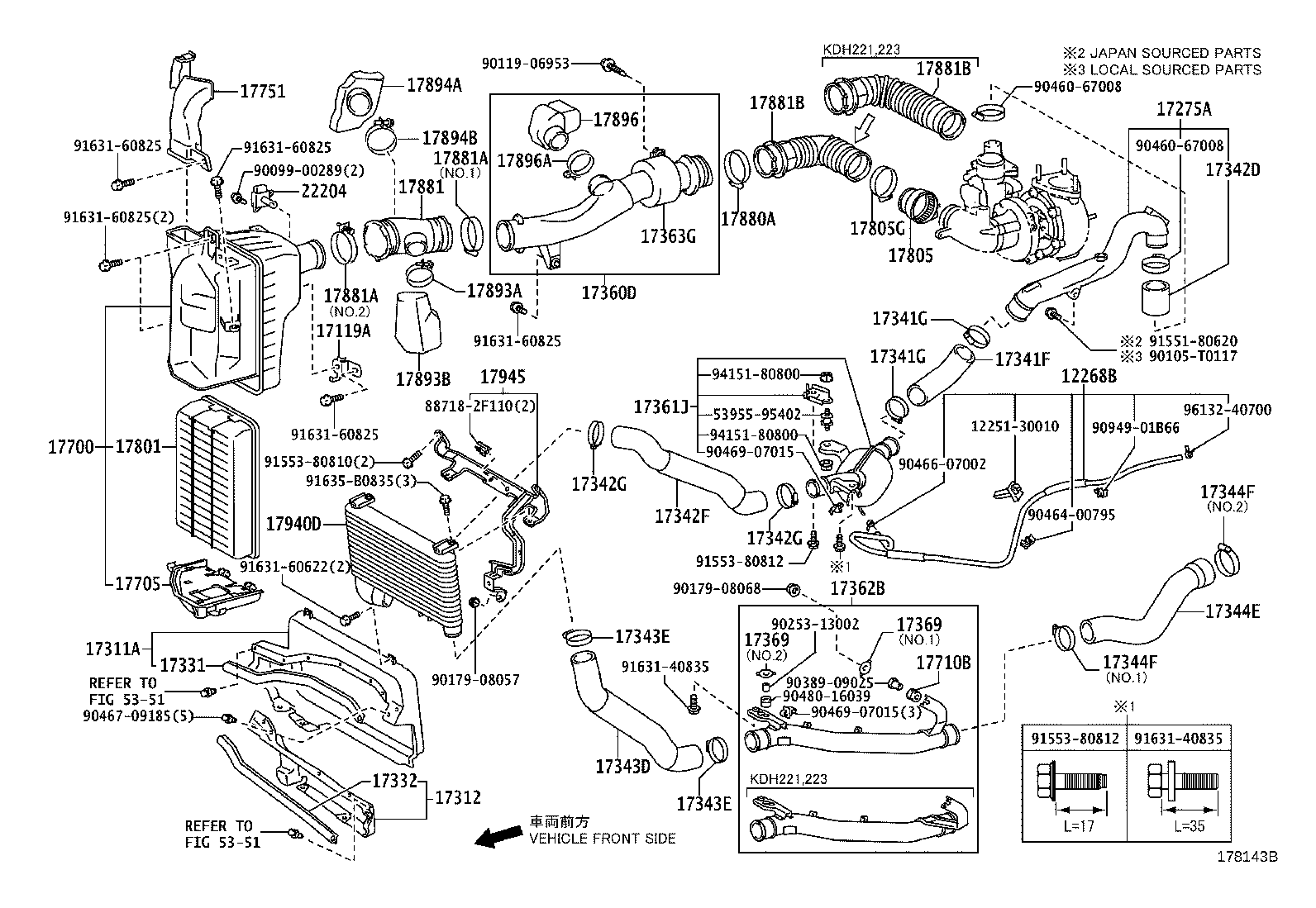

KDH221R-MBPDYQ (2006)
Toyota Hiace
(0610-0709)1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12268B - HOSE, OIL RETURN | ||||
| 12268-30050 |
1KDFTV..KDH201,223..SG;1KDFTV..KDH201,203,221..RHD..(03S,12S,14S) |
1 | ||
| 12268-30100 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17119A - BRACKET, AIR CLEANER | ||||
| 17119-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17275A - ELBOW, COMPRESSOR OUTLET | ||||
| 17275-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17298A - STAY, COMPRESSOR ELBOW | ||||
| 17298-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17298-30030 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17311A - DUCT, AIR INLET, NO.1 | ||||
| 17311-30030 |
2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN) |
1 | ||
| 17311-30031 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17312 - DUCT, AIR INLET, NO.2 | ||||
| 17312-30031 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17312-30030 |
2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN) |
1 | ||
| 17331 - SEAL, DUCT AIR INLET NO.1 | ||||
| 17331-30020 |
1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17332 - SEAL, DUCT AIR INLET NO.2 | ||||
| 17332-30020 |
1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-30071 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 17341-30070 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
2 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30062 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-30023 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-30031 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17344-30010 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 17344-30030 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.1 |
1 | ||
| 90460-77002 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.2 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.1 |
1 | ||
| 90460-77002 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.2 |
1 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-30021 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361-30020 |
1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN) |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-30011 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17362-30010 |
1KDFTV,2KDFTV..KDH22#..RHD..(ARL,GEN) |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-30210 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30280 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30281 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-30140 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16021 |
2KDFTV..KDH200..ARL;2KDFTV..KDH200..06S..GEN;1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN) |
2 | ||
| 90480-16021 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16021 |
2KDFTV..KDH200..ARL;2KDFTV..KDH200..06S..GEN;1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN) |
2 | ||
| 90480-16021 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17750-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17750-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17805G - CLAMP, HOSE(FOR AIR CONNECTOR) | ||||
| 90460-67004 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223..ARL,GEN |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30110 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881-30150 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 17881B - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30131 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30130 |
1KDFTV..KDH221,223 |
1 | ||
| 17881B - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30131 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30130 |
1KDFTV..KDH221,223 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-30050 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 22204-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| Common parts | ||||
| 12251-30010 | ||||
| 88718-2F110 | ||||
| 90099-00289 | ||||
| 90119-06953 | ||||
| 90179-08057 | ||||
| 90179-08068 | ||||
| 90253-13002 | ||||
| 90389-09025 | ||||
| 90460-70003 | ||||
| 90464-00598 | ||||
| 90464-00795 | ||||
| 90466-07002 | ||||
| 90467-09185 | ||||
| 90469-07015 | ||||
| 90480-16039 | ||||
| 90949-01B66 | ||||
| 91551-80620 | ||||
| 91553-80810 | ||||
| 91553-80812 | ||||
| 91631-40835 | ||||
| 91631-60825 | ||||
| 91631-B0616 | ||||
| 91635-B0835 | ||||
| 96132-40700 | ||||
| Linked diagrams | ||||
| 5351 | ||||
(0709-1008)1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12268B - HOSE, OIL RETURN | ||||
| 12268-30050 |
1KDFTV..KDH201,223..SG;1KDFTV..KDH201,203,221..RHD..(03S,12S,14S) |
1 | ||
| 12268-30100 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17119A - BRACKET, AIR CLEANER | ||||
| 17119-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17275A - ELBOW, COMPRESSOR OUTLET | ||||
| 17275-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17298A - STAY, COMPRESSOR ELBOW | ||||
| 17298-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17298-30030 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17311A - DUCT, AIR INLET, NO.1 | ||||
| 17311-30030 |
2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN) |
1 | ||
| 17311-30031 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17312 - DUCT, AIR INLET, NO.2 | ||||
| 17312-30031 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17312-30030 |
2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN) |
1 | ||
| 17331 - SEAL, DUCT AIR INLET NO.1 | ||||
| 17331-30020 |
1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17332 - SEAL, DUCT AIR INLET NO.2 | ||||
| 17332-30020 |
1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-30071 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 17341-30070 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
2 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30062 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-30023 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-30031 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17344-30010 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 17344-30030 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.1 |
1 | ||
| 90460-77002 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.2 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.1 |
1 | ||
| 90460-77002 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.2 |
1 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-30021 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361-30020 |
1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN) |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-30011 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17362-30010 |
1KDFTV,2KDFTV..KDH22#..RHD..(ARL,GEN) |
1 | ||
| 17369 - BRACKET, AIR TUBE SUPPORT | ||||
| 17369-30010 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.1 |
2 | ||
| 17369-30020 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.2 |
2 | ||
| 17369 - BRACKET, AIR TUBE SUPPORT | ||||
| 17369-30010 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.1 |
2 | ||
| 17369-30020 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.2 |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-30210 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30280 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30281 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-30140 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16021 |
2KDFTV..KDH200..ARL;2KDFTV..KDH200..06S..GEN;1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN) |
2 | ||
| 90480-16021 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17750-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17750-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17805G - CLAMP, HOSE(FOR AIR CONNECTOR) | ||||
| 90460-67004 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223..ARL,GEN |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30110 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881-30150 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 17881B - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30131 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30130 |
1KDFTV..KDH221,223 |
1 | ||
| 17881B - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30131 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30130 |
1KDFTV..KDH221,223 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-30050 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 22204-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| Common parts | ||||
| 12251-30010 | ||||
| 53955-95402 | ||||
| 88718-2F110 | ||||
| 90099-00289 | ||||
| 90119-06953 | ||||
| 90179-08057 | ||||
| 90179-08068 | ||||
| 90253-13002 | ||||
| 90389-09025 | ||||
| 90460-70003 | ||||
| 90464-00598 | ||||
| 90464-00795 | ||||
| 90466-07002 | ||||
| 90467-09185 | ||||
| 90469-07015 | ||||
| 90480-16039 | ||||
| 90949-01B66 | ||||
| 91551-80620 | ||||
| 91553-80810 | ||||
| 91553-80812 | ||||
| 91631-40835 | ||||
| 91631-60622 | ||||
| 91631-60825 | ||||
| 91631-B0616 | ||||
| 91635-B0835 | ||||
| 94151-80800 | ||||
| 96132-40700 | ||||
| Linked diagrams | ||||
| 5351 | ||||
(1008-1110)1KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12268B - HOSE, OIL RETURN | ||||
| 12268-30050 |
1KDFTV..KDH201,223..SG;1KDFTV..KDH201,203,221..RHD..(03S,12S,14S) |
1 | ||
| 12268-30100 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17119A - BRACKET, AIR CLEANER | ||||
| 17119-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17275A - ELBOW, COMPRESSOR OUTLET | ||||
| 17275-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17298A - STAY, COMPRESSOR ELBOW | ||||
| 17298-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17298-30030 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17311A - DUCT, AIR INLET, NO.1 | ||||
| 17311-30030 |
2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN) |
1 | ||
| 17311-30031 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17312 - DUCT, AIR INLET, NO.2 | ||||
| 17312-30031 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17312-30030 |
2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN) |
1 | ||
| 17331 - SEAL, DUCT AIR INLET NO.1 | ||||
| 17331-30020 |
1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17332 - SEAL, DUCT AIR INLET NO.2 | ||||
| 17332-30020 |
1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-30071 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 17341-30070 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
2 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30062 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-30023 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-30031 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17344-30010 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 17344-30030 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.1 |
1 | ||
| 90460-77002 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.2 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.1 |
1 | ||
| 90460-77002 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.2 |
1 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-30021 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361-30020 |
1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN) |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-30011 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17362-30010 |
1KDFTV,2KDFTV..KDH22#..RHD..(ARL,GEN) |
1 | ||
| 17363G - TUBE, AIR, NO.3 | ||||
| 17361-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361-30070 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17369 - BRACKET, AIR TUBE SUPPORT | ||||
| 17369-30010 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.1 |
2 | ||
| 17369-30020 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.2 |
2 | ||
| 17369 - BRACKET, AIR TUBE SUPPORT | ||||
| 17369-30010 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.1 |
2 | ||
| 17369-30020 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.2 |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-30210 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30280 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30281 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-30140 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16021 |
2KDFTV..KDH200..ARL;2KDFTV..KDH200..06S..GEN;1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN) |
2 | ||
| 90480-16021 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17750-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17750-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17805G - CLAMP, HOSE(FOR AIR CONNECTOR) | ||||
| 90460-67004 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223..ARL,GEN |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30110 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881-30150 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 17881B - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30131 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30130 |
1KDFTV..KDH221,223 |
1 | ||
| 17881B - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30131 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30130 |
1KDFTV..KDH221,223 |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10500 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17893B - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17893-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17894A - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17894-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10690 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 96111-10670 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-30050 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 22204-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| Common parts | ||||
| 12251-30010 | ||||
| 53955-95402 | ||||
| 88718-2F110 | ||||
| 90099-00289 | ||||
| 90119-06953 | ||||
| 90179-08057 | ||||
| 90179-08068 | ||||
| 90253-13002 | ||||
| 90389-09025 | ||||
| 90460-70003 | ||||
| 90464-00795 | ||||
| 90466-07002 | ||||
| 90467-09185 | ||||
| 90469-07015 | ||||
| 90480-16039 | ||||
| 90949-01B66 | ||||
| 91551-80620 | ||||
| 91553-80810 | ||||
| 91553-80812 | ||||
| 91631-40835 | ||||
| 91631-60622 | ||||
| 91631-60825 | ||||
| 91635-B0835 | ||||
| 94151-80800 | ||||
| 96132-40700 | ||||
| Linked diagrams | ||||
| 5351 | ||||
(1008- )2TRFE..TRH223..5F..GCC ; (1008- )2TRFE..TRH213..LHD..5F..STD ; (1008-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17119A - BRACKET, AIR CLEANER | ||||
| 17119-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17119-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-30210 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30210 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30280 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30280 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30281 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30281 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-30140 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17705-30140 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17750-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17750-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17750-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17750-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17801-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30110 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881-30110 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881-30150 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881-30150 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 17894A - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17894-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17894-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17896-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 96111-10670 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 96111-10670 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 22204-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 22204-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 22204-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90105-T0066 | ||||
| 90119-06953 | ||||
| 90999-92002 | ||||
| 91551-80612 | ||||
| 91631-60825 | ||||
| 96111-10500 | ||||
| 96111-10690 | ||||
| Linked diagrams | ||||
| 1201 | ||||
(1110-1205)1KDFTV..KDH201..SG ; (1110-1205)1KDFTV..03S,12S,14S ; (1205-1212)1KDFTV.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12268B - HOSE, OIL RETURN | ||||
| 12268-30050 |
1KDFTV..KDH201,223..SG;1KDFTV..KDH201,203,221..RHD..(03S,12S,14S) |
1 | ||
| 12268-30050 |
1KDFTV..KDH201,223..SG;1KDFTV..KDH201,203,221..RHD..(03S,12S,14S) |
1 | ||
| 12268-30100 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 12268-30100 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17119A - BRACKET, AIR CLEANER | ||||
| 17119-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17119-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17275A - ELBOW, COMPRESSOR OUTLET | ||||
| 17275-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17275-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17298A - STAY, COMPRESSOR ELBOW | ||||
| 17298-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17298-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17298-30030 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17298-30030 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17311A - DUCT, AIR INLET, NO.1 | ||||
| 17311-30030 |
2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN) |
1 | ||
| 17311-30030 |
2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN) |
1 | ||
| 17311-30031 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17311-30031 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17312 - DUCT, AIR INLET, NO.2 | ||||
| 17312-30031 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17312-30031 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17312-30030 |
2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN) |
1 | ||
| 17312-30030 |
2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN) |
1 | ||
| 17331 - SEAL, DUCT AIR INLET NO.1 | ||||
| 17331-30020 |
1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17331-30020 |
1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17332 - SEAL, DUCT AIR INLET NO.2 | ||||
| 17332-30020 |
1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17332-30020 |
1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-30071 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 17341-30071 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 17341-30070 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
1 | ||
| 17341-30070 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
2 | ||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
2 | ||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
2 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30062 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17342-30062 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-30023 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17343-30023 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-30031 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17344-30031 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17344-30010 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 17344-30010 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 17344-30030 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17344-30030 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.1 |
1 | ||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.1 |
1 | ||
| 90460-77002 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.2 |
1 | ||
| 90460-77002 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.2 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.1 |
1 | ||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.1 |
1 | ||
| 90460-77002 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.2 |
1 | ||
| 90460-77002 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.2 |
1 | ||
| 17360D - PIPE ASSY, AIR | ||||
| 17360-30050 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17360-30050 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-30021 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361-30021 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361-30020 |
1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN) |
1 | ||
| 17361-30020 |
1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN) |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-30011 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17362-30011 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17362-30010 |
1KDFTV,2KDFTV..KDH22#..RHD..(ARL,GEN) |
1 | ||
| 17362-30010 |
1KDFTV,2KDFTV..KDH22#..RHD..(ARL,GEN) |
1 | ||
| 17363G - TUBE, AIR, NO.3 | ||||
| 17361-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361-30070 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361-30070 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17369 - BRACKET, AIR TUBE SUPPORT | ||||
| 17369-30010 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.1 |
2 | ||
| 17369-30010 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.1 |
2 | ||
| 17369-30020 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.2 |
2 | ||
| 17369-30020 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.2 |
2 | ||
| 17369 - BRACKET, AIR TUBE SUPPORT | ||||
| 17369-30010 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.1 |
2 | ||
| 17369-30010 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.1 |
2 | ||
| 17369-30020 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.2 |
2 | ||
| 17369-30020 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.2 |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-30210 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30210 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30280 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30280 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30281 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30281 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-30140 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17705-30140 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16021 |
2KDFTV..KDH200..ARL;2KDFTV..KDH200..06S..GEN;1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN) |
2 | ||
| 90480-16021 |
2KDFTV..KDH200..ARL;2KDFTV..KDH200..06S..GEN;1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN) |
2 | ||
| 90480-16021 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) |
1 | ||
| 90480-16021 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17750-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17750-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17750-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17750-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17801-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17805-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17805G - CLAMP, HOSE(FOR AIR CONNECTOR) | ||||
| 90460-67004 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 90460-67004 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223..ARL,GEN |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223..ARL,GEN |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30110 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881-30110 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881-30150 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881-30150 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 17881B - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30131 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30131 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30130 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30130 |
1KDFTV..KDH221,223 |
1 | ||
| 17881B - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30131 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30131 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30130 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30130 |
1KDFTV..KDH221,223 |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10500 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 96111-10500 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17893B - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17893-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17893-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17894A - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17894-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17894-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10690 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 96111-10690 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17896-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 96111-10670 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 96111-10670 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-30050 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17940-30050 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 22204-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 22204-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 22204-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| Common parts | ||||
| 12251-30010 | ||||
| 53955-95402 | ||||
| 88718-2F110 | ||||
| 90099-00289 | ||||
| 90119-06953 | ||||
| 90179-08057 | ||||
| 90179-08068 | ||||
| 90253-13002 | ||||
| 90389-09025 | ||||
| 90460-70003 | ||||
| 90464-00795 | ||||
| 90466-07002 | ||||
| 90467-09185 | ||||
| 90469-07015 | ||||
| 90480-16039 | ||||
| 90949-01B66 | ||||
| 91551-80620 | ||||
| 91553-80810 | ||||
| 91553-80812 | ||||
| 91631-40835 | ||||
| 91631-60622 | ||||
| 91631-60825 | ||||
| 91635-B0835 | ||||
| 94151-80800 | ||||
| 96132-40700 | ||||
| Linked diagrams | ||||
| 5351 | ||||
(1205-1307)1KDFTV..KDH201,203,221..RHD..03S,14S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12268B - HOSE, OIL RETURN | ||||
| 12268-30050 |
1KDFTV..KDH201,223..SG;1KDFTV..KDH201,203,221..RHD..(03S,12S,14S) |
1 | ||
| 12268-30050 |
1KDFTV..KDH201,223..SG;1KDFTV..KDH201,203,221..RHD..(03S,12S,14S) |
1 | ||
| 12268-30100 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 12268-30100 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17119A - BRACKET, AIR CLEANER | ||||
| 17119-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17119-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17275A - ELBOW, COMPRESSOR OUTLET | ||||
| 17275-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17275-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17298A - STAY, COMPRESSOR ELBOW | ||||
| 17298-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17298-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17298-30030 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17298-30030 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17311A - DUCT, AIR INLET, NO.1 | ||||
| 17311-30030 |
2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN) |
1 | ||
| 17311-30030 |
2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN) |
1 | ||
| 17311-30031 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17311-30031 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17312 - DUCT, AIR INLET, NO.2 | ||||
| 17312-30031 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17312-30031 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17312-30030 |
2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN) |
1 | ||
| 17312-30030 |
2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN) |
1 | ||
| 17331 - SEAL, DUCT AIR INLET NO.1 | ||||
| 17331-30020 |
1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17331-30020 |
1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17332 - SEAL, DUCT AIR INLET NO.2 | ||||
| 17332-30020 |
1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17332-30020 |
1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-30071 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 17341-30071 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 17341-30070 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
1 | ||
| 17341-30070 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
2 | ||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
2 | ||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
2 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30062 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17342-30062 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-30023 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17343-30023 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-30031 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17344-30031 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17344-30010 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 17344-30010 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 17344-30030 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17344-30030 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.1 |
1 | ||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.1 |
1 | ||
| 90460-77002 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.2 |
1 | ||
| 90460-77002 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.2 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.1 |
1 | ||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.1 |
1 | ||
| 90460-77002 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.2 |
1 | ||
| 90460-77002 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.2 |
1 | ||
| 17360D - PIPE ASSY, AIR | ||||
| 17360-30050 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17360-30050 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-30021 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361-30021 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361-30020 |
1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN) |
1 | ||
| 17361-30020 |
1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN) |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-30011 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17362-30011 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17362-30010 |
1KDFTV,2KDFTV..KDH22#..RHD..(ARL,GEN) |
1 | ||
| 17362-30010 |
1KDFTV,2KDFTV..KDH22#..RHD..(ARL,GEN) |
1 | ||
| 17363G - TUBE, AIR, NO.3 | ||||
| 17361-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361-30070 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361-30070 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17369 - BRACKET, AIR TUBE SUPPORT | ||||
| 17369-30010 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.1 |
2 | ||
| 17369-30010 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.1 |
2 | ||
| 17369-30020 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.2 |
2 | ||
| 17369-30020 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.2 |
2 | ||
| 17369 - BRACKET, AIR TUBE SUPPORT | ||||
| 17369-30010 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.1 |
2 | ||
| 17369-30010 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.1 |
2 | ||
| 17369-30020 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.2 |
2 | ||
| 17369-30020 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.2 |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-30210 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30210 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30280 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30280 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30281 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30281 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-30140 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17705-30140 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16021 |
2KDFTV..KDH200..ARL;2KDFTV..KDH200..06S..GEN;1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN) |
2 | ||
| 90480-16021 |
2KDFTV..KDH200..ARL;2KDFTV..KDH200..06S..GEN;1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN) |
2 | ||
| 90480-16021 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) |
1 | ||
| 90480-16021 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17750-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17750-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17750-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17750-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17801-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17805-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17805G - CLAMP, HOSE(FOR AIR CONNECTOR) | ||||
| 90460-67004 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 90460-67004 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223..ARL,GEN |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223..ARL,GEN |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30110 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881-30110 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881-30150 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881-30150 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 17881B - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30131 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30131 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30130 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30130 |
1KDFTV..KDH221,223 |
1 | ||
| 17881B - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30131 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30131 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30130 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30130 |
1KDFTV..KDH221,223 |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10500 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 96111-10500 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17893B - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17893-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17893-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17894A - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17894-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17894-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10690 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 96111-10690 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17896-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 96111-10670 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 96111-10670 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-30050 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17940-30050 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 22204-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 22204-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 22204-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| Common parts | ||||
| 12251-30010 | ||||
| 53955-95402 | ||||
| 88718-2F110 | ||||
| 90099-00289 | ||||
| 90119-06953 | ||||
| 90179-08057 | ||||
| 90179-08068 | ||||
| 90253-13002 | ||||
| 90389-09025 | ||||
| 90460-70003 | ||||
| 90464-00795 | ||||
| 90466-07002 | ||||
| 90467-09185 | ||||
| 90469-07015 | ||||
| 90480-16039 | ||||
| 90949-01B66 | ||||
| 91551-80620 | ||||
| 91553-80810 | ||||
| 91553-80812 | ||||
| 91631-40835 | ||||
| 91631-60622 | ||||
| 91631-60825 | ||||
| 91635-B0835 | ||||
| 94151-80800 | ||||
| 96132-40700 | ||||
| Linked diagrams | ||||
| 5351 | ||||
(1307- )1KDFTV..KDH201,223..SG ; (1307- )1KDFTV..KDH201,203,221..RHD..03S,12S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12268B - HOSE, OIL RETURN | ||||
| 12268-30050 |
1KDFTV..KDH201,223..SG;1KDFTV..KDH201,203,221..RHD..(03S,12S,14S) |
1 | ||
| 12268-30100 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17119A - BRACKET, AIR CLEANER | ||||
| 17119-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17275A - ELBOW, COMPRESSOR OUTLET | ||||
| 17275-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17311A - DUCT, AIR INLET, NO.1 | ||||
| 17311-30030 |
2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN) |
1 | ||
| 17311-30031 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17312 - DUCT, AIR INLET, NO.2 | ||||
| 17312-30031 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17312-30030 |
2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN) |
1 | ||
| 17331 - SEAL, DUCT AIR INLET NO.1 | ||||
| 17331-30020 |
1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17332 - SEAL, DUCT AIR INLET NO.2 | ||||
| 17332-30020 |
1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-30071 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 17341-30070 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 |
2 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-30080 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30062 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-30023 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-67008 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
2 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-30031 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17344-30010 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 17344-30030 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.1 |
1 | ||
| 90460-77002 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.2 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-67008 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.1 |
1 | ||
| 90460-77002 |
2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223 NO.2 |
1 | ||
| 17360D - PIPE ASSY, AIR | ||||
| 17360-30050 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-30021 |
2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361-30020 |
1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN) |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-30011 |
1KDFTV..KDH221,223;2KDFTV..KDH222..TH |
1 | ||
| 17362-30010 |
1KDFTV,2KDFTV..KDH22#..RHD..(ARL,GEN) |
1 | ||
| 17363G - TUBE, AIR, NO.3 | ||||
| 17361-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17361-30070 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17369 - BRACKET, AIR TUBE SUPPORT | ||||
| 17369-30010 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.1 |
2 | ||
| 17369-30020 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.2 |
2 | ||
| 17369 - BRACKET, AIR TUBE SUPPORT | ||||
| 17369-30010 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.1 |
2 | ||
| 17369-30020 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) NO.2 |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-30210 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30280 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17700-30281 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-30140 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16021 |
2KDFTV..KDH200..ARL;2KDFTV..KDH200..06S..GEN;1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN) |
2 | ||
| 90480-16021 |
1KDFTV..KDH221..4D;1KDFTV..KDH221..ARL;1KDFTV,2KDFTV..KDH201,222..RHD..(ARL,GEN);1KDFTV,2KDFTV..KDH203,220,223..(03S,14S)..(ARL,GEN) |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17750-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17750-30040 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17805G - CLAMP, HOSE(FOR AIR CONNECTOR) | ||||
| 90460-67004 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223..ARL,GEN |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30110 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881-30150 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 96111-10800 |
1KDFTV..KDH201,203,221,223 NO.1 |
1 | ||
| 17881B - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30131 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30130 |
1KDFTV..KDH221,223 |
1 | ||
| 17881B - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30131 |
1KDFTV..KDH221,223 |
1 | ||
| 17881-30130 |
1KDFTV..KDH221,223 |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10500 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17893B - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17893-30060 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17894A - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17894-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10690 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 96111-10670 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-30050 |
2KDFTV..KDH222..ARL,TH;1KDFTV..KDH201,203,221,223;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30010 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 22204-30020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| Common parts | ||||
| 12251-30010 | ||||
| 53955-95402 | ||||
| 88718-2F110 | ||||
| 90099-00289 | ||||
| 90105-T0117 | ||||
| 90119-06953 | ||||
| 90179-08057 | ||||
| 90179-08068 | ||||
| 90253-13002 | ||||
| 90389-09025 | ||||
| 90460-67008 | ||||
| 90464-00795 | ||||
| 90466-07002 | ||||
| 90467-09185 | ||||
| 90469-07015 | ||||
| 90480-16039 | ||||
| 90949-01B66 | ||||
| 91551-80620 | ||||
| 91553-80810 | ||||
| 91553-80812 | ||||
| 91631-40835 | ||||
| 91631-60622 | ||||
| 91631-60825 | ||||
| 91635-B0835 | ||||
| 94151-80800 | ||||
| 96132-40700 | ||||
| Linked diagrams | ||||
| 5351 | ||||
(1312-1606)1KDFTV..KDH221..ARL ; (1312-1606)1KDFTV..KDH223..4FC..ARL ; (1512- )1
SINGAPOLE SPEC OR PERU SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 12251-30010 | ||||
| 12251-30050 | ||||
| 88718-2F110 | ||||
| 90099-00289 | ||||
| 90105-T0117 | ||||
| 90119-06953 | ||||
| 90179-08017 | ||||
| 90179-08057 | ||||
| 90460-67008 | ||||
| 90464-00795 | ||||
| 90466-07002 | ||||
| 90467-09185 | ||||
| 90469-07015 | ||||
| 90949-01B66 | ||||
| 91551-80620 | ||||
| 91553-80810 | ||||
| 91553-80812 | ||||
| 91631-40835 | ||||
| 91631-60622 | ||||
| 91631-60825 | ||||
| 91635-B0835 | ||||
| 94151-80800 | ||||
| 96132-40700 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||
| 5351 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
