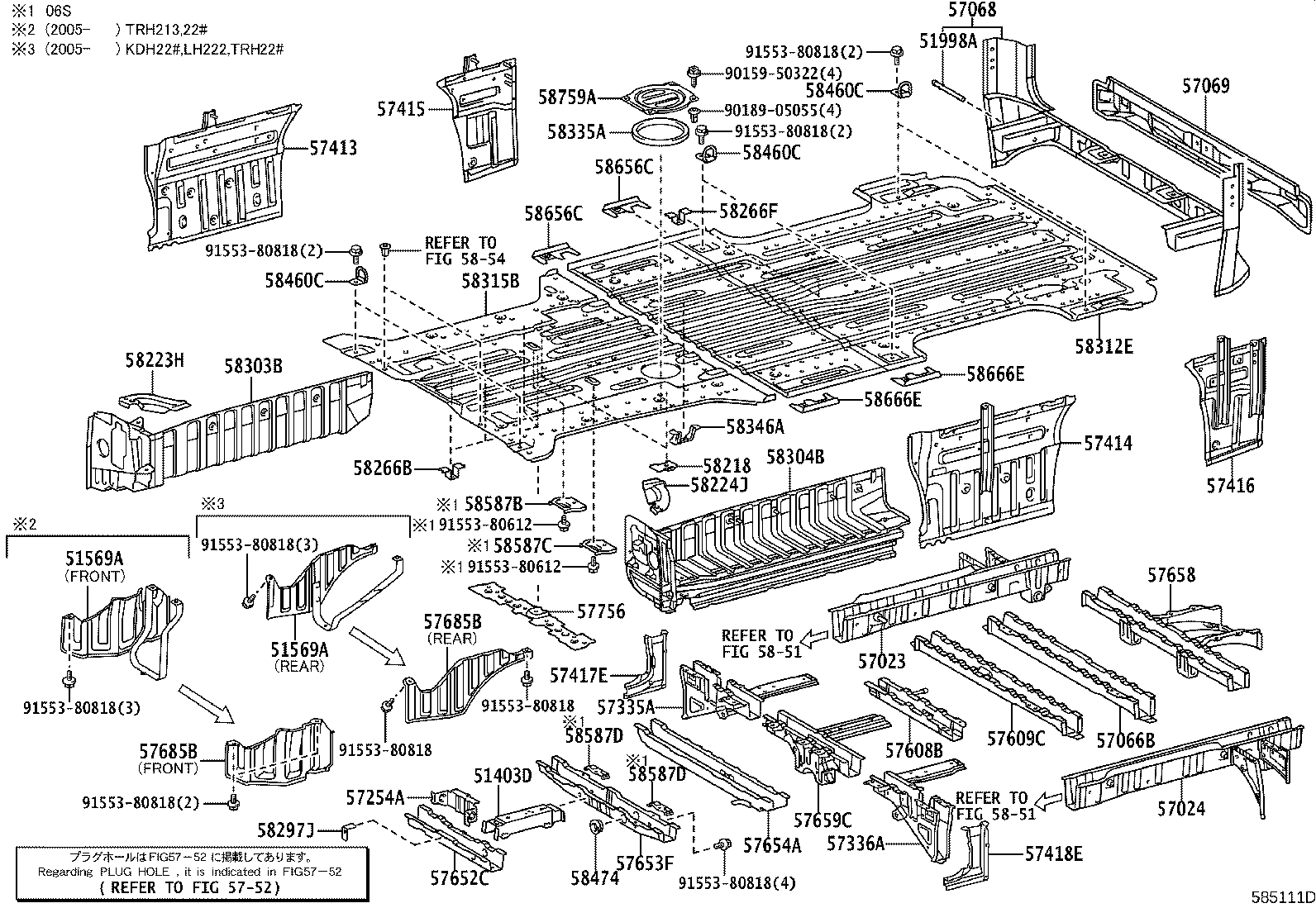

KDH220R-MSMDYN (2013)
Toyota Hiace
(1312- )KDH220,221,TRH221..5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51403D - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51403-26232 |
TRH203,213;TRH223..LHD..4FC;TRH201,22#..5F..(ARL,GCC,GEN,RUS,SA) |
1 | ||
| 51403-26290 |
KDH201..RHD;KDH223..ARL,RUS;KDH201..LHD..03S;KDH200,202,203,21#,220,221,222 |
1 | ||
| 51403-26330 |
KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH222..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 51998A - HANGER, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 51998-26080 |
TRH223..4FC..GL;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;LH222,TRH213,223..LHD..STD..GEN;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);GDH201,KDH201,202,203,212,220,221,LH202,212..ARL,GCC,GEN,MA,TH |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-26670 |
KDH200..MA;TRH201..SA;KDH220,TRH221..06S |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-26680 |
KDH200..MA;TRH201..SA;KDH220,TRH221..06S |
1 | ||
| 57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 | ||||
| 57066-26162 |
KDH220..GEN;TRH221..GCC;KDH220,TRH22#..02S,06S,10S |
1 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-26330 |
KDH220,221,TRH221..02S,06S |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-26210 |
KDH212,223,TRH213..GL..GEN;KDH222,223..5F..(ARL,KEN,RUS,VN);TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH213,220,221,TRH221..(02S,06S,11S,13S)..(ARL,GEN,SA) |
1 | ||
| 57254A - REINFORCEMENT, ENGINE REAR MOUNTING MEMBER | ||||
| 57254-26041 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 57335A - OUTRIGGER, NO.2 FRONT RH | ||||
| 57303-26150 |
KDH220,TRH221..06S |
1 | ||
| 57336A - OUTRIGGER, NO.2 FRONT LH | ||||
| 57304-26100 |
KDH220,TRH221..06S |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-26E00 |
KDH220,TRH221..06S |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57406-26620 |
KDH220,TRH221..06S |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57415-26210 |
TRH221..02S,06S;TRH213..LHD..STD;KDH200,TRH221..GCC,MA;KDH200,220..LHD..5D..GEN;KDH220,TRH200..06S..(4FC,5F);KDH212,LH200,TRH203..4D..5F..STD..(GCC,GEN);GDH201,KDH201,202,203,221,LH202,212,TRH201..02S,03S,05S,06S,15S,16S |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-26160 |
TRH221..02S,06S;TRH213..LHD..STD;KDH200,TRH221..GCC,MA;KDH200,220..LHD..5D..GEN;KDH220,TRH200..06S..(4FC,5F);KDH212,LH200,TRH203..4D..5F..STD..(GCC,GEN);GDH201,KDH201,202,203,221,LH202,212,TRH201..02S,03S,05S,06S,15S,16S |
1 | ||
| 57417E - REINFORCEMENT, FLOOR SIDE, INNER RH | ||||
| 57417-26040 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH222,223,LH222..LHD..(GEN,RUS,VN) |
1 | ||
| 57418E - REINFORCEMENT, FLOOR SIDE, INNER LH | ||||
| 57418-26010 |
TRH221..GCC;KDH223..4FC..TH;KDH222..RHD..(03S,16S);KDH220,221,223..(02S,03S,14S)..STD..(ARL,GEN);KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH) |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-26392 |
TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-26451 |
KDH220,TRH221..06S |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-26130 |
TRH221..GCC;KDH222..GEN,KEN;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH21#,220,221,223,LH212,222..ARL,GCC,GEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH) |
1 | ||
| 57653F - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-26141 |
TRH221..GCC;TRH223..GL..GCC;TRH213..LHD..GEN;KDH220,222..GEN,KEN;TRH223..LHD..STD..GEN;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH21#,220,223,LH212,222..(06S,11S,12S,13S,14S,16S)..(GCC,GEN,SA,VN) |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57607-26681 |
KDH220,223,TRH221..(06S,14S)..(GEN,SA) |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57067-26291 |
KDH220,TRH221..06S |
1 | ||
| 57659C - MEMBER, REAR FLOOR CROSS, NO.8 | ||||
| 57077-26011 |
TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S |
1 | ||
| 57756 - PLATE, REAR FLOOR NO.2 CROSSMEMBER | ||||
| 57756-26010 |
TRH223..TH;TRH221..GCC;KDH223..4FC..(GEN,TH);TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH212,TRH213..(11S,13S)..GL;KDH213,22#,LH222..(02S,03S,11S,13S,16S)..(ARL,GEN,KEN,VN) |
1 | ||
| 58218 - PLATE, SEAT FLOOR PANEL | ||||
| 58218-26010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
2 | ||
| 58223H - REINFORCEMENT, FLOOR PANEL SIDE, RH | ||||
| 58223-26071 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 58224J - REINFORCEMENT, FLOOR PANEL SIDE, LH | ||||
| 58224-26091 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 58266F - BRACKET, FUEL TUBE CLAMP, REAR | ||||
| 58266-95J00 |
TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH) |
1 | ||
| 58297J - RETAINER, FLOOR CLAMP | ||||
| 58297-26020 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 58303B - STEP SUB-ASSY, REAR FLOOR, RH | ||||
| 58303-26400 |
KDH220,TRH221..06S |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-26640 |
KDH220..06S |
1 | ||
| 58312E - PANEL, REAR FLOOR, REAR | ||||
| 58312-26111 |
KDH220,221,TRH221..5D |
1 | ||
| 58312-26112 |
TRH221..GCC;KDH220,221..ARL,GEN;KDH220,TRH221..02S,06S |
1 | ||
| 58315B - PANEL, REAR FLOOR, FRONT | ||||
| 58315-26D10 |
KDH220,TRH221..06S |
1 | ||
| 58315-26D11 |
KDH220,TRH221..06S |
1 | ||
| 58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER | ||||
| 58335-26030 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 | ||||
| 58346-26020 |
TRH221..GCC;KDH223..4FC..TH;TRH223..4FC..GL;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH220,221,223,LH222..ARL,GEN,RUS,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH) |
1 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
TRH200..4FC;GDH201,KDH201,220,TRH201,221..05S,06S |
4 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
TRH200..4FC;GDH201,KDH201,220,TRH201,221..05S,06S |
4 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
TRH200..4FC;GDH201,KDH201,220,TRH201,221..05S,06S |
4 | ||
| 58474 - COVER, INSPECTION HOLE | ||||
| 58474-26010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 58587B - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 RH | ||||
| 58587-26060 |
KDH213,223,TRH200..(06S,11S,14S)..4FC..GEN;GDH201,KDH201,212,220,TRH201,213,221..05S,06S,11S |
1 | ||
| 58587C - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 LH | ||||
| 58587-26080 |
KDH213,223,TRH200..(06S,11S,14S)..4FC..GEN;GDH201,KDH201,212,220,TRH201,213,221..05S,06S,11S |
1 | ||
| 58587D - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 | ||||
| 58587-26010 |
KDH213,223,TRH200..(06S,11S,14S)..4FC..GEN;GDH201,KDH201,212,220,TRH201,213,221..05S,06S,11S |
2 | ||
| 58587D - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 | ||||
| 58587-26010 |
KDH213,223,TRH200..(06S,11S,14S)..4FC..GEN;GDH201,KDH201,212,220,TRH201,213,221..05S,06S,11S |
2 | ||
| 58656C - PLATE, REAR FLOOR, CENTER LOWER NO.2 RH | ||||
| 58656-26020 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH222,223,LH222..LHD..(GEN,RUS,VN) |
2 | ||
| 58656C - PLATE, REAR FLOOR, CENTER LOWER NO.2 RH | ||||
| 58656-26020 |
TRH221..GCC;TRH223..4FC..GL;KDH220,221..ARL,GEN;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;TRH223..5F..GL..(GCC,RUS);KDH222,223,LH222..LHD..(GEN,RUS,VN) |
2 | ||
| 58666E - PLATE, REAR FLOOR, CENTER LOWER NO.2 LH | ||||
| 58666-26010 |
KDH220..GEN;TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(02S,03S,16S);KDH220,223,TRH221..(02S,06S,14S)..STD |
2 | ||
| 58666E - PLATE, REAR FLOOR, CENTER LOWER NO.2 LH | ||||
| 58666-26010 |
KDH220..GEN;TRH221..GCC;KDH223..4FC..TH;TRH223..STD..(ARL,SA,TH);KDH221,222,LH222..RHD..(02S,03S,16S);KDH220,223,TRH221..(02S,06S,14S)..STD |
2 | ||
| 58759A - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58759-26010 |
TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05055 | ||||
| 91553-80612 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5851 | ||||
| 5854 | ||||
