KDH220R-MBMDYN (2013)
Toyota Hiace

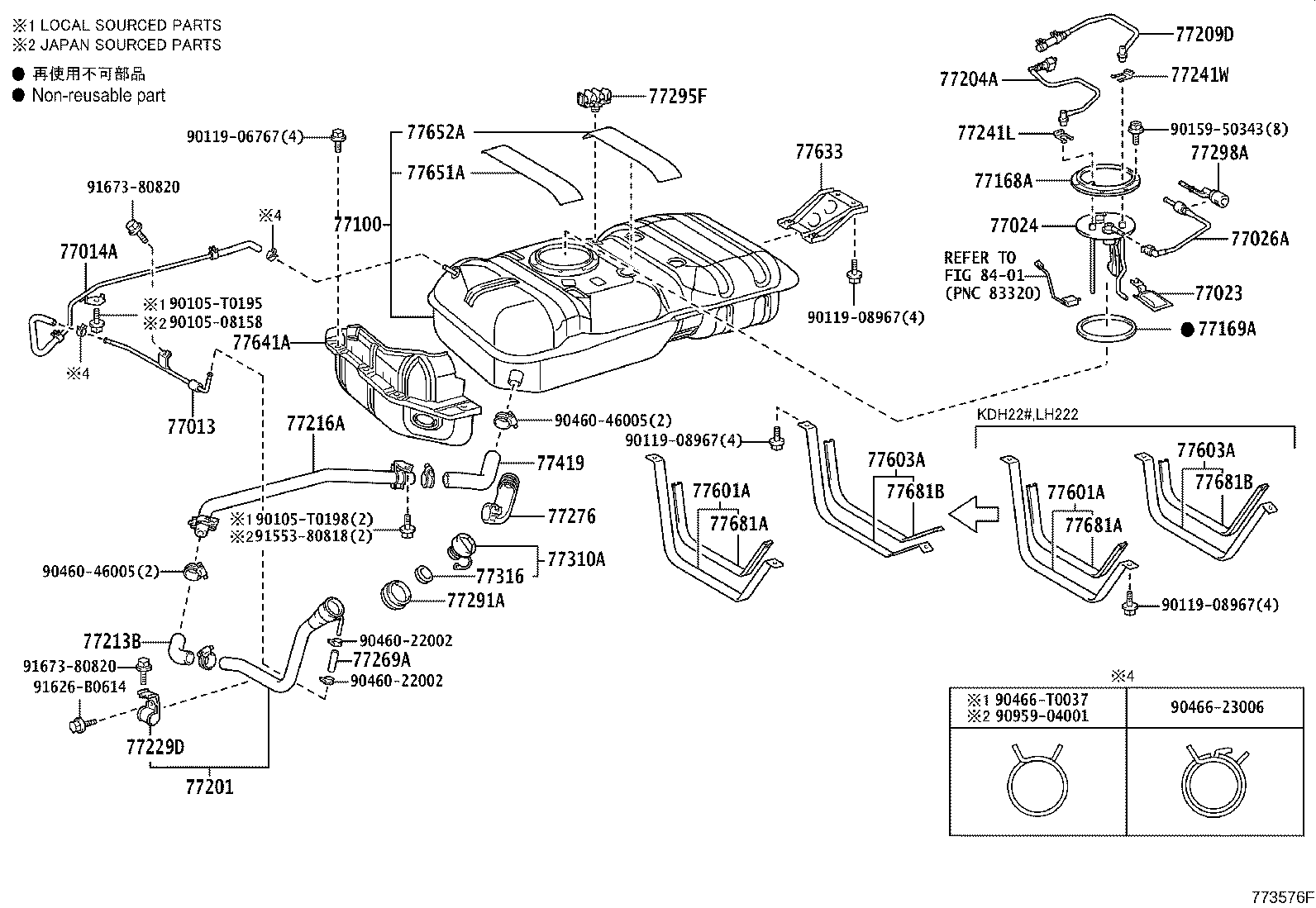

ILLUST NO. 1 OF 2(1312- )KDH22#,LH222
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77013-26120 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77013-26120 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3 | ||||
| 77014-26060 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77014-26050 |
KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77014-26060 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60040 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77023-60040 |
KDH200,212,220..SA |
1 | ||
| 77024 - TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT | ||||
| 77024-26011 |
TRH201..03S;TRH201..06S..GCC;TRH201,22#..RHD..4FC;TRH200,203,213,22#..(4FC,5F)..(GCC,GEN,MA,SA,TH) |
1 | ||
| 77024-26020 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77024-26020 |
KDH200,212,220..SA |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-26080 |
KDH222..5F..GL;KDH220..03S..SA;TRH221..SP..GEN;TRH223..5F..GEN;KDH222..STD..GCC |
1 | ||
| 77026-26080 |
KDH200,212,220..SA |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-26701 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77001-26702 |
KDH200,212,220..SA |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77168-52020 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52010 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77169-52010 |
KDH200,212,220..SA |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-26240 |
TRH200,201..RHD;TRH201,203..GCC,MA;TRH213,22#..ARL,GCC,RUS,SA,TH;TRH213,22#..SG..(03S,10S,13S)..GEN |
1 | ||
| 77201-26360 |
KDH200,212,220..SA |
1 | ||
| 77201-26250 |
KDH223..RUS;KDH223..(14S,16S)..(GEN,TH);GDH201,KDH20#,21#,220,221,222,LH20#,212,222..GCC,GEN,MA,SA,TH |
1 | ||
| 77201-26360 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-26050 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77204-26050 |
KDH200,212,220..SA |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-26150 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77209-26150 |
KDH200,212,220..SA |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-26140 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77213-26120 |
KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77213-26140 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77104-26010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77104-26010 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77229D - SUPPORT, FUEL TANK FILLER PIPE, NO.4 | ||||
| 77229-26020 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77229-26020 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77241L - TUBE, FUEL TANK SUCTION | ||||
| 77241-35450 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77241-35450 |
KDH200,212,220..SA |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
KDH200,212,220..SA |
1 | ||
| 77241-33011 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 95313-13010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77269-26010 |
KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 95313-13010 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-26090 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77276-26090 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-26021 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77291-26021 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77295F - GROMMET, FUEL HOSE | ||||
| 77295-26050 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77295-26050 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52030 |
KDH222..5F..GL;KDH220..03S..SA;TRH221..SP..GEN;TRH223..5F..GEN;KDH222..STD..GCC |
1 | ||
| 77298-52030 |
KDH200,212,220..SA |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-20020 |
KDH223..RUS;KDH223..14S,16S;GDH201,KDH20#,21#,220,221,222,LH20#,212,222 |
1 | ||
| 77300-52030 |
TRH20#,213,22# |
1 | ||
| 77300-12030 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77300-12030 |
KDH200,212,220..SA |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77316-52040 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77419 - HOSE, FUEL, NO.3 | ||||
| 77419-26010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77419-26010 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26100 |
KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77601-26101 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77601-26101 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26100 |
KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77601-26101 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77601-26101 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-26030 |
KDH22#,LH222,TRH22# |
1 | ||
| 77602-26031 |
KDH220,TRH223..03S,14S |
1 | ||
| 77602-26031 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-26030 |
KDH22#,LH222,TRH22# |
1 | ||
| 77602-26031 |
KDH220,TRH223..03S,14S |
1 | ||
| 77602-26031 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-26010 |
KDH22#,LH222,TRH22# |
1 | ||
| 77633-26020 |
KDH220,TRH223..03S,14S |
1 | ||
| 77633-26020 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-26040 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77641-26040 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-26080 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77651-26080 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-26070 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77652-26070 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77681-32060 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77681-32060 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77681B - SEAT, FUEL TANK BAND | ||||
| 77616-36010 |
KDH220,TRH223..03S,14S |
1 | ||
| 77616-36010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77681B - SEAT, FUEL TANK BAND | ||||
| 77616-36010 |
KDH220,TRH223..03S,14S |
1 | ||
| 77616-36010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90105-T0195 | ||||
| 90105-T0198 | ||||
| 90119-06767 | ||||
| 90119-08967 | ||||
| 90159-50343 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90466-23006 | ||||
| 90466-T0037 | ||||
| 90959-04001 | ||||
| 91553-80818 | ||||
| 91626-B0614 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1312- )GDH201,KDH20#,21#,22#
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77207-26050 |
KDH220 |
1 | ||
| 77207-26050 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77207-26050 |
KDH220 |
1 | ||
| 77207-26050 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77207-26050 |
KDH220 |
1 | ||
| 77207-26050 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-26B31 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77251-26B31 |
KDH200,212,220..SA |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-26130 |
KDH200,212,220..SA |
1 | ||
| 77259-26130 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-26130 |
KDH200,212,220..SA |
1 | ||
| 77259-26130 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-26700 |
KDH200,212,220..SA |
1 | ||
| 77255-26700 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77257C - TUBE, FUEL RETURN, NO.3 | ||||
| 77257-26050 |
KDH220 |
1 | ||
| 77257-26050 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77257C - TUBE, FUEL RETURN, NO.3 | ||||
| 77257-26050 |
KDH220 |
1 | ||
| 77257-26050 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77257C - TUBE, FUEL RETURN, NO.3 | ||||
| 77257-26050 |
KDH220 |
1 | ||
| 77257-26050 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77289-26010 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
5 | ||
| 77289-26010 |
KDH220 |
5 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-26030 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77289-26030 |
KDH200,212,220..SA |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-26010 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
5 | ||
| 77289-26010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
5 | ||
| 77433 - HOSE, FUEL MAIN, NO.1 | ||||
| 77433-26011 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77433-26011 |
KDH200,212,220..SA |
1 | ||
| 77433 - HOSE, FUEL MAIN, NO.1 | ||||
| 77433-26011 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77433-26011 |
KDH200,212,220..SA |
1 | ||
| Common parts | ||||
| 90466-16004 | ||||
| 91673-80820 | ||||
| 96132-41500 | ||||
| 96132-51300 | ||||
| 96137-41901 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 2 OF 2(1312- )TRH20#,213,22#
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-26B31 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77251-26B31 |
KDH200,212,220..SA |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-26700 |
KDH200,212,220..SA |
1 | ||
| 77255-26700 |
KDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-26010 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
5 | ||
| 77289-26010 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
5 | ||
| Common parts | ||||
| 91673-80820 | ||||
| 95337-06017 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(1312- )
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-26150 |
TRH223..RHD..GEN;KDH220,222,TRH22#..(03S,14S)..SA |
1 | ||
| 77035-26150 |
KDH212,220,TRH213,223..03S,10S,14S |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-26150 |
TRH223..RHD..GEN;KDH220,222,TRH22#..(03S,14S)..SA |
1 | ||
| 77035-26150 |
KDH212,220,TRH213,223..03S,10S,14S |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-95D01 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77037-95D01 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-95D01 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77037-95D01 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-28050B1 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA MD.GRAY,TRIM1# |
1 | ||
| 77306-28050B1 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) MD.GRAY,TRIM1# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-28050B1 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA MD.GRAY,TRIM1# |
1 | ||
| 77306-28050B1 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) MD.GRAY,TRIM1# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-26030 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77350-26030 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-26030 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77350-26030 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-26011 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77366-26011 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-26011 |
KDH200,212,220,TRH213,223..(03S,10S,14S)..SA |
1 | ||
| 77366-26011 |
KDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA) |
1 | ||
| Common parts | ||||
| 46467-26060 | ||||
| 46467-26070 | ||||
| 46467-26080 | ||||
| 90105-06312 | ||||
| 90182-10005 | ||||
| 90269-03029 | ||||
| 90541-09024 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
