KDH213R-KDPNYT (2013)
Toyota Hiace

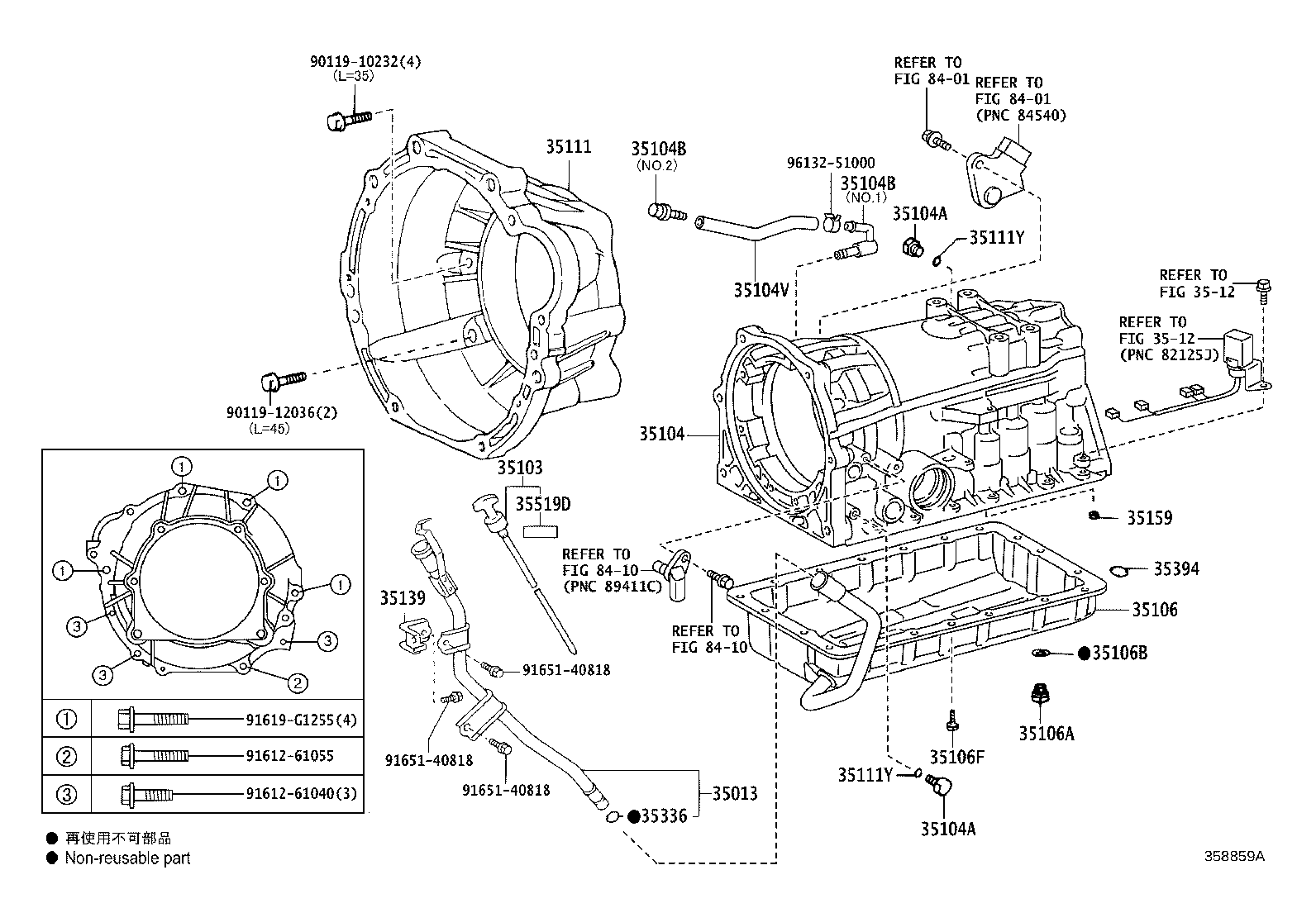

(1312- )TRH201,203,213,22#..4FC
A343E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-26391 |
KDH213..TH |
1 | ||
| 35013-26390 |
KDH201,213,221,222,223..4FC |
1 | ||
| 35013-26391 |
KDH213 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-26380 |
KDH213..TH |
1 | ||
| 35103-26380 |
KDH213 |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-26071 |
TRH223..4FC..GL;TRH223..4FC..ARL;TRH201,213,221..4FC |
1 | ||
| 35104-26061 |
KDH213..TH |
1 | ||
| 35104-26061 |
KDH213 |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
KDH213 |
2 | ||
| 90341-08001 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH200,201,213,221..4FC |
2 | ||
| 90341-08001 |
KDH213..TH |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
KDH213 |
2 | ||
| 90341-08001 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH200,201,213,221..4FC |
2 | ||
| 90341-08001 |
KDH213..TH |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
KDH213..TH NO.1 |
1 | ||
| 90930-03168 |
KDH213..TH NO.2 |
1 | ||
| 90930-03098 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC NO.1 |
1 | ||
| 90930-03168 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC NO.2 |
1 | ||
| 90930-03168 |
KDH213 NO.2 |
1 | ||
| 90930-03098 |
KDH213 NO.1 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
KDH213..TH NO.1 |
1 | ||
| 90930-03168 |
KDH213..TH NO.2 |
1 | ||
| 90930-03098 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC NO.1 |
1 | ||
| 90930-03168 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC NO.2 |
1 | ||
| 90930-03168 |
KDH213 NO.2 |
1 | ||
| 90930-03098 |
KDH213 NO.1 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11118 |
TRH223..4FC..GL;TRH223..4FC..ARL;TRH201,213,221..4FC |
1 | ||
| 90445-10020 |
KDH213..TH |
1 | ||
| 90445-10020 |
KDH213 |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-26100 |
KDH213..TH |
1 | ||
| 35106-26090 |
TRH223..4FC..GL;TRH223..4FC..ARL;TRH201,213,221..4FC |
1 | ||
| 35106-26100 |
KDH213 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
1 | ||
| 90341-10011 |
KDH213 |
1 | ||
| 90341-10011 |
KDH213..TH |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH200,201,213,221..4FC |
1 | ||
| 35178-30010 |
KDH213..TH |
1 | ||
| 35178-30010 |
KDH213 |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
19 | ||
| 90119-06513 |
KDH213 |
19 | ||
| 90119-06513 |
KDH213..TH |
19 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-26040 |
KDH213..TH |
1 | ||
| 35111-26040 |
KDH213 |
1 | ||
| 35111-71010 |
TRH223..4FC..GL;TRH223..4FC..ARL;TRH201,213,221..4FC |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH200,201,213,221..4FC |
2 | ||
| 90301-06196 |
KDH213..TH |
2 | ||
| 90301-06196 |
KDH213 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH200,201,213,221..4FC |
2 | ||
| 90301-06196 |
KDH213..TH |
2 | ||
| 90301-06196 |
KDH213 |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
KDH213 |
1 | ||
| 35159-30010 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35159-30010 |
KDH213..TH |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
KDH213..TH |
1 | ||
| 90301-09173 |
KDH213,TRH223..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
KDH213 |
3 | ||
| 35394-30011 |
KDH213..TH |
3 | ||
| 35394-30011 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
3 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-20030 |
KDH213..TH |
1 | ||
| 35519-20030 |
KDH213,TRH223..4FC |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-12036 | ||||
| 91612-61040 | ||||
| 91612-61055 | ||||
| 91619-G1255 | ||||
| 91651-40818 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3512 | ||||
| 8401 | ||||
| 8410 | ||||

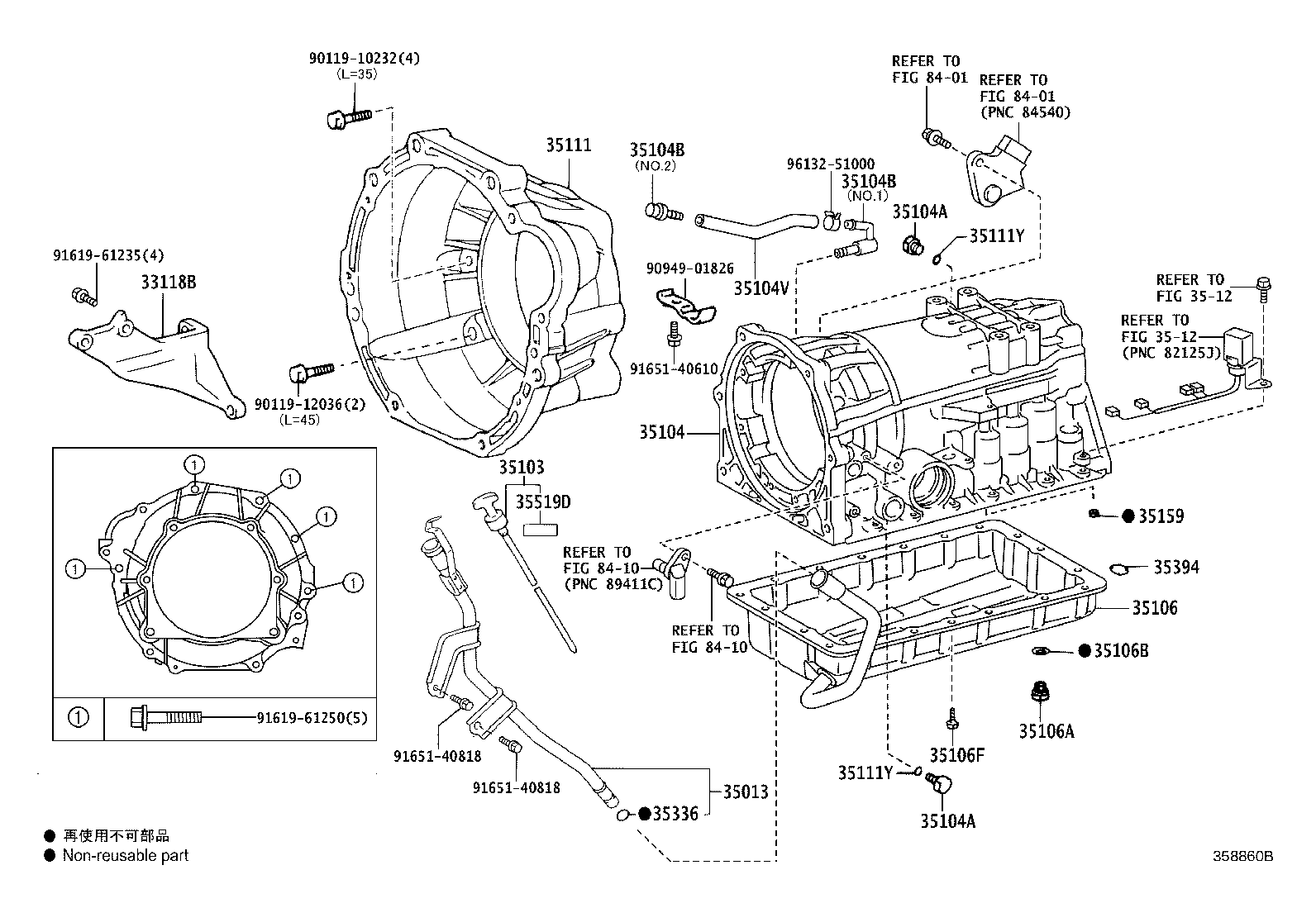

(1312- )KEN ; (1312- )KDH201,21#,221,222,223..4FC
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33118B - PLATE, STIFFENER, RH(ATM) | ||||
| 33118-35070 |
KDH213..TH |
1 | ||
| 33118-35070 |
KDH213 |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-26391 |
KDH213..TH |
1 | ||
| 35013-26390 |
KDH201,213,221,222,223..4FC |
1 | ||
| 35013-26391 |
KDH213 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-26380 |
KDH213..TH |
1 | ||
| 35103-26380 |
KDH213 |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-26071 |
TRH223..4FC..GL;TRH223..4FC..ARL;TRH201,213,221..4FC |
1 | ||
| 35104-26061 |
KDH213..TH |
1 | ||
| 35104-26061 |
KDH213 |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
KDH213 |
2 | ||
| 90341-08001 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH200,201,213,221..4FC |
2 | ||
| 90341-08001 |
KDH213..TH |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
KDH213 |
2 | ||
| 90341-08001 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH200,201,213,221..4FC |
2 | ||
| 90341-08001 |
KDH213..TH |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
KDH213..TH NO.1 |
1 | ||
| 90930-03168 |
KDH213..TH NO.2 |
1 | ||
| 90930-03098 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC NO.1 |
1 | ||
| 90930-03168 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC NO.2 |
1 | ||
| 90930-03168 |
KDH213 NO.2 |
1 | ||
| 90930-03098 |
KDH213 NO.1 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
KDH213..TH NO.1 |
1 | ||
| 90930-03168 |
KDH213..TH NO.2 |
1 | ||
| 90930-03098 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC NO.1 |
1 | ||
| 90930-03168 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC NO.2 |
1 | ||
| 90930-03168 |
KDH213 NO.2 |
1 | ||
| 90930-03098 |
KDH213 NO.1 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11118 |
TRH223..4FC..GL;TRH223..4FC..ARL;TRH201,213,221..4FC |
1 | ||
| 90445-10020 |
KDH213..TH |
1 | ||
| 90445-10020 |
KDH213 |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-26100 |
KDH213..TH |
1 | ||
| 35106-26090 |
TRH223..4FC..GL;TRH223..4FC..ARL;TRH201,213,221..4FC |
1 | ||
| 35106-26100 |
KDH213 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,TRH200..4FC..GEN;GDH201,KDH201,212,221,222,223,TRH201,213,221..4FC,6FC |
1 | ||
| 90341-10011 |
KDH213 |
1 | ||
| 90341-10011 |
KDH213..TH |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH200,201,213,221..4FC |
1 | ||
| 35178-30010 |
KDH213..TH |
1 | ||
| 35178-30010 |
KDH213 |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
19 | ||
| 90119-06513 |
KDH213 |
19 | ||
| 90119-06513 |
KDH213..TH |
19 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-26040 |
KDH213..TH |
1 | ||
| 35111-26040 |
KDH213 |
1 | ||
| 35111-71010 |
TRH223..4FC..GL;TRH223..4FC..ARL;TRH201,213,221..4FC |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH200,201,213,221..4FC |
2 | ||
| 90301-06196 |
KDH213..TH |
2 | ||
| 90301-06196 |
KDH213 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH200,201,213,221..4FC |
2 | ||
| 90301-06196 |
KDH213..TH |
2 | ||
| 90301-06196 |
KDH213 |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
KDH213 |
1 | ||
| 35159-30010 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35159-30010 |
KDH213..TH |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
KDH213..TH |
1 | ||
| 90301-09173 |
KDH213,TRH223..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
KDH213 |
3 | ||
| 35394-30011 |
KDH213..TH |
3 | ||
| 35394-30011 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
3 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-20030 |
KDH213..TH |
1 | ||
| 35519-20030 |
KDH213,TRH223..4FC |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-12036 | ||||
| 90949-01826 | ||||
| 91619-61235 | ||||
| 91619-61250 | ||||
| 91651-40610 | ||||
| 91651-40818 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3512 | ||||
| 8401 | ||||
| 8410 | ||||
