KDH213R-KDPNYT (2013)
Toyota Hiace

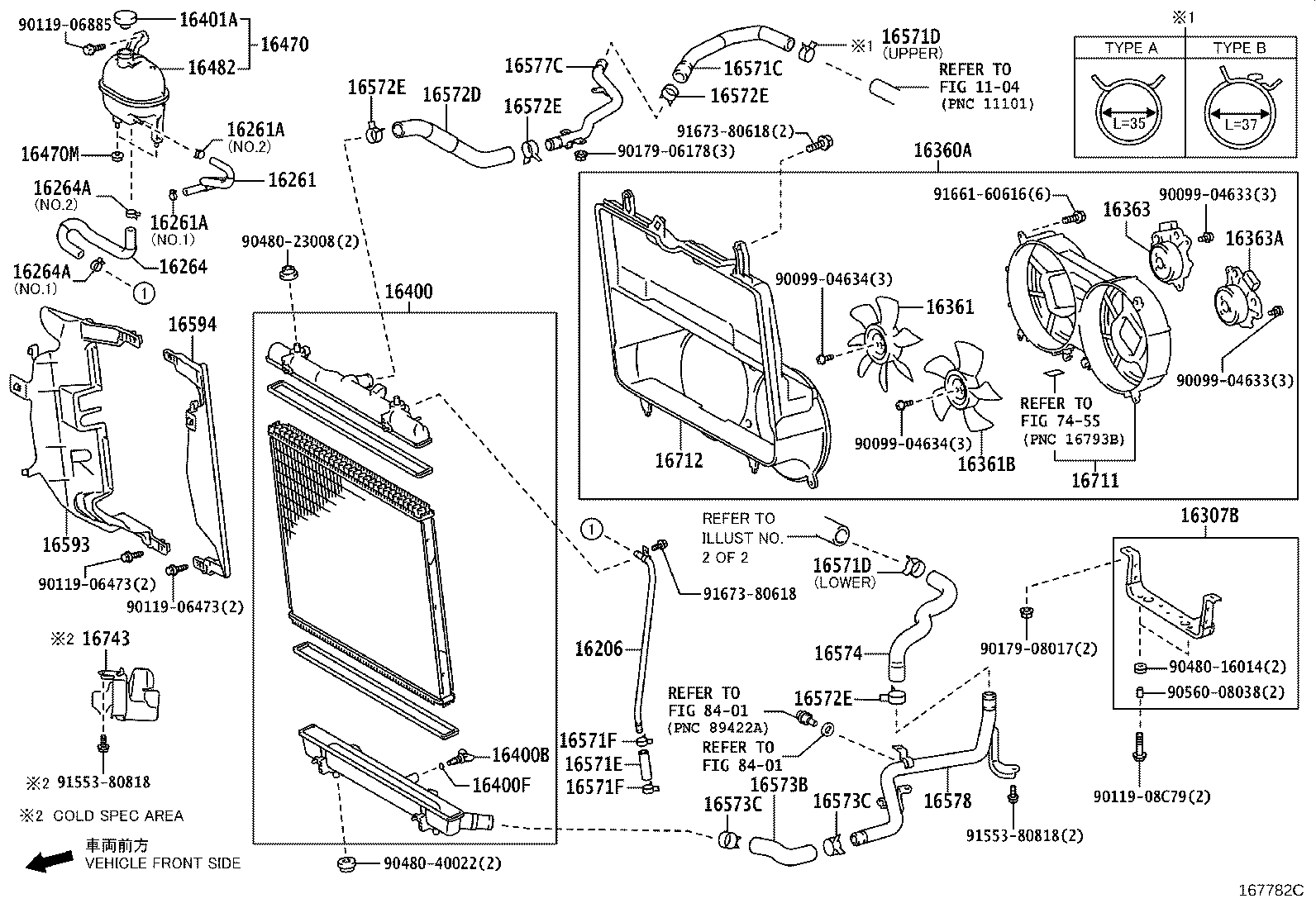

ILLUST NO. 1 OF 2(1312-2005)1KDFTV,2KDFTV..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16058 - HOSE SUB-ASSY, RADIATOR, NO.2 | ||||
| 16058-30020 |
1KDFTV..KDH213..TH |
1 | ||
| 16058-30020 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-75010 |
1KDFTV..KDH213..TH |
1 | ||
| 16206-75010 |
1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75250 |
1KDFTV..KDH213..TH |
1 | ||
| 16261-75250 |
1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1KDFTV..KDH213..TH NO.2:REFER ILLUST. |
1 | ||
| 90467-15022 |
1KDFTV..KDH213..TH NO.1:REFER ILLUST. |
1 | ||
| 90467-15022 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.1:REFER ILLUST. |
1 | ||
| 96136-41501 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.2:REFER ILLUST. |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1KDFTV..KDH213..TH NO.2:REFER ILLUST. |
1 | ||
| 90467-15022 |
1KDFTV..KDH213..TH NO.1:REFER ILLUST. |
1 | ||
| 90467-15022 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.1:REFER ILLUST. |
1 | ||
| 96136-41501 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.2:REFER ILLUST. |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75190 |
1KDFTV..KDH213..TH |
1 | ||
| 16264-75190 |
1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1KDFTV,2KDFTV..KDH20#,21#,22# NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
1KDFTV..KDH213..TH NO.1:REFER ILLUST. |
1 | ||
| 96138-42501 |
1KDFTV..KDH213..TH NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.1:REFER ILLUST. |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1KDFTV,2KDFTV..KDH20#,21#,22# NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
1KDFTV..KDH213..TH NO.1:REFER ILLUST. |
1 | ||
| 96138-42501 |
1KDFTV..KDH213..TH NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.1:REFER ILLUST. |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30130 |
1KDFTV..KDH213..TH |
1 | ||
| 16267-30130 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1KDFTV..KDH213..TH |
2 | ||
| 96136-41501 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1KDFTV..KDH213..TH |
2 | ||
| 96136-41501 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16307-30010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-30022 |
1KDFTV..KDH223..14S;1KDFTV..KDH201..SP..06S;1KDFTV,2KDFTV..KDH21#,222..GL;1KDFTV,2KDFTV..KDH200,202,203,223..(03S,10S,12S)..(MA,RUS,TH) |
1 | ||
| 16360-30023 |
1KDFTV..KDH213..TH |
1 | ||
| 16361 - FAN | ||||
| 16361-30060 |
1KDFTV..KDH213..TH |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-30050 |
1KDFTV..KDH213..TH |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-30041 |
1KDFTV..KDH213..TH |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-30041 |
1KDFTV..KDH213..TH |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-30173 |
1KDFTV,2KDFTV..KDH201,21#,221,222,223..4FC |
1 | ||
| 16400-30174 |
1KDFTV..KDH213..TH |
1 | ||
| 16400-30174 |
1KDFTV..KDH213 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16417-30170 |
1KDFTV..KDH213..TH |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1KDFTV..KDH213..TH |
1 | ||
| 16418-15520 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-37010 |
1KDFTV,2KDFTV..KDH20#,21#,22# |
1 | ||
| 16475-37011 |
1KDFTV,2KDFTV..KDH20#,21#,22# |
1 | ||
| 16475-28140 |
1KDFTV..KDH213..TH |
1 | ||
| 16475-28140 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
1KDFTV,2KDFTV..KDH20#,21#,22# |
1 | ||
| 16470-75124 |
1KDFTV..KDH213..TH |
1 | ||
| 16470-75123 |
1KDFTV,2KDFTV..KDH20#,21#,22# |
1 | ||
| 16470-75124 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1KDFTV,2KDFTV..KDH20#,21#,22# |
2 | ||
| 90480-14470 |
1KDFTV..KDH213..TH |
2 | ||
| 90480-14470 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
1KDFTV..KDH213..TH |
1 | ||
| 16480-75070 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-30070 |
1KDFTV..KDH213..TH |
1 | ||
| 16571-30070 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-54801 |
1KDFTV..KDH213..TH |
1 | ||
| 96136-54801 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 99555-10500 |
1KDFTV..KDH213..TH |
1 | ||
| 99555-10500 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-41007 |
1KDFTV..KDH213..TH TYPE B:REFER ILLUST. |
1 | ||
| 96136-54801 |
1KDFTV..KDH213..TH TYPE A:REFER ILLUST. |
1 | ||
| 96136-54801 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL TYPE A:REFER ILLUST. |
1 | ||
| 90466-41007 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL TYPE B:REFER ILLUST. |
1 | ||
| 16571E - HOSE, WATER | ||||
| 99555-20075 |
1KDFTV..KDH213..TH |
1 | ||
| 99555-20075 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 96136-42101 |
1KDFTV..KDH213..TH |
2 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 96136-42101 |
1KDFTV..KDH213..TH |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-30110 |
1KDFTV..KDH213..TH |
1 | ||
| 16572-30110 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-54801 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 96136-54801 |
1KDFTV..KDH213..TH |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-54801 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 96136-54801 |
1KDFTV..KDH213..TH |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96136-41501 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 96136-41501 |
1KDFTV..KDH213..TH |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-30090 |
1KDFTV..KDH213..TH |
1 | ||
| 16572-30090 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54301 |
1KDFTV..KDH213..TH |
2 | ||
| 96136-54301 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54301 |
1KDFTV..KDH213..TH |
2 | ||
| 96136-54301 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-30040 |
1KDFTV..KDH213..TH |
1 | ||
| 16573-30040 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV..KDH213..TH |
2 | ||
| 90466-41007 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV..KDH213..TH |
2 | ||
| 90466-41007 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-30020 |
1KDFTV..KDH213..TH |
1 | ||
| 16574-30020 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 96136-54801 |
1KDFTV..KDH213..TH |
2 | ||
| 96136-54801 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 96136-54801 |
1KDFTV..KDH213..TH |
2 | ||
| 96136-54801 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-30040 |
1KDFTV..KDH213..TH |
1 | ||
| 16577-30040 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 96136-41501 |
1KDFTV..KDH213..TH |
1 | ||
| 96136-41501 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-30021 |
1KDFTV..KDH213..TH |
1 | ||
| 16577-30021 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-30011 |
1KDFTV..KDH213..TH |
1 | ||
| 16578-30011 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-75012 |
1KDFTV..KDH213..TH |
1 | ||
| 16593-75012 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-75011 |
1KDFTV..KDH213..TH |
1 | ||
| 16594-75011 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-30081 |
1KDFTV..KDH223..14S;1KDFTV..KDH201..SP..06S;1KDFTV,2KDFTV..KDH21#,222..GL;1KDFTV,2KDFTV..KDH200,202,203,223..(03S,10S,12S)..(MA,RUS,TH) |
1 | ||
| 16711-30082 |
1KDFTV..KDH213..TH |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75122 |
1KDFTV..KDH213..TH |
1 | ||
| 16712-75122 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| Common parts | ||||
| 82711-14560 | ||||
| 90099-04119 | ||||
| 90099-04625 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08017 | ||||
| 90339-16001 | ||||
| 90381-08002 | ||||
| 90464-00906 | ||||
| 90466-T0020 | ||||
| 90480-16014 | ||||
| 90480-16016 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 90560-08038 | ||||
| 91553-80818 | ||||
| 91661-60616 | ||||
| 91673-80618 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8401 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1312- )1KDFTV..KDH203..15S ; (1312- )1KDFTV..KDH201..4D..5F..GEN,TH ; (1312-
EXCEPT EURO 5 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30100 |
1KDFTV..KDH213..TH |
1 | ||
| 16027-30100 |
1KDFTV..KDH213..TH |
1 | ||
| 16027-30100 |
1KDFTV..KDH213..TH |
1 | ||
| 16027-30100 |
1KDFTV..KDH213 |
1 | ||
| 16027-30100 |
1KDFTV..KDH213 |
1 | ||
| 16027-30100 |
1KDFTV..KDH213 |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30160 |
1KDFTV..KDH213 |
1 | ||
| 16207-30160 |
1KDFTV..KDH213 |
1 | ||
| 16207-30160 |
1KDFTV..KDH213 |
1 | ||
| 16207-30160 |
1KDFTV..KDH213..TH |
1 | ||
| 16207-30160 |
1KDFTV..KDH213..TH |
1 | ||
| 16207-30160 |
1KDFTV..KDH213..TH |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16258-67010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16258-67010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16258-67010 |
1KDFTV..KDH213..TH |
1 | ||
| 16258-67010 |
1KDFTV..KDH213..TH |
1 | ||
| 16258-67010 |
1KDFTV..KDH213..TH |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-30140 |
1KDFTV..KDH213..TH |
1 | ||
| 16261-30140 |
1KDFTV..KDH213..TH |
1 | ||
| 16261-30140 |
1KDFTV..KDH213..TH |
1 | ||
| 16261-30140 |
1KDFTV..KDH213 |
1 | ||
| 16261-30140 |
1KDFTV..KDH213 |
1 | ||
| 16261-30140 |
1KDFTV..KDH213 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16267-30110 |
1KDFTV..KDH213..TH |
1 | ||
| 16267-30110 |
1KDFTV..KDH213..TH |
1 | ||
| 16267-30110 |
1KDFTV..KDH213..TH |
1 | ||
| 16267-30110 |
1KDFTV..KDH213 |
1 | ||
| 16267-30110 |
1KDFTV..KDH213 |
1 | ||
| 16267-30110 |
1KDFTV..KDH213 |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
1KDFTV..KDH213 |
2 | ||
| 96136-42101 |
1KDFTV..KDH213 |
2 | ||
| 96136-42101 |
1KDFTV..KDH213 |
2 | ||
| 90467-19022 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-19022 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-19022 |
1KDFTV..KDH213..TH |
2 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
1KDFTV..KDH213 |
2 | ||
| 96136-42101 |
1KDFTV..KDH213 |
2 | ||
| 96136-42101 |
1KDFTV..KDH213 |
2 | ||
| 90467-19022 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-19022 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-19022 |
1KDFTV..KDH213..TH |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-30021 |
1KDFTV..KDH213..TH |
1 | ||
| 16282-30021 |
1KDFTV..KDH213..TH |
1 | ||
| 16282-30021 |
1KDFTV..KDH213..TH |
1 | ||
| 16282-30021 |
1KDFTV..KDH213 |
1 | ||
| 16282-30021 |
1KDFTV..KDH213 |
1 | ||
| 16282-30021 |
1KDFTV..KDH213 |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-30011 |
1KDFTV..KDH213..TH |
1 | ||
| 16283-30011 |
1KDFTV..KDH213..TH |
1 | ||
| 16283-30011 |
1KDFTV..KDH213..TH |
1 | ||
| 16283-30011 |
1KDFTV..KDH213 |
1 | ||
| 16283-30011 |
1KDFTV..KDH213 |
1 | ||
| 16283-30011 |
1KDFTV..KDH213 |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30100 |
1KDFTV..KDH213..TH |
1 | ||
| 16284-30100 |
1KDFTV..KDH213..TH |
1 | ||
| 16284-30100 |
1KDFTV..KDH213..TH |
1 | ||
| 16284-30100 |
1KDFTV..KDH213 |
1 | ||
| 16284-30100 |
1KDFTV..KDH213 |
1 | ||
| 16284-30100 |
1KDFTV..KDH213 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-30081 |
1KDFTV..KDH213..TH |
1 | ||
| 16285-30081 |
1KDFTV..KDH213..TH |
1 | ||
| 16285-30081 |
1KDFTV..KDH213..TH |
1 | ||
| 16285-30081 |
1KDFTV..KDH213 |
1 | ||
| 16285-30081 |
1KDFTV..KDH213 |
1 | ||
| 16285-30081 |
1KDFTV..KDH213 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16291-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16291-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16291-30010 |
1KDFTV..KDH213 |
1 | ||
| 16291-30010 |
1KDFTV..KDH213 |
1 | ||
| 16291-30010 |
1KDFTV..KDH213 |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-30011 |
1KDFTV..KDH213..TH |
1 | ||
| 16295-30011 |
1KDFTV..KDH213..TH |
1 | ||
| 16295-30011 |
1KDFTV..KDH213..TH |
1 | ||
| 16295-30011 |
1KDFTV..KDH213 |
1 | ||
| 16295-30011 |
1KDFTV..KDH213 |
1 | ||
| 16295-30011 |
1KDFTV..KDH213 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0K010 |
1KDFTV..KDH213..TH |
1 | ||
| 16321-0K010 |
1KDFTV..KDH213..TH |
1 | ||
| 16321-0K010 |
1KDFTV..KDH213..TH |
1 | ||
| 16321-0K010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16321-0K010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16321-0K010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30070 |
1KDFTV..KDH213..TH |
1 | ||
| 16331-30070 |
1KDFTV..KDH213..TH |
1 | ||
| 16331-30070 |
1KDFTV..KDH213..TH |
1 | ||
| 16331-30070 |
1KDFTV..KDH213 |
1 | ||
| 16331-30070 |
1KDFTV..KDH213 |
1 | ||
| 16331-30070 |
1KDFTV..KDH213 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL *WAX 82-95 |
1 | ||
| 90916-03118 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL *WAX 82-95 |
1 | ||
| 90916-03118 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL *WAX 82-95 |
1 | ||
| 90916-03118 |
1KDFTV..KDH213..TH *WAX 82-95 |
1 | ||
| 90916-03118 |
1KDFTV..KDH213..TH *WAX 82-95 |
1 | ||
| 90916-03118 |
1KDFTV..KDH213..TH *WAX 82-95 |
1 | ||
| 16331Q - PLUG(FOR WATER OUTLET) | ||||
| 90910-09133 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 90910-09133 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 90910-09133 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 90910-09133 |
1KDFTV..KDH213..TH |
1 | ||
| 90910-09133 |
1KDFTV..KDH213..TH |
1 | ||
| 90910-09133 |
1KDFTV..KDH213..TH |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-30020 |
1KDFTV..KDH213..TH |
1 | ||
| 16341-30020 |
1KDFTV..KDH213..TH |
1 | ||
| 16341-30020 |
1KDFTV..KDH213..TH |
1 | ||
| 16341-30020 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16341-30020 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16341-30020 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16346-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16346-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16346-0K010 |
1KDFTV,2KDFTV..KDH202,203,223..ARL,GCC,GEN,MA,RUS;1KDFTV,2KDFTV..KDH200,201,21#,220,221,222..ARL,GCC,GEN,SA,TH |
1 | ||
| 16346-0K010 |
1KDFTV,2KDFTV..KDH202,203,223..ARL,GCC,GEN,MA,RUS;1KDFTV,2KDFTV..KDH200,201,21#,220,221,222..ARL,GCC,GEN,SA,TH |
1 | ||
| 16346-0K010 |
1KDFTV,2KDFTV..KDH202,203,223..ARL,GCC,GEN,MA,RUS;1KDFTV,2KDFTV..KDH200,201,21#,220,221,222..ARL,GCC,GEN,SA,TH |
1 | ||
| 16346-30010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16346-30010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16346-30010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16347-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16347-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16347-30010 |
1KDFTV..KDH213 |
1 | ||
| 16347-30010 |
1KDFTV..KDH213 |
1 | ||
| 16347-30010 |
1KDFTV..KDH213 |
1 | ||
| Common parts | ||||
| 90105-T0066 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90119-T0236 | ||||
| 90178-T0018 | ||||
| 90339-16003 | ||||
| 90466-T0015 | ||||
| 90466-T0020 | ||||
| 90467-13128 | ||||
| 90467-19022 | ||||
| 91551-80612 | ||||
| 91551-80820 | ||||
| 91643-80635 | ||||
| 91671-80814 | ||||
| 94151-80600 | ||||
| 96136-42101 | ||||
| 96136-42501 | ||||
| 96137-41501 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1502 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1506- )1KDFTV..KDH213..5F ; (1512- )1KDFTV..KDH203..12S..GEN ; (1512- )1K
EXCEPT EURO 5 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30100 |
1KDFTV..KDH213..TH |
1 | ||
| 16027-30100 |
1KDFTV..KDH213..TH |
1 | ||
| 16027-30100 |
1KDFTV..KDH213..TH |
1 | ||
| 16027-30100 |
1KDFTV..KDH213 |
1 | ||
| 16027-30100 |
1KDFTV..KDH213 |
1 | ||
| 16027-30100 |
1KDFTV..KDH213 |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30160 |
1KDFTV..KDH213 |
1 | ||
| 16207-30160 |
1KDFTV..KDH213 |
1 | ||
| 16207-30160 |
1KDFTV..KDH213 |
1 | ||
| 16207-30160 |
1KDFTV..KDH213..TH |
1 | ||
| 16207-30160 |
1KDFTV..KDH213..TH |
1 | ||
| 16207-30160 |
1KDFTV..KDH213..TH |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16258-67010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16258-67010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16258-67010 |
1KDFTV..KDH213..TH |
1 | ||
| 16258-67010 |
1KDFTV..KDH213..TH |
1 | ||
| 16258-67010 |
1KDFTV..KDH213..TH |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-30140 |
1KDFTV..KDH213..TH |
1 | ||
| 16261-30140 |
1KDFTV..KDH213..TH |
1 | ||
| 16261-30140 |
1KDFTV..KDH213..TH |
1 | ||
| 16261-30140 |
1KDFTV..KDH213 |
1 | ||
| 16261-30140 |
1KDFTV..KDH213 |
1 | ||
| 16261-30140 |
1KDFTV..KDH213 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16267-30110 |
1KDFTV..KDH213..TH |
1 | ||
| 16267-30110 |
1KDFTV..KDH213..TH |
1 | ||
| 16267-30110 |
1KDFTV..KDH213..TH |
1 | ||
| 16267-30110 |
1KDFTV..KDH213 |
1 | ||
| 16267-30110 |
1KDFTV..KDH213 |
1 | ||
| 16267-30110 |
1KDFTV..KDH213 |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
1KDFTV..KDH213 |
2 | ||
| 96136-42101 |
1KDFTV..KDH213 |
2 | ||
| 96136-42101 |
1KDFTV..KDH213 |
2 | ||
| 90467-19022 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-19022 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-19022 |
1KDFTV..KDH213..TH |
2 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
1KDFTV..KDH213 |
2 | ||
| 96136-42101 |
1KDFTV..KDH213 |
2 | ||
| 96136-42101 |
1KDFTV..KDH213 |
2 | ||
| 90467-19022 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-19022 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-19022 |
1KDFTV..KDH213..TH |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-30021 |
1KDFTV..KDH213..TH |
1 | ||
| 16282-30021 |
1KDFTV..KDH213..TH |
1 | ||
| 16282-30021 |
1KDFTV..KDH213..TH |
1 | ||
| 16282-30021 |
1KDFTV..KDH213 |
1 | ||
| 16282-30021 |
1KDFTV..KDH213 |
1 | ||
| 16282-30021 |
1KDFTV..KDH213 |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-30011 |
1KDFTV..KDH213..TH |
1 | ||
| 16283-30011 |
1KDFTV..KDH213..TH |
1 | ||
| 16283-30011 |
1KDFTV..KDH213..TH |
1 | ||
| 16283-30011 |
1KDFTV..KDH213 |
1 | ||
| 16283-30011 |
1KDFTV..KDH213 |
1 | ||
| 16283-30011 |
1KDFTV..KDH213 |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30100 |
1KDFTV..KDH213..TH |
1 | ||
| 16284-30100 |
1KDFTV..KDH213..TH |
1 | ||
| 16284-30100 |
1KDFTV..KDH213..TH |
1 | ||
| 16284-30100 |
1KDFTV..KDH213 |
1 | ||
| 16284-30100 |
1KDFTV..KDH213 |
1 | ||
| 16284-30100 |
1KDFTV..KDH213 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-30081 |
1KDFTV..KDH213..TH |
1 | ||
| 16285-30081 |
1KDFTV..KDH213..TH |
1 | ||
| 16285-30081 |
1KDFTV..KDH213..TH |
1 | ||
| 16285-30081 |
1KDFTV..KDH213 |
1 | ||
| 16285-30081 |
1KDFTV..KDH213 |
1 | ||
| 16285-30081 |
1KDFTV..KDH213 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 90467-13128 |
1KDFTV..KDH213..TH |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 96137-41501 |
1KDFTV..KDH213 |
2 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16291-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16291-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16291-30010 |
1KDFTV..KDH213 |
1 | ||
| 16291-30010 |
1KDFTV..KDH213 |
1 | ||
| 16291-30010 |
1KDFTV..KDH213 |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-30011 |
1KDFTV..KDH213..TH |
1 | ||
| 16295-30011 |
1KDFTV..KDH213..TH |
1 | ||
| 16295-30011 |
1KDFTV..KDH213..TH |
1 | ||
| 16295-30011 |
1KDFTV..KDH213 |
1 | ||
| 16295-30011 |
1KDFTV..KDH213 |
1 | ||
| 16295-30011 |
1KDFTV..KDH213 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0K010 |
1KDFTV..KDH213..TH |
1 | ||
| 16321-0K010 |
1KDFTV..KDH213..TH |
1 | ||
| 16321-0K010 |
1KDFTV..KDH213..TH |
1 | ||
| 16321-0K010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16321-0K010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16321-0K010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30070 |
1KDFTV..KDH213..TH |
1 | ||
| 16331-30070 |
1KDFTV..KDH213..TH |
1 | ||
| 16331-30070 |
1KDFTV..KDH213..TH |
1 | ||
| 16331-30070 |
1KDFTV..KDH213 |
1 | ||
| 16331-30070 |
1KDFTV..KDH213 |
1 | ||
| 16331-30070 |
1KDFTV..KDH213 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL *WAX 82-95 |
1 | ||
| 90916-03118 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL *WAX 82-95 |
1 | ||
| 90916-03118 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL *WAX 82-95 |
1 | ||
| 90916-03118 |
1KDFTV..KDH213..TH *WAX 82-95 |
1 | ||
| 90916-03118 |
1KDFTV..KDH213..TH *WAX 82-95 |
1 | ||
| 90916-03118 |
1KDFTV..KDH213..TH *WAX 82-95 |
1 | ||
| 16331Q - PLUG(FOR WATER OUTLET) | ||||
| 90910-09133 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 90910-09133 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 90910-09133 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 90910-09133 |
1KDFTV..KDH213..TH |
1 | ||
| 90910-09133 |
1KDFTV..KDH213..TH |
1 | ||
| 90910-09133 |
1KDFTV..KDH213..TH |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-30020 |
1KDFTV..KDH213..TH |
1 | ||
| 16341-30020 |
1KDFTV..KDH213..TH |
1 | ||
| 16341-30020 |
1KDFTV..KDH213..TH |
1 | ||
| 16341-30020 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16341-30020 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16341-30020 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16346-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16346-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16346-0K010 |
1KDFTV,2KDFTV..KDH202,203,223..ARL,GCC,GEN,MA,RUS;1KDFTV,2KDFTV..KDH200,201,21#,220,221,222..ARL,GCC,GEN,SA,TH |
1 | ||
| 16346-0K010 |
1KDFTV,2KDFTV..KDH202,203,223..ARL,GCC,GEN,MA,RUS;1KDFTV,2KDFTV..KDH200,201,21#,220,221,222..ARL,GCC,GEN,SA,TH |
1 | ||
| 16346-0K010 |
1KDFTV,2KDFTV..KDH202,203,223..ARL,GCC,GEN,MA,RUS;1KDFTV,2KDFTV..KDH200,201,21#,220,221,222..ARL,GCC,GEN,SA,TH |
1 | ||
| 16346-30010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16346-30010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16346-30010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16347-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16347-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16347-30010 |
1KDFTV..KDH213 |
1 | ||
| 16347-30010 |
1KDFTV..KDH213 |
1 | ||
| 16347-30010 |
1KDFTV..KDH213 |
1 | ||
| Common parts | ||||
| 90105-T0066 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90119-T0236 | ||||
| 90178-T0018 | ||||
| 90339-16003 | ||||
| 90466-T0015 | ||||
| 90466-T0020 | ||||
| 90467-13128 | ||||
| 90467-19022 | ||||
| 91551-80612 | ||||
| 91551-80820 | ||||
| 91643-80635 | ||||
| 91671-80814 | ||||
| 94151-80600 | ||||
| 96136-42101 | ||||
| 96136-42501 | ||||
| 96137-41501 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1502 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(1312-2005)2TRFE..TRH223..GL..SA ; (1312-2005)2TRFE..TRH213,221..RHD ; (1312-2005)2
W(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-75010 |
1KDFTV..KDH213..TH |
1 | ||
| 16206-75010 |
1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75250 |
1KDFTV..KDH213..TH |
1 | ||
| 16261-75250 |
1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1KDFTV..KDH213..TH NO.2:REFER ILLUST. |
1 | ||
| 90467-15022 |
1KDFTV..KDH213..TH NO.1:REFER ILLUST. |
1 | ||
| 90467-15022 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.1:REFER ILLUST. |
1 | ||
| 96136-41501 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.2:REFER ILLUST. |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1KDFTV..KDH213..TH NO.2:REFER ILLUST. |
1 | ||
| 90467-15022 |
1KDFTV..KDH213..TH NO.1:REFER ILLUST. |
1 | ||
| 90467-15022 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.1:REFER ILLUST. |
1 | ||
| 96136-41501 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.2:REFER ILLUST. |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75190 |
1KDFTV..KDH213..TH |
1 | ||
| 16264-75190 |
1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1KDFTV,2KDFTV..KDH20#,21#,22# NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
1KDFTV..KDH213..TH NO.1:REFER ILLUST. |
1 | ||
| 96138-42501 |
1KDFTV..KDH213..TH NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.1:REFER ILLUST. |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1KDFTV,2KDFTV..KDH20#,21#,22# NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
1KDFTV..KDH213..TH NO.1:REFER ILLUST. |
1 | ||
| 96138-42501 |
1KDFTV..KDH213..TH NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.1:REFER ILLUST. |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16307-30010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-30022 |
1KDFTV..KDH223..14S;1KDFTV..KDH201..SP..06S;1KDFTV,2KDFTV..KDH21#,222..GL;1KDFTV,2KDFTV..KDH200,202,203,223..(03S,10S,12S)..(MA,RUS,TH) |
1 | ||
| 16360-30023 |
1KDFTV..KDH213..TH |
1 | ||
| 16361 - FAN | ||||
| 16361-30060 |
1KDFTV..KDH213..TH |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-30050 |
1KDFTV..KDH213..TH |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-30041 |
1KDFTV..KDH213..TH |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-30041 |
1KDFTV..KDH213..TH |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-30173 |
1KDFTV,2KDFTV..KDH201,21#,221,222,223..4FC |
1 | ||
| 16400-30174 |
1KDFTV..KDH213..TH |
1 | ||
| 16400-30174 |
1KDFTV..KDH213 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16417-30170 |
1KDFTV..KDH213..TH |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1KDFTV..KDH213..TH |
1 | ||
| 16418-15520 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-37010 |
1KDFTV,2KDFTV..KDH20#,21#,22# |
1 | ||
| 16475-37011 |
1KDFTV,2KDFTV..KDH20#,21#,22# |
1 | ||
| 16475-28140 |
1KDFTV..KDH213..TH |
1 | ||
| 16475-28140 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
1KDFTV,2KDFTV..KDH20#,21#,22# |
1 | ||
| 16470-75124 |
1KDFTV..KDH213..TH |
1 | ||
| 16470-75123 |
1KDFTV,2KDFTV..KDH20#,21#,22# |
1 | ||
| 16470-75124 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1KDFTV,2KDFTV..KDH20#,21#,22# |
2 | ||
| 90480-14470 |
1KDFTV..KDH213..TH |
2 | ||
| 90480-14470 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
1KDFTV..KDH213..TH |
1 | ||
| 16480-75070 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 99555-10500 |
1KDFTV..KDH213..TH |
1 | ||
| 99555-10500 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-41007 |
1KDFTV..KDH213..TH TYPE B:REFER ILLUST. |
1 | ||
| 96136-54801 |
1KDFTV..KDH213..TH TYPE A:REFER ILLUST. |
1 | ||
| 96136-54801 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL TYPE A:REFER ILLUST. |
1 | ||
| 90466-41007 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL TYPE B:REFER ILLUST. |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-41007 |
1KDFTV..KDH213..TH TYPE B:REFER ILLUST. |
1 | ||
| 96136-54801 |
1KDFTV..KDH213..TH TYPE A:REFER ILLUST. |
1 | ||
| 96136-54801 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL TYPE A:REFER ILLUST. |
1 | ||
| 90466-41007 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL TYPE B:REFER ILLUST. |
1 | ||
| 16571E - HOSE, WATER | ||||
| 99555-20075 |
1KDFTV..KDH213..TH |
1 | ||
| 99555-20075 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 96136-42101 |
1KDFTV..KDH213..TH |
2 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 96136-42101 |
1KDFTV..KDH213..TH |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-30090 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16572-30090 |
1KDFTV..KDH213..TH |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54301 |
1KDFTV..KDH213..TH |
2 | ||
| 96136-54301 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54301 |
1KDFTV..KDH213..TH |
2 | ||
| 96136-54301 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54301 |
1KDFTV..KDH213..TH |
2 | ||
| 96136-54301 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54301 |
1KDFTV..KDH213..TH |
2 | ||
| 96136-54301 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-30040 |
1KDFTV..KDH213..TH |
1 | ||
| 16573-30040 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV..KDH213..TH |
2 | ||
| 90466-41007 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV..KDH213..TH |
2 | ||
| 90466-41007 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-30020 |
1KDFTV..KDH213..TH |
1 | ||
| 16574-30020 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-30021 |
1KDFTV..KDH213..TH |
1 | ||
| 16577-30021 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-30011 |
1KDFTV..KDH213..TH |
1 | ||
| 16578-30011 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-75012 |
1KDFTV..KDH213..TH |
1 | ||
| 16593-75012 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-75011 |
1KDFTV..KDH213..TH |
1 | ||
| 16594-75011 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-30081 |
1KDFTV..KDH223..14S;1KDFTV..KDH201..SP..06S;1KDFTV,2KDFTV..KDH21#,222..GL;1KDFTV,2KDFTV..KDH200,202,203,223..(03S,10S,12S)..(MA,RUS,TH) |
1 | ||
| 16711-30082 |
1KDFTV..KDH213..TH |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75122 |
1KDFTV..KDH213..TH |
1 | ||
| 16712-75122 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08017 | ||||
| 90389-09025 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80818 | ||||
| 91661-60616 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 7455 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(2003- )2TRFE..TRH223..RHD..GEN ; (2004- )2TRFE..TRH213,221..RHD ; (2005-
W(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-75010 |
1KDFTV..KDH213..TH |
1 | ||
| 16206-75010 |
1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75250 |
1KDFTV..KDH213..TH |
1 | ||
| 16261-75250 |
1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1KDFTV..KDH213..TH NO.2:REFER ILLUST. |
1 | ||
| 90467-15022 |
1KDFTV..KDH213..TH NO.1:REFER ILLUST. |
1 | ||
| 90467-15022 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.1:REFER ILLUST. |
1 | ||
| 96136-41501 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.2:REFER ILLUST. |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1KDFTV..KDH213..TH NO.2:REFER ILLUST. |
1 | ||
| 90467-15022 |
1KDFTV..KDH213..TH NO.1:REFER ILLUST. |
1 | ||
| 90467-15022 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.1:REFER ILLUST. |
1 | ||
| 96136-41501 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.2:REFER ILLUST. |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75190 |
1KDFTV..KDH213..TH |
1 | ||
| 16264-75190 |
1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1KDFTV,2KDFTV..KDH20#,21#,22# NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
1KDFTV..KDH213..TH NO.1:REFER ILLUST. |
1 | ||
| 96138-42501 |
1KDFTV..KDH213..TH NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.1:REFER ILLUST. |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1KDFTV,2KDFTV..KDH20#,21#,22# NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
1KDFTV..KDH213..TH NO.1:REFER ILLUST. |
1 | ||
| 96138-42501 |
1KDFTV..KDH213..TH NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL NO.1:REFER ILLUST. |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-30010 |
1KDFTV..KDH213..TH |
1 | ||
| 16307-30010 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-30022 |
1KDFTV..KDH223..14S;1KDFTV..KDH201..SP..06S;1KDFTV,2KDFTV..KDH21#,222..GL;1KDFTV,2KDFTV..KDH200,202,203,223..(03S,10S,12S)..(MA,RUS,TH) |
1 | ||
| 16360-30023 |
1KDFTV..KDH213..TH |
1 | ||
| 16361 - FAN | ||||
| 16361-30060 |
1KDFTV..KDH213..TH |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-30050 |
1KDFTV..KDH213..TH |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-30041 |
1KDFTV..KDH213..TH |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-30041 |
1KDFTV..KDH213..TH |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-30173 |
1KDFTV,2KDFTV..KDH201,21#,221,222,223..4FC |
1 | ||
| 16400-30174 |
1KDFTV..KDH213..TH |
1 | ||
| 16400-30174 |
1KDFTV..KDH213 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16417-30170 |
1KDFTV..KDH213..TH |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1KDFTV..KDH213..TH |
1 | ||
| 16418-15520 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-37010 |
1KDFTV,2KDFTV..KDH20#,21#,22# |
1 | ||
| 16475-37011 |
1KDFTV,2KDFTV..KDH20#,21#,22# |
1 | ||
| 16475-28140 |
1KDFTV..KDH213..TH |
1 | ||
| 16475-28140 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
1KDFTV,2KDFTV..KDH20#,21#,22# |
1 | ||
| 16470-75124 |
1KDFTV..KDH213..TH |
1 | ||
| 16470-75123 |
1KDFTV,2KDFTV..KDH20#,21#,22# |
1 | ||
| 16470-75124 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1KDFTV,2KDFTV..KDH20#,21#,22# |
2 | ||
| 90480-14470 |
1KDFTV..KDH213..TH |
2 | ||
| 90480-14470 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
1KDFTV..KDH213..TH |
1 | ||
| 16480-75070 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 99555-10500 |
1KDFTV..KDH213..TH |
1 | ||
| 99555-10500 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-41007 |
1KDFTV..KDH213..TH TYPE B:REFER ILLUST. |
1 | ||
| 96136-54801 |
1KDFTV..KDH213..TH TYPE A:REFER ILLUST. |
1 | ||
| 96136-54801 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL TYPE A:REFER ILLUST. |
1 | ||
| 90466-41007 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL TYPE B:REFER ILLUST. |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-41007 |
1KDFTV..KDH213..TH TYPE B:REFER ILLUST. |
1 | ||
| 96136-54801 |
1KDFTV..KDH213..TH TYPE A:REFER ILLUST. |
1 | ||
| 96136-54801 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL TYPE A:REFER ILLUST. |
1 | ||
| 90466-41007 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL TYPE B:REFER ILLUST. |
1 | ||
| 16571E - HOSE, WATER | ||||
| 99555-20075 |
1KDFTV..KDH213..TH |
1 | ||
| 99555-20075 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 96136-42101 |
1KDFTV..KDH213..TH |
2 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 96136-42101 |
1KDFTV..KDH213..TH |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-30090 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16572-30090 |
1KDFTV..KDH213..TH |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54301 |
1KDFTV..KDH213..TH |
2 | ||
| 96136-54301 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54301 |
1KDFTV..KDH213..TH |
2 | ||
| 96136-54301 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54301 |
1KDFTV..KDH213..TH |
2 | ||
| 96136-54301 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54301 |
1KDFTV..KDH213..TH |
2 | ||
| 96136-54301 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-30040 |
1KDFTV..KDH213..TH |
1 | ||
| 16573-30040 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV..KDH213..TH |
2 | ||
| 90466-41007 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV..KDH213..TH |
2 | ||
| 90466-41007 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-30020 |
1KDFTV..KDH213..TH |
1 | ||
| 16574-30020 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-30021 |
1KDFTV..KDH213..TH |
1 | ||
| 16577-30021 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-30011 |
1KDFTV..KDH213..TH |
1 | ||
| 16578-30011 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-75012 |
1KDFTV..KDH213..TH |
1 | ||
| 16593-75012 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-75011 |
1KDFTV..KDH213..TH |
1 | ||
| 16594-75011 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-30081 |
1KDFTV..KDH223..14S;1KDFTV..KDH201..SP..06S;1KDFTV,2KDFTV..KDH21#,222..GL;1KDFTV,2KDFTV..KDH200,202,203,223..(03S,10S,12S)..(MA,RUS,TH) |
1 | ||
| 16711-30082 |
1KDFTV..KDH213..TH |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75122 |
1KDFTV..KDH213..TH |
1 | ||
| 16712-75122 |
2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL |
1 | ||
| Common parts | ||||
| 90099-04633 | ||||
| 90099-04634 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08017 | ||||
| 90480-16014 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 90560-08038 | ||||
| 91553-80818 | ||||
| 91661-60616 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 7455 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
