KDH212L-KDPNY (2013)
Toyota Hiace
ILLUST NO. 3 OF 3(0501- )

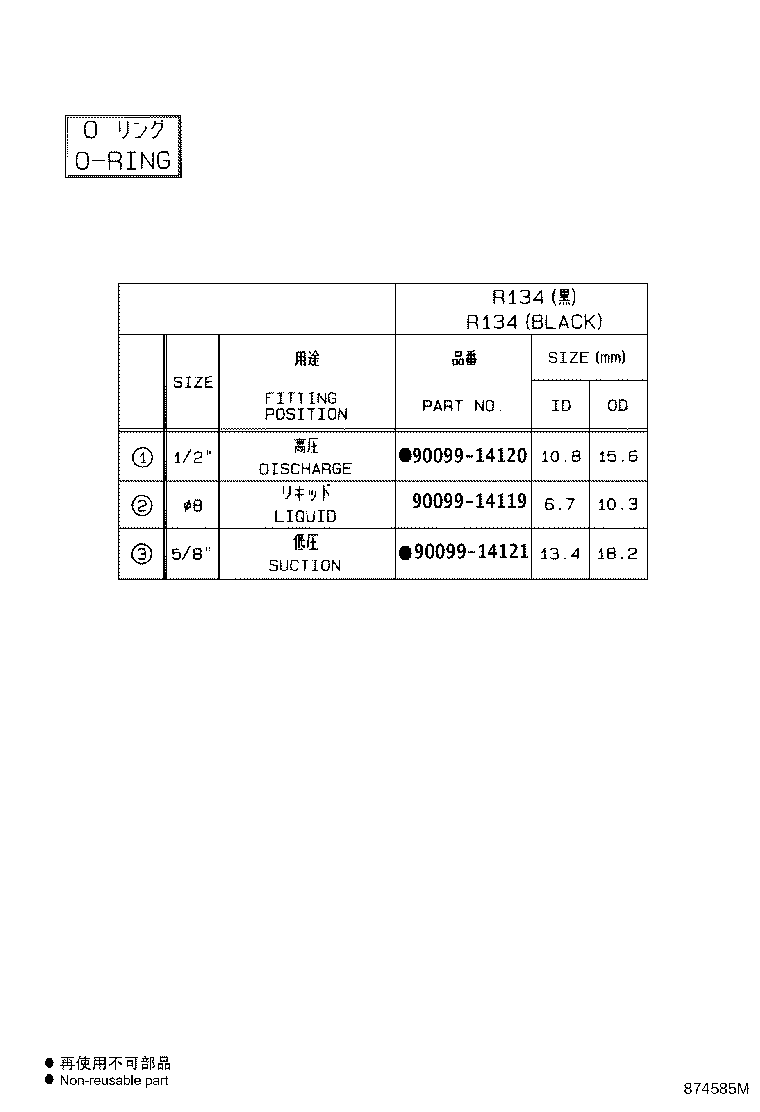

O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

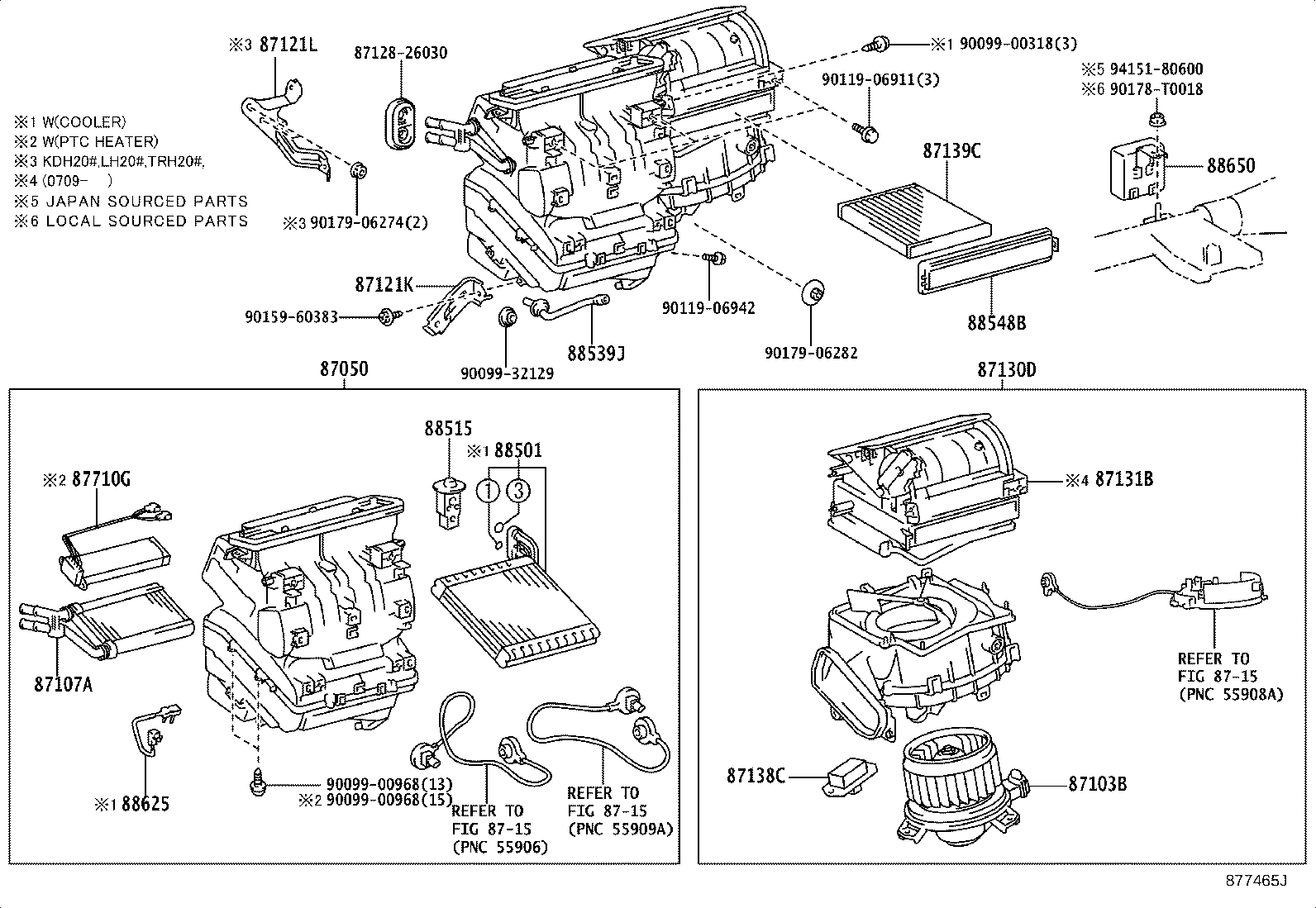

ILLUST NO. 1 OF 3(0501- )LHD
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87128-26030 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-32129 | ||||
| 90119-06911 | ||||
| 90119-06942 | ||||
| 90159-60383 | ||||
| 90178-T0018 | ||||
| 90179-06274 | ||||
| 90179-06282 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 1 OF 3(0501- )KDH20#,212,220,222,LH20#,212,222,TRH201,203,213,22#..LHD
FRONT:BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-32129 | ||||
| 90119-06911 | ||||
| 90119-06942 | ||||
| 90159-60383 | ||||
| 90178-T0018 | ||||
| 90179-06274 | ||||
| 90179-06282 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8715 | ||||

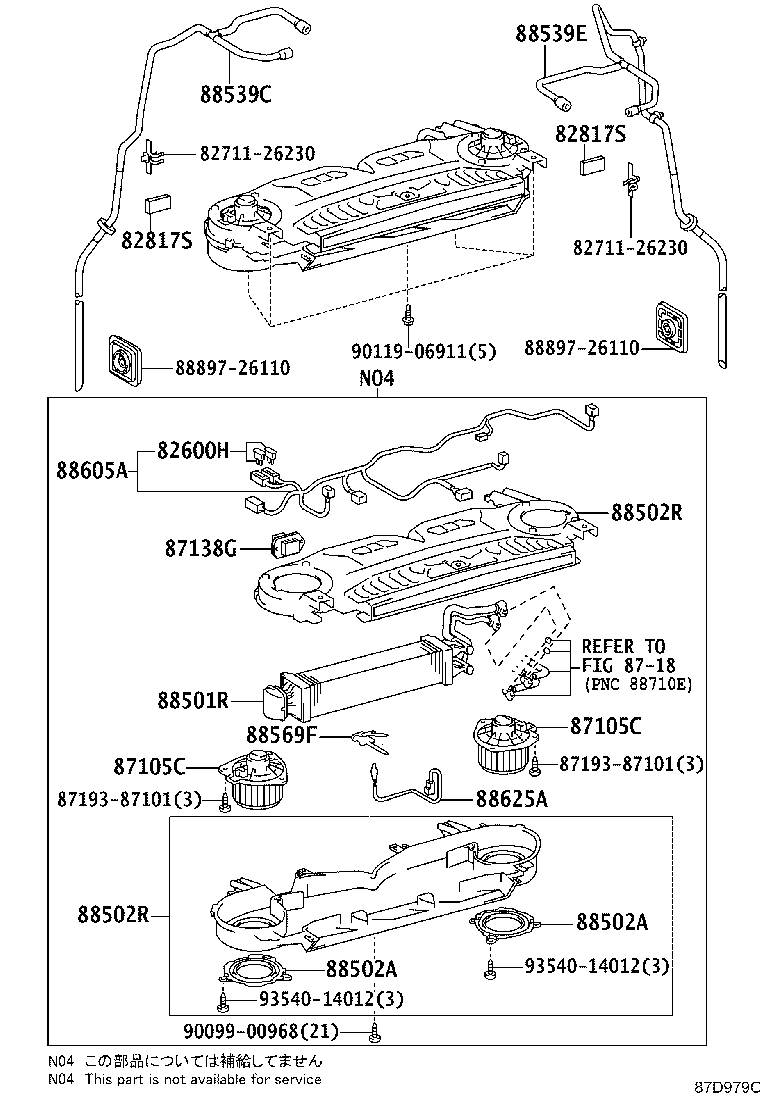

ILLUST NO. 2 OF 2(1312- )GDH201,KDH200,201,203,21#,220,221,223,LH20#,212,222,TRH200,201,213,221..
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600H - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) 10A,MINI FUSE,RED |
2 | ||
| 90982-09009 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) 10A,MINI FUSE,RED |
2 | ||
| 82817S - PROTECTOR, WIRING HARNESS | ||||
| 82817-95J55 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) |
2 | ||
| 82817-95J55 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) |
2 | ||
| 82817S - PROTECTOR, WIRING HARNESS | ||||
| 82817-95J55 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) |
2 | ||
| 82817-95J55 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) |
2 | ||
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87103-26081 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) RH |
1 | ||
| 87103-26081 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) RH |
1 | ||
| 87103-26091 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) LH |
1 | ||
| 87103-26091 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) LH |
1 | ||
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87103-26081 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) RH |
1 | ||
| 87103-26081 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) RH |
1 | ||
| 87103-26091 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) LH |
1 | ||
| 87103-26091 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) LH |
1 | ||
| 87138G - RESISTOR, REAR COOLER BLOWER | ||||
| 87138-26200 |
TRH223..GL..GCC;KDH223..(14S,16S)..(ARL,GEN,VN);KDH21#,222,TRH213..COM..GL..(GEN,TH);TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH202,203,222,223,TRH203..(03S,10S,12S)..(KEN,MA,RUS,TH) |
1 | ||
| 87138-26200 |
TRH223..GL..GCC;KDH223..(14S,16S)..(ARL,GEN,VN);KDH21#,222,TRH213..COM..GL..(GEN,TH);TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH202,203,222,223,TRH203..(03S,10S,12S)..(KEN,MA,RUS,TH) |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-26270 |
KDH201..SP..06S;KDH21#,TRH213..COM..GL..(GEN,TH);GDH201,KDH202,203,TRH200,203..RHD..(06S,10S,12S) |
1 | ||
| 88501-26270 |
KDH201..SP..06S;KDH21#,TRH213..COM..GL..(GEN,TH);GDH201,KDH202,203,TRH200,203..RHD..(06S,10S,12S) |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-26180 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) |
2 | ||
| 88502-26180 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) |
2 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-26180 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) |
2 | ||
| 88502-26180 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) |
2 | ||
| 88502R - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-26160 |
TRH223..GL..GCC;KDH223..(14S,16S)..(ARL,GEN,VN);KDH21#,222,TRH213..COM..GL..(GEN,TH);TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH202,203,222,223,TRH203..(03S,10S,12S)..(KEN,MA,RUS,TH) UPPER |
1 | ||
| 88502-26160 |
TRH223..GL..GCC;KDH223..(14S,16S)..(ARL,GEN,VN);KDH21#,222,TRH213..COM..GL..(GEN,TH);TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH202,203,222,223,TRH203..(03S,10S,12S)..(KEN,MA,RUS,TH) UPPER |
1 | ||
| 88502-26170 |
TRH223..GL..GCC;KDH223..(14S,16S)..(ARL,GEN,VN);KDH21#,222,TRH213..COM..GL..(GEN,TH);TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH202,203,222,223,TRH203..(03S,10S,12S)..(KEN,MA,RUS,TH) LOWER |
1 | ||
| 88502-26170 |
TRH223..GL..GCC;KDH223..(14S,16S)..(ARL,GEN,VN);KDH21#,222,TRH213..COM..GL..(GEN,TH);TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH202,203,222,223,TRH203..(03S,10S,12S)..(KEN,MA,RUS,TH) LOWER |
1 | ||
| 88502R - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-26160 |
TRH223..GL..GCC;KDH223..(14S,16S)..(ARL,GEN,VN);KDH21#,222,TRH213..COM..GL..(GEN,TH);TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH202,203,222,223,TRH203..(03S,10S,12S)..(KEN,MA,RUS,TH) UPPER |
1 | ||
| 88502-26160 |
TRH223..GL..GCC;KDH223..(14S,16S)..(ARL,GEN,VN);KDH21#,222,TRH213..COM..GL..(GEN,TH);TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH202,203,222,223,TRH203..(03S,10S,12S)..(KEN,MA,RUS,TH) UPPER |
1 | ||
| 88502-26170 |
TRH223..GL..GCC;KDH223..(14S,16S)..(ARL,GEN,VN);KDH21#,222,TRH213..COM..GL..(GEN,TH);TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH202,203,222,223,TRH203..(03S,10S,12S)..(KEN,MA,RUS,TH) LOWER |
1 | ||
| 88502-26170 |
TRH223..GL..GCC;KDH223..(14S,16S)..(ARL,GEN,VN);KDH21#,222,TRH213..COM..GL..(GEN,TH);TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH202,203,222,223,TRH203..(03S,10S,12S)..(KEN,MA,RUS,TH) LOWER |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-26581 |
KDH21#,TRH213..COM..GL..(GEN,TH) |
1 | ||
| 88539-26581 |
KDH21#,TRH213..COM..GL..(GEN,TH) |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-26591 |
KDH21#,TRH213..COM..GL..(GEN,TH) |
1 | ||
| 88539-26591 |
KDH21#,TRH213..COM..GL..(GEN,TH) |
1 | ||
| 88569F - CLAMP | ||||
| 88569-05010 |
KDH201..SP..06S;TRH223..GL..GCC;KDH223..(14S,16S)..(ARL,GEN,VN);TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH200,203..RHD..(03S,06S,10S,12S);KDH21#,222,223,TRH213..COM..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH) |
1 | ||
| 88569-05010 |
KDH201..SP..06S;TRH223..GL..GCC;KDH223..(14S,16S)..(ARL,GEN,VN);TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH200,203..RHD..(03S,06S,10S,12S);KDH21#,222,223,TRH213..COM..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH) |
1 | ||
| 88605A - HARNESS SUB-ASSY, COOLER WIRING | ||||
| 88605-2F770 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) |
1 | ||
| 88605-2F770 |
KDH201..SP..06S;TRH223..GL..GCC;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S);KDH212,222,223,TRH213..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH);KDH213,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,VN) |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-22250 |
KDH201..SP..06S;TRH223..GL..GCC;KDH223..(14S,16S)..(ARL,GEN,VN);TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH200,203..RHD..(03S,06S,10S,12S);KDH21#,222,223,TRH213..COM..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH) |
1 | ||
| 88625-22250 |
KDH201..SP..06S;TRH223..GL..GCC;KDH223..(14S,16S)..(ARL,GEN,VN);TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);GDH201,KDH202,203,222,TRH200,203..RHD..(03S,06S,10S,12S);KDH21#,222,223,TRH213..COM..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH) |
1 | ||
| Common parts | ||||
| 82711-26230 | ||||
| 87193-87101 | ||||
| 88897-26110 | ||||
| 90099-00968 | ||||
| 90119-06911 | ||||
| 93540-14012 | ||||
| Linked diagrams | ||||
| 8718 | ||||
