KDH212L-KDPNY (2013)

Toyota Hiace

Production Dec 2013 - Nov 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )

Click highlighted areas on diagram

diagram 86300 86391 9016250032 9016750007 9016750007 9351015016
Part # Description Qty Price
Common parts
90162-50032
90167-50007
93510-15016

(0501- )

Click highlighted areas on diagram

diagram 86101 86300 9014840007 9048001537 9048001537
Part # Description Qty Price
Common parts
90148-40007
90480-01537

(1312- )11S

Click highlighted areas on diagram

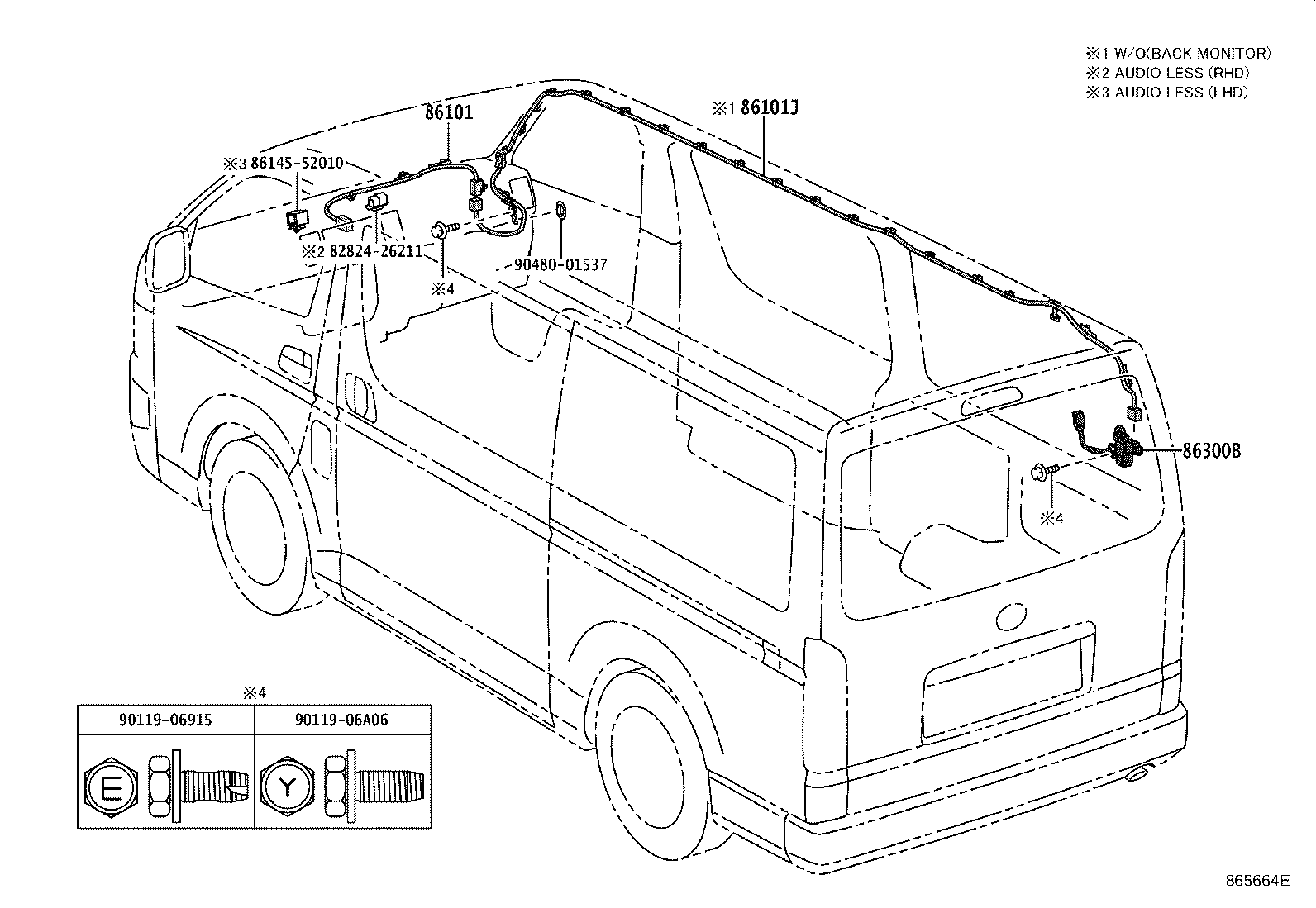

GLASS ANTENNA

diagram 8282426211 86101 86101J 8614552010 86300B 9011906915 9011906A06 9048001537
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-26330

KDH21#..11S..GEN

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-26230

KDH212..11S

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-26180

KDH212..11S

 1
Common parts
82824-26211
86145-52010
90119-06915
90119-06A06
90480-01537
