KDH212L-KDPNY (2013)

Toyota Hiace

Production Dec 2013 - Nov 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )KDH202,212..4FC

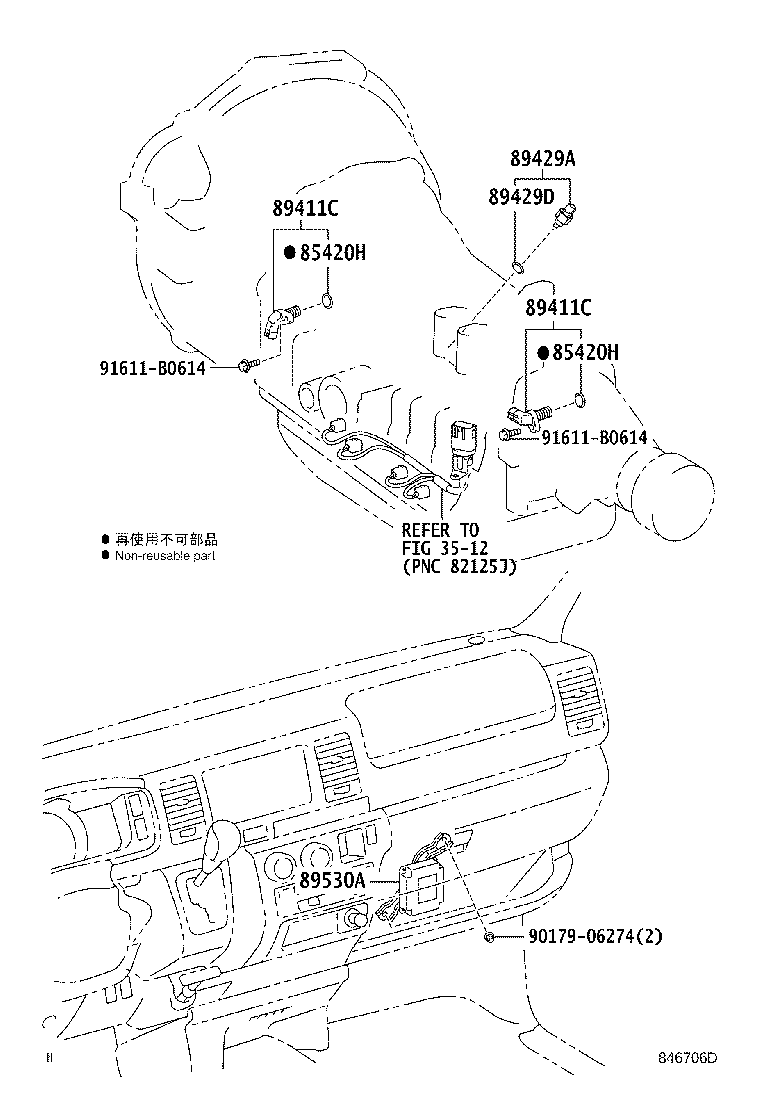

Click highlighted areas on diagram

diagram 3512 85420H 85420H 89411C 89411C 89429A 89429D 89530A 9017906274 91611B0614 91611B0614
Part # Description Qty Price
Common parts
90179-06274
91611-B0614
Linked diagrams
3512

(1312- )KDH21#,222,223..LHD..4FC

Click highlighted areas on diagram

diagram 3512 85420H 85420H 89411C 89411C 89429A 89429D 89530A 9017906274 91611B0614 91611B0614
Part # Description Qty Price
85420H - RING, O(FOR SPEED SENSOR)
90301-11008

KDH212..4FC

 2
85420H - RING, O(FOR SPEED SENSOR)
90301-11008

KDH212..4FC

 2
89411C - SENSOR, SPEED
89411-50010

KDH212..4FC

 2
89411C - SENSOR, SPEED
89411-50010

KDH212..4FC

 2
89429A - SENSOR, TEMPERATURE
89429-34010

KDH212..4FC

 1
89429D - RING, O(FOR TEMPERATURE SENSOR)
90301-11006

TRH223..4FC..GL;TRH223..4FC..ARL;KDH213,223..COM..4FC..(GEN,TH);KDH212,222,TRH200,201,213,221..4FC

 1
89530A - COMPUTER ASSY, TRANSMISSION CONTROL
89530-26300

KDH212..4FC

 1
Common parts
90179-06274
91611-B0614
Linked diagrams
3512
