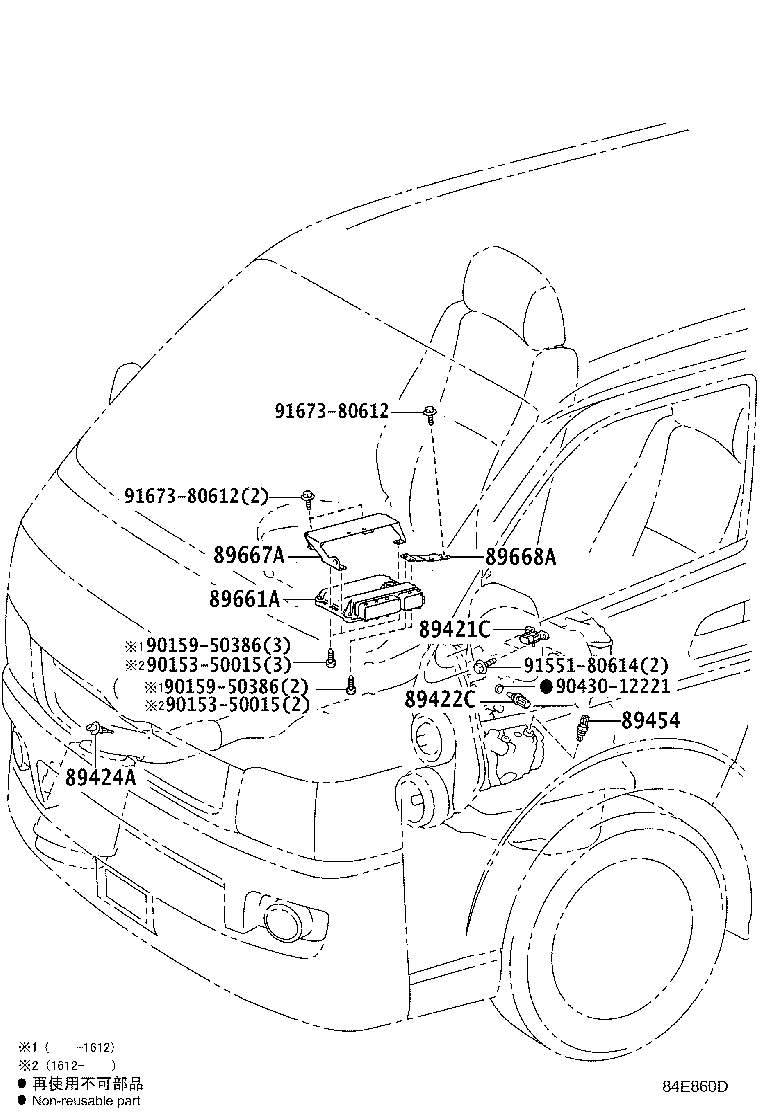

KDH212L-KDPNY (2013)
Toyota Hiace
(0501- )KDH200,202,212,220,222
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 22193-1C170 | ||||
| 82712-26280 | ||||
| 90179-06274 | ||||
| 90430-12221 | ||||
| 90430-16010 | ||||
| 91554-80612 | ||||
| 93319-14008 | ||||
| 93319-15010 | ||||
(0501- )LH20#,212,222
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90430-12221 | ||||
| 91511-B0614 | ||||
| 91554-80612 | ||||
| 93319-15010 | ||||
(1312- )KDH20#,21#,22#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO) | ||||
| 89421-71020 |
KDH220..06S;KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH222..(03S,16S)..(GEN,KEN,SA) |
1 | ||
| 89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE | ||||
| 89422-33030 |
KDH200..GCC,MA;KDH223..4FC..TH;KDH213,LH222..LHD;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);KDH220,223..(06S,12S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,220,221,LH202,212..ARL,GCC,GEN,MA,TH |
1 | ||
| 89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO) | ||||
| 89424-12010 |
LH222..LHD;KDH220..06S;KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH202,212,220,LH202,212..GCC,GEN,MA;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA) |
1 | ||
| 89454 - SENSOR, FUEL TEMPERATURE | ||||
| 89454-20010 |
KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222..(03S,16S)..(GEN,KEN,SA);KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 89455A - SENSOR, EGR VALVE POSITION | ||||
| 89455-35020 |
KDH223..GEN;KDH200,202..MA;KDH222..STD..SA;KDH212,222..GL..GEN;KDH201..4D..5F..(GEN,TH);KDH203,213,220..(06S,11S,13S,15S)..(GEN,SA) |
1 | ||
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89661-26F60 |
LH20#,212,222 |
1 | ||
| 89661-26M30 |
KDH212,222..4FC |
1 | ||
| 89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-26170 |
KDH200..GCC,MA;KDH213,LH222..LHD;KDH200..LHD..5D..GEN;KDH223..4FC..(GEN,TH);KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);KDH220,223..(06S,12S,14S,16S)..5F..(ARL,GEN,RUS,SA,VN);KDH201,202,203,212,220,221,LH202,212..ARL,GCC,GEN,MA,TH |
1 | ||
| 89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-26150 |
KDH200..GCC,MA;KDH213,LH222..LHD;KDH200..LHD..5D..GEN;KDH223..4FC..(GEN,TH);KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);KDH220,223..(06S,12S,14S,16S)..5F..(ARL,GEN,RUS,SA,VN);KDH201,202,203,212,220,221,LH202,212..ARL,GCC,GEN,MA,TH |
1 | ||
| 89871A - DRIVER, INJECTOR | ||||
| 89871-71010 |
KDH220..06S;KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH222..(03S,16S)..(GEN,KEN,SA) |
1 | ||
| 89871A - DRIVER, INJECTOR | ||||
| 89871-71010 |
KDH220..06S;KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH222..(03S,16S)..(GEN,KEN,SA) |
1 | ||
| 89879B - BRACKET, INJECTOR DRIVER | ||||
| 89879-26020 |
KDH220..06S;KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH222..(03S,16S)..(GEN,KEN,SA) |
1 | ||
| 89879B - BRACKET, INJECTOR DRIVER | ||||
| 89879-26020 |
KDH220..06S;KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH222..(03S,16S)..(GEN,KEN,SA) |
1 | ||
| Common parts | ||||
| 22193-1C170 | ||||
| 90105-T0051 | ||||
| 90153-50015 | ||||
| 90159-50386 | ||||
| 90178-T0007 | ||||
| 90179-06274 | ||||
| 90430-12221 | ||||
| 90430-16010 | ||||
| 91551-80616 | ||||
| 91673-80612 | ||||
| 93319-14008 | ||||
| 94151-80600 | ||||
(1312- )LH20#,212,222
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO) | ||||
| 89421-71020 |
KDH220..06S;KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH202,212,220..GCC,GEN,MA;KDH222..(03S,16S)..(GEN,KEN,SA) |
1 | ||
| 89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE | ||||
| 89422-33030 |
KDH200..GCC,MA;KDH223..4FC..TH;KDH213,LH222..LHD;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);KDH220,223..(06S,12S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,220,221,LH202,212..ARL,GCC,GEN,MA,TH |
1 | ||
| 89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO) | ||||
| 89424-12010 |
LH222..LHD;KDH220..06S;KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH202,212,220,LH202,212..GCC,GEN,MA;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA) |
1 | ||
| 89454 - SENSOR, FUEL TEMPERATURE | ||||
| 89454-20010 |
KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222..(03S,16S)..(GEN,KEN,SA);KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89661-26F60 |
LH20#,212,222 |
1 | ||
| 89661-26M30 |
KDH212,222..4FC |
1 | ||
| 89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-26170 |
KDH200..GCC,MA;KDH213,LH222..LHD;KDH200..LHD..5D..GEN;KDH223..4FC..(GEN,TH);KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);KDH220,223..(06S,12S,14S,16S)..5F..(ARL,GEN,RUS,SA,VN);KDH201,202,203,212,220,221,LH202,212..ARL,GCC,GEN,MA,TH |
1 | ||
| 89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-26150 |
KDH200..GCC,MA;KDH213,LH222..LHD;KDH200..LHD..5D..GEN;KDH223..4FC..(GEN,TH);KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);KDH220,223..(06S,12S,14S,16S)..5F..(ARL,GEN,RUS,SA,VN);KDH201,202,203,212,220,221,LH202,212..ARL,GCC,GEN,MA,TH |
1 | ||
| Common parts | ||||
| 90153-50015 | ||||
| 90159-50386 | ||||
| 90430-12221 | ||||
| 91551-80614 | ||||
| 91673-80612 | ||||
