KDH212L-KDPNY (2013)

Toyota Hiace

Production Dec 2013 - Nov 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )BUS,TR,V

Click highlighted areas on diagram

diagram 63341 63341 63341 63342 63342 63342 63343 63343 63344 63345 6762
Part # Description Qty Price
Linked diagrams
6762

(0501- )KDH212,LH212,TRH213

Click highlighted areas on diagram

diagram 63311A 63311D 63311D 63312A 63341 63342 63343 63384B 63388A 63498 63499 9015960025 9018906018 9018906018 9018906172 9167380612 9356056016
Part # Description Qty Price
Common parts
90159-60025
90189-06018
90189-06172
91673-80612
93560-56016

(1312-1511)KDH212..GL..GEN ; (1312- )KDH212,LH212,TRH213..STD

Click highlighted areas on diagram

diagram 63311A 63311D 63311D 63312A 63341 63342 63343 63384B 63388A 63498 63499 9015960025 9018906018 9018906018 9018906172 9167380612 9356056016
Part # Description Qty Price

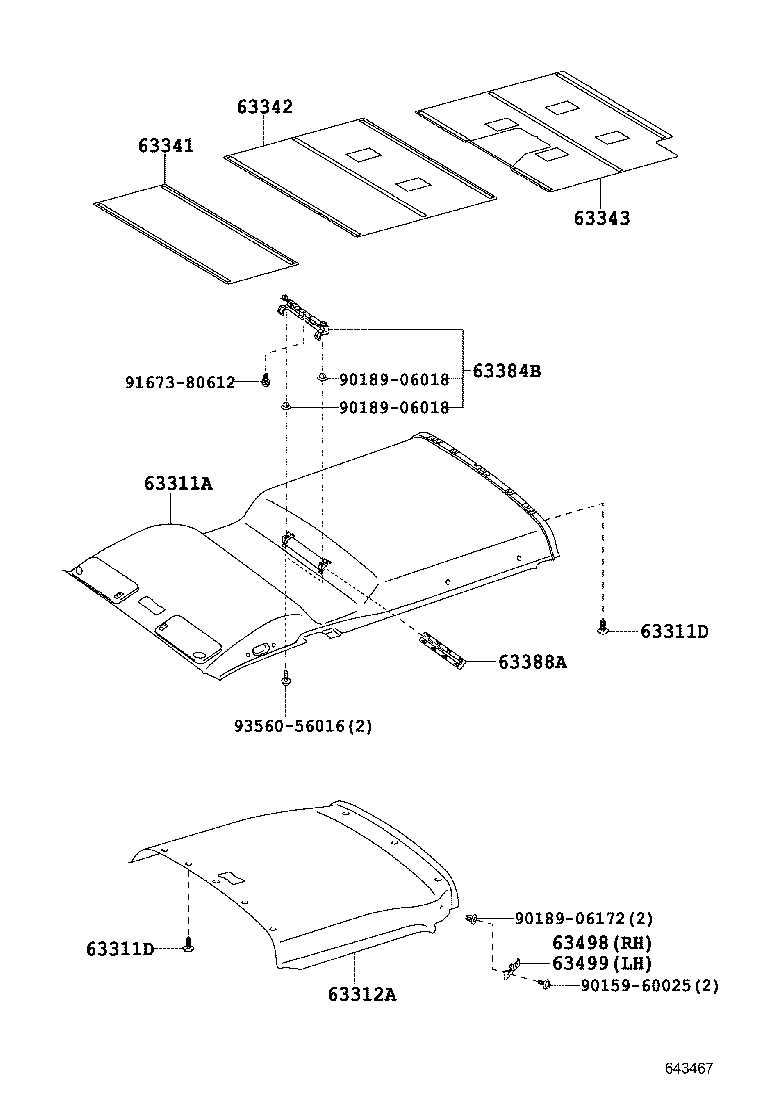

63311A - HEADLINING, ROOF NO.1
63310-26J01B0

KDH21#..11S..GEN

BACK MONITOR-WITH,LIGHT GRAY,TRIM1#

 1
63310-26D92B0

KDH21#..11S..GEN

LIGHT GRAY,TRIM1#

 1
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0

KDH21#,TRH213..COM..11S

LT.GRAY,TRIM1#

 20
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0

KDH21#,TRH213..COM..11S

LT.GRAY,TRIM1#

 20
63312A - HEADLINING, ROOF, NO.2
63320-26361B0

KDH21#,TRH213..COM..11S

LIGHT GRAY,TRIM1#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-26190

TRH213..GCC,TH;TRH213..LHD..GEN;KDH21#,LH212..GCC,GEN

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-26130

TRH213..GCC,TH;TRH213..LHD..GEN;KDH21#,LH212..GCC,GEN

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-26100

TRH213..GCC,TH;TRH213..LHD..GEN;KDH21#,LH212..GCC,GEN

 1
Common parts
90159-60025
90189-06018
90189-06172
91673-80612
93560-56016

(1312- )KDH21#,LH212,TRH213

Click highlighted areas on diagram

W(DUAL AIR CONDITIONER)

diagram 5557028010 63311A 63311D 63311D 63311F 63312A 63312F 63312F 63341 63342 63343 63498 63499 63651B 63655D 8715 8715 8715 8715 9015960025 9016840125 9018906172 9356056016 9356056016
Part # Description Qty Price
63311A - HEADLINING, ROOF NO.1
63310-26J01B0

KDH21#..11S..GEN

BACK MONITOR-WITH,LIGHT GRAY,TRIM1#

 1
63310-26D92B0

KDH21#..11S..GEN

LIGHT GRAY,TRIM1#

 1
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0

KDH21#,TRH213..COM..11S

LT.GRAY,TRIM1#

 20
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0

KDH21#,TRH213..COM..11S

LT.GRAY,TRIM1#

 20
63311F - CLIP, ROOF HEADLINING, NO.1
63399-26050B0

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH

LT.GRAY,TRIM1#

 1
63312A - HEADLINING, ROOF, NO.2
63320-26361B0

KDH21#,TRH213..COM..11S

LIGHT GRAY,TRIM1#

 1
63312F - CLIP, ROOF HEADLINING, NO.2
63399-26050B0

TRH213..GCC,TH;KDH222..GL..GEN;TRH223..GL..GCC;TRH213..LHD..GEN;KDH222,223..KEN,RUS;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH21#,223,LH212..(10S,11S,13S,14S,16S)..(ARL,GCC,GEN)

LT.GRAY,TRIM1#

 2
63312F - CLIP, ROOF HEADLINING, NO.2
63399-26050B0

TRH213..GCC,TH;KDH222..GL..GEN;TRH223..GL..GCC;TRH213..LHD..GEN;KDH222,223..KEN,RUS;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH21#,223,LH212..(10S,11S,13S,14S,16S)..(ARL,GCC,GEN)

LT.GRAY,TRIM1#

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-26190

TRH213..GCC,TH;TRH213..LHD..GEN;KDH21#,LH212..GCC,GEN

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-26130

TRH213..GCC,TH;TRH213..LHD..GEN;KDH21#,LH212..GCC,GEN

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-26100

TRH213..GCC,TH;TRH213..LHD..GEN;KDH21#,LH212..GCC,GEN

 1
63651B - NET, AIR INTAKE
63650-26010B0

TRH223..GL..GCC;KDH223..(14S,16S)..(ARL,GEN,VN);KDH201,TRH200..SP..06S..(4FC,5F);KDH21#,222,223..(11S,12S,13S,16S)..GL..(GEN,RUS);TRH213,223..(10S,11S,12S,13S,14S)..(ARL,GEN,RUS,TH);GDH201,KDH202,203,222,TRH203..RHD..(03S,06S,10S,12S)

LT.GRAY,TRIM1#

 2
63655D - COVER, AIR INTAKE
63655-26080B0

KDH21#,TRH213..GL..GEN

LT.GRAY,TRIM1#,LH

 1
63655-26070B0

KDH21#,TRH213..GL..GEN

LT.GRAY,TRIM1#,RH

 1
Common parts
55570-28010
90159-60025
90168-40125
90189-06172
93560-56016
Linked diagrams
8715
