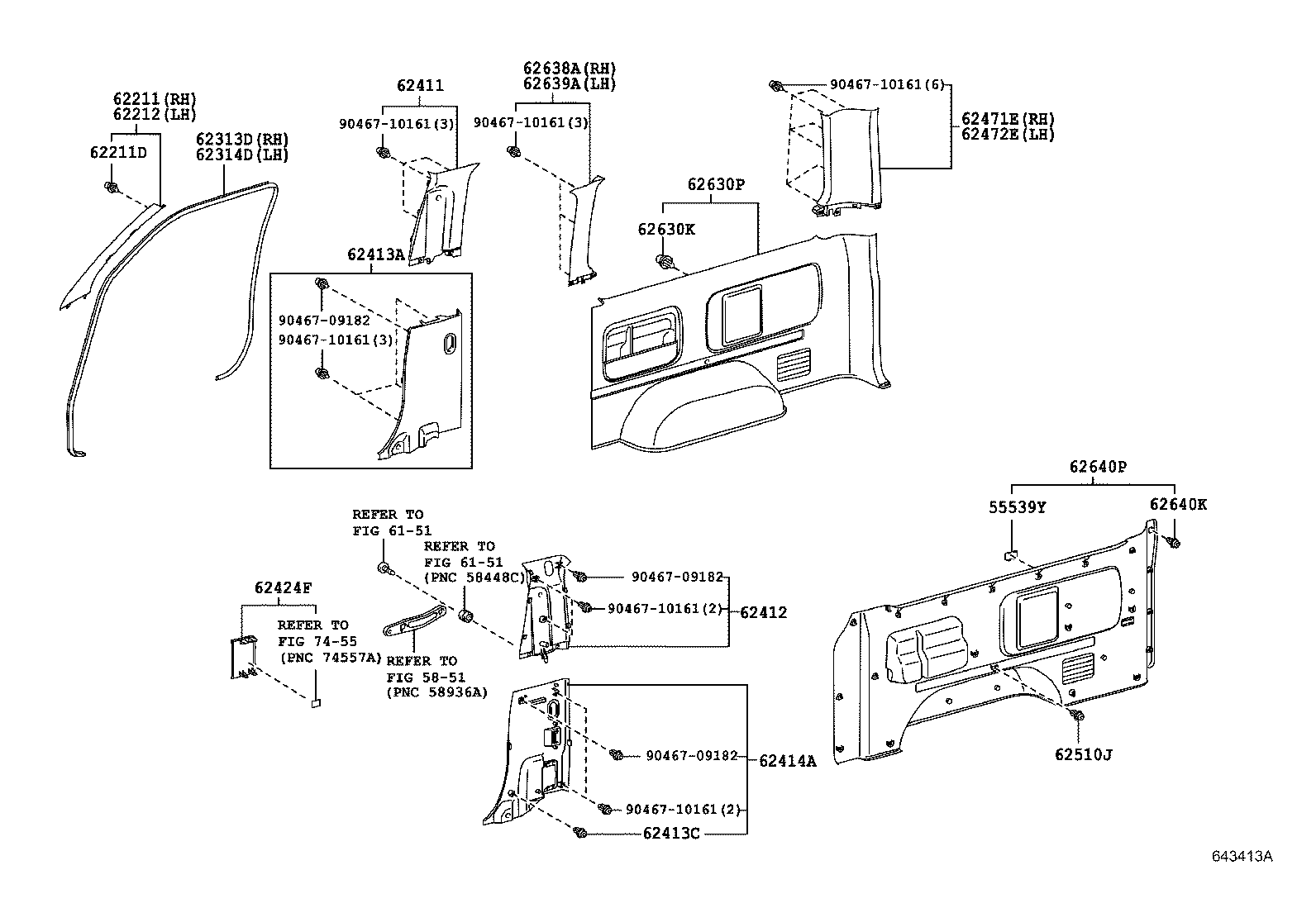

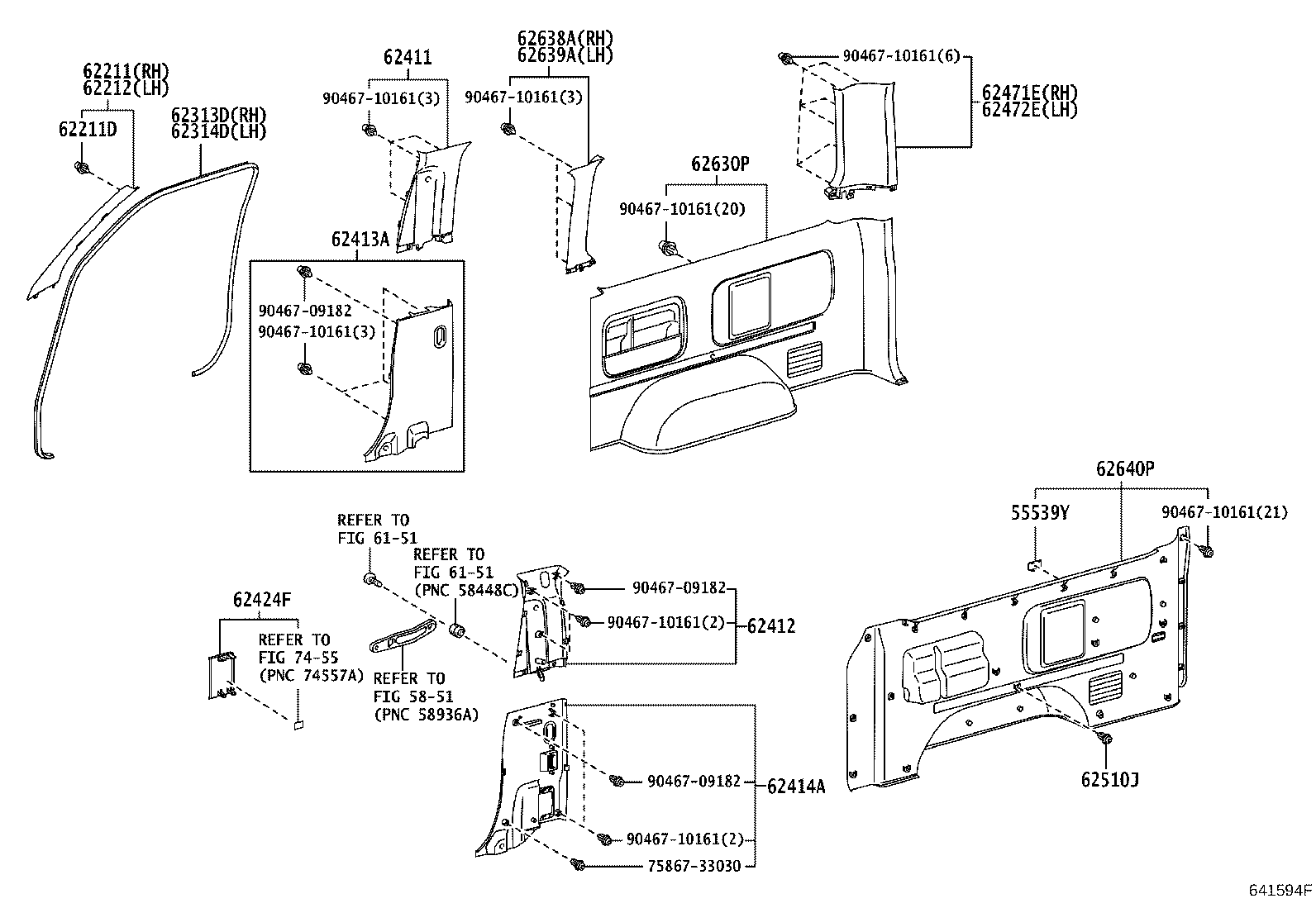

Toyota Hiace KDH212 INSIDE TRIM BOARD

Part #	Description	Period	Qty
55539Y - COVER, SPARE SWITCH HOLE
55539-28120B2	TRH223..4FC..GL;TRH223..5F..GL..(GCC,RUS);KDH21#,222,223,TRH213..COM..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH) DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62211 - GARNISH, FRONT PILLAR, RH
62210-26052B0	TRH223..4FC..GL;TRH213..LHD..GEN;TRH213,221..GCC,TH;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH201,TRH221..5D..SP..(02S,06S);GDH201,KDH202,203,220,TRH203..RHD..(06S,10S,12S);KDH21#,220,221,223,LH212,222,TRH200..(4FC,5F)..(ARL,GCC,GEN,RUS) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10161	TRH213;KDH201..SP..06S;KDH212,22#,LH212,222,TRH22#..ARL,GCC,GEN,RUS,SA;KDH202,203,213,TRH200,203..RHD..(06S,10S,11S,12S)	12/2013 - 01/2015	2
67771-28150	TRH223..4FC..GL;TRH213..LHD..GEN;TRH213,221..GCC,TH;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH201,TRH221..5D..SP..(02S,06S);KDH21#,220,221,223,LH212,222..ARL,GCC,GEN,RUS;GDH201,KDH202,203,220,TRH203..RHD..(06S,10S,12S)	01/2015 - 12/2999	2
62212 - GARNISH, FRONT PILLAR, LH
62220-26032B0	TRH213,223..LHD..STD..GEN;KDH201,TRH221..5D..SP..(02S,06S)..(ARL,GEN);GDH201,KDH202,203,TRH203..RHD..(06S,10S,12S);TRH213,223..(10S,11S,12S,13S,14S)..(ARL,GEN,RUS,TH);KDH21#,22#,LH212,222,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62313D - TRIM, FRONT DOOR OPENING, RH
62311-26090	KDH212,TRH213..11S;KDH213..(10S,11S)..GEN	12/2013 - 04/2020	1
62314D - TRIM, FRONT DOOR OPENING, LH
62312-26090	KDH212,TRH213..11S;KDH213..(10S,11S)..GEN	12/2013 - 04/2020	1
62411 - GARNISH, CENTER PILLAR, RH
62410-26070B0	TRH213..GCC,TH;TRH213..LHD..STD..GEN;GDH201,KDH201..SP..06S;KDH21#,LH212..LHD..(11S,16S);KDH212,TRH200..(06S,13S)..(4FC,5F)..STD LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62412 - GARNISH, CENTER PILLAR, LH
62420-26050B0	KDH201..SP..06S;TRH200,213..5D..4FC;KDH21#..(11S,16S)..GEN;GDH201,KDH202,203,LH212,TRH203..RHD..(06S,10S,12S,16S) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-26230B0	TRH213..GCC,TH;TRH213..LHD..STD..GEN;KDH212,LH212..LHD..(11S,16S);KDH212,TRH200..(06S,13S)..(4FC,5F)..STD DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62413C - CLIP (FOR CENTER LOWER GARNISH)
75867-33030	KDH213..11S;KDH223..STD;KDH212..13S..STD;KDH222,TRH213,223..RHD;KDH222,TRH213,223..LHD..STD;KDH20#,212,220,221,LH20#,212,222,TRH20#,221..02S,03S,05S,06S,10S,11S,12S,15S,16S	12/2013 - 10/2016	1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26420B1	KDH201..SP..06S;KDH21#..(11S,16S)..GEN;LH212,TRH200..RHD..(4FC,5F);GDH201,KDH202,203,222,TRH203,213..RHD..(03S,06S,10S,11S,12S)..(GEN,KEN,MA,TH) DK.GRAY,TRIM1#	12/2013 - 12/2999	1
62424F - COVER, CENTER PILLAR GARNISH, LOWER LH
62424-26031B0	KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1#	12/2013 - 06/2016	1
62471E - GARNISH, ROOF SIDE, INNER UPPER RH
62471-26331B0	TRH223..(12S,13S,14S)..GL;KDH21#,222,223,TRH213..(10S,11S,12S,14S)..GL LT.GRAY,TRIM1#	12/2013 - 11/2015	1
62472E - GARNISH, ROOF SIDE, INNER UPPER LH
62472-26242B0	TRH223..(12S,13S,14S)..GL;KDH21#,222,223,TRH213..(10S,11S,12S,14S)..GL LT.GRAY,TRIM1#	12/2013 - 11/2015	1
62510J - RETAINER, QUARTER TRIM
67771-26230B2	KDH21#,TRH213..11S DK.GRAY,TRIM1#	12/2013 - 06/2019	1
62630K - CLIP(FOR QUARTER TRIM REAR PANEL)
90467-10161	KDH21#,TRH213..COM..GL..(GEN,TH)	12/2013 - 04/2020	20
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-26B00B5	KDH21#,TRH213..COM..11S DK.GRAY,TRIM1#	12/2013 - 04/2020	1
62638A - GARNISH, QUARTER PILLAR, RH
62638-26131B0	KDH21#,TRH213..COM..11S LT.GRAY,TRIM1#	12/2013 - 04/2020	1
62639A - GARNISH, QUARTER PILLAR, LH
62639-26101B0	KDH21#,TRH213..COM..11S LT.GRAY,TRIM1#	12/2013 - 04/2020	1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-26B60B5	KDH21#,TRH213..COM..11S DK.GRAY,TRIM1#	12/2013 - 04/2020	1
Common parts
90467-09182
90467-10161
Linked diagrams
5851
6151
7455

KDH212L-KDPNY (2013)

(0501- )KDH212,TRH213..4FC..GL

(1312- )11S
