KDH212L-KDPNY (2013)

Toyota Hiace

Production Dec 2013 - Nov 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )BUS,V

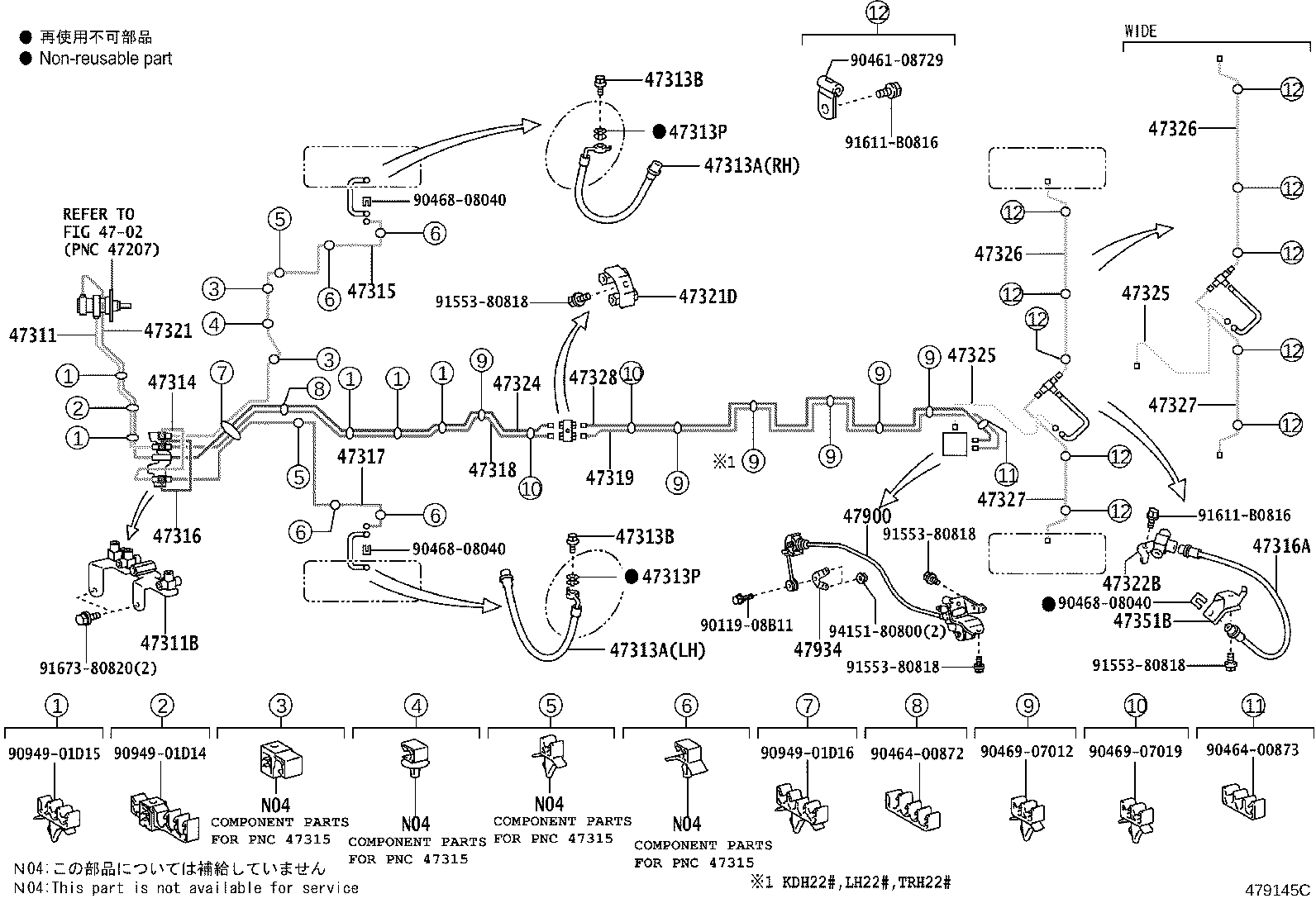

Click highlighted areas on diagram

diagram 47311 47311 47311B 47311D 47312 47313A 47313A 47313H 47314 47315 47316A 47321D 47321E 47322 47323 47323A 47327 47328 47341B 47342 47343A 47344 47351 47352 47353 9046212219 9046400032 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161141028 9411040800 9622120905 9622120905 9622320906 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
Common parts
90462-12219
90464-00032
91611-40814
91611-41028
94110-40800
96221-20905
96223-20906
96991-10080

(7702- )BUS,V

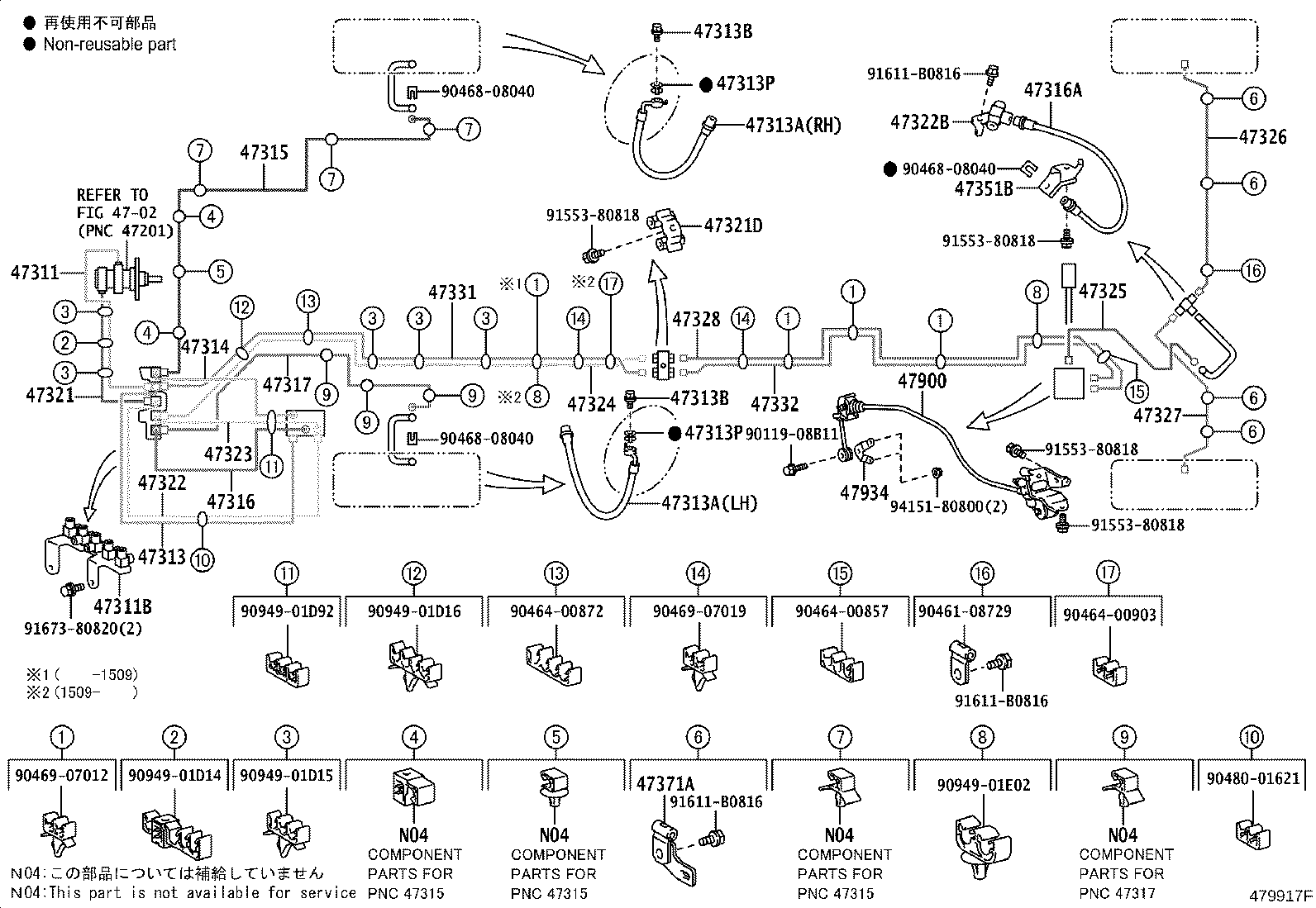

Click highlighted areas on diagram

diagram 47311 47311 47311B 47311D 47312 47313A 47313A 47313A 47313H 47313J 47314 47315 47316A 47321 47321 47321D 47321E 47322 47323 47323 47323A 47326 47327 47328 47341B 47342 47343A 47344 47351 47351 47352 47352 47353 9046212219 9046400032 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161141028 9411040800 9622120905 9622120905 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
Common parts
90462-12219
90464-00032
91611-40814
91611-41028
94110-40800
96221-20905
96991-10080

(7702- )ARL,EUR,GEN,PHL,SA

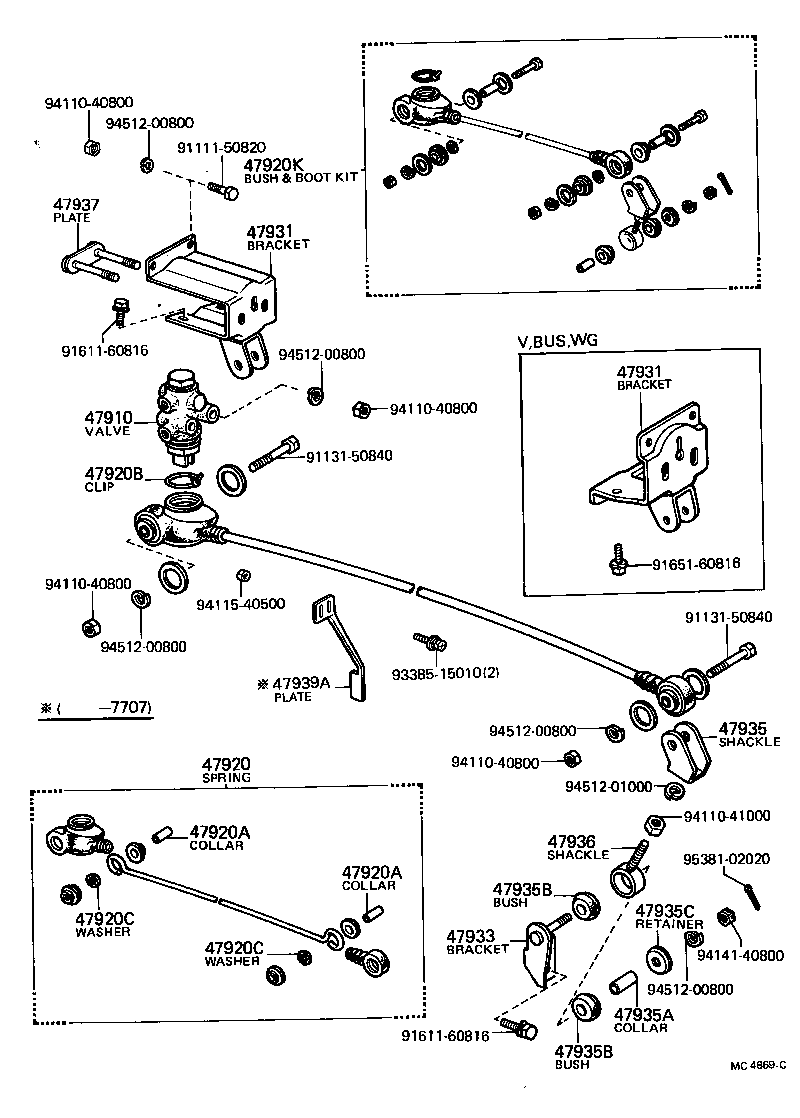

Click highlighted areas on diagram

diagram 47910 47920 47920A 47920A 47920B 47920C 47920C 47920K 47931 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 47939A 9111150820 9113150840 9113150840 9161160816 9161160816 9165160816 9338515010 9411040800 9411040800 9411040800 9411040800 9411041000 9411540500 9414140800 9451200800 9451200800 9451200800 9451200800 9451200800 9451201000 9538102020
Part # Description Qty Price
Common parts
91111-50820
91131-50840
91611-60816
91651-60816
93385-15010
94110-40800
94110-41000
94115-40500
94141-40800
94512-00800
94512-01000
95381-02020

ILLUST NO. 2 OF 3(0501- )

Click highlighted areas on diagram

W(ABS)

diagram 44510 44546A 44546A 44591 44598A 9009905278 9009905278 9009905278 9009905278 9167380820 9167380820 9167380820
Part # Description Qty Price
Common parts
90099-05278
91673-80820

ILLUST NO. 3 OF 3(0501- )

Click highlighted areas on diagram

diagram 04477 31478D 47900 47910 47910B 47920 47920A 47920A 47920A 47920B 47920C 47920C 47924 47924 47931 47935 47936 47937 47938 90015AA103 90015AA103 9017008016 9020123360 9020123360 9020123360 9020123360 9413000802 9413000802 9413000802 9413000802 9451200800 9451200800 9451200800 9461210800
Part # Description Qty Price
Common parts
90015-AA103
90170-08016
90201-23360
94130-00802
94512-00800
94612-10800

ILLUST NO. 1 OF 3(0501- )LHD

Click highlighted areas on diagram

W(ABS)

diagram 47311 47311B 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47315 47316 47316A 47317 47318 47319 47321 47321D 47322 47322B 47323 47325 47325 47326 47326 47327 47327 47328 47329 47351B 47371A 47900 47934 9011908B11 9046108729 9046400872 9046400873 9046808040 9046808040 9046808040 9046907012 9046907019 9048001621 9094901A25 9094901D14 9094901D15 9094901D16 9155380818 9155380818 9155380818 9155380818 91611B0816 91611B0816 91611B0816 9167380820 9415180800
Part # Description Qty Price
Common parts
90119-08B11
90461-08729
90464-00872
90464-00873
90468-08040
90469-07012
90469-07019
90480-01621
90949-01A25
90949-01D14
90949-01D15
90949-01D16
91553-80818
91611-B0816
91673-80820
94151-80800

ILLUST NO. 1 OF 3(0501- )KDH20#,212,220,222,LH20#,212,222,TRH201,203,213,22#..LHD

Click highlighted areas on diagram

diagram 47311 47311B 47313A 47313A 47313B 47313B 47313P 47313P 47314 47315 47316 47316A 47317 47318 47319 47321 47321D 47322B 47325 47325 47326 47326 47327 47327 47328 47329 47351B 47900 47934 9011908B11 9046108729 9046400872 9046400873 9046808040 9046808040 9046808040 9046907012 9046907019 9094901D14 9094901D15 9094901D16 9155380818 9155380818 9155380818 9155380818 91611B0816 91611B0816 9167380820 9415180800
Part # Description Qty Price
Common parts
90119-08B11
90461-08729
90464-00872
90464-00873
90468-08040
90469-07012
90469-07019
90949-01D14
90949-01D15
90949-01D16
91553-80818
91611-B0816
91673-80820
94151-80800

ILLUST NO. 1 OF 3(1312- )KDH200,201,202,212,220,222,LH20#,212,222,TRH201,203,221..LHD..03S,06S,12

Click highlighted areas on diagram

LHD WITHOUT ABS

diagram 4702 47311 47311B 47313A 47313A 47313B 47313B 47313P 47313P 47314 47315 47316 47316A 47317 47318 47319 47321 47321D 47322B 47324 47325 47325 47326 47326 47327 47327 47328 47351B 47900 47934 9011908B11 9046108729 9046400872 9046400873 9046808040 9046808040 9046808040 9046907012 9046907019 9094901D14 9094901D15 9094901D16 9155380818 9155380818 9155380818 9155380818 91611B0816 91611B0816 9167380820 9415180800
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26A20

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
47311-26A20

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
47311-26A50

TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)

 1
47311-26A50

TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10305

TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)

 1
90413-10305

TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)

 1
90413-10338

KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)

 1
90413-10338

KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

RH

 1
90947-02F53

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

RH

 1
90947-02F54

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

LH

 1
90947-02F54

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

LH

 1
90947-02G74

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

RH

 1
90947-02G74

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

RH

 1
90947-02H54

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

LH

 1
90947-02H54

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

RH

 1
90947-02F53

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

RH

 1
90947-02F54

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

LH

 1
90947-02F54

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

LH

 1
90947-02G74

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

RH

 1
90947-02G74

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

RH

 1
90947-02H54

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

LH

 1
90947-02H54

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
90401-10058

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
90401-10058

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 2
47389-50020

GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 2
47389-50020

GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26370

TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)

 1
47314-26370

TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)

 1
47314-26390

KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)

 1
47314-26390

KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26301

TRH221..5F;KDH222..GL;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH21#,220,221,LH212,222,TRH213

 1
47315-26301

TRH221..5F;KDH222..GL;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH21#,220,221,LH212,222,TRH213

 1
47315-26340

TRH221..GCC;KDH222..GEN,KEN;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH21#,220,221,223,LH212,222..ARL,GCC,GEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH)

 1
47315-26340

TRH221..GCC;KDH222..GEN,KEN;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH21#,220,221,223,LH212,222..ARL,GCC,GEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26470

TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)

 1
47316-26470

TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)

 1
47316-26490

KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)

 1
47316-26490

KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
90947-02F56

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
90947-02H57

KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
90947-02H57

KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-26360

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
47317-26360

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
47317-26340

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

 1
47317-26340

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-26280

KDH222..GL;TRH223..GL..SA;KDH222..STD..(GCC,GEN);KDH203,223,TRH223..ARL,GCC,GEN,RUS;KDH200,201,202,21#,220,221,LH20#,212,222,TRH20#,213,221..ARL,GCC,GEN,SA,TH

 1
47318-26280

KDH222..GL;TRH223..GL..SA;KDH222..STD..(GCC,GEN);KDH203,223,TRH223..ARL,GCC,GEN,RUS;KDH200,201,202,21#,220,221,LH20#,212,222,TRH20#,213,221..ARL,GCC,GEN,SA,TH

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-26350

KDH203..GEN;KDH200,201,202,21#,LH20#,212,TRH20#,213..ARL,GCC,GEN,SA,TH

 1
47319-26350

KDH203..GEN;KDH200,201,202,21#,LH20#,212,TRH20#,213..ARL,GCC,GEN,SA,TH

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26770

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
47321-26770

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
47321-26800

TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)

 1
47321-26800

TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

 1
90412-10166

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

 1
90412-10285

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
90412-10285

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10307

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
90413-10307

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
90413-10337

KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
90413-10337

KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26550

TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)

 1
47324-26550

TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26410

TRH221..5F;KDH222..GL;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH21#,220,221,LH212,222,TRH213

 1
47325-26410

TRH221..5F;KDH222..GL;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH21#,220,221,LH212,222,TRH213

 1
47325-26430

TRH213..LHD;KDH222..GEN,KEN;TRH223..LHD..STD..GEN;KDH220,TRH22#..06S,10S,13S;KDH21#,220,223,LH212,222..GCC,GEN,VN

 1
47325-26430

TRH213..LHD;KDH222..GEN,KEN;TRH223..LHD..STD..GEN;KDH220,TRH22#..06S,10S,13S;KDH21#,220,223,LH212,222..GCC,GEN,VN

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26410

TRH221..5F;KDH222..GL;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH21#,220,221,LH212,222,TRH213

 1
47325-26410

TRH221..5F;KDH222..GL;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH21#,220,221,LH212,222,TRH213

 1
47325-26430

TRH213..LHD;KDH222..GEN,KEN;TRH223..LHD..STD..GEN;KDH220,TRH22#..06S,10S,13S;KDH21#,220,223,LH212,222..GCC,GEN,VN

 1
47325-26430

TRH213..LHD;KDH222..GEN,KEN;TRH223..LHD..STD..GEN;KDH220,TRH22#..06S,10S,13S;KDH21#,220,223,LH212,222..GCC,GEN,VN

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26480

TRH223..4FC..GEN;KDH222,223,TRH223..ARL,GCC,RUS;KDH21#,220,221,LH212,TRH213,221

 1
47326-26480

TRH223..4FC..GEN;KDH222,223,TRH223..ARL,GCC,RUS;KDH21#,220,221,LH212,TRH213,221

 1
47326-26510

TRH213..LHD;KDH21#,220,LH212..GCC,GEN;KDH220,TRH22#..06S,10S,13S

 1
47326-26510

TRH213..LHD;KDH21#,220,LH212..GCC,GEN;KDH220,TRH22#..06S,10S,13S

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26480

TRH223..4FC..GEN;KDH222,223,TRH223..ARL,GCC,RUS;KDH21#,220,221,LH212,TRH213,221

 1
47326-26480

TRH223..4FC..GEN;KDH222,223,TRH223..ARL,GCC,RUS;KDH21#,220,221,LH212,TRH213,221

 1
47326-26510

TRH213..LHD;KDH21#,220,LH212..GCC,GEN;KDH220,TRH22#..06S,10S,13S

 1
47326-26510

TRH213..LHD;KDH21#,220,LH212..GCC,GEN;KDH220,TRH22#..06S,10S,13S

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-26330

TRH223..4FC..GEN;KDH222,223,TRH223..ARL,GCC,RUS;KDH21#,220,221,LH212,TRH213,221

 1
47327-26330

TRH223..4FC..GEN;KDH222,223,TRH223..ARL,GCC,RUS;KDH21#,220,221,LH212,TRH213,221

 1
47327-26360

TRH213..LHD;KDH21#,220,LH212..GCC,GEN;KDH220,TRH22#..06S,10S,13S

 1
47327-26360

TRH213..LHD;KDH21#,220,LH212..GCC,GEN;KDH220,TRH22#..06S,10S,13S

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-26330

TRH223..4FC..GEN;KDH222,223,TRH223..ARL,GCC,RUS;KDH21#,220,221,LH212,TRH213,221

 1
47327-26330

TRH223..4FC..GEN;KDH222,223,TRH223..ARL,GCC,RUS;KDH21#,220,221,LH212,TRH213,221

 1
47327-26360

TRH213..LHD;KDH21#,220,LH212..GCC,GEN;KDH220,TRH22#..06S,10S,13S

 1
47327-26360

TRH213..LHD;KDH21#,220,LH212..GCC,GEN;KDH220,TRH22#..06S,10S,13S

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-26150

KDH203,TRH201..5F..STD;KDH200,201,202,21#,LH20#,212,TRH203,213..ARL,GCC,GEN,SA,TH

 1
47328-26150

KDH203,TRH201..5F..STD;KDH200,201,202,21#,LH20#,212,TRH203,213..ARL,GCC,GEN,SA,TH

 1
47328-26170

TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN

 1
47328-26170

TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26210

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47351-26210

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26550

TRH213..LHD;KDH220,TRH221..06S;TRH22#..4FC..(ARL,GEN);KDH21#,220,LH212..GCC,GEN

 1
47900-26550

TRH213..LHD;KDH220,TRH221..06S;TRH22#..4FC..(ARL,GEN);KDH21#,220,LH212..GCC,GEN

 1
47934 - BRACKET, LOAD SENSING
47934-26110

KDH223..4FC..TH;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
47934-26110

KDH223..4FC..TH;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
Common parts
90119-08B11
90461-08729
90464-00872
90464-00873
90468-08040
90469-07012
90469-07019
90949-01D14
90949-01D15
90949-01D16
91553-80818
91611-B0816
91673-80820
94151-80800
Linked diagrams
4702

ILLUST NO. 1 OF 3(1501- )KDH21#,LH212,TRH213..LHD

Click highlighted areas on diagram

diagram 4702 47311 47311B 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47315 47316 47316A 47317 47321 47321D 47322 47322B 47323 47324 47325 47326 47327 47328 47331 47332 47351B 47371A 47900 47934 9011908B11 9046108729 9046400857 9046400872 9046400903 9046808040 9046808040 9046808040 9046907012 9046907019 9048001621 9094901D14 9094901D15 9094901D16 9094901D92 9094901E02 9155380818 9155380818 9155380818 9155380818 91611B0816 91611B0816 91611B0816 9167380820 9415180800
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26A20

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
47311-26A50

TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10305

TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)

 1
90413-10338

KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26320

TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)

 1
47313-26390

KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

RH

 1
90947-02F54

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

LH

 1
90947-02G74

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

RH

 1
90947-02H54

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

RH

 1
90947-02F54

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

LH

 1
90947-02G74

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

RH

 1
90947-02H54

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26370

TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)

 1
47314-26390

KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26301

TRH221..5F;KDH222..GL;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH21#,220,221,LH212,222,TRH213

 1
47315-26340

TRH221..GCC;KDH222..GEN,KEN;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH21#,220,221,223,LH212,222..ARL,GCC,GEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26470

TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)

 1
47316-26490

KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
90947-02H57

KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-26360

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
47317-26340

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26770

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
47321-26800

TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

 1
90412-10285

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-26420

TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)

 1
47322-26430

KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10307

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
90413-10337

KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26410

TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)

 1
47323-26420

KDH212..4FC;KDH223..GEN,VN;TRH213..GL..GEN;KDH201..SP..(02S,06S)..GEN;KDH201,222,TRH201..RHD..03S;GDH201,KDH203,213,220,TRH22#..(02S,06S,10S,11S,13S)..(GEN,SA)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26550

TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26410

TRH221..5F;KDH222..GL;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH21#,220,221,LH212,222,TRH213

 1
47325-26430

TRH213..LHD;KDH222..GEN,KEN;TRH223..LHD..STD..GEN;KDH220,TRH22#..06S,10S,13S;KDH21#,220,223,LH212,222..GCC,GEN,VN

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26480

TRH223..4FC..GEN;KDH222,223,TRH223..ARL,GCC,RUS;KDH21#,220,221,LH212,TRH213,221

 1
47326-26510

TRH213..LHD;KDH21#,220,LH212..GCC,GEN;KDH220,TRH22#..06S,10S,13S

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-26330

TRH223..4FC..GEN;KDH222,223,TRH223..ARL,GCC,RUS;KDH21#,220,221,LH212,TRH213,221

 1
47327-26360

TRH213..LHD;KDH21#,220,LH212..GCC,GEN;KDH220,TRH22#..06S,10S,13S

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-26150

KDH203,TRH201..5F..STD;KDH200,201,202,21#,LH20#,212,TRH203,213..ARL,GCC,GEN,SA,TH

 1
47328-26170

TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN

 1
47332 - TUBE, REAR BRAKE, NO.11
47332-26160

TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26210

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-26200

KDH223..4FC..TH;KDH221,TRH201..RHD;TRH223..10S,12S,13S;KDH222..STD..(KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);GDH201,KDH201,202,203,212,TRH203,213..(02S,05S,06S,10S,11S)..(ARL,GEN,MA,TH);KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 4
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26550

TRH213..LHD;KDH220,TRH221..06S;TRH22#..4FC..(ARL,GEN);KDH21#,220,LH212..GCC,GEN

 1
47934 - BRACKET, LOAD SENSING
47934-26110

KDH223..4FC..TH;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
Common parts
90119-08B11
90461-08729
90464-00857
90464-00872
90464-00903
90468-08040
90469-07012
90469-07019
90480-01621
90949-01D14
90949-01D15
90949-01D16
90949-01D92
90949-01E02
91553-80818
91611-B0816
91673-80820
94151-80800
Linked diagrams
4702
