KDH212L-KDPNY (2013)

Toyota Hiace

Production Dec 2013 - Nov 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )KDH212,220,222,223..LHD

Click highlighted areas on diagram

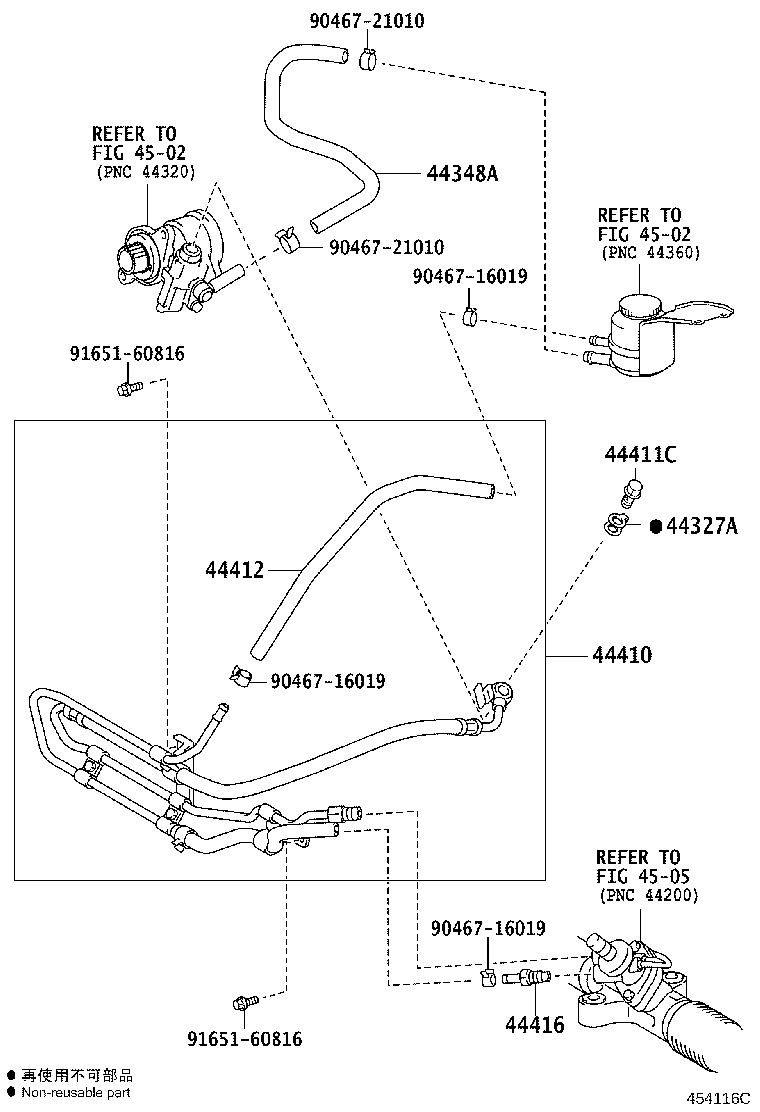

diagram 44327A 44348A 44410 44411C 44412 44416 4502 4502 4505 9046716019 9046716019 9046716019 9046721010 9046721010 9165160816 9165160816
Part # Description Qty Price
Common parts
90467-16019
90467-21010
91651-60816
Linked diagrams
4502
4505

(1312- )KDH21#,220,222,223..LHD

Click highlighted areas on diagram

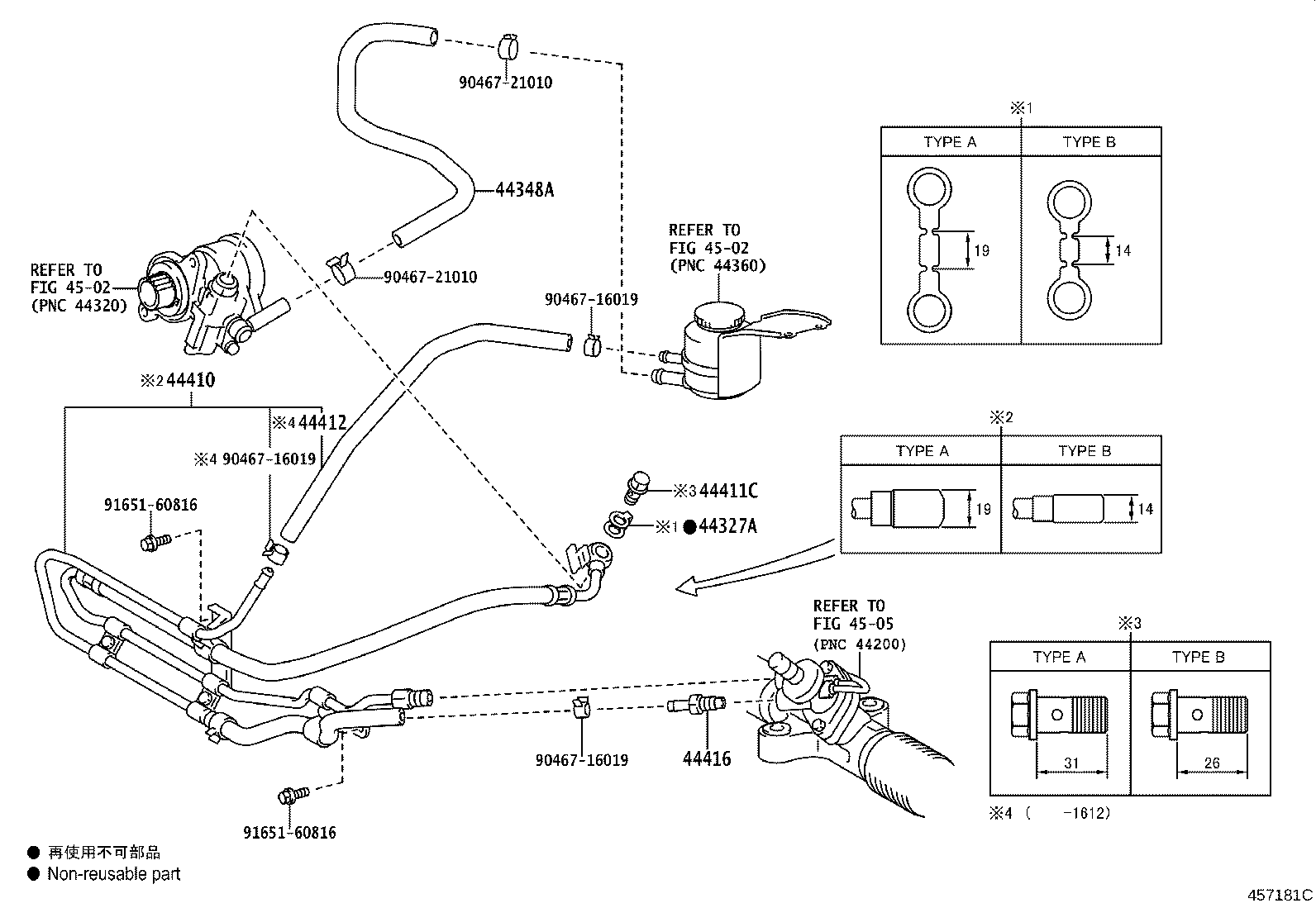

diagram 44327A 44348A 44410 44411C 44412 44416 4502 4502 4505 9046716019 9046716019 9046716019 9046721010 9046721010 9165160816 9165160816
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30040

TRH223..6FC;TRH213..LHD..STD..GEN;KDH201,TRH213..RHD..SG;TRH223..(13S,14S,16S)..(GCC,GEN,SA,TH);KDH212,22#,LH222..02S,03S,06S,10S,12S,14S,16S;KDH212,TRH200,201,221..(02S,03S,05S,06S,13S)..(5F,6FC)..STD;KDH20#,213,LH20#,212,TRH203..(SMRF,SRF)..(02S,03S,05S,10S,11S,12S,13S,15S,16S)

TYPE A:REFER ILLUST.

 1
44327-30040

TRH213..GCC;KDH201..SP..06S;KDH212..GL..GEN;TRH201,221..4FC;TRH223..(10S,12S,14S)..(4FC,5F)..(ARL,GEN,RUS);KDH202,222,TRH200,203,213..(03S,06S,10S)..(4FC,5F)..(GEN,KEN,MA)

TYPE A:REFER ILLUST.

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-26230

KDH220..06S;KDH223..4FC..TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH21#,220,221,223..ARL,GCC,GEN,RUS,VN

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-26A00

KDH212..GL..GEN

TYPE A:REFER ILLUST.

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16034

TRH223..6FC;TRH213..LHD..STD..GEN;KDH201,TRH213..RHD..SG;TRH223..(13S,14S,16S)..(GCC,GEN,SA,TH);KDH212,22#,LH222..02S,03S,06S,10S,12S,14S,16S;KDH212,TRH200,201,221..(02S,03S,05S,06S,13S)..(5F,6FC)..STD;KDH20#,213,LH20#,212,TRH203..(SMRF,SRF)..(02S,03S,05S,10S,11S,12S,13S,15S,16S)

TYPE A:REFER ILLUST.

 1
90401-16034

TRH213..GCC;KDH201..SP..06S;KDH212..GL..GEN;TRH201,221..4FC;TRH223..(10S,12S,14S)..(4FC,5F)..(ARL,GEN,RUS);KDH202,222,TRH200,203,213..(03S,06S,10S)..(4FC,5F)..(GEN,KEN,MA)

TYPE A:REFER ILLUST.

 1
44412 - HOSE, RETURN
44412-26440

LH212,222;KDH21#,220,222,223..LHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60370

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
Common parts
90467-16019
90467-21010
91651-60816
Linked diagrams
4502
4505
