KDH212L-KDPNY (2013)

Toyota Hiace

Production Dec 2013 - Nov 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )4FC

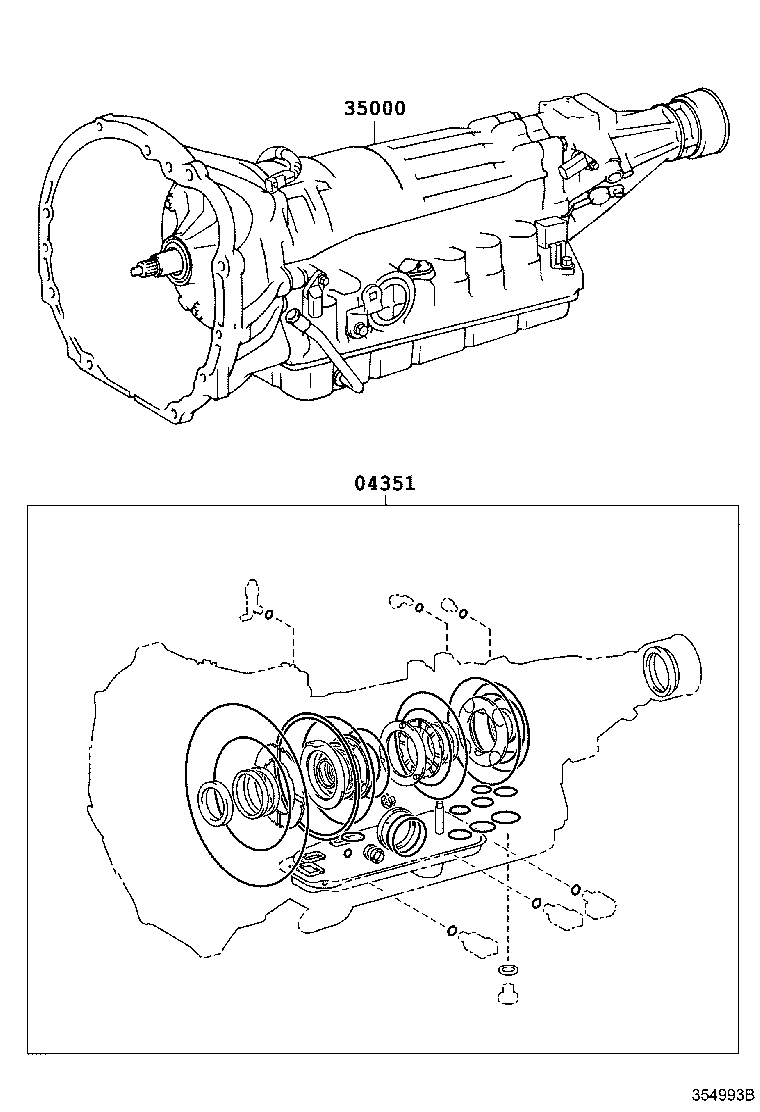

Click highlighted areas on diagram

A340E,A343E,A45DE

diagram 04351 35000
Part # Description Qty Price

(1312- )4FC

Click highlighted areas on diagram

A340E,A343E,A45DE

diagram 04351 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-30630

KDH213..4FC..GEN;KDH201,212,221,222,223..4FC

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-26B10

KDH212..11S

A340E

 1
