KDH212L-KDPNY (2013)
Toyota Hiace
Production
Dec 2013
-
Nov 2015
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0501- )LH20#,212,222

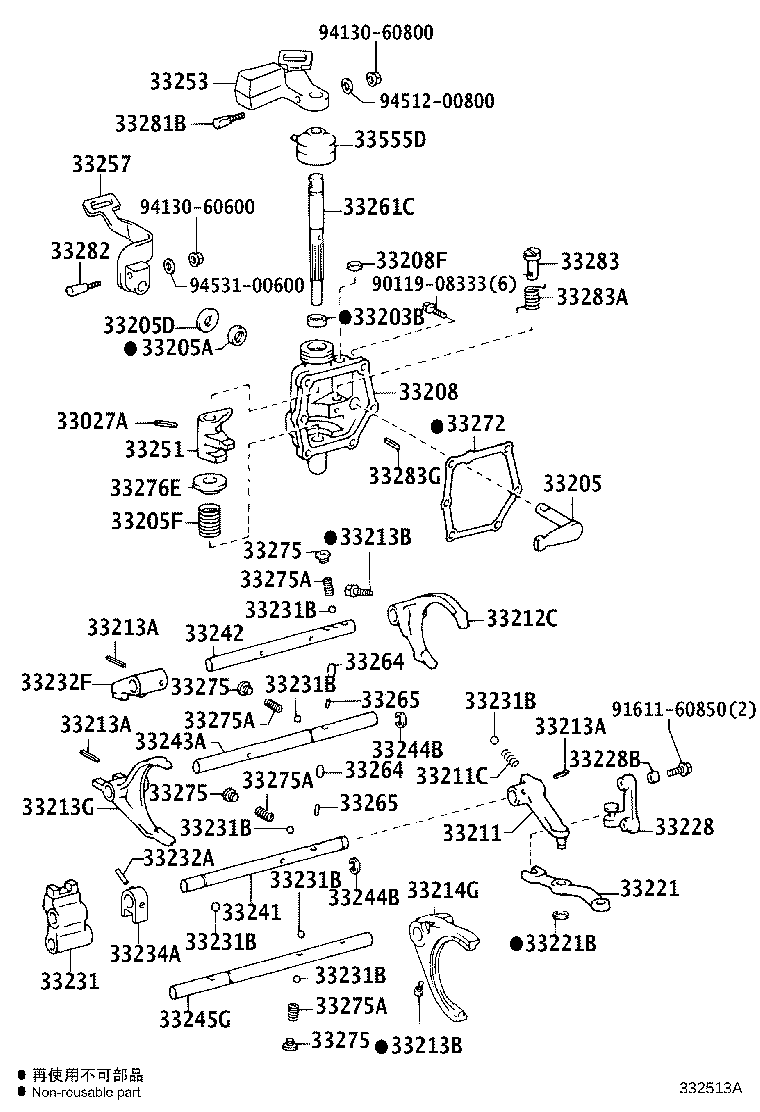

Click highlighted areas on diagram
G55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08333 | ||||
| 91611-60850 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94512-00800 | ||||
| 94531-00600 | ||||
(1312- )LH20#,212,222

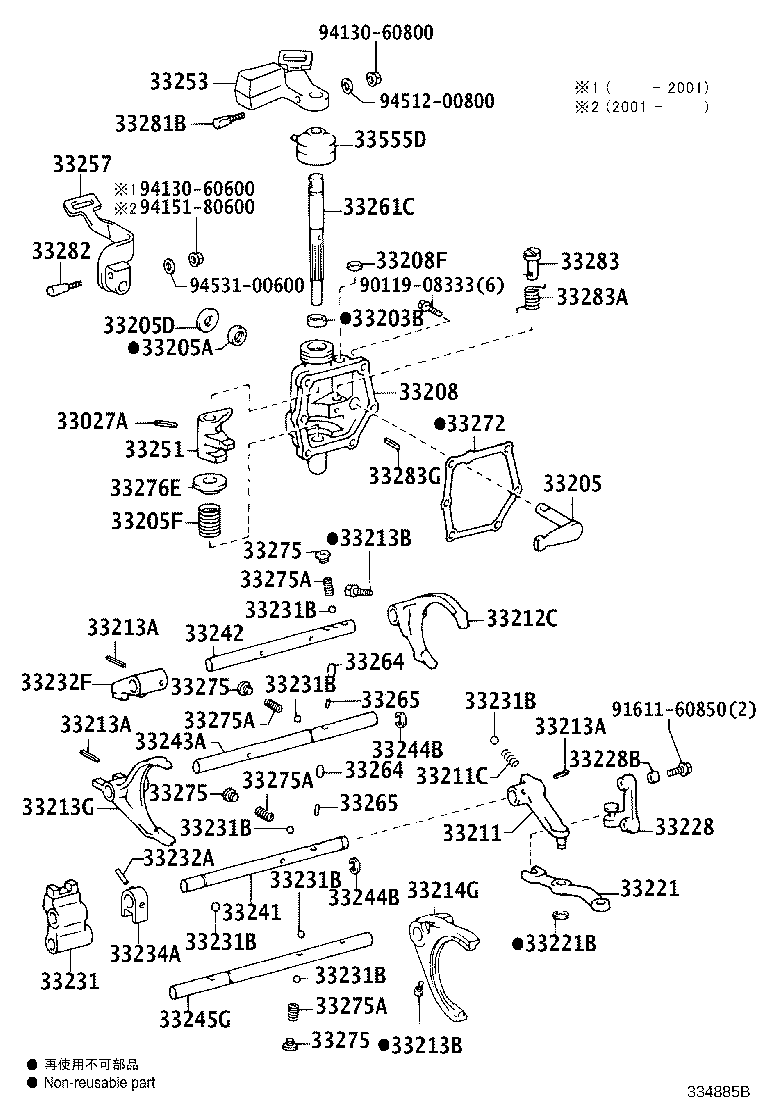

Click highlighted areas on diagram
G55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-0K020 |
LH20#,212,222 |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-26040 |
LH20#,212,222 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-0K020 |
LH20#,212,222 |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-0K020 |
LH20#,212,222 |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-26030 |
LH20#,212,222 |
1 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| 33234-0K010 |
LH20#,212,222 |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-0L010 |
LH20#,212,222 |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-0L010 |
LH20#,212,222 |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-0L010 |
LH20#,212,222 |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-0L010 |
LH20#,212,222 |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-26060 |
LH20#,212,222 |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-26080 |
LH20#,212,222 |
1 | ||
| Common parts | ||||
| 90119-08333 | ||||
| 91611-60850 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94151-80600 | ||||
| 94512-00800 | ||||
| 94531-00600 | ||||
