KDH212L-KDPNY (2013)

Toyota Hiace

Production Dec 2013 - Nov 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )2KDFTV..KDH212..10S,11S,15S ; (0501-)2KDFTV..KDH212..LHD..STD..GEN,V

Click highlighted areas on diagram

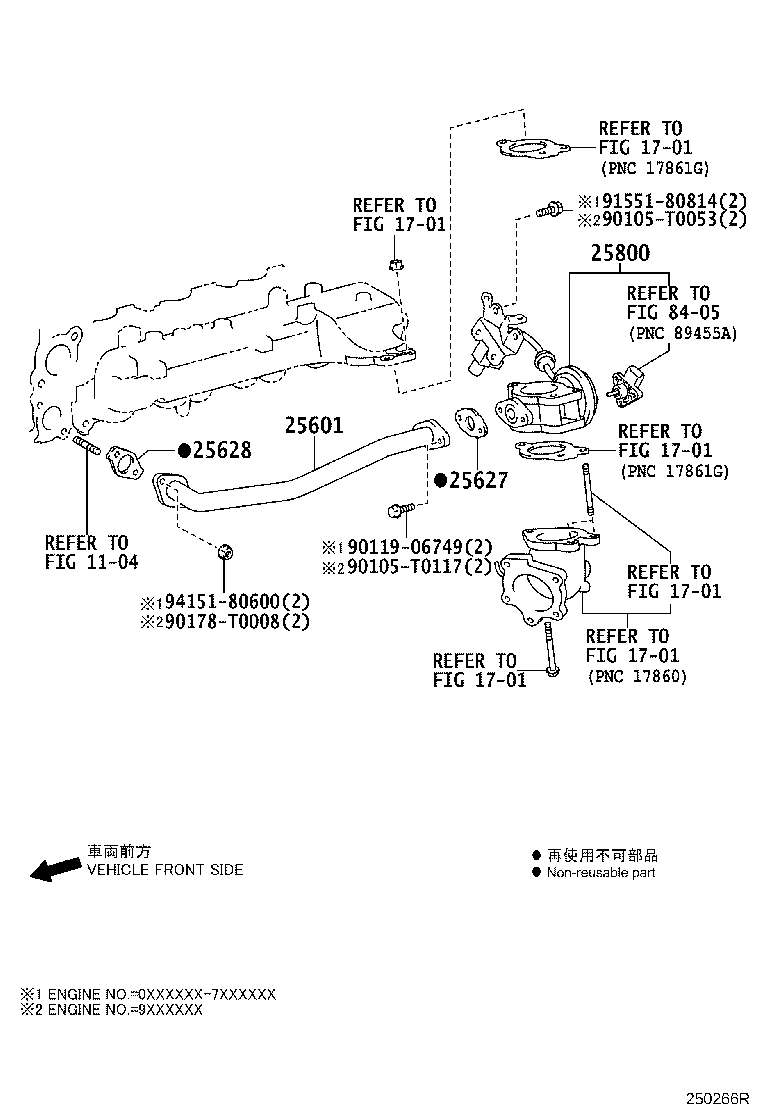

diagram 1104 1701 1701 1701 1701 1701 1701 25601 25627 25628 25800 8405 90105T0053 90105T0117 9011906749 90178T0008 9155180814 9415180600
Part # Description Qty Price
Common parts
90105-T0053
90105-T0117
90119-06749
90178-T0008
91551-80814
94151-80600
Linked diagrams
1104
1701
8405

(1312- )2KDFTV..KDH212..GL ; (1312- )2KDFTV..KDH220..SA ; (1312- )2KDFTV..

Click highlighted areas on diagram

diagram 1104 1701 1701 1701 1701 1701 1701 25601 25627 25628 25800 8405 90105T0053 90105T0117 9011906749 90178T0008 9155180814 9415180600
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-30050

2KDFTV..KDH200,202..MA;2KDFTV..KDH212,222..GL..GEN;2KDFTV..KDH220,222..(06S,16S)..SA

 1
25601-30050

2KDFTV..KDH200,202..MA;2KDFTV..KDH212,222..GL..GEN;2KDFTV..KDH220,222..(06S,16S)..SA

 1
25627 - GASKET, EGR VALVE
25627-30060

2KDFTV..KDH212,222..GL..GEN;2KDFTV..KDH220,222..(06S,16S)..SA

 1
25627-30060

2KDFTV..KDH212,222..GL..GEN;2KDFTV..KDH220,222..(06S,16S)..SA

 1
25628 - GASKET, EGR INLET
25628-30031

2KDFTV..KDH220..06S;2KDFTV..KDH200,202..MA;2KDFTV..KDH212,222..GL..GEN

 1
25628-30031

2KDFTV..KDH220..06S;2KDFTV..KDH200,202..MA;2KDFTV..KDH212,222..GL..GEN

 1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-30080

2KDFTV..KDH212,222..GL..GEN;2KDFTV..KDH220,222..(06S,16S)..SA

 1
25800-30080

2KDFTV..KDH212,222..GL..GEN;2KDFTV..KDH220,222..(06S,16S)..SA

 1
Common parts
90105-T0053
90105-T0117
90119-06749
90178-T0008
91551-80814
94151-80600
Linked diagrams
1104
1701
8405
