KDH212L-KDPNY (2013)
Toyota Hiace
(1312- )2KDFTV..GCC,GEN,KEN,SA

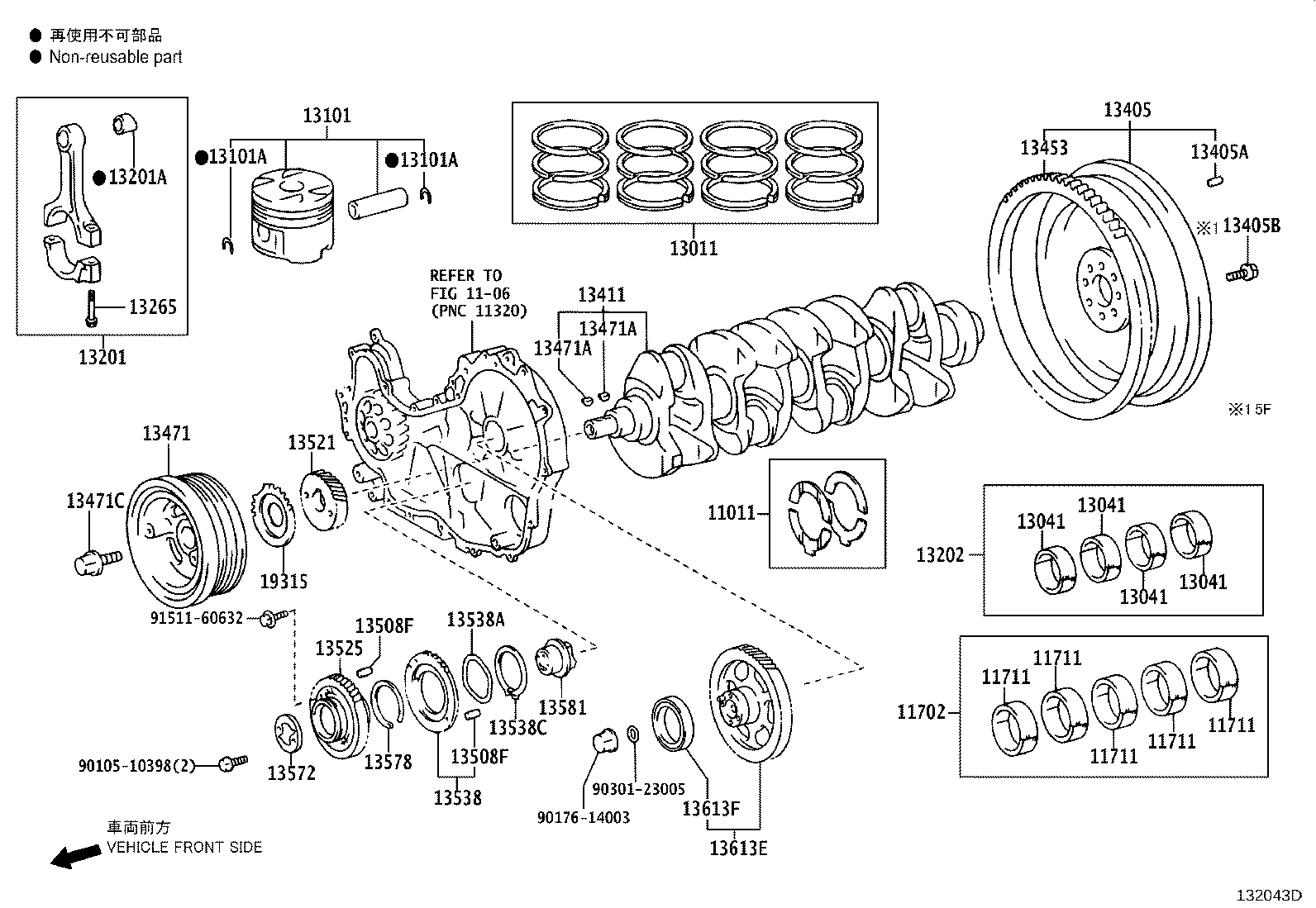

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-30010 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) STD |
1 | ||
| 11012-30010 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) O/S 0.125 |
1 | ||
| 11013-30010 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-30020 |
1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;1KDFTV,2KDFTV..KDH200,203..GCC,MA,TH;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH220,223..(06S,16S)..(SA,VN) U/S 0.25 |
1 | ||
| 11705-30020 |
1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;1KDFTV,2KDFTV..KDH200,203..GCC,MA,TH;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH220,223..(06S,16S)..(SA,VN) U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3002006 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-3002004 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-3002005 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-3002002 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-3002003 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK3,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3002006 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-3002004 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-3002005 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-3002002 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-3002003 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK3,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3002006 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-3002004 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-3002005 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-3002002 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-3002003 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK3,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3002006 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-3002004 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-3002005 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-3002002 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-3002003 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK3,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3002006 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK6,REFER REPAIR MANUAL |
5 | ||
| 11701-3002004 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-3002005 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-3002002 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-3002003 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK3,REFER REPAIR MANUAL |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-30080 |
2KDFTV..KDH212,222..GL..GEN;2KDFTV..KDH220,222..(06S,16S)..SA STD |
1 | ||
| 13013-30080 |
2KDFTV..KDH220..06S;2KDFTV..KDH212,222..GL..GEN O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3002002 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-3002004 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041-3002005 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-3002006 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041-3002003 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3002002 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-3002004 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041-3002005 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-3002006 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041-3002003 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3002002 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-3002004 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041-3002005 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-3002006 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041-3002003 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK3,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3002002 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-3002004 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK4,REFER REPAIR MANUAL |
4 | ||
| 13041-3002005 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK5,REFER REPAIR MANUAL |
4 | ||
| 13041-3002006 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK6,REFER REPAIR MANUAL |
4 | ||
| 13041-3002003 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S MARK3,REFER REPAIR MANUAL |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-3008102 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S STD,MARK2,REFER REPAIR MANUAL |
4 | ||
| 13101-3008101 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S STD,MARK1,REFER REPAIR MANUAL |
4 | ||
| 13101-3008103 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S STD,MARK3,REFER REPAIR MANUAL |
4 | ||
| 13103-30081 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S O/S 0.50 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-37014 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-37014 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-30041 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73157 |
2KDFTV..KDH220..06S;2KDFTV..KDH200..GCC,MA;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA) |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-30020 |
1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;1KDFTV,2KDFTV..KDH200,203..GCC,MA,TH;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH220,223..(06S,16S)..(SA,VN) U/S 0.50 |
1 | ||
| 13204-30020 |
1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;1KDFTV,2KDFTV..KDH200,203..GCC,MA,TH;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH220,223..(06S,16S)..(SA,VN) U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-67021 |
2KDFTV..KDH200..GCC,MA;1KDFTV..KDH223..4FC..TH;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-67030 |
1KDFTV,2KDFTV..KDH201,21#,221,222,223..4FC..(ARL,GEN) |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-05121 |
1KDFTV,2KDFTV..KDH201,21#,221,222,223..4FC..(ARL,GEN) L=15,OD=5 |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-30060 |
2KDFTV..KDH220..06S;2KDFTV..KDH200..GCC,MA;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA) (J) |
1 | ||
| 13401-0L100 |
2KDFTV..KDH220..06S;2KDFTV..KDH200..GCC,MA;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA) (L) |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-67030 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN) |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-30011 |
2KDFTV..KDH200..LHD..5D;1KDFTV..KDH201..4D..5F..(GEN,TH);2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH203,220..(03S,15S)..GEN;1KDFTV,2KDFTV..KDH202,21#,220,223..(06S,11S,12S,13S,14S,15S,16S)..(GCC,GEN,SA) |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-T0002 |
2KDFTV..KDH220..06S;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;1KDFTV,2KDFTV..KDH200,223..GCC,MA,VN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA) (L) |
2 | ||
| 95161-30516 |
2KDFTV..KDH220..06S;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;1KDFTV,2KDFTV..KDH200,223..GCC,MA,VN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA) (J) |
2 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-T0002 |
2KDFTV..KDH220..06S;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;1KDFTV,2KDFTV..KDH200,223..GCC,MA,VN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA) (L) |
2 | ||
| 95161-30516 |
2KDFTV..KDH220..06S;2KDFTV..KDH200..LHD..5D..GEN;2KDFTV..KDH202,212,220..GCC,GEN,MA;1KDFTV,2KDFTV..KDH200,223..GCC,MA,VN;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA) (J) |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-18003 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-05027 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S |
2 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-05027 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S |
2 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-67020 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..16S..(GEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13508-30011 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S |
1 | ||
| 13538 - GEAR, IDLE SUB, NO.2 | ||||
| 13538-67900 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 13538A - WASHER, WAVE | ||||
| 90206-69001 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S |
1 | ||
| 13538C - RING, SHAFT SNAP | ||||
| 90520-58002 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-67041 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 13578 - SPRING, IDLE GEAR | ||||
| 13578-67010 |
2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S |
1 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-67041 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 13613E - GEAR, INJECTION | ||||
| 13603-30020 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 13613F - BEARING, RADIAL BALL | ||||
| 90363-67001 |
2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH201,202,212,220,221..ARL,GCC,GEN,TH;1KDFTV,2KDFTV..KDH203,213,220,223..(02S,06S,10S,11S,12S,13S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-30010 |
2KDFTV..KDH200..LHD..5D;1KDFTV..KDH201..4D..5F..(GEN,TH);2KDFTV..KDH222..(03S,16S)..(GEN,KEN,SA);1KDFTV,2KDFTV..KDH203,220..(03S,15S)..GEN;1KDFTV,2KDFTV..KDH202,21#,220,223..(06S,11S,12S,13S,14S,15S,16S)..(GCC,GEN,SA) |
1 | ||
| Common parts | ||||
| 90105-10398 | ||||
| 90176-14003 | ||||
| 90301-23005 | ||||
| 91511-60632 | ||||
| Linked diagrams | ||||
| 1106 | ||||
