Toyota Hiace KDH212 SEAT & SEAT TRACK

Manufacturers Home
Toyota
GR
HIACE
KDH212L-JEMDY (2005)
7151 - SEAT & SEAT TRACK

KDH212L-JEMDY (2005)

Toyota Hiace

Production Aug 2005 - Dec 2013

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0501- )4D..09S,10S,11S,16S..GL..GCC,GEN ; (0505-0709)09S ; (1110- )KDH222,LH

Click highlighted areas on diagram

LHD REAR(3 PERSONS)

Part #	Description	Period	Qty
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH212,TRH213..STD W(LOCK)&W(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..STD W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 08/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH212,TRH213..STD W(LOCK)&W(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..STD W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 08/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH212,TRH213..STD W(LOCK)&W(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..STD W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 08/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH212,TRH213..STD W(LOCK)&W(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..STD W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 08/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH212,TRH213..STD W(LOCK)&W(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..STD W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 08/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH212,TRH213..STD W(LOCK)&W(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..STD W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 08/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71940A - HEADREST ASSY, REAR SEAT
71940-26370B0	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	9
71940-26370B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	9
71940-26420B0	KDH212,TRH213..STD SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#	08/2005 - 12/2005	9
71940-26420B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	9
71940A - HEADREST ASSY, REAR SEAT
71940-26370B0	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	9
71940-26370B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	9
71940-26420B0	KDH212,TRH213..STD SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#	08/2005 - 12/2005	9
71940-26420B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	9
71940A - HEADREST ASSY, REAR SEAT
71940-26370B0	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	9
71940-26370B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	9
71940-26420B0	KDH212,TRH213..STD SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#	08/2005 - 12/2005	9
71940-26420B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	9
74611H - GRIP, ASSIST
74610-20040B9	KDH212,TRH213..STD GRAY,TRIM1#	01/2005 - 12/2005	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 08/2010	9
74611H - GRIP, ASSIST
74610-20040B9	KDH212,TRH213..STD GRAY,TRIM1#	01/2005 - 12/2005	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 08/2010	9
74611H - GRIP, ASSIST
74610-20040B9	KDH212,TRH213..STD GRAY,TRIM1#	01/2005 - 12/2005	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 08/2010	9
Common parts
90159-60604

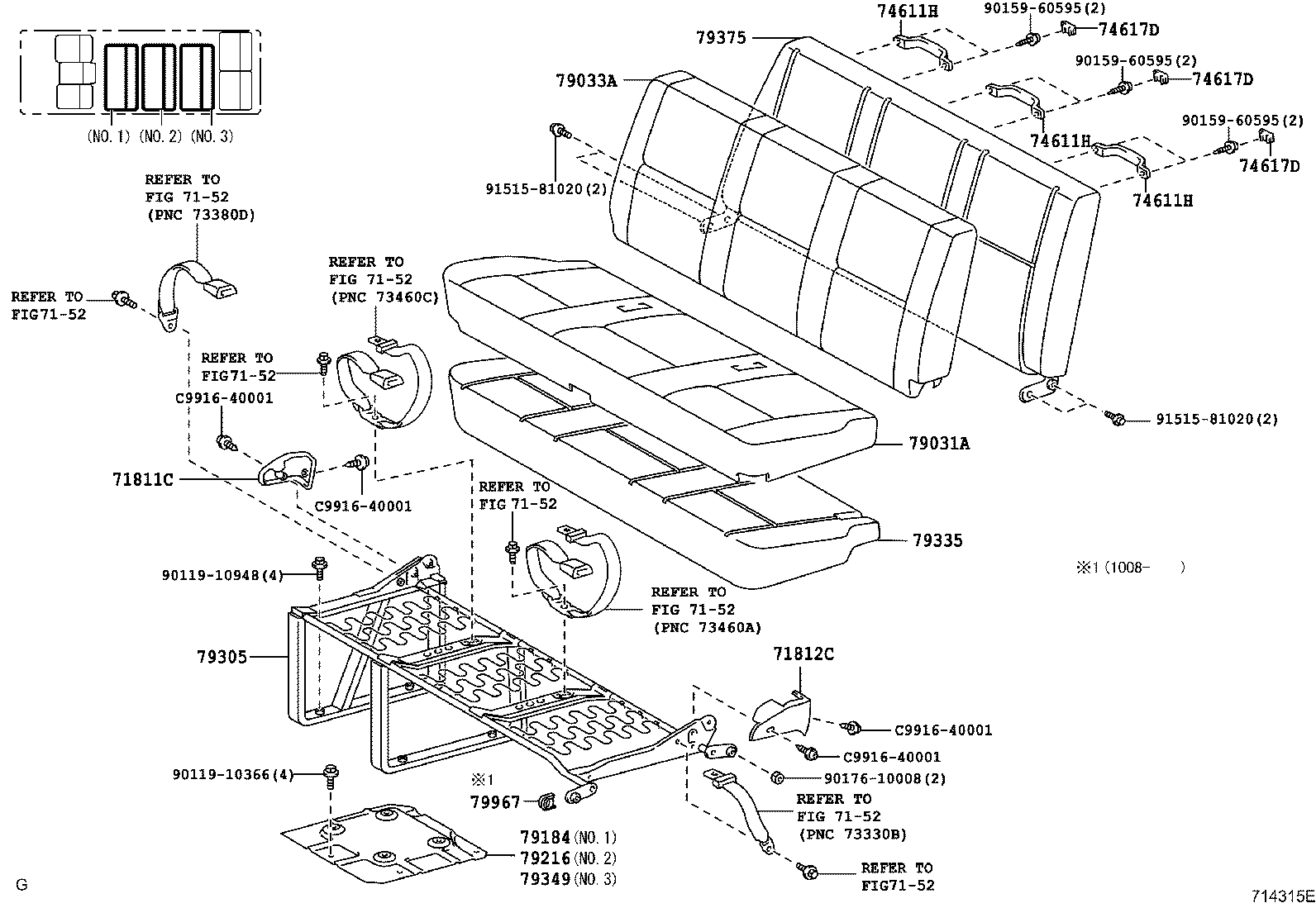

ILLUST NO. 2 OF 2(0501- )4D..09S,10S,11S,16S..GL..GCC,GEN ; (0505-0709)09S ; (1110- )KDH222,LH

Click highlighted areas on diagram

LHD REAR(3 PERSONS)

Part #	Description	Period	Qty
71811C - COVER, RECLINING ADJUSTER, RH
71811-26210B0	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	3
71811-26210B0	KDH212,LH212,TRH213..LHD..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71811-26210B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71811-26200B0	KDH212,LH212,TRH213..LHD..16S GRAY,TRIM1#	12/2005 - 09/2007	3
71811-26210B0	KDH212,LH212,TRH213..LHD..16S REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71811-26210B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71811-26210B0	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN) GRAY,TRIM1#	09/2007 - 08/2010	3
71811-26210B1	KDH212,LH212,TRH213..LHD..STD DK.GRAY,TRIM1#	08/2010 - 12/2013	3
71812C - COVER, RECLINING ADJUSTER, LH
71812-26200B0	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	3
71812-26200B0	KDH212,LH212,TRH213..LHD..16S REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71812-26200B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71812-26200B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71812-26190B0	KDH212,LH212,TRH213..LHD..16S GRAY,TRIM1#	12/2005 - 09/2007	3
71812-26200B0	KDH212,LH212,TRH213..LHD..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71812-26200B1	KDH212,LH212,TRH213..LHD..STD DK.GRAY,TRIM1#	08/2010 - 12/2013	3
71812-26200B0	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN) GRAY,TRIM1#	09/2007 - 08/2010	3
Common parts
90105-11058
90119-10948
90176-10008
91515-81020
93560-54010
C9916-40001
Linked diagrams
7152

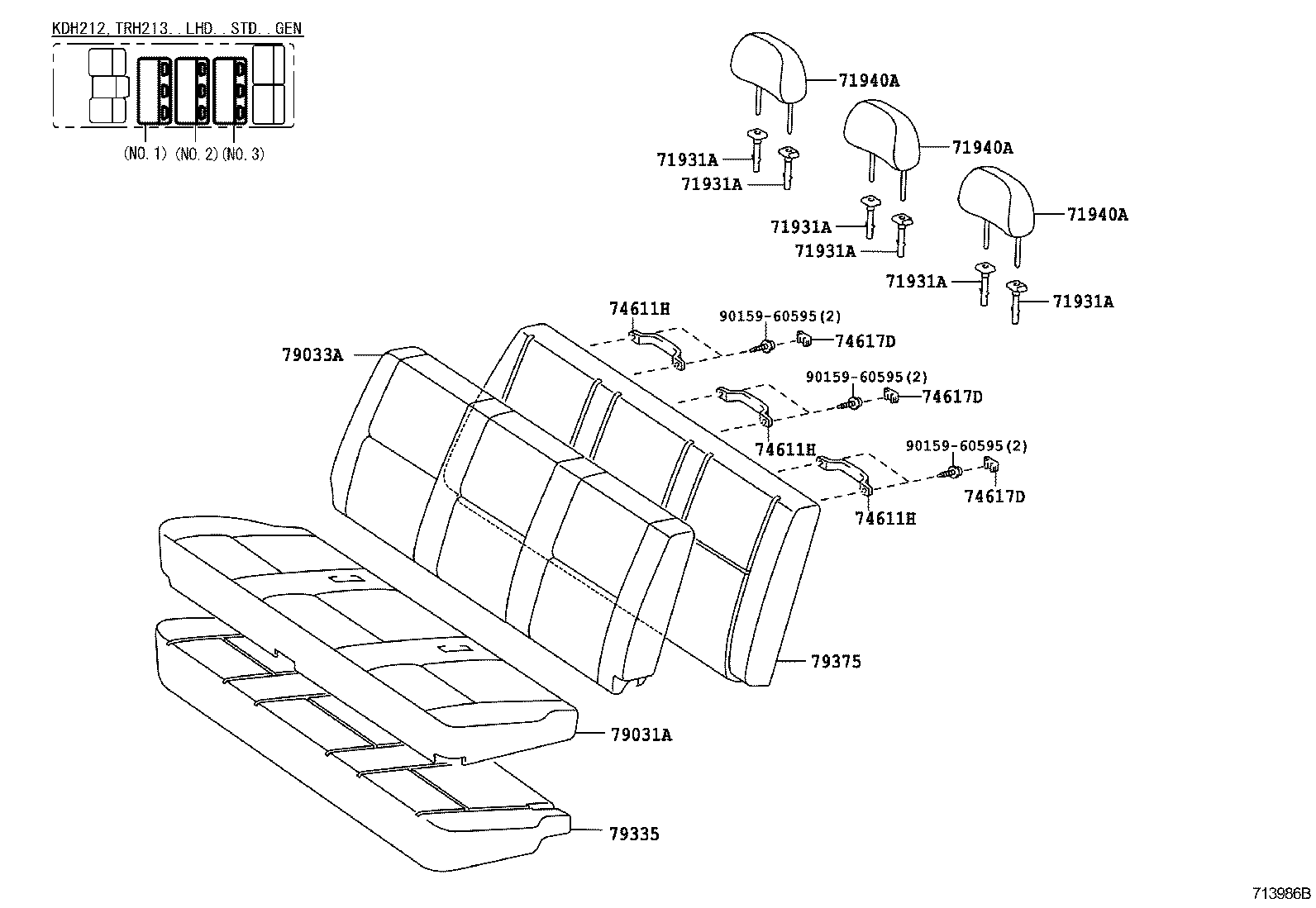

ILLUST NO. 1 OF 2(0508-1205)KDH212,TRH213..LHD..STD..GEN,VN

Click highlighted areas on diagram

REAR(3 PERSONS & HEADREST)

Part #	Description	Period	Qty
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH212,TRH213..STD W(LOCK)&W(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..STD W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 08/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH212,TRH213..STD W(LOCK)&W(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..STD W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 08/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH212,TRH213..STD W(LOCK)&W(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..STD W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 08/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH212,TRH213..STD W(LOCK)&W(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..STD W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 08/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH212,TRH213..STD W(LOCK)&W(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..STD W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 08/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931A - SUPPORT, REAR SEAT HEADREST
71930-42020B8	KDH212,TRH213..STD W(LOCK)&W(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..STD W(LOCK)&W/O(BUTTON),GRAY,TRIM1#	08/2005 - 12/2005	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71931-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W/O(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 08/2007	3
71930-42020B8	KDH212,TRH213..LHD..STD..GEN W(LOCK)&W(BUTTON),VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71940A - HEADREST ASSY, REAR SEAT
71940-26370B0	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	9
71940-26370B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	9
71940-26420B0	KDH212,TRH213..STD SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#	08/2005 - 12/2005	9
71940-26420B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	9
71940A - HEADREST ASSY, REAR SEAT
71940-26370B0	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	9
71940-26370B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	9
71940-26420B0	KDH212,TRH213..STD SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#	08/2005 - 12/2005	9
71940-26420B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	9
71940A - HEADREST ASSY, REAR SEAT
71940-26370B0	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	9
71940-26370B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	9
71940-26420B0	KDH212,TRH213..STD SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#	08/2005 - 12/2005	9
71940-26420B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	9
74611H - GRIP, ASSIST
74610-20040B9	KDH212,TRH213..STD GRAY,TRIM1#	01/2005 - 12/2005	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 08/2010	9
74611H - GRIP, ASSIST
74610-20040B9	KDH212,TRH213..STD GRAY,TRIM1#	01/2005 - 12/2005	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 08/2010	9
74611H - GRIP, ASSIST
74610-20040B9	KDH212,TRH213..STD GRAY,TRIM1#	01/2005 - 12/2005	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 08/2010	9
74617D - PLUG, ASSIST GRIP
74617-16010S0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	12
74617-16010S0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	12
74617-16010S0	KDH212,TRH213..STD GRAY,TRIM1#	01/2005 - 12/2005	12
74617-16010S0	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 08/2010	18
74617D - PLUG, ASSIST GRIP
74617-16010S0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	12
74617-16010S0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	12
74617-16010S0	KDH212,TRH213..STD GRAY,TRIM1#	01/2005 - 12/2005	12
74617-16010S0	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 08/2010	18
74617D - PLUG, ASSIST GRIP
74617-16010S0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	12
74617-16010S0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	12
74617-16010S0	KDH212,TRH213..STD GRAY,TRIM1#	01/2005 - 12/2005	12
74617-16010S0	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 08/2010	18
79031A - COVER SUB-ASSY, NO.3 SEAT CUSHION
79032-0L010B1	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
79032-0L030B1	KDH212,TRH213..STD SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#	08/2005 - 12/2005	3
79032-0L030B1	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
79032-0L010B1	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	3
79032-26190B0	KDH212,LH212,TRH213..LHD..16S GRAY,TRIM1#	12/2005 - 09/2007	3
79032-26210B0	KDH212,LH212,TRH213..LHD..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#	12/2005 - 09/2007	3
79032-26200B0	KDH212,LH212,TRH213..LHD..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
79032-26180B0	KDH212,LH212,TRH213..LHD..16S REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
79032-26200B0	KDH212,LH212,TRH213..LHD..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#	09/2007 - 08/2010	3
79032-26180B0	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN) GRAY,TRIM1#	09/2007 - 08/2010	3
79032-26181B1	KDH212,LH212,TRH213..LHD..STD..(GCC,GEN) BLUISH GRAY,TRIM1#	08/2010 - 12/2013	3
79032-26200B1	KDH212,LH212,TRH213..LHD..STD..GEN SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1#	08/2010 - 12/2013	3
79033A - COVER SUB-ASSY, NO.3 SEAT BACK
79033-0L010B1	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	3
79033-0L020B1	KDH212,TRH213..STD SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#	08/2005 - 12/2005	3
79033-0L010B1	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
79033-0L020B1	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
79033-26580B3	KDH212,LH212,TRH213..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
79033-26580B3	KDH212,LH212,TRH213..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#	12/2005 - 08/2010	3
79033-26600B4	KDH212,LH212,TRH213..16S..(GCC,GEN) GRAY,TRIM1#	12/2005 - 08/2010	3
79033-26580B5	KDH212,LH212,TRH213..STD..GEN SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1#	08/2010 - 12/2013	3
79033-26601B5	KDH212,LH212,TRH213..STD..(GCC,GEN) BLUISH GRAY,TRIM1#	08/2010 - 12/2013	3
79335 - PAD, NO.3 SEAT CUSHION
79345-0L010	KDH212,TRH213..STD	08/2005 - 12/2005	3
79345-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	3
79345-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	3
79345-26090	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN)	12/2005 - 12/2999	3
79375 - PAD, NO.3 SEAT BACK
79037-26180	KDH212,LH212,TRH213..15S,16S	12/2005 - 09/2007	3
79385-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	3
79385-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	3
79385-0L010	KDH212,TRH213..STD	08/2005 - 12/2005	3
79037-26181	KDH212,LH212,TRH213..(15S,16S)..(GCC,GEN,SA)	09/2007 - 12/2999	3
Common parts
90159-60595

ILLUST NO. 2 OF 2(0508-1205)KDH212,TRH213..LHD..STD..GEN,VN

Click highlighted areas on diagram

REAR(3 PERSONS & HEADREST)

Part #	Description	Period	Qty
71811C - COVER, RECLINING ADJUSTER, RH
71811-26210B0	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	3
71811-26210B0	KDH212,LH212,TRH213..LHD..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71811-26210B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71811-26200B0	KDH212,LH212,TRH213..LHD..16S GRAY,TRIM1#	12/2005 - 09/2007	3
71811-26210B0	KDH212,LH212,TRH213..LHD..16S REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71811-26210B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71811-26210B0	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN) GRAY,TRIM1#	09/2007 - 08/2010	3
71811-26210B1	KDH212,LH212,TRH213..LHD..STD DK.GRAY,TRIM1#	08/2010 - 12/2013	3
71812C - COVER, RECLINING ADJUSTER, LH
71812-26200B1	KDH212,LH212,TRH213..LHD..STD DK.GRAY,TRIM1#	08/2010 - 12/2013	3
71812-26200B0	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	3
71812-26200B0	KDH212,LH212,TRH213..LHD..16S REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71812-26200B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71812-26200B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71812-26190B0	KDH212,LH212,TRH213..LHD..16S GRAY,TRIM1#	12/2005 - 09/2007	3
71812-26200B0	KDH212,LH212,TRH213..LHD..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71812-26200B0	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN) GRAY,TRIM1#	09/2007 - 08/2010	3
79184 - PLATE, NO.1 SEAT LEG
79184-26100	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN)	12/2005 - 12/2999	1
79184-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	1
79184-26100	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC	12/2005 - 12/2999	1
79184-0L010	KDH212,TRH213..STD	08/2005 - 12/2005	1
79216 - PLATE, NO.2 SEAT LEG
79216-0L010	KDH212,TRH213..STD	08/2005 - 12/2005	1
79216-26060	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN)	12/2005 - 12/2999	1
79216-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	1
79216-26060	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC	12/2005 - 12/2999	1
79305 - LEG SUB-ASSY, NO.3 SEAT
79306-26120	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN)	12/2005 - 12/2999	3
79306-0L010	KDH212,TRH213..STD	08/2005 - 12/2005	3
79306-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	3
79306-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	3
79349 - PLATE, NO.3 SEAT CUSHION
79397-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	1
79397-0L010	KDH212,TRH213..STD	08/2005 - 12/2005	1
79397-26020	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC	12/2005 - 12/2999	1
79397-26020	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN)	12/2005 - 12/2999	1
79380 - SPRING ASSY, NO.3 SEAT BACK
79280-0L010	KDH212,TRH213..STD	08/2005 - 12/2005	3
79280-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	3
79280-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	3
79967 - COVER, REAR SEAT LEG SIDE, NO.4
79967-26050	KDH212,LH212..STD;TRH213..STD..(GCC,GEN)	08/2010 - 12/2999	6
Common parts
90119-10366
90119-10948
90176-10008
91515-81020
C9916-40001
Linked diagrams
7152

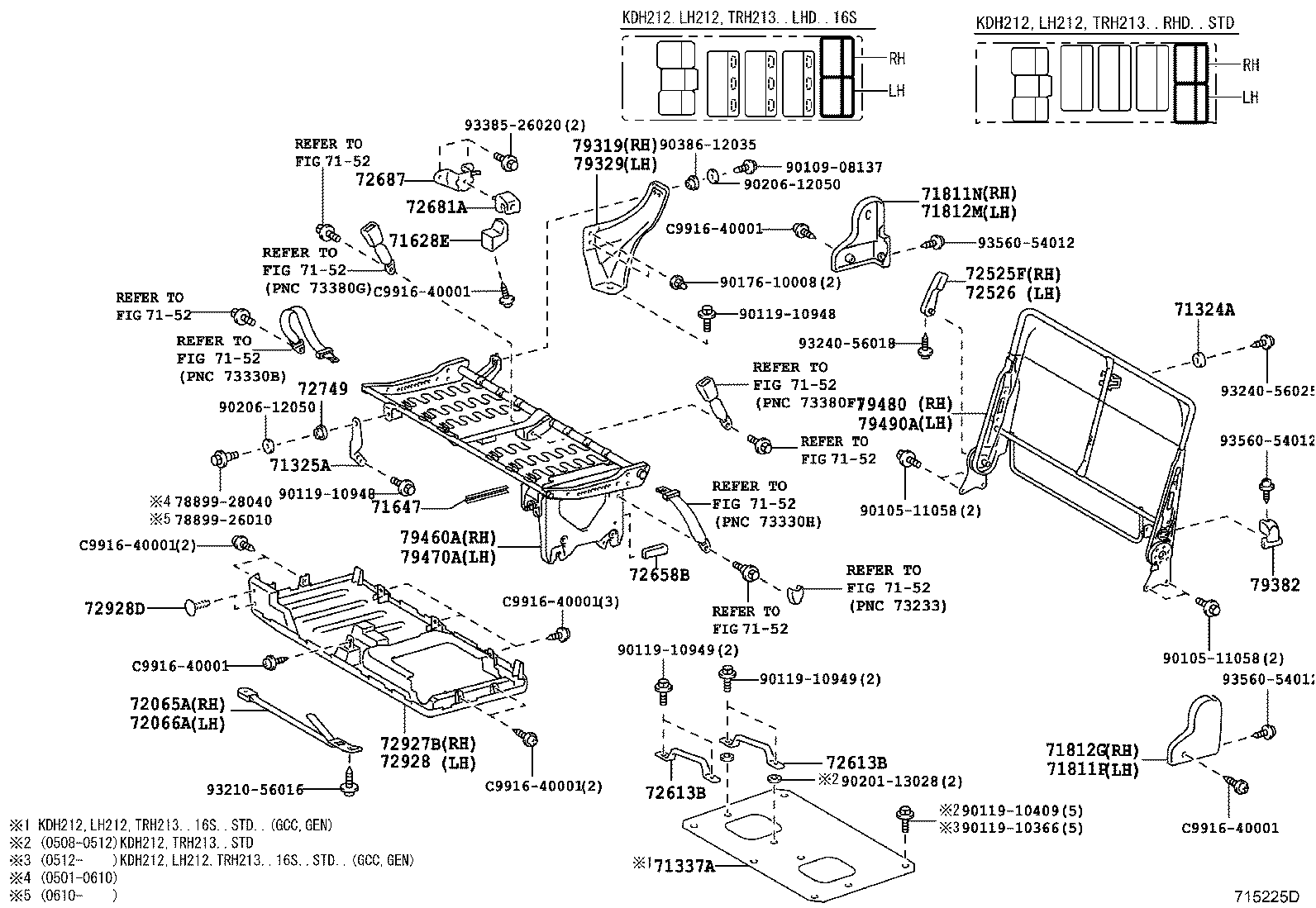

(0512- )KDH212,LH212,TRH213..LHD..16S..GCC,GEN

Click highlighted areas on diagram

LHD RR(3 PERSONS)

Part #	Description	Period	Qty
71811C - COVER, RECLINING ADJUSTER, RH
71811-26210B0	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	3
71811-26210B0	KDH212,LH212,TRH213..LHD..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71811-26210B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71811-26200B0	KDH212,LH212,TRH213..LHD..16S GRAY,TRIM1#	12/2005 - 09/2007	3
71811-26210B0	KDH212,LH212,TRH213..LHD..16S REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71811-26210B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71811-26210B0	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN) GRAY,TRIM1#	09/2007 - 08/2010	3
71811-26210B1	KDH212,LH212,TRH213..LHD..STD DK.GRAY,TRIM1#	08/2010 - 12/2013	3
71812C - COVER, RECLINING ADJUSTER, LH
71812-26200B0	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	3
71812-26200B0	KDH212,LH212,TRH213..LHD..16S REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71812-26200B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71812-26200B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71812-26190B0	KDH212,LH212,TRH213..LHD..16S GRAY,TRIM1#	12/2005 - 09/2007	3
71812-26200B0	KDH212,LH212,TRH213..LHD..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
71812-26200B0	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN) GRAY,TRIM1#	09/2007 - 08/2010	3
71812-26200B1	KDH212,LH212,TRH213..LHD..STD DK.GRAY,TRIM1#	08/2010 - 12/2013	3
74611H - GRIP, ASSIST
74610-20040B9	KDH212,TRH213..STD GRAY,TRIM1#	01/2005 - 12/2005	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 08/2010	9
74611H - GRIP, ASSIST
74610-20040B9	KDH212,TRH213..STD GRAY,TRIM1#	01/2005 - 12/2005	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 08/2010	9
74611H - GRIP, ASSIST
74610-20040B9	KDH212,TRH213..STD GRAY,TRIM1#	01/2005 - 12/2005	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	6
74610-20040B9	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 08/2010	9
74617D - PLUG, ASSIST GRIP
74617-16010S0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	12
74617-16010S0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	12
74617-16010S0	KDH212,TRH213..STD GRAY,TRIM1#	01/2005 - 12/2005	12
74617-16010S0	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 08/2010	18
74617D - PLUG, ASSIST GRIP
74617-16010S0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	12
74617-16010S0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	12
74617-16010S0	KDH212,TRH213..STD GRAY,TRIM1#	01/2005 - 12/2005	12
74617-16010S0	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 08/2010	18
74617D - PLUG, ASSIST GRIP
74617-16010S0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	12
74617-16010S0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	12
74617-16010S0	KDH212,TRH213..STD GRAY,TRIM1#	01/2005 - 12/2005	12
74617-16010S0	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 08/2010	18
79031A - COVER SUB-ASSY, NO.3 SEAT CUSHION
79032-0L010B1	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
79032-0L030B1	KDH212,TRH213..STD SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#	08/2005 - 12/2005	3
79032-0L030B1	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
79032-0L010B1	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	3
79032-26190B0	KDH212,LH212,TRH213..LHD..16S GRAY,TRIM1#	12/2005 - 09/2007	3
79032-26210B0	KDH212,LH212,TRH213..LHD..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#	12/2005 - 09/2007	3
79032-26200B0	KDH212,LH212,TRH213..LHD..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
79032-26180B0	KDH212,LH212,TRH213..LHD..16S REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
79032-26200B0	KDH212,LH212,TRH213..LHD..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#	09/2007 - 08/2010	3
79032-26180B0	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN) GRAY,TRIM1#	09/2007 - 08/2010	3
79032-26181B1	KDH212,LH212,TRH213..LHD..STD..(GCC,GEN) BLUISH GRAY,TRIM1#	08/2010 - 12/2013	3
79032-26200B1	KDH212,LH212,TRH213..LHD..STD..GEN SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1#	08/2010 - 12/2013	3
79033A - COVER SUB-ASSY, NO.3 SEAT BACK
79033-0L010B1	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	3
79033-0L020B1	KDH212,TRH213..STD SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#	08/2005 - 12/2005	3
79033-0L010B1	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
79033-0L020B1	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
79033-26580B3	KDH212,LH212,TRH213..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	3
79033-26580B3	KDH212,LH212,TRH213..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#	12/2005 - 08/2010	3
79033-26600B4	KDH212,LH212,TRH213..16S..(GCC,GEN) GRAY,TRIM1#	12/2005 - 08/2010	3
79033-26580B5	KDH212,LH212,TRH213..STD..GEN SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1#	08/2010 - 12/2013	3
79033-26601B5	KDH212,LH212,TRH213..STD..(GCC,GEN) BLUISH GRAY,TRIM1#	08/2010 - 12/2013	3
79184 - PLATE, NO.1 SEAT LEG
79184-26100	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN)	12/2005 - 12/2999	1
79184-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	1
79184-26100	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC	12/2005 - 12/2999	1
79184-0L010	KDH212,TRH213..STD	08/2005 - 12/2005	1
79216 - PLATE, NO.2 SEAT LEG
79216-0L010	KDH212,TRH213..STD	08/2005 - 12/2005	1
79216-26060	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN)	12/2005 - 12/2999	1
79216-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	1
79216-26060	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC	12/2005 - 12/2999	1
79305 - LEG SUB-ASSY, NO.3 SEAT
79306-26120	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN)	12/2005 - 12/2999	3
79306-0L010	KDH212,TRH213..STD	08/2005 - 12/2005	3
79306-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	3
79306-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	3
79335 - PAD, NO.3 SEAT CUSHION
79345-0L010	KDH212,TRH213..STD	08/2005 - 12/2005	3
79345-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	3
79345-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	3
79345-26090	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN)	12/2005 - 12/2999	3
79349 - PLATE, NO.3 SEAT CUSHION
79397-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	1
79397-0L010	KDH212,TRH213..STD	08/2005 - 12/2005	1
79397-26020	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC	12/2005 - 12/2999	1
79397-26020	KDH212,LH212,TRH213..LHD..16S..(GCC,GEN)	12/2005 - 12/2999	1
79375 - PAD, NO.3 SEAT BACK
79037-26180	KDH212,LH212,TRH213..15S,16S	12/2005 - 09/2007	3
79385-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	3
79385-0L010	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	3
79385-0L010	KDH212,TRH213..STD	08/2005 - 12/2005	3
79037-26181	KDH212,LH212,TRH213..(15S,16S)..(GCC,GEN,SA)	09/2007 - 12/2999	3
79967 - COVER, REAR SEAT LEG SIDE, NO.4
79967-26050	KDH212,LH212..STD;TRH213..STD..(GCC,GEN)	08/2010 - 12/2999	6
Common parts
90119-10366
90119-10948
90159-60595
90176-10008
91515-81020
C9916-40001
Linked diagrams
7152

ILLUST NO. 2 OF 2(0508- )KDH212,LH212,TRH213..15S,16S

Click highlighted areas on diagram

RR(SPACE UP SEAT)

Part #	Description	Period	Qty
71324A - CUSHION, REAR SEAT
71324-26100B0	KDH212,222,223,LH212,222,TRH213,223..(14S,15S,16S)..STD GRAY,TRIM1#	01/2005 - 08/2010	2
71325A - HINGE, REAR SEAT CUSHION LEG
71325-26040	KDH212,LH212..15S,16S;TRH213..STD..(GCC,GEN,SA) RH SEAT	08/2005 - 12/2999	1
71325-26020	TRH203..4FC;KDH212,LH212..15S,16S;TRH213..STD..(GCC,GEN,SA) LH SEAT	08/2005 - 12/2999	1
71337A - PLATE, REAR SEAT LEG
71337-0L030	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	1
71337-0L030	KDH212,TRH213..STD	08/2005 - 12/2005	1
71337-26120	KDH212,LH212,TRH213..16S..(GCC,GEN)	12/2005 - 12/2999	1
71628E - SPACER, REAR SEAT CUSHION
71628-26040B0	KDH212,222,223,LH212,222,TRH213,223..14S,15S,16S GRAY,TRIM1#	01/2005 - 08/2010	2
71811N - COVER, RECLINING ADJUSTER, RH
71811-26310B0	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	1
71811-26300B0	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 09/2007	1
71811-26310B0	KDH212,TRH213..LHD..STD..GEN REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	1
71811-26310B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	1
71811-26310B0	KDH212,LH212,TRH213..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	1
71811-26310B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	1
71811-26310B0	TRH223..15S,16S;KDH202,LH202,TRH203..RHD..GEN;KDH212,222,LH212,222,TRH213..16S..(GCC,GEN) GRAY,TRIM1#	09/2007 - 08/2010	1
71811P - COVER, RECLINING ADJUSTER, RH
71812-26290B0	KDH202,LH202,TRH203..LHD..15S;KDH212,222,223,LH212,222,TRH213,223..14S,15S,16S GRAY,TRIM1#	01/2005 - 08/2010	1
71812G - COVER, RECLINING ADJUSTER, LH
71811-26320B0	KDH202,LH202,TRH203..RHD..15S;KDH212,222,223,LH212,222,TRH213,223..14S,15S,16S GRAY,TRIM1#	01/2005 - 08/2010	1
71812M - COVER, RECLINING ADJUSTER, LH
71812-26310B0	KDH212,TRH213..STD GRAY,TRIM1#	08/2005 - 12/2005	1
71812-26310B0	KDH212,TRH213..LHD..STD..GEN REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	1
71812-26300B0	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 09/2007	1
71812-26310B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	1
71812-26310B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	1
71812-26310B0	KDH212,LH212,TRH213..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	1
71812-26310B0	TRH223..15S,16S;KDH202,LH202,TRH203..LHD..15S;KDH212,222,LH212,222,TRH213..16S..(GCC,GEN) GRAY,TRIM1#	09/2007 - 08/2010	1
72065A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH
72065-26040B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	2
72065-26040B0	KDH212,TRH213..STD SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#	08/2005 - 12/2005	2
72065-26040B0	KDH222..STD..GCC;TRH223..LHD..STD;KDH222..ARL,GEN,SA,TH;KDH212,223,LH212,222,TRH213..14S,15S,16S;KDH202,LH202,TRH203,223..RHD..(14S,15S,16S) GRAY,TRIM1#	01/2005 - 08/2010	1
72066A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH
72065-26040B0	TRH223..RHD;KDH222..STD..GCC;KDH222..ARL,GEN,SA,TH;KDH212,223,LH212,222,TRH213..14S,15S,16S;KDH202,LH202,TRH203,223..LHD..(15S,16S)..STD GRAY,TRIM1#	01/2005 - 08/2010	1
72525F - HANDLE, RECLINING ADJUSTER RELEASE, NO.4 RH
72525-28090B1	KDH202,LH202,TRH203..RHD..15S;KDH212,222,223,LH212,222,TRH213,223..14S,15S,16S GRAY,TRIM1#	01/2005 - 08/2010	1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-28090B1	KDH202,LH202,TRH203..LHD..15S;KDH212,222,223,LH212,222,TRH213,223..14S,15S,16S GRAY,TRIM1#	01/2005 - 08/2010	1
72613B - STRIKER, REAR SEAT LOCK
72613-26110	TRH213,223..(14S,15S,16S)..(ARL,GCC,GEN,SA,TH);KDH212,222,223,LH212,222..(14S,15S,16S)..(ARL,GCC,GEN,SA,VN)	01/2005 - 12/2999	4
72613B - STRIKER, REAR SEAT LOCK
72613-26110	TRH213,223..(14S,15S,16S)..(ARL,GCC,GEN,SA,TH);KDH212,222,223,LH212,222..(14S,15S,16S)..(ARL,GCC,GEN,SA,VN)	01/2005 - 12/2999	4
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-95701D0	KDH212,222,223,LH212,222,TRH213,223..(14S,15S,16S)..(ARL,GCC,GEN,SA,VN) ORANGE,TRIM1#	01/2005 - 02/2014	2
72681A - HOOK, REAR SEAT
72681-26050B0	KDH212..4FC;KDH223,TRH213,223..11S,14S,15S,16S;KDH212,222,LH212,222..(14S,15S,16S)..(ARL,GCC,GEN,SA,VN) LT.GRAY,TRIM1#	01/2005 - 02/2014	2
72687 - BRACKET, REAR SEAT HOOK
72687-26030	KDH212,TRH213..STD	08/2005 - 10/2005	2
72749 - SPACER, REAR SEAT RECLINING
72749-48030	TRH213..STD..(GCC,GEN,SA);KDH212,222,223,LH212,222,TRH223..(14S,15S,16S)..(ARL,GCC,GEN,SA,VN)	01/2005 - 12/2999	2
72927B - COVER, REAR SEAT CUSHION UNDER
72927-26010B0	KDH212,TRH213..STD GRAY,TRIM1#	01/2005 - 12/2005	1
72927-26010B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	1
72927-26010B0	KDH212,TRH213..LHD..STD..GEN REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	1
72927-26040B0	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 09/2007	1
72927-26010B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	1
72927-26010B0	TRH223..15S,16S;KDH202,LH202,TRH203..RHD..GEN;KDH212,222,LH212,222,TRH213..16S..(GCC,GEN) GRAY,TRIM1#	09/2007 - 08/2010	1
72927-26010B0	KDH212,LH212,TRH213..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	1
72928 - COVER, REAR SEAT CUSHION UNDER, LH
72928-26010B0	KDH212,TRH213..STD GRAY,TRIM1#	01/2005 - 12/2005	1
72928-26010B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	1
72928-26010B0	KDH212,LH212,TRH213..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	1
72928-26010B0	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	1
72928-26010B0	KDH212,TRH213..LHD..STD..GEN REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS),GRAY,TRIM1#	12/2005 - 09/2007	1
72928-26020B0	KDH212,TRH213..LHD..STD..GEN GRAY,TRIM1#	12/2005 - 09/2007	1
72928-26010B0	TRH223..15S,16S;KDH202,LH202,TRH203..LHD..15S;KDH212,222,LH212,222,TRH213..16S..(GCC,GEN) GRAY,TRIM1#	09/2007 - 08/2010	1
72928D - CLIP (FOR REAR SEAT CUSHION UNDER COVER)
90467-05147B6	KDH212,222,LH212,222,TRH213,223..14S,16S GRAY,TRIM1#	01/2005 - 02/2006	4
71731-26020B0	KDH223,TRH223..14S,15S,16S;KDH212,222,LH212,222,TRH213..(14S,15S,16S)..(GCC,GEN,SA,TH,VN) GRAY,TRIM1#	02/2006 - 08/2010	4
79319 - BRACKET, NO.3 SEAT LEG, RR RH
79319-26090	KDH212,LH212..15S,16S;TRH213..STD..(GCC,GEN,SA);KDH202,LH202,TRH203..RHD..15S	01/2005 - 12/2999	1
79329 - BRACKET, NO.3 SEAT LEG, RR LH
79329-26040	KDH212,LH212..15S,16S;TRH213..STD..(GCC,GEN,SA);KDH202,LH202,TRH203..LHD..15S	01/2005 - 12/2999	1
79382 - COVER, NO.3 SEAT FRONT BRACKET, LH
79382-60080B1	KDH212,222,223,LH212,222,TRH213,223..14S,15S,16S GRAY,TRIM1#,RH SEAT	01/2005 - 08/2010	1
79382-60090B1	KDH212,222,223,LH212,222,TRH213,223..14S,15S,16S GRAY,TRIM1#,LH SEAT	01/2005 - 08/2010	1
79460A - SPRING ASSY, NO.4 SEAT CUSHION, RH
71055-26020	KDH212,TRH213..STD	01/2005 - 12/2005	1
71055-26030	KDH212,TRH213..LHD..STD..GEN	12/2005 - 09/2007	1
71055-26020	KDH212,LH212,TRH213..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	1
71055-26020	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	1
71055-26020	KDH212,TRH213..LHD..STD..GEN REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	1
71055-26020	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	1
71055-26020	KDH202,LH202,TRH203..RHD..GEN;KDH212,222,LH212,222,TRH213,223..16S..5F..(GCC,GEN)	09/2007 - 12/2999	1
79470A - SPRING ASSY, NO.4 SEAT CUSHION, LH
71056-26020	KDH212,TRH213..STD	01/2005 - 12/2005	1
71056-26030	KDH212,TRH213..LHD..STD..GEN	12/2005 - 09/2007	1
71056-26020	KDH212,TRH213..LHD..STD..GEN REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	1
71056-26020	KDH212,LH212,TRH213..16S..GEN SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	1
71056-26020	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	1
71056-26020	KDH212,TRH213..LHD..STD..GEN VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 13(FOR 13 PERSONS)	12/2005 - 09/2007	1
71056-26020	KDH202,LH202,TRH203..LHD..15S..5F;KDH212,222,LH212,222,TRH213,223..16S..5F..(GCC,GEN)	09/2007 - 12/2999	1
79480 - SPRING ASSY, NO.4 SEAT BACK
79380-26090	KDH222..LHD..STD;TRH213..STD..(GCC,GEN,SA);KDH202,LH202,TRH203..RHD..15S;KDH212,LH212,222,TRH223..(15S,16S)..STD..(GCC,GEN,SA,VN)	01/2005 - 12/2999	1
79490A - SPRING ASSY, NO.4 SEAT BACK, LH
79390-26050	TRH213..STD..(GCC,GEN,SA);KDH202,222,LH202,TRH203..LHD..(15S,16S)..STD;KDH212,LH212,222,TRH223..(15S,16S)..STD..(GCC,GEN,SA,VN)	01/2005 - 12/2999	1
Common parts
78899-26010
78899-28040
90105-11058
90109-08137
90119-10366
90119-10409
90119-10948
90119-10949
90176-10008
90201-13028
90206-12050
90386-12035
93210-56016
93240-56018
93240-56025
93385-26020
93560-54012
C9916-40001
Linked diagrams
7152

KDH212L-JEMDY (2005)

ILLUST NO. 1 OF 2(0501- )4D..09S,10S,11S,16S..GL..GCC,GEN ; (0505-0709)09S ; (1110- )KDH222,LH

ILLUST NO. 2 OF 2(0501- )4D..09S,10S,11S,16S..GL..GCC,GEN ; (0505-0709)09S ; (1110- )KDH222,LH

ILLUST NO. 1 OF 2(0508-1205)KDH212,TRH213..LHD..STD..GEN,VN

ILLUST NO. 2 OF 2(0508-1205)KDH212,TRH213..LHD..STD..GEN,VN

(0512- )KDH212,LH212,TRH213..LHD..16S..GCC,GEN

ILLUST NO. 2 OF 2(0508- )KDH212,LH212,TRH213..15S,16S

Part Price Details
