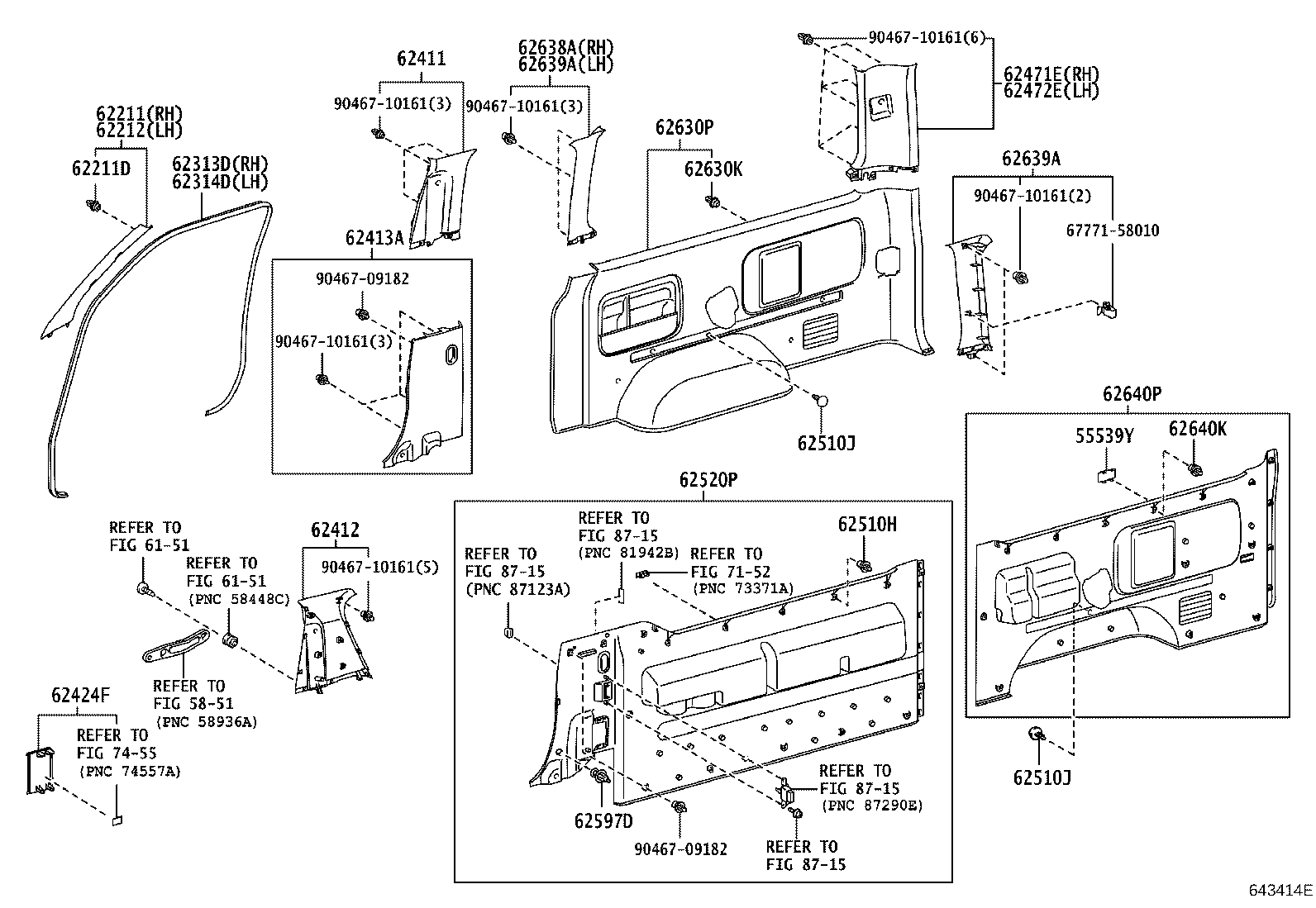

KDH212L-JDMNY (2013)
Toyota Hiace
(1312- )KDH21#,TRH213..4D..GL..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539Y - COVER, SPARE SWITCH HOLE | ||||
| 55539-28120B2 |
TRH223..4FC..GL;TRH223..5F..GL..(GCC,RUS);KDH21#,222,223,TRH213..COM..(10S,11S,12S,13S,16S)..GL..(GEN,RUS,TH) DK.GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-26052B0 |
TRH223..4FC..GL;TRH213..LHD..GEN;TRH213,221..GCC,TH;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH201,TRH221..5D..SP..(02S,06S);GDH201,KDH202,203,220,TRH203..RHD..(06S,10S,12S);KDH21#,220,221,223,LH212,222,TRH200..(4FC,5F)..(ARL,GCC,GEN,RUS) LT.GRAY,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-10161 |
TRH213;KDH201..SP..06S;KDH212,22#,LH212,222,TRH22#..ARL,GCC,GEN,RUS,SA;KDH202,203,213,TRH200,203..RHD..(06S,10S,11S,12S) |
2 | ||
| 67771-28150 |
TRH223..4FC..GL;TRH213..LHD..GEN;TRH213,221..GCC,TH;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH222..(03S,16S)..(GEN,KEN,SA);KDH201,TRH221..5D..SP..(02S,06S);KDH21#,220,221,223,LH212,222..ARL,GCC,GEN,RUS;GDH201,KDH202,203,220,TRH203..RHD..(06S,10S,12S) |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-26032B0 |
TRH213,223..LHD..STD..GEN;KDH201,TRH221..5D..SP..(02S,06S)..(ARL,GEN);GDH201,KDH202,203,TRH203..RHD..(06S,10S,12S);TRH213,223..(10S,11S,12S,13S,14S)..(ARL,GEN,RUS,TH);KDH21#,22#,LH212,222,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS) LT.GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-26010C0 |
TRH201;TRH203..5F;TRH213..LHD;KDH223..4FC..TH;TRH223..4FC..GL;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH213,222,LH200..4D..(03S,13S,16S)..(GEN,KEN,SA);KDH220,223,TRH200..(06S,12S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH) BLACK,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62314-26010C0 |
TRH201;TRH203..5F;TRH213..LHD;KDH223..4FC..TH;TRH223..4FC..GL;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);KDH213,222,LH200..4D..(03S,13S,16S)..(GEN,KEN,SA);KDH220,223,TRH200..(06S,12S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..(02S,03S,05S,06S,10S,12S,13S,15S,16S)..(ARL,GCC,GEN,MA,TH) BLACK,TRIM1# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-26132B0 |
KDH21#,TRH213..4D..GL..GEN LT.GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-26092B0 |
KDH21#,222,223,TRH213,223..LHD..4D..GL LT.GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-26241B1 |
TRH223..4FC..GL;TRH223..5F..GL..(GCC,RUS);KDH21#,222,TRH213..LHD..4D..GL..GEN DK.GRAY,TRIM1# |
1 | ||
| 62424F - COVER, CENTER PILLAR GARNISH, LOWER LH | ||||
| 62424-26031B0 |
KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1# |
1 | ||
| 62471E - GARNISH, ROOF SIDE, INNER UPPER RH | ||||
| 62471-26320B0 |
TRH223..5F..GL..GCC;TRH223..(10S,16S)..4FC..GL;KDH21#,222..(13S,16S)..GL..GEN LT.GRAY,TRIM1# |
1 | ||
| 62472E - GARNISH, ROOF SIDE, INNER UPPER LH | ||||
| 62472-26230B0 |
TRH223..5F..GL..GCC;TRH223..(10S,16S)..4FC..GL;KDH21#,222..(13S,16S)..GL..GEN LT.GRAY,TRIM1# |
1 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-10161 |
TRH223..4FC..GL;TRH223..5F..GL..(GCC,RUS);KDH21#,222,223,TRH213..LHD..(10S,12S,13S,16S)..GL..(GEN,RUS) |
17 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-26230B2 |
TRH223..4FC..GL;TRH223..5F..GL..(GCC,RUS);KDH21#,222,223,TRH213..(10S,12S,13S,16S)..GL..(GEN,RUS) DK.GRAY,TRIM1# |
2 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-26230B2 |
TRH223..4FC..GL;TRH223..5F..GL..(GCC,RUS);KDH21#,222,223,TRH213..(10S,12S,13S,16S)..GL..(GEN,RUS) DK.GRAY,TRIM1# |
2 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-26290B2 |
TRH223..GL..GCC;KDH21#,222..LHD..(13S,16S)..GL..GEN GRAY,TRIM1# |
1 | ||
| 62597D - CLIP | ||||
| 75867-33030 |
KDH212..13S..GL;TRH213,223..10S..GEN |
1 | ||
| 62630K - CLIP(FOR QUARTER TRIM REAR PANEL) | ||||
| 90467-10161 |
KDH21#,TRH213..COM..GL..(GEN,TH) |
20 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-26C60B1 |
KDH21#..13S..GL GRAY,TRIM1# |
1 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-26122B0 |
KDH21#,TRH213..4D..GL..GEN LT.GRAY,TRIM1# |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-26051B0 |
KDH21#,TRH213..4D..GL..GEN LT.GRAY,TRIM1# |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-26051B0 |
KDH21#,TRH213..4D..GL..GEN LT.GRAY,TRIM1# |
1 | ||
| 62640K - CLIP(FOR QUARTER TRIM REAR PANEL) | ||||
| 90467-10161 |
KDH21#,TRH213..4D..GL..GEN |
17 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-26E20B1 |
KDH21#..13S..GL GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-58010 | ||||
| 90467-09182 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 6151 | ||||
| 7152 | ||||
| 7455 | ||||
| 8715 | ||||
