Toyota Hiace KDH203 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
GR
HIACE
KDH203L-RDMDY (2013)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

KDH203L-RDMDY (2013)

Toyota Hiace

Production Dec 2013 - Jan 2019

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1312- )KDH201..RHD..02S,06S ; (1312- )KDH200,202,212,22#..RHD..ARL,GEN,SA ;

Click highlighted areas on diagram

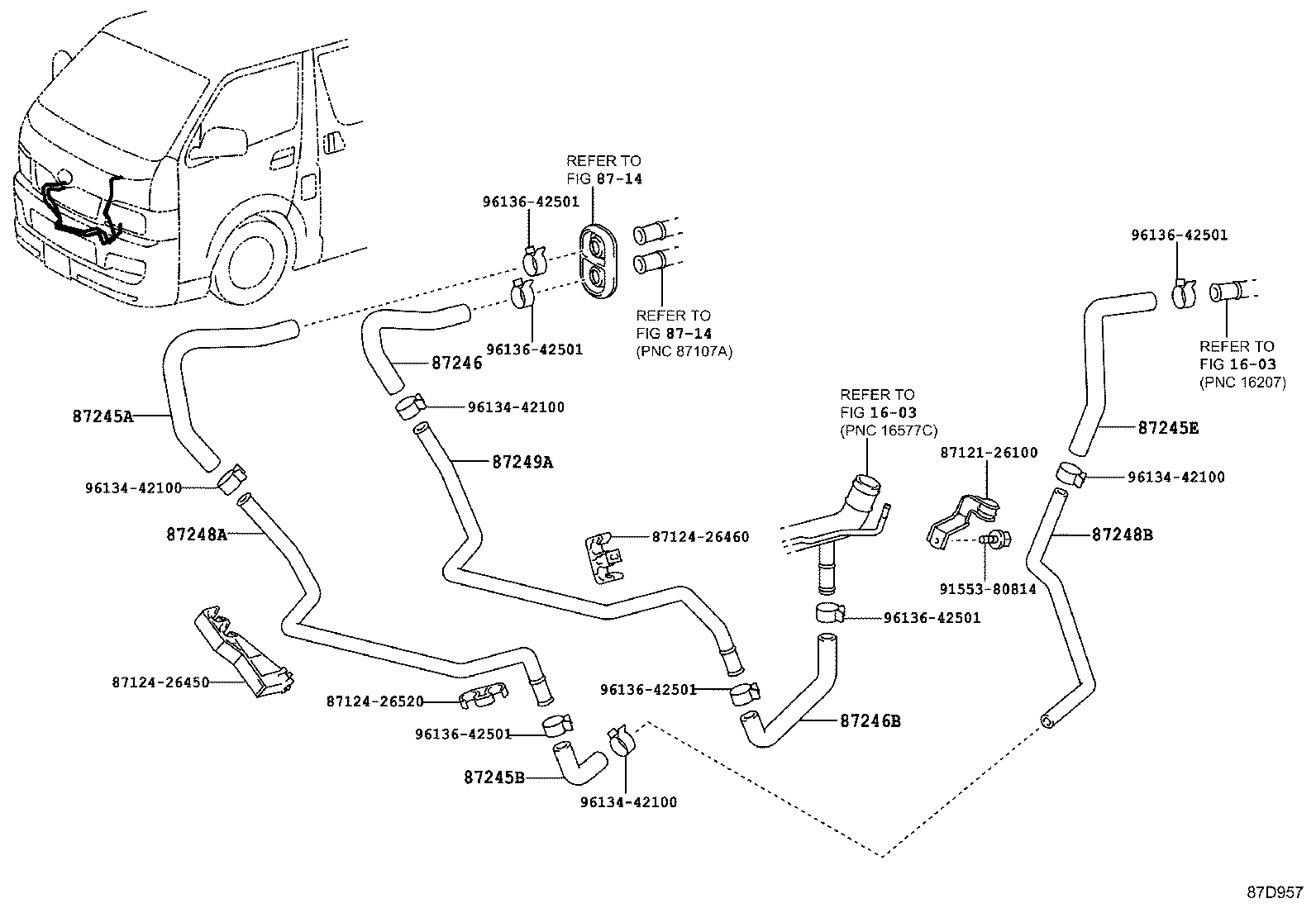

FRONT

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26D70	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D70	KDH203..12S..GEN	11/2017 - 01/2019	1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C00	KDH203..12S..GEN	11/2017 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN	11/2017 - 12/2999	1
87245-26C10	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26D80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D80	KDH203..12S..GEN	11/2017 - 01/2019	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C80	KDH203..12S..GEN	11/2017 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-26850	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26850	KDH203..12S..GEN	11/2017 - 01/2019	1
87248B - PIPE, HEATER WATER INLET, B
87248-26553	KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 12/2014	1
87248-26B20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2017 - 11/2017	1
87248-26570	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26554	KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2017	1
87248-26B20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2017	1
87248-26D50	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2017 - 01/2019	1
87248-26570	KDH203..12S..GEN	11/2017 - 12/2999	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26860	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26860	KDH203..12S..GEN	11/2017 - 01/2019	1
Common parts
87121-26100
87124-26450
87124-26460
87124-26520
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

(1312-2005)KDH202,203,LH202..12S..GEN

Click highlighted areas on diagram

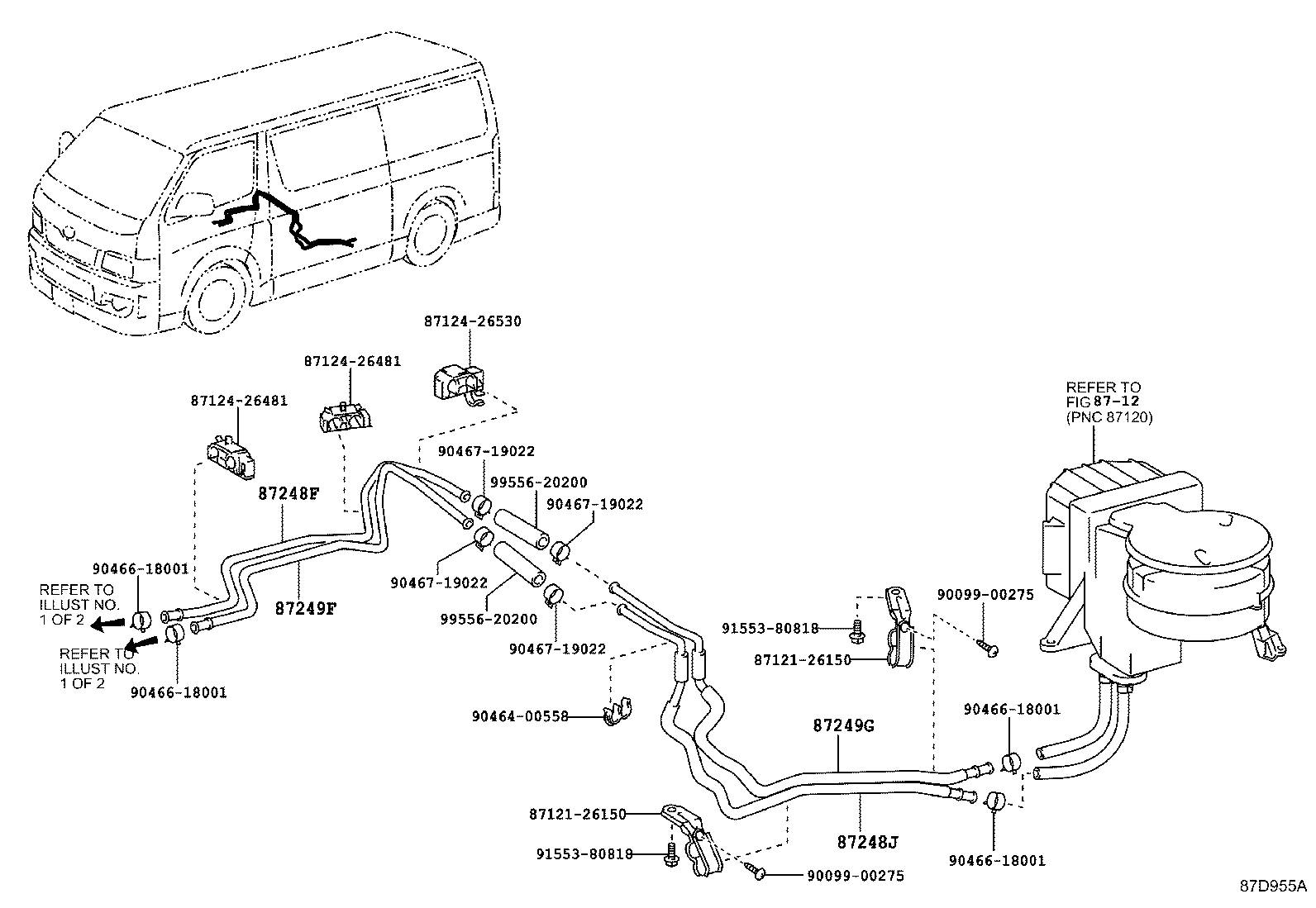

REAR

Part #	Description	Period	Qty
87248F - PIPE, HEATER WATER INLET, F
87248-26830	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26830	KDH203..12S..GEN;KDH202,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 04/2019	1
87248-26830	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248J - PIPE, HEATER WATER INLET, J
87248-26740	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2019	1
87248-26740	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26720	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248-26720	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26820	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26820	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248-26820	KDH203..12S..GEN;KDH202,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 04/2019	1
87249G - PIPE, HEATER WATER OUTLET, G
87248-26750	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26750	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2019	1
87248-26730	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26730	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
Common parts
87121-26150
87124-26481
87124-26530
90099-00275
90464-00558
90466-18001
90467-19022
91553-80818
99556-20200
Linked diagrams
8712

(1312-2005)KDH203..12S..GEN ; (1312-2005)KDH202,LH202,TRH203..LHD..GEN

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87248F - PIPE, HEATER WATER INLET, F
87248-26830	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26830	KDH203..12S..GEN;KDH202,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 04/2019	1
87248-26830	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248J - PIPE, HEATER WATER INLET, J
87248-26740	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2019	1
87248-26740	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26720	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248-26720	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26820	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26820	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248-26820	KDH203..12S..GEN;KDH202,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 04/2019	1
87249G - PIPE, HEATER WATER OUTLET, G
87248-26750	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26750	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2019	1
87248-26730	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26730	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
Common parts
87121-26150
87124-26481
87124-26530
90099-00275
90464-00558
90466-18001
90467-19022
91553-80818
99556-20200
Linked diagrams
8712

(1312- )KDH222,223,LH222..LHD..12S,16S..GEN,RUS ; (1501- )KDH213..5F ; (1801-

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87248F - PIPE, HEATER WATER INLET, F
87248-26830	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26830	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26830	KDH203..12S..GEN;KDH202,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 04/2019	1
87248-26830	KDH203..12S..GEN;KDH202,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 04/2019	1
87248-26830	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248-26830	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248J - PIPE, HEATER WATER INLET, J
87248-26740	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2019	1
87248-26740	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2019	1
87248-26740	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26740	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26720	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248-26720	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248-26720	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26720	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26820	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26820	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26820	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248-26820	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248-26820	KDH203..12S..GEN;KDH202,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 04/2019	1
87248-26820	KDH203..12S..GEN;KDH202,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 04/2019	1
87249G - PIPE, HEATER WATER OUTLET, G
87248-26750	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26750	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26750	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2019	1
87248-26750	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2019	1
87248-26730	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26730	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26730	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248-26730	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
Common parts
87121-26150
87124-26481
87124-26530
90099-00275
90464-00558
90466-18001
90467-19022
91553-80818
99556-20200
Linked diagrams
8712

(1312- )TRH223..LHD..GL ; (1312- )TRH223..LHD..STD..GEN ; (1312- )KDH222,T

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87248F - PIPE, HEATER WATER INLET, F
87248-26830	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26830	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26830	KDH203..12S..GEN;KDH202,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 04/2019	1
87248-26830	KDH203..12S..GEN;KDH202,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 04/2019	1
87248-26830	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248-26830	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248J - PIPE, HEATER WATER INLET, J
87248-26740	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2019	1
87248-26740	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2019	1
87248-26740	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26740	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26720	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248-26720	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248-26720	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26720	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26820	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26820	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26820	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248-26820	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248-26820	KDH203..12S..GEN;KDH202,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 04/2019	1
87248-26820	KDH203..12S..GEN;KDH202,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 04/2019	1
87249G - PIPE, HEATER WATER OUTLET, G
87248-26750	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26750	KDH203..12S..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26750	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2019	1
87248-26750	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2019	1
87248-26730	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26730	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2013 - 01/2015	1
87248-26730	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
87248-26730	KDH203..12S..GEN WITHOUT(SPECIAL UTILITY PACKAGE)&REAR HEATER-WITH(FLOOR SET)	12/2015 - 01/2019	1
Common parts
87121-26150
87124-26481
87124-26530
90099-00275
90464-00558
90466-18001
90467-19022
91553-80818
99556-20200
Linked diagrams
8712

(1312- )KDH203..12S..GEN ; (1312- )KDH200,201,202..LHD

Click highlighted areas on diagram

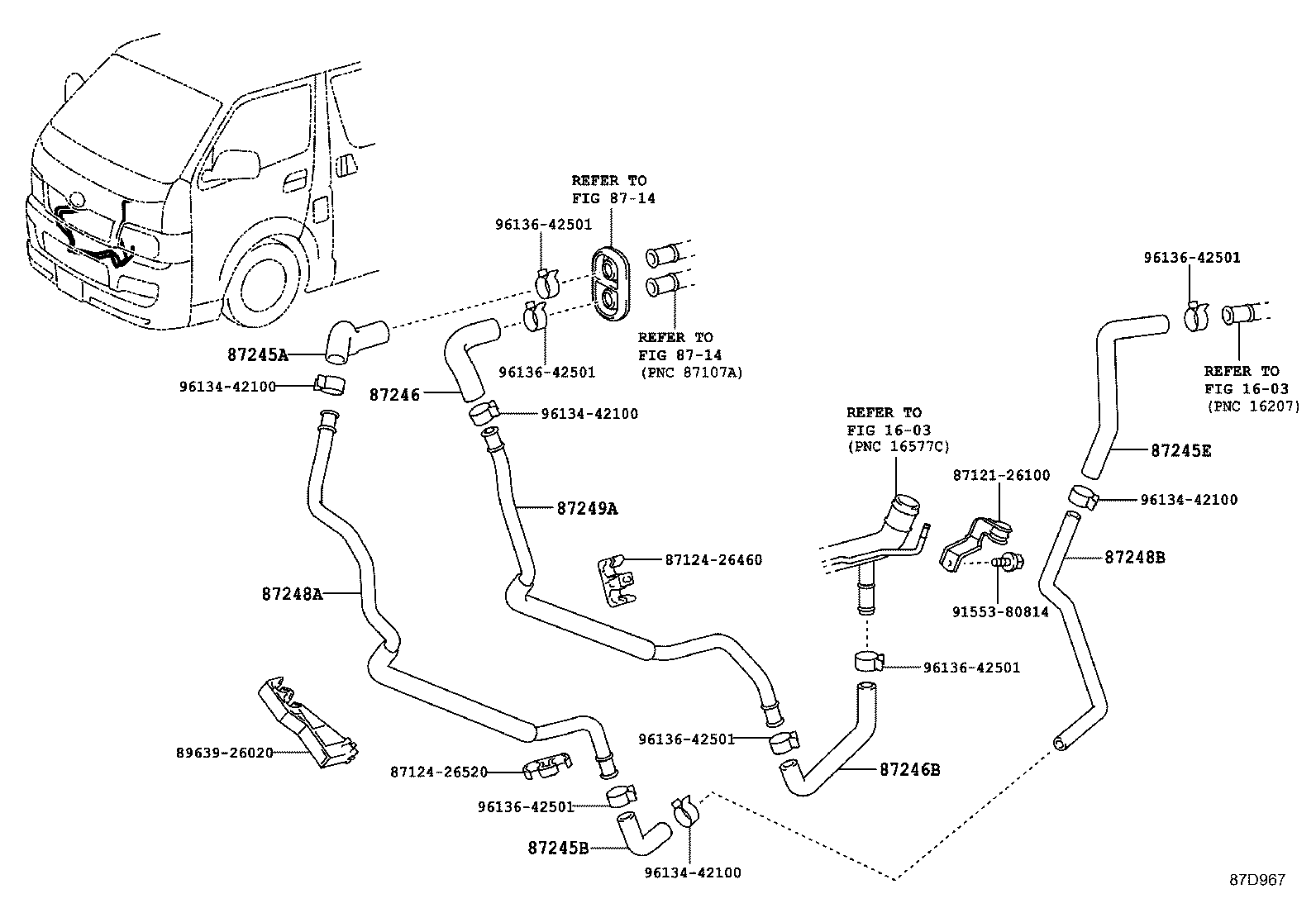

FRONT

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26D70	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D70	KDH203..12S..GEN	11/2017 - 01/2019	1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C00	KDH203..12S..GEN	11/2017 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN	11/2017 - 12/2999	1
87245-26C10	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26D80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D80	KDH203..12S..GEN	11/2017 - 01/2019	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C80	KDH203..12S..GEN	11/2017 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-26850	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26850	KDH203..12S..GEN	11/2017 - 01/2019	1
87248B - PIPE, HEATER WATER INLET, B
87248-26553	KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 12/2014	1
87248-26B20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2017 - 11/2017	1
87248-26570	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26554	KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2017	1
87248-26B20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2017	1
87248-26D50	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2017 - 01/2019	1
87248-26570	KDH203..12S..GEN	11/2017 - 12/2999	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26860	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26860	KDH203..12S..GEN	11/2017 - 01/2019	1
Common parts
87121-26100
87124-26450
87124-26460
87124-26520
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

(1312-1612)TRH201,203..LHD

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26D70	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D70	KDH203..12S..GEN	11/2017 - 01/2019	1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C00	KDH203..12S..GEN	11/2017 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN	11/2017 - 12/2999	1
87245-26C10	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26D80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D80	KDH203..12S..GEN	11/2017 - 01/2019	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C80	KDH203..12S..GEN	11/2017 - 12/2999	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26C30	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C30	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-26850	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26850	KDH203..12S..GEN	11/2017 - 01/2019	1
87248B - PIPE, HEATER WATER INLET, B
87248-26553	KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 12/2014	1
87248-26B20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2017 - 11/2017	1
87248-26570	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26554	KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2017	1
87248-26B20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2017	1
87248-26D50	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2017 - 01/2019	1
87248-26570	KDH203..12S..GEN	11/2017 - 12/2999	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26860	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26860	KDH203..12S..GEN	11/2017 - 01/2019	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26562	KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 12/2014	1
87248-26B30	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2017 - 11/2017	1
87248-26B30	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2017	1
87248-26563	KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2017	1
87248-26D60	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2017 - 01/2019	1
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

(1312- )KDH200,203..LHD..03S,12S..GEN

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26D70	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D70	KDH203..12S..GEN	11/2017 - 01/2019	1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C00	KDH203..12S..GEN	11/2017 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN	11/2017 - 12/2999	1
87245-26C10	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26D80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D80	KDH203..12S..GEN	11/2017 - 01/2019	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C80	KDH203..12S..GEN	11/2017 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-26850	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26850	KDH203..12S..GEN	11/2017 - 01/2019	1
87248B - PIPE, HEATER WATER INLET, B
87248-26553	KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 12/2014	1
87248-26B20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2017 - 11/2017	1
87248-26570	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26554	KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2017	1
87248-26B20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2017	1
87248-26D50	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2017 - 01/2019	1
87248-26570	KDH203..12S..GEN	11/2017 - 12/2999	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26860	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26860	KDH203..12S..GEN	11/2017 - 01/2019	1
Common parts
87121-26100
87124-26460
87124-26520
89639-26020
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

(1312-1712)KDH202..LHD..GEN ; (1312-1712)KDH203..12S..GEN

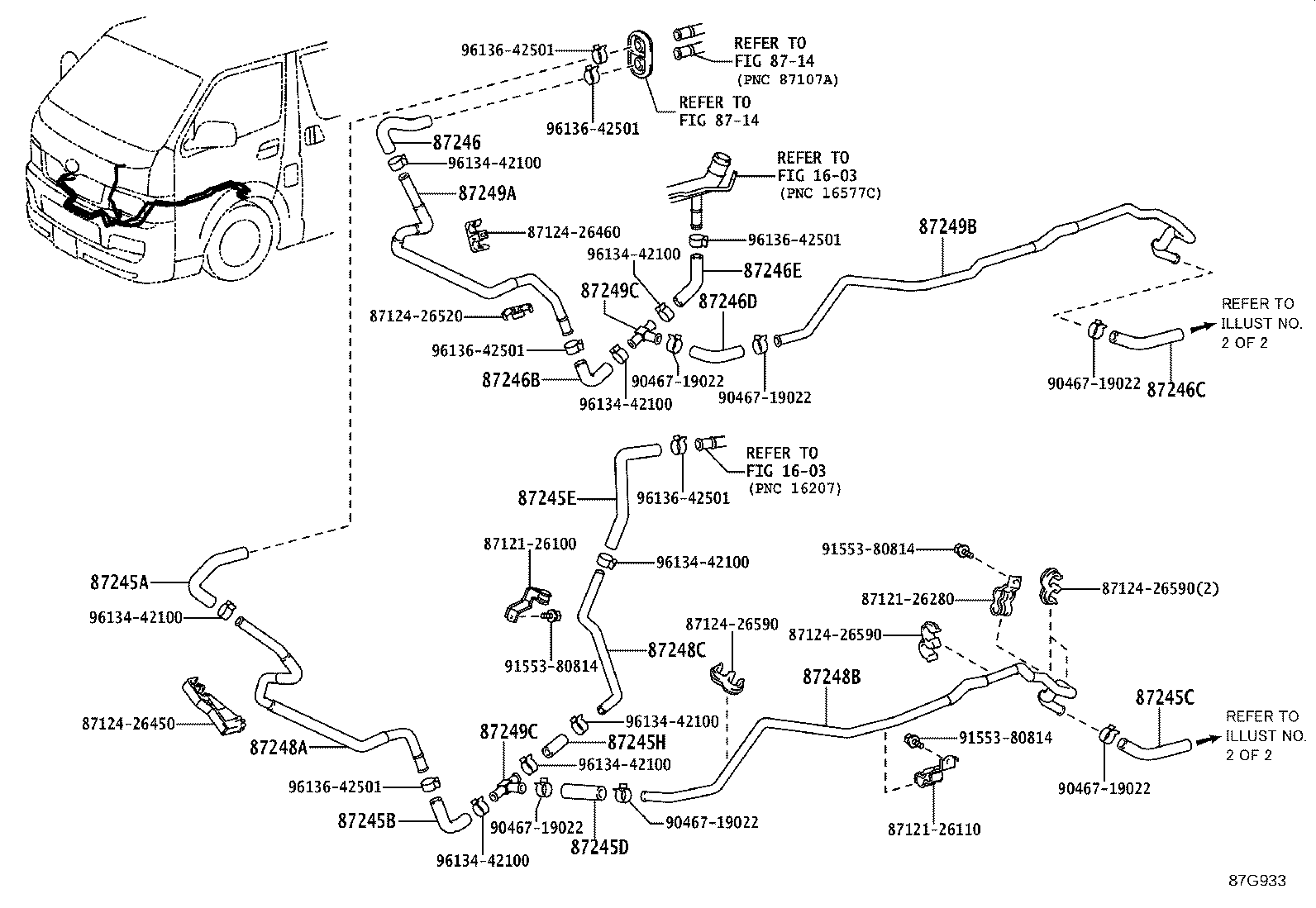

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26D70	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D70	KDH203..12S..GEN	11/2017 - 01/2019	1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C00	KDH203..12S..GEN	11/2017 - 12/2999	1
87245C - HOSE, HEATER WATER ,INLET C
99556-20300	KDH203..12S..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
99556-20300	KDH203..12S..GEN *H,L=210,REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245D - HOSE, HEATER WATER, INLET D
99556-20200	KDH203..12S..GEN *H,L=60,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
99556-20200	KDH203..12S..GEN *H,L=60,REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN	11/2017 - 12/2999	1
87245-26C10	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245H - HOSE, HEATER WATER, INLET H
99556-30100	KDH203..12S..GEN *H,L=60,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
99556-30100	KDH203..12S..GEN *H,L=60,REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26D80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D80	KDH203..12S..GEN	11/2017 - 01/2019	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C80	KDH203..12S..GEN	11/2017 - 12/2999	1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20300	KDH203..12S..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
99556-20300	KDH203..12S..GEN *H,L=210,REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-26C50	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C50	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26C30	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C30	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-26850	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26850	KDH203..12S..GEN	11/2017 - 01/2019	1
87248B - PIPE, HEATER WATER INLET, B
87248-26553	KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 12/2014	1
87248-26B20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2017 - 11/2017	1
87248-26570	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26554	KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2017	1
87248-26B20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2017	1
87248-26D50	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2017 - 01/2019	1
87248-26570	KDH203..12S..GEN	11/2017 - 12/2999	1
87248C - PIPE, HEATER WATER INLET, C
87248-26540	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87248-26540	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26860	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26860	KDH203..12S..GEN	11/2017 - 01/2019	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26562	KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 12/2014	1
87248-26B30	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2017 - 11/2017	1
87248-26B30	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2017	1
87248-26563	KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2017	1
87248-26D60	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2017 - 01/2019	1
87249C - PIPE, HEATER WATER OUTLET, C
87248-52010	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	2
87248-52010	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	2
87249C - PIPE, HEATER WATER OUTLET, C
87248-52010	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	2
87248-52010	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	2
Common parts
87121-26100
87121-26110
87124-26450
87124-26460
87124-26481
87124-26520
90464-00558
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

(1312-1712)KDH222..RHD..GL ; (1312-1712)KDH222..RHD..STD..GEN ; (1312-1712)KDH202,2

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26D70	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D70	KDH203..12S..GEN	11/2017 - 01/2019	1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C00	KDH203..12S..GEN	11/2017 - 12/2999	1
87245C - HOSE, HEATER WATER ,INLET C
99556-20300	KDH203..12S..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
99556-20300	KDH203..12S..GEN *H,L=210,REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245D - HOSE, HEATER WATER, INLET D
99556-20200	KDH203..12S..GEN *H,L=60,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
99556-20200	KDH203..12S..GEN *H,L=60,REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN	11/2017 - 12/2999	1
87245-26C10	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245H - HOSE, HEATER WATER, INLET H
99556-30100	KDH203..12S..GEN *H,L=60,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
99556-30100	KDH203..12S..GEN *H,L=60,REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26D80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D80	KDH203..12S..GEN	11/2017 - 01/2019	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C80	KDH203..12S..GEN	11/2017 - 12/2999	1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20300	KDH203..12S..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
99556-20300	KDH203..12S..GEN *H,L=210,REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-26C50	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C50	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26C30	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C30	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-26850	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26850	KDH203..12S..GEN	11/2017 - 01/2019	1
87248B - PIPE, HEATER WATER INLET, B
87248-26553	KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 12/2014	1
87248-26B20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2017 - 11/2017	1
87248-26570	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26554	KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2017	1
87248-26B20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2017	1
87248-26D50	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2017 - 01/2019	1
87248-26570	KDH203..12S..GEN	11/2017 - 12/2999	1
87248C - PIPE, HEATER WATER INLET, C
87248-26540	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87248-26540	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26860	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26860	KDH203..12S..GEN	11/2017 - 01/2019	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26562	KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 12/2014	1
87248-26B30	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2017 - 11/2017	1
87248-26B30	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2017	1
87248-26563	KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2017	1
87248-26D60	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2017 - 01/2019	1
87249C - PIPE, HEATER WATER OUTLET, C
87248-52010	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	2
87248-52010	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	2
87249C - PIPE, HEATER WATER OUTLET, C
87248-52010	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	2
87248-52010	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	2
Common parts
87121-26100
87121-26110
87124-26450
87124-26460
87124-26481
87124-26520
87124-26590
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

(1312-1712)KDH222..GL..GCC ; (1312-1712)KDH222,223..LHD..12S,16S..GEN,RUS ; (1501-1

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26D70	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D70	KDH203..12S..GEN	11/2017 - 01/2019	1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C00	KDH203..12S..GEN	11/2017 - 12/2999	1
87245C - HOSE, HEATER WATER ,INLET C
99556-20300	KDH203..12S..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
99556-20300	KDH203..12S..GEN *H,L=210,REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245D - HOSE, HEATER WATER, INLET D
99556-20200	KDH203..12S..GEN *H,L=60,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
99556-20200	KDH203..12S..GEN *H,L=60,REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN	11/2017 - 12/2999	1
87245-26C10	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245H - HOSE, HEATER WATER, INLET H
99556-30100	KDH203..12S..GEN *H,L=60,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
99556-30100	KDH203..12S..GEN *H,L=60,REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26D80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D80	KDH203..12S..GEN	11/2017 - 01/2019	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C80	KDH203..12S..GEN	11/2017 - 12/2999	1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20300	KDH203..12S..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
99556-20300	KDH203..12S..GEN *H,L=210,REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-26C50	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C50	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26C30	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C30	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-26850	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26850	KDH203..12S..GEN	11/2017 - 01/2019	1
87248B - PIPE, HEATER WATER INLET, B
87248-26553	KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 12/2014	1
87248-26B20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2017 - 11/2017	1
87248-26570	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26554	KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2017	1
87248-26B20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2017	1
87248-26D50	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2017 - 01/2019	1
87248-26570	KDH203..12S..GEN	11/2017 - 12/2999	1
87248C - PIPE, HEATER WATER INLET, C
87248-26540	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87248-26540	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26860	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26860	KDH203..12S..GEN	11/2017 - 01/2019	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26562	KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 12/2014	1
87248-26B30	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2017 - 11/2017	1
87248-26B30	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2017	1
87248-26563	KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2017	1
87248-26D60	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2017 - 01/2019	1
87249C - PIPE, HEATER WATER OUTLET, C
87248-52010	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	2
87248-52010	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	2
87249C - PIPE, HEATER WATER OUTLET, C
87248-52010	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	2
87248-52010	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	2
Common parts
87121-26100
87121-26110
87124-26450
87124-26460
87124-26481
87124-26520
87124-26590
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

(1612- )TRH201,203..LHD

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26D70	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D70	KDH203..12S..GEN	11/2017 - 01/2019	1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C00	KDH203..12S..GEN	11/2017 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN	11/2017 - 12/2999	1
87245-26C10	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26D80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D80	KDH203..12S..GEN	11/2017 - 01/2019	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C80	KDH203..12S..GEN	11/2017 - 12/2999	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26C30	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C30	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-26850	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26850	KDH203..12S..GEN	11/2017 - 01/2019	1
87248B - PIPE, HEATER WATER INLET, B
87248-26553	KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 12/2014	1
87248-26B20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2017 - 11/2017	1
87248-26570	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26554	KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2017	1
87248-26B20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2017	1
87248-26D50	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2017 - 01/2019	1
87248-26570	KDH203..12S..GEN	11/2017 - 12/2999	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26860	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26860	KDH203..12S..GEN	11/2017 - 01/2019	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26562	KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 12/2014	1
87248-26B30	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2017 - 11/2017	1
87248-26B30	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2017	1
87248-26563	KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2017	1
87248-26D60	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2017 - 01/2019	1
Common parts
87121-26090
87121-26260
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

(1712- )KDH202..GEN ; (1712- )KDH203..12S..GEN

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26D70	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D70	KDH203..12S..GEN	11/2017 - 01/2019	1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C00	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C00	KDH203..12S..GEN	11/2017 - 12/2999	1
87245C - HOSE, HEATER WATER ,INLET C
99556-20300	KDH203..12S..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
99556-20300	KDH203..12S..GEN *H,L=210,REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245D - HOSE, HEATER WATER, INLET D
99556-20200	KDH203..12S..GEN *H,L=60,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
99556-20200	KDH203..12S..GEN *H,L=60,REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C10	KDH203..12S..GEN	11/2017 - 12/2999	1
87245-26C10	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245H - HOSE, HEATER WATER, INLET H
99556-30100	KDH203..12S..GEN *H,L=60,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
99556-30100	KDH203..12S..GEN *H,L=60,REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26D80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26D80	KDH203..12S..GEN	11/2017 - 01/2019	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C80	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87245-26C80	KDH203..12S..GEN	11/2017 - 12/2999	1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20300	KDH203..12S..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
99556-20300	KDH203..12S..GEN *H,L=210,REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-26C50	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C50	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26C30	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87245-26C30	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-26850	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26850	KDH203..12S..GEN	11/2017 - 01/2019	1
87248B - PIPE, HEATER WATER INLET, B
87248-26553	KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 12/2014	1
87248-26B20	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2017 - 11/2017	1
87248-26570	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26554	KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2017	1
87248-26B20	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2017	1
87248-26D50	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2017 - 01/2019	1
87248-26570	KDH203..12S..GEN	11/2017 - 12/2999	1
87248C - PIPE, HEATER WATER INLET, C
87248-26540	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	1
87248-26540	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26860	KDH203..12S..GEN FRONT HEATER-WITH	12/2013 - 11/2017	1
87248-26860	KDH203..12S..GEN	11/2017 - 01/2019	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26562	KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 12/2014	1
87248-26B30	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2017 - 11/2017	1
87248-26B30	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2017	1
87248-26563	KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2015 - 01/2017	1
87248-26D60	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	12/2017 - 01/2019	1
87249C - PIPE, HEATER WATER OUTLET, C
87248-52010	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	2
87248-52010	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	2
87249C - PIPE, HEATER WATER OUTLET, C
87248-52010	KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	12/2013 - 11/2017	2
87248-52010	KDH203..12S..GEN REAR HEATER-WITH(FLOOR SET)	11/2017 - 12/2999	2
Common parts
87121-26100
87121-26110
87121-26280
87124-26450
87124-26460
87124-26520
87124-26590
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

KDH203L-RDMDY (2013)

(1312- )KDH201..RHD..02S,06S ; (1312- )KDH200,202,212,22#..RHD..ARL,GEN,SA ;

(1312-2005)KDH202,203,LH202..12S..GEN

(1312-2005)KDH203..12S..GEN ; (1312-2005)KDH202,LH202,TRH203..LHD..GEN

(1312- )KDH222,223,LH222..LHD..12S,16S..GEN,RUS ; (1501- )KDH213..5F ; (1801-

(1312- )TRH223..LHD..GL ; (1312- )TRH223..LHD..STD..GEN ; (1312- )KDH222,T

(1312- )KDH203..12S..GEN ; (1312- )KDH200,201,202..LHD

(1312-1612)TRH201,203..LHD

(1312- )KDH200,203..LHD..03S,12S..GEN

(1312-1712)KDH202..LHD..GEN ; (1312-1712)KDH203..12S..GEN

(1312-1712)KDH222..RHD..GL ; (1312-1712)KDH222..RHD..STD..GEN ; (1312-1712)KDH202,2

(1312-1712)KDH222..GL..GCC ; (1312-1712)KDH222,223..LHD..12S,16S..GEN,RUS ; (1501-1

(1612- )TRH201,203..LHD

(1712- )KDH202..GEN ; (1712- )KDH203..12S..GEN

Part Price Details
