KDH203L-RDMDY (2010)
Toyota Hiace
(1008- )KDH203..12S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58510-26A70B2 |
KDH20#,LH20#,TRH20#..LHD DK.GRAY,TRIM1# |
1 | ||
| 58510-26A71B2 |
KDH20#,LH20#,TRH201,203..LHD DK.GRAY,TRIM1# |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
10 | ||
| 58519B - MAT, REAR WHEEL HOUSE, RH | ||||
| 58519-26410B2 |
KDH202,203,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 58520F - MAT ASSY, ENGINE COVER | ||||
| 58520-26320B2 |
KDH20#,LH20#,TRH201,203..LHD DK.GRAY,TRIM1# |
1 | ||
| 58520H - CLIP(FOR ENGINE COVER MAT) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
2 | ||
| 58529B - MAT, REAR WHEEL HOUSE, LH | ||||
| 58529-26320B2 |
KDH202,LH202..RHD..GEN;KDH202,203,LH202..12S..GEN REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 58530F - MAT ASSY, HEADER | ||||
| 58530-26880B2 |
KDH202,203,LH202,TRH203..LHD AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 58530-26870B2 |
LH202,TRH201,203..LHD..4D DK.GRAY,TRIM1# |
1 | ||
| 58530-26E80B2 |
KDH202,203..LHD DK.GRAY,TRIM1# |
1 | ||
| 58530H - CLIP(FOR HEADER MAT & HEADER CARPET) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
9 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 58570B - MAT ASSY, REAR FLOOR | ||||
| 58517-26830B2 |
KDH202,203,LH202..12S..GEN REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 58517-26820B2 |
KDH202,203,LH202..12S..GEN DK.GRAY,TRIM1# |
1 | ||
| 58517-26K60B0 |
KDH202,203,LH202..12S..GEN DK.GRAY,TRIM1# |
1 | ||
| 58517-26K70B0 |
KDH202,203,LH202..12S..GEN REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 58572C - CLIP, REAR FLOOR MAT SET | ||||
| 64726-26010B0 |
KDH203 MD.GRAY,TRIM1# |
2 | ||
| 58577D - PLATE, REAR FLOOR MAT SUPPORT SIDE, RH | ||||
| 58577-26040B1 |
TRH221;TRH201..GCC,GEN;KDH200,201,220,221,LH200,TRH200..5D;KDH200,202,203,212,LH20#,212,TRH203,213..LHD..4D..STD DK.GRAY,TRIM1# |
1 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-10034C0 |
KDH202..15S..GEN;TRH203..LHD..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH203,LH202,222,TRH223..(12S,15S,16S)..STD..GEN REAR HEATER-WITH(FLOOR SET),BLACK |
2 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-10034C0 |
KDH202..15S..GEN;TRH203..LHD..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH203,LH202,222,TRH223..(12S,15S,16S)..STD..GEN REAR HEATER-WITH(FLOOR SET),BLACK |
2 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-26081B1 |
KDH222..GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-26061B1 |
KDH222..GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-26070B1 |
KDH200..LHD..4D;KDH200,LH200,TRH221..5D..GEN;KDH201,202,203,LH20#,TRH201,203,213..LHD..(SMRF,SRF)..STD..GEN COLD AREA SPEC,DK.GRAY,TRIM1# |
1 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 67925A - PANEL, REAR DOOR SCUFF, RH | ||||
| 67925-26060B1 |
KDH203..12S..GEN COLD AREA SPEC,DK.GRAY,TRIM1# |
1 | ||
| 67925-26050B1 |
KDH203..12S..GEN DK.GRAY,TRIM1# |
1 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26120 |
KDH20#,LH20#,TRH20# |
1 | ||
| 67935G - SCREW, BACK DOOR SCUFF PLATE | ||||
| 93560-56014 |
KDH20#,LH20#,TRH20# |
6 | ||
| 67935H - GROMMET, BACK DOOR SCUFF PLATE | ||||
| 90189-06057 |
KDH20#,LH20#,TRH20# |
6 | ||
| 67936B - COVER, BACK DOOR SCUFF SIDE, RH | ||||
| 67936-26020B1 |
KDH222,TRH213,223..STD;KDH20#,212,220,LH20#,212,222,TRH20#,221..03S,06S,10S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67937F - COVER, BACK DOOR SCUFF SIDE, LH | ||||
| 67937-26020B1 |
KDH222,TRH213,223..STD;KDH20#,212,220,LH20#,212,222,TRH20#,221..03S,06S,10S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 64779-26020 | ||||
| 90189-06057 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 93560-56014 | ||||

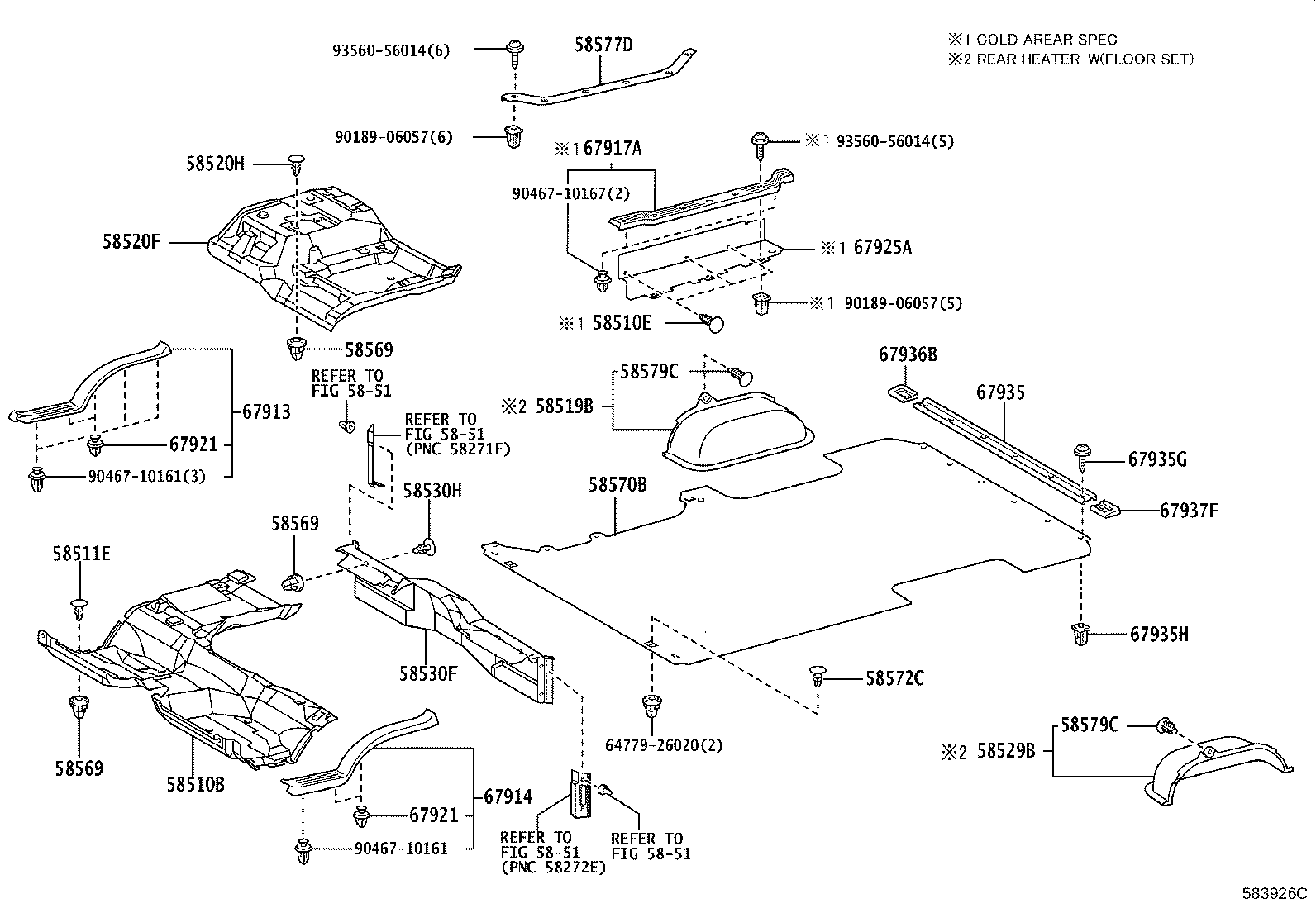

| Linked diagrams | ||||
| 5851 | ||||
