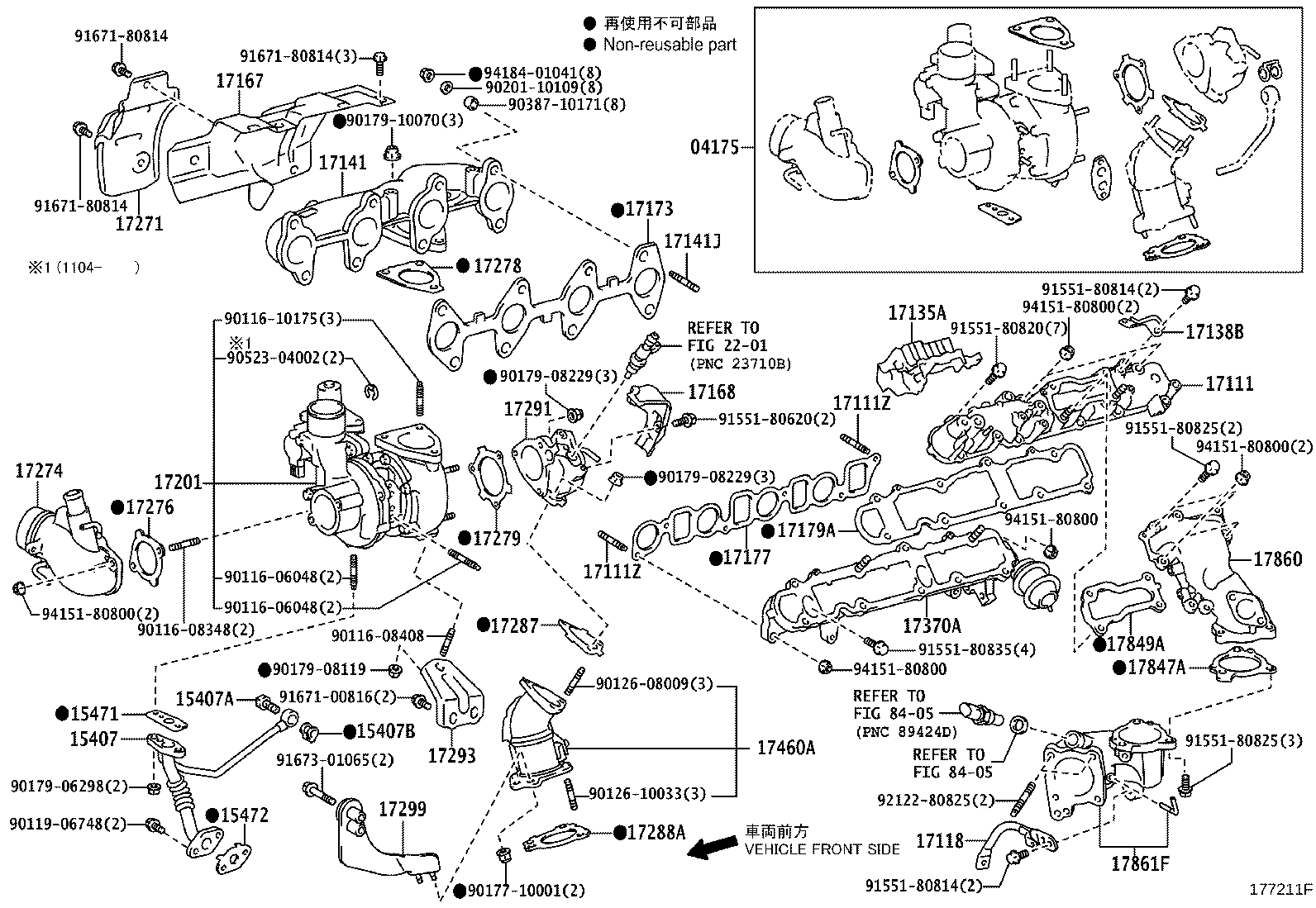

KDH203L-RDMDY (2010)
Toyota Hiace
(1008-1110)1KDFTV ; (1110-1212)1KDFTV..KDH201,203..LHD ; (1110- )1KDFTV..KDH201,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-30200 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 04175-30220 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-30110 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-12097 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90904-30004 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-30110 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17101-30100 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80822 |
1KDFTV..KDH201..03S;2KDFTV..KDH200..5F..ARL;2KDFTV..KDH200,202..4D..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH200,222..(06S,14S)..(ARL,GCC,GEN);1KDFTV,2KDFTV..KDH201,202..RHD..SRF..SG..(06S,12S)..GEN;1KDFTV,2KDFTV..KDH203,212,221,223..(03S,12S,14S,15S)..(ARL,GEN,RUS,SA) |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-30130 |
1KDFTV..KDH201,203..LHD NO.2 |
1 | ||
| 17118-30040 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17118-30040 |
1KDFTV..KDH201,203..LHD NO.1 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-30130 |
1KDFTV..KDH201,203..LHD NO.2 |
1 | ||
| 17118-30040 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17118-30040 |
1KDFTV..KDH201,203..LHD NO.1 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-30090 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-30020 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-30011 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-30200 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-0L020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-30090 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-30090 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-30100 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS |
1 | ||
| 17299 - STAY, TURBINE OUTLET ELBOW | ||||
| 17299-30070 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17299-30050 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17860 - CONNECTOR ASSY, INTAKE AIR | ||||
| 17860-30050 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 17860-30090 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17861-30120 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 25627-30040 |
1KDFTV..KDH201,203..LHD |
2 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 25627-30040 |
1KDFTV..KDH201,203..LHD |
2 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-30070 |
1KDFTV..KDH201,203..LHD |
1 | ||
| Common parts | ||||
| 90105-T0118 | ||||
| 90105-T0156 | ||||
| 90116-06048 | ||||
| 90116-08082 | ||||
| 90116-08348 | ||||
| 90116-08408 | ||||
| 90116-10175 | ||||
| 90119-06748 | ||||
| 90119-T0057 | ||||
| 90119-T0236 | ||||
| 90126-T0010 | ||||
| 90177-10001 | ||||
| 90177-T0006 | ||||
| 90177-T0009 | ||||
| 90178-T0019 | ||||
| 90179-06298 | ||||
| 90179-08040 | ||||
| 90179-08101 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90182-T0007 | ||||
| 90201-10109 | ||||
| 90387-10171 | ||||
| 90523-04002 | ||||
| 90560-T0006 | ||||
| 90999-92002 | ||||
| 91551-80814 | ||||
| 91551-80835 | ||||
| 91551-80890 | ||||
| 91671-00816 | ||||
| 91671-80814 | ||||
| 91673-01065 | ||||
| 92122-60825 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 2501 | ||||
| 8405 | ||||
(1110- )1KDFTV..KDH201..SP..06S ; (1212- )1KDFTV..KDH201,203..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-30200 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 04175-30220 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-30110 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-12097 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90904-30004 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-30110 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17101-30100 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80822 |
1KDFTV..KDH201..03S;2KDFTV..KDH200..5F..ARL;2KDFTV..KDH200,202..4D..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH200,222..(06S,14S)..(ARL,GCC,GEN);1KDFTV,2KDFTV..KDH201,202..RHD..SRF..SG..(06S,12S)..GEN;1KDFTV,2KDFTV..KDH203,212,221,223..(03S,12S,14S,15S)..(ARL,GEN,RUS,SA) |
2 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80822 |
1KDFTV..KDH201..03S;2KDFTV..KDH200..5F..ARL;2KDFTV..KDH200,202..4D..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH200,222..(06S,14S)..(ARL,GCC,GEN);1KDFTV,2KDFTV..KDH201,202..RHD..SRF..SG..(06S,12S)..GEN;1KDFTV,2KDFTV..KDH203,212,221,223..(03S,12S,14S,15S)..(ARL,GEN,RUS,SA) |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-30130 |
1KDFTV..KDH201,203..LHD NO.2 |
1 | ||
| 17118-30040 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17118-30040 |
1KDFTV..KDH201,203..LHD NO.1 |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-30011 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 17135-30030 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17138B - STAY, INTAKE MANIFOLD | ||||
| 17138-30040 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-30090 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-30050 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-30020 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-30011 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 17179A - GASKET, INTAKE MANIFOLD, NO.2 | ||||
| 17179-30010 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-30200 |
1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-0L020 |
1KDFTV..KDH201,203,221,223 |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-30090 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 17287 - GASKET, TURBINE OUTLET ELBOW, NO.2 | ||||
| 17287-30010 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17288A - GASKET, TURBINE OUTLET ELBOW, NO.3 | ||||
| 17288-30010 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-30171 |
1KDFTV..KDH201,203..LHD;1KDFTV..KDH201..SP..06S |
1 | ||
| 17291-30170 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-30100 |
1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS |
1 | ||
| 17299 - STAY, TURBINE OUTLET ELBOW | ||||
| 17299-30070 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17299-30050 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17370A - VALVE ASSY, SWIRL CONTROL | ||||
| 17370-30080 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17460A - CONVERTER ASSY, CATALYTIC W/PIPE | ||||
| 17460-30021 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17847A - GASKET, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17847-30010 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17849A - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-30010 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17860 - CONNECTOR ASSY, INTAKE AIR | ||||
| 17860-30050 |
1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223 |
1 | ||
| 17860-30090 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17861-30120 |
1KDFTV..KDH201,203..LHD |
1 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17862-30040 |
1KDFTV..KDH201,203..LHD |
1 | ||
| Common parts | ||||
| 90116-06048 | ||||
| 90116-08348 | ||||
| 90116-08408 | ||||
| 90116-10175 | ||||
| 90119-06748 | ||||
| 90126-08009 | ||||
| 90126-10033 | ||||
| 90177-10001 | ||||
| 90179-06298 | ||||
| 90179-08119 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90201-10109 | ||||
| 90387-10171 | ||||
| 90523-04002 | ||||
| 91551-80620 | ||||
| 91551-80814 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91551-80835 | ||||
| 91671-00816 | ||||
| 91671-80814 | ||||
| 91673-01065 | ||||
| 92122-80825 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 8405 | ||||
ILLUST NO. 1 OF 2(1312-1411)1KDFTV ; (1709- )1KDFTV..ARL,GEN,RUS,TH
EURO 5 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-08348 | ||||
| 90116-08408 | ||||
| 90119-06748 | ||||
| 90126-08052 | ||||
| 90177-10001 | ||||
| 90179-06298 | ||||
| 90179-08101 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90201-10109 | ||||
| 90387-10171 | ||||
| 91551-80620 | ||||
| 91551-80814 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91551-80835 | ||||
| 91671-00816 | ||||
| 91671-80814 | ||||
| 91673-01065 | ||||
| 92122-80825 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 1702 | ||||
| 2201 | ||||
| 8405 | ||||
