KDH202R-REMDY (2013)
Toyota Hiace
(1312- )KDH201..RHD..02S,06S ; (1312- )KDH200,202,212,22#..RHD..ARL,GEN,SA ;
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87124A - CLAMP, HEATER | ||||
| 87124-25110 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| 87124-25110 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-26A90 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| 87245-26A90 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-26C00 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245-26C00 |
KDH222..GEN;KDH200,201..LHD..5D..GEN;KDH202,212,220..STD..(GCC,GEN) FRONT HEATER-WITH |
1 | ||
| 87245-26C00 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C00 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-26C10 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C10 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245-26C10 |
KDH222..GEN;KDH200,201..LHD..5D..GEN;KDH202,212,220..STD..(GCC,GEN) FRONT HEATER-WITH |
1 | ||
| 87245-26C10 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-26D60 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| 87245-26D60 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-26C80 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245-26C20 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C20 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C80 |
KDH222..GEN;KDH200,201..LHD..5D..GEN;KDH202,212,220..STD..(GCC,GEN) FRONT HEATER-WITH |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-26400 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87248-26400 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-26553 |
KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26553 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26554 |
KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26554 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26B20 |
KDH202..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26B20 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26570 |
KDH222..GEN;KDH200,201..LHD..5D..GEN;KDH202,212,220..STD..(GCC,GEN) FRONT HEATER-WITH |
1 | ||
| 87248-26570 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87248-26D50 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26D50 |
KDH202..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-26410 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87248-26410 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| Common parts | ||||
| 87121-26100 | ||||
| 87124-26450 | ||||
| 87124-26460 | ||||
| 87124-26520 | ||||
| 91553-80814 | ||||
| 96134-42100 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||

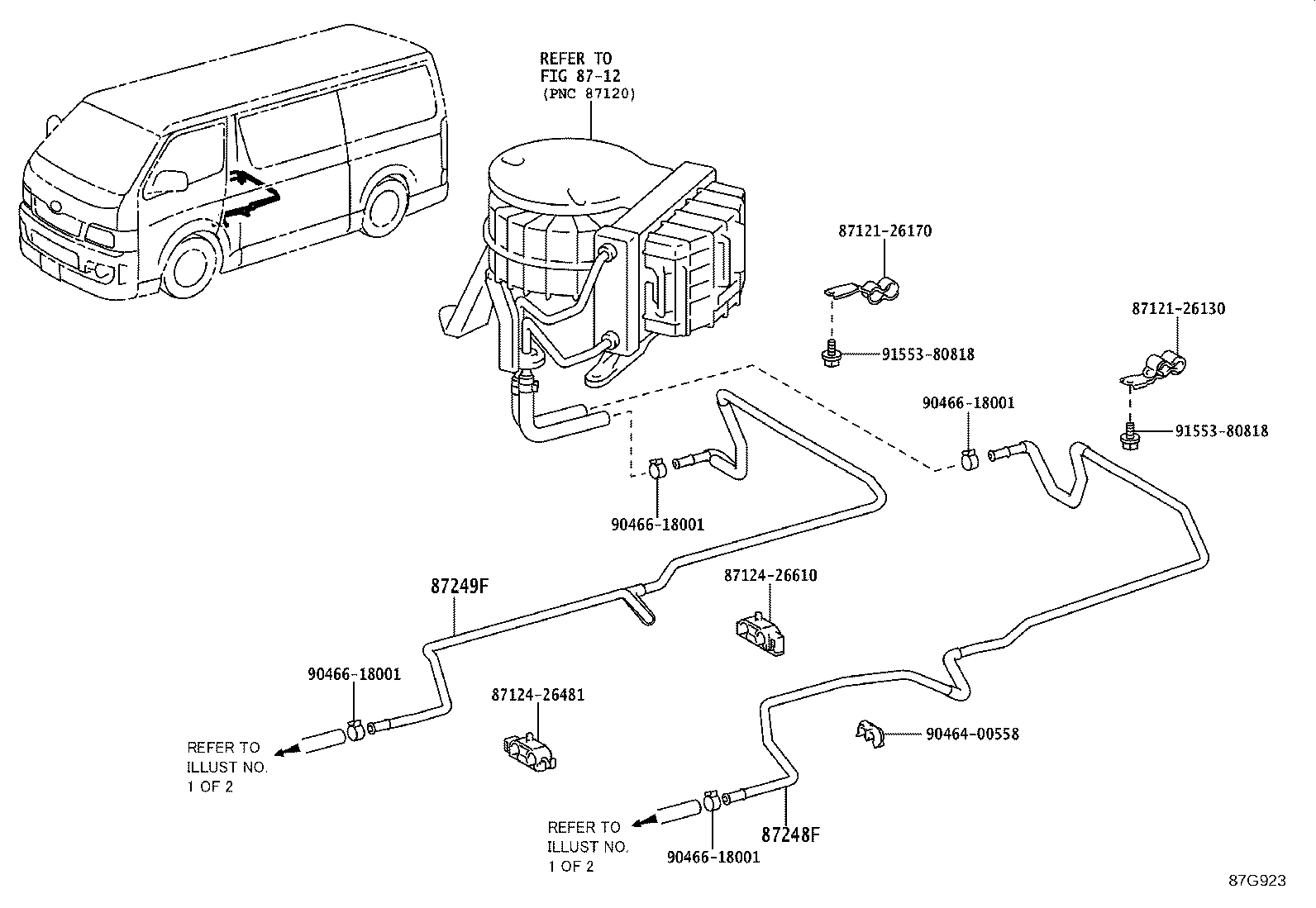

(1312- )KDH222,223,LH222..LHD..12S,16S..GEN,RUS ; (1501- )KDH213..5F ; (1801-
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87248F - PIPE, HEATER WATER INLET, F | ||||
| 87248-26C00 |
KDH202,LH202..RHD REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C00 |
KDH202,LH202..RHD REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26680 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26680 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C00 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C00 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26G60 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26G60 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C00 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C00 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26G60 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26G60 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87249F - PIPE, HEATER WATER OUTLET, F | ||||
| 87248-26690 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26690 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202,LH202..RHD REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202,LH202..RHD REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26A50 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26A50 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26A50 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26A50 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| Common parts | ||||
| 87121-26150 | ||||
| 87124-26481 | ||||
| 87124-26530 | ||||
| 90099-00275 | ||||
| 90464-00558 | ||||
| 90466-18001 | ||||
| 90467-19022 | ||||
| 91553-80818 | ||||
| 99556-20200 | ||||
| Linked diagrams | ||||
| 8712 | ||||

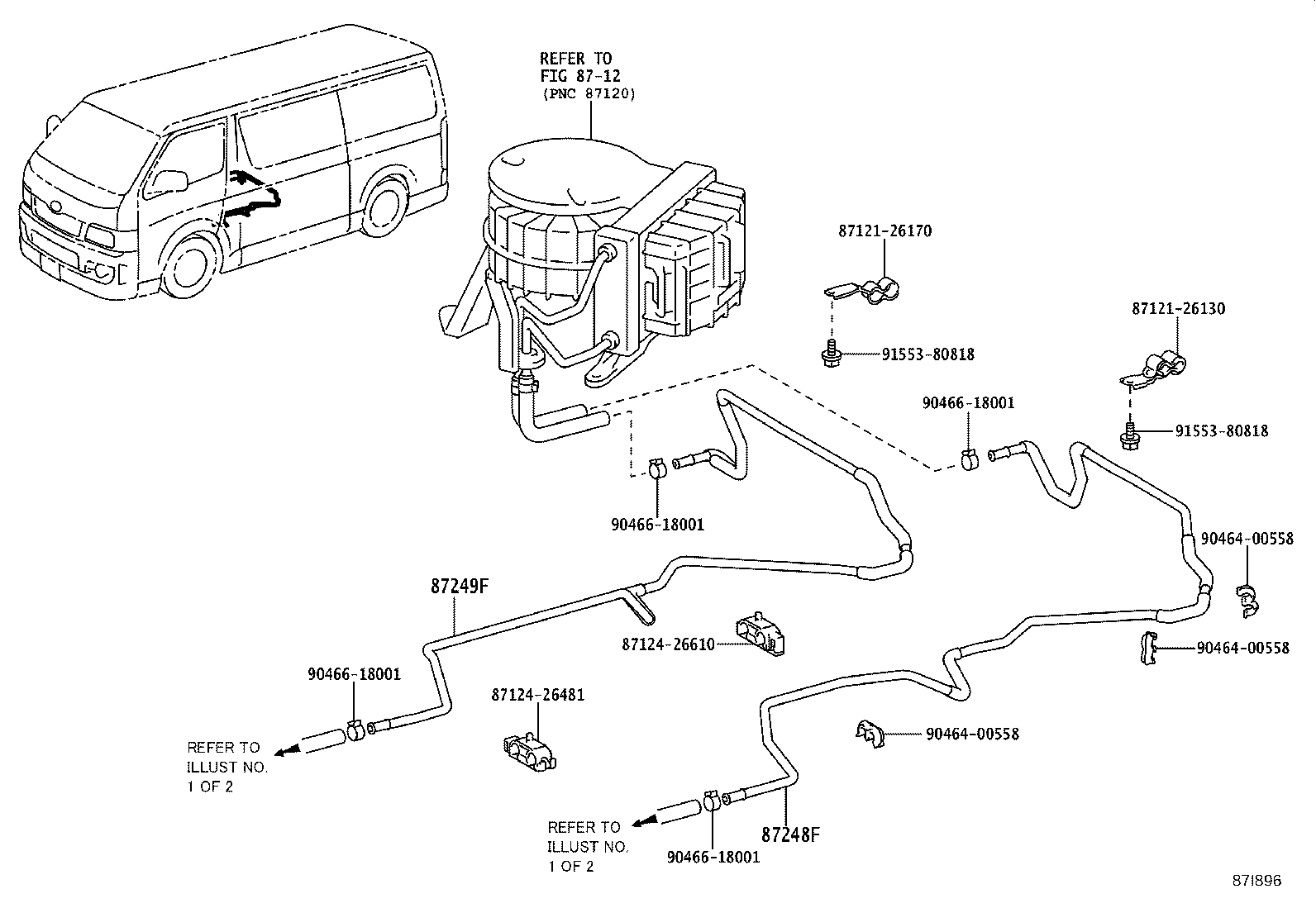

(1312- )TRH223..LHD..GL ; (1312- )TRH223..LHD..STD..GEN ; (1312- )KDH222,T
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87248F - PIPE, HEATER WATER INLET, F | ||||
| 87248-26C00 |
KDH202,LH202..RHD REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C00 |
KDH202,LH202..RHD REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26680 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26680 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C00 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C00 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26G60 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26G60 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C00 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C00 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26G60 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26G60 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87249F - PIPE, HEATER WATER OUTLET, F | ||||
| 87248-26690 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26690 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202,LH202..RHD REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202,LH202..RHD REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26A50 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26A50 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26A50 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26A50 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| Common parts | ||||
| 87121-26150 | ||||
| 87124-26481 | ||||
| 87124-26530 | ||||
| 90099-00275 | ||||
| 90464-00558 | ||||
| 90466-18001 | ||||
| 90467-19022 | ||||
| 91553-80818 | ||||
| 99556-20200 | ||||
| Linked diagrams | ||||
| 8712 | ||||

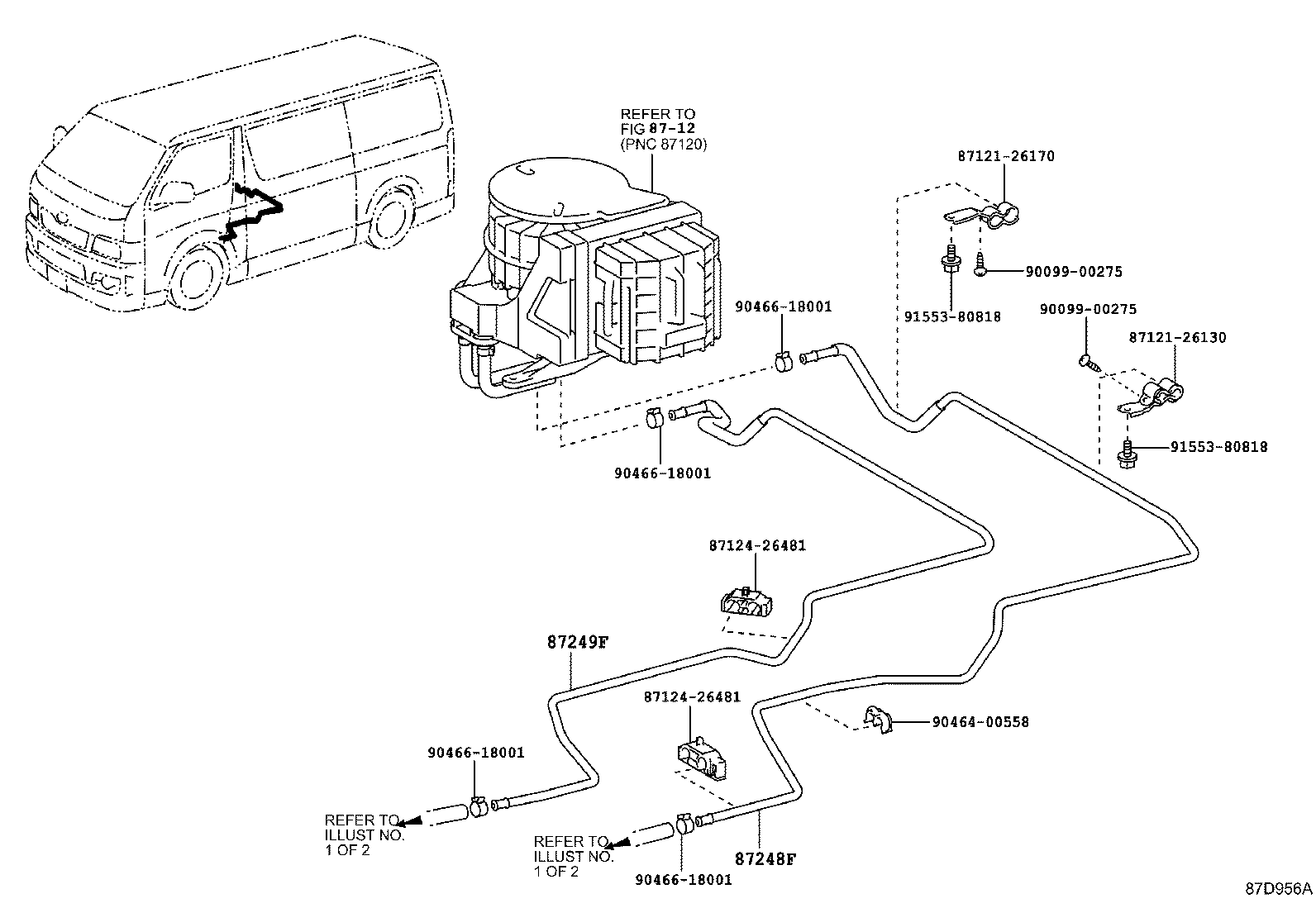

(1312-1712)KDH202,LH202..RHD..GEN
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87248F - PIPE, HEATER WATER INLET, F | ||||
| 87248-26C00 |
KDH202,LH202..RHD REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26680 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C00 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26G60 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C00 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26G60 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87249F - PIPE, HEATER WATER OUTLET, F | ||||
| 87248-26690 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202,LH202..RHD REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26A50 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26A50 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| Common parts | ||||
| 87121-26130 | ||||
| 87121-26170 | ||||
| 87124-26481 | ||||
| 90099-00275 | ||||
| 90464-00558 | ||||
| 90466-18001 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 8712 | ||||
(1312-1712)KDH222..RHD..GL ; (1312-1712)KDH222..RHD..STD..GEN ; (1312-1712)KDH202,2
FRONT:W(REAR HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87124A - CLAMP, HEATER | ||||
| 87124-25110 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| 87124-25110 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-26A90 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| 87245-26A90 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-26C00 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245-26C00 |
KDH222..GEN;KDH200,201..LHD..5D..GEN;KDH202,212,220..STD..(GCC,GEN) FRONT HEATER-WITH |
1 | ||
| 87245-26C00 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C00 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 99556-20300 |
KDH202,222..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 99556-20300 |
KDH202..RHD..GEN *H,L=210,FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245D - HOSE, HEATER WATER, INLET D | ||||
| 99556-20200 |
KDH202..RHD..GEN *H,L=60,FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 99556-20200 |
KDH202,222..GEN *H,L=60,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-26C10 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C10 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245-26C10 |
KDH222..GEN;KDH200,201..LHD..5D..GEN;KDH202,212,220..STD..(GCC,GEN) FRONT HEATER-WITH |
1 | ||
| 87245-26C10 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245H - HOSE, HEATER WATER, INLET H | ||||
| 99556-30100 |
KDH202,222..GEN *H,L=60,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 99556-30100 |
KDH202..RHD..GEN *H,L=60,FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-26D60 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| 87245-26D60 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-26C80 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245-26C20 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C20 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C80 |
KDH222..GEN;KDH200,201..LHD..5D..GEN;KDH202,212,220..STD..(GCC,GEN) FRONT HEATER-WITH |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 99556-20300 |
KDH202..RHD..GEN *H,L=210,FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 99556-20300 |
KDH202,222..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87246D - HOSE, HEATER WATER, OUTLET D | ||||
| 87245-26C50 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C50 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-26C30 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C30 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-26400 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87248-26400 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-26553 |
KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26553 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26554 |
KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26554 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26B20 |
KDH202..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26B20 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26570 |
KDH222..GEN;KDH200,201..LHD..5D..GEN;KDH202,212,220..STD..(GCC,GEN) FRONT HEATER-WITH |
1 | ||
| 87248-26570 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87248-26D50 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26D50 |
KDH202..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-26540 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26540 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-26410 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87248-26410 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-26562 |
KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26562 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26563 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26B30 |
KDH202..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26B30 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26563 |
KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26D60 |
KDH202..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26D60 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-52010 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
2 | ||
| 87248-52010 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
2 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-52010 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
2 | ||
| 87248-52010 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
2 | ||
| Common parts | ||||
| 87121-26100 | ||||
| 87121-26110 | ||||
| 87124-26450 | ||||
| 87124-26460 | ||||
| 87124-26481 | ||||
| 87124-26520 | ||||
| 87124-26590 | ||||
| 90467-19022 | ||||
| 91553-80814 | ||||
| 96134-42100 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
(1312-1712)KDH222..GL..GCC ; (1312-1712)KDH222,223..LHD..12S,16S..GEN,RUS ; (1501-1
FRONT:W(REAR HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-26A90 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| 87245-26A90 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-26C00 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245-26C00 |
KDH222..GEN;KDH200,201..LHD..5D..GEN;KDH202,212,220..STD..(GCC,GEN) FRONT HEATER-WITH |
1 | ||
| 87245-26C00 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C00 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 99556-20300 |
KDH202,222..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 99556-20300 |
KDH202..RHD..GEN *H,L=210,FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245D - HOSE, HEATER WATER, INLET D | ||||
| 99556-20200 |
KDH202..RHD..GEN *H,L=60,FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 99556-20200 |
KDH202,222..GEN *H,L=60,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-26C10 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C10 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245-26C10 |
KDH222..GEN;KDH200,201..LHD..5D..GEN;KDH202,212,220..STD..(GCC,GEN) FRONT HEATER-WITH |
1 | ||
| 87245-26C10 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245H - HOSE, HEATER WATER, INLET H | ||||
| 99556-30100 |
KDH202,222..GEN *H,L=60,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 99556-30100 |
KDH202..RHD..GEN *H,L=60,FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-26D60 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| 87245-26D60 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-26C80 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245-26C20 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C20 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C80 |
KDH222..GEN;KDH200,201..LHD..5D..GEN;KDH202,212,220..STD..(GCC,GEN) FRONT HEATER-WITH |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 99556-20300 |
KDH202..RHD..GEN *H,L=210,FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 99556-20300 |
KDH202,222..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87246D - HOSE, HEATER WATER, OUTLET D | ||||
| 87245-26C50 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C50 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-26C30 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C30 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-26400 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87248-26400 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-26553 |
KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26553 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26554 |
KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26554 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26B20 |
KDH202..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26B20 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26570 |
KDH222..GEN;KDH200,201..LHD..5D..GEN;KDH202,212,220..STD..(GCC,GEN) FRONT HEATER-WITH |
1 | ||
| 87248-26570 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87248-26D50 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26D50 |
KDH202..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-26540 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26540 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-26410 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87248-26410 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-26562 |
KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26562 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26563 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26B30 |
KDH202..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26B30 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26563 |
KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26D60 |
KDH202..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26D60 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-52010 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
2 | ||
| 87248-52010 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
2 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-52010 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
2 | ||
| 87248-52010 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
2 | ||
| Common parts | ||||
| 87121-26100 | ||||
| 87121-26110 | ||||
| 87124-26450 | ||||
| 87124-26460 | ||||
| 87124-26481 | ||||
| 87124-26520 | ||||
| 87124-26590 | ||||
| 90467-19022 | ||||
| 91553-80814 | ||||
| 96134-42100 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
(1712-2005)KDH202,LH202..RHD
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87248F - PIPE, HEATER WATER INLET, F | ||||
| 87248-26C00 |
KDH202,LH202..RHD REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26680 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C00 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26G60 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C00 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26G60 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87249F - PIPE, HEATER WATER OUTLET, F | ||||
| 87248-26690 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202,LH202..RHD REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26A50 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26A50 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| Common parts | ||||
| 87121-26130 | ||||
| 87121-26170 | ||||
| 87124-26481 | ||||
| 87124-26610 | ||||
| 90464-00558 | ||||
| 90466-18001 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 8712 | ||||
(1712- )KDH202..GEN ; (1712- )KDH203..12S..GEN
FRONT:W(REAR HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-26A90 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| 87245-26A90 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-26C00 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245-26C00 |
KDH222..GEN;KDH200,201..LHD..5D..GEN;KDH202,212,220..STD..(GCC,GEN) FRONT HEATER-WITH |
1 | ||
| 87245-26C00 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C00 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 99556-20300 |
KDH202,222..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 99556-20300 |
KDH202..RHD..GEN *H,L=210,FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245D - HOSE, HEATER WATER, INLET D | ||||
| 99556-20200 |
KDH202..RHD..GEN *H,L=60,FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 99556-20200 |
KDH202,222..GEN *H,L=60,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-26C10 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C10 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245-26C10 |
KDH222..GEN;KDH200,201..LHD..5D..GEN;KDH202,212,220..STD..(GCC,GEN) FRONT HEATER-WITH |
1 | ||
| 87245-26C10 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245H - HOSE, HEATER WATER, INLET H | ||||
| 99556-30100 |
KDH202,222..GEN *H,L=60,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 99556-30100 |
KDH202..RHD..GEN *H,L=60,FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-26D60 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| 87245-26D60 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-26C80 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87245-26C20 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C20 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C80 |
KDH222..GEN;KDH200,201..LHD..5D..GEN;KDH202,212,220..STD..(GCC,GEN) FRONT HEATER-WITH |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 99556-20300 |
KDH202..RHD..GEN *H,L=210,FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 99556-20300 |
KDH202,222..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87246D - HOSE, HEATER WATER, OUTLET D | ||||
| 87245-26C50 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C50 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-26C30 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87245-26C30 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-26400 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87248-26400 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-26553 |
KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26553 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26554 |
KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26554 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26B20 |
KDH202..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26B20 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26570 |
KDH222..GEN;KDH200,201..LHD..5D..GEN;KDH202,212,220..STD..(GCC,GEN) FRONT HEATER-WITH |
1 | ||
| 87248-26570 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87248-26D50 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26D50 |
KDH202..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-26540 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26540 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-26410 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER) |
1 | ||
| 87248-26410 |
KDH202,LH20#,TRH203..RHD..4D..GEN FRONT HEATER-WITH |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-26562 |
KDH202,203..(12S,15S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26562 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26563 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26B30 |
KDH202..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26B30 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26563 |
KDH202..GEN;KDH203..12S..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26D60 |
KDH202..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26D60 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-52010 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
2 | ||
| 87248-52010 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
2 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-52010 |
KDH202,222..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
2 | ||
| 87248-52010 |
KDH202..RHD..GEN FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
2 | ||
| Common parts | ||||
| 87121-26100 | ||||
| 87121-26110 | ||||
| 87121-26280 | ||||
| 87124-26450 | ||||
| 87124-26460 | ||||
| 87124-26520 | ||||
| 87124-26590 | ||||
| 90467-19022 | ||||
| 91553-80814 | ||||
| 96134-42100 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
(2005- )KDH202,LH202..RHD
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87248F - PIPE, HEATER WATER INLET, F | ||||
| 87248-26C00 |
KDH202,LH202..RHD REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26680 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C00 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26G60 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C00 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26G60 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87249F - PIPE, HEATER WATER OUTLET, F | ||||
| 87248-26690 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202,LH202..RHD REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26C40 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26A50 |
KDH202,LH202..RHD FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| 87248-26A50 |
KDH202..RHD FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET) |
1 | ||
| Common parts | ||||
| 87121-26130 | ||||
| 87121-26170 | ||||
| 87124-26481 | ||||
| 87124-26610 | ||||
| 90464-00558 | ||||
| 90466-18001 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 8712 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
