KDH202R-RDMDYE (2006)

Toyota Hiace

Production Feb 2006 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501-0610)RHD..03S,06S,12S,15S,16S

Click highlighted areas on diagram

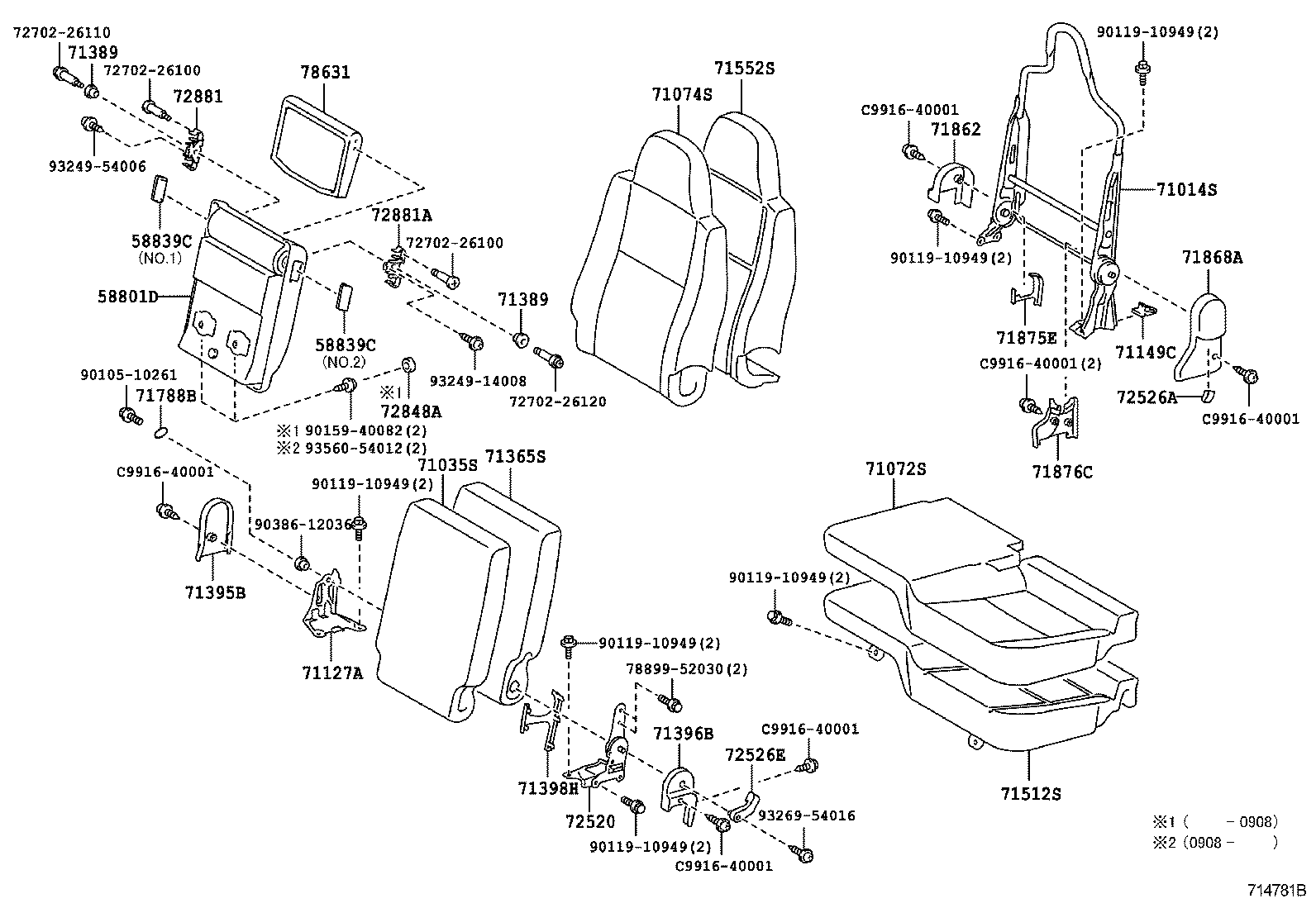

FRONT LH(2 PERSONS)

diagram 58801D 58839C 58839C 71014S 71035S 71072S 71074S 71127A 71149C 71365S 71389 71389 71395B 71396B 71398H 71512S 71552S 71788B 71862 71868A 71875C 71876B 72520 72526A 72526E 7270226100 7270226100 7270226110 7270226120 72848A 72881 72881A 78631 7889952030 9010510261 9011910949 9011910949 9011910949 9011910949 9011910949 9011910949 9015940082 9038612036 9324914008 9324954006 9326954016 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
58801D - BOX ASSY, CONSOLE
58801-26100B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26040B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.1

 1
58839-26050B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.2

 1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26040B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.1

 1
58839-26050B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.2

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26170

KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA)

 1
71127A - PLATE, FR0NT SEAT CUSHION COVER SET
71377-26030

KDH200,201,202,LH20#,TRH20#..RHD

 1
71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT)
71148-26010

KDH212,221,222,TRH213,22#..RHD..(03S,16S)..(GEN,SA);KDH20#,220,LH20#,212,222,TRH20#..RHD..(03S,06S,12S,15S,16S)

 1
71365S - PAD, CENTER SEAT BACK
71033-26020

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
71389 - SPACER, CENTER SEAT HINGE
71389-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 2
71389 - SPACER, CENTER SEAT HINGE
71389-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 2
71395B - COVER, CENTER SEAT HINGE, RH
71395-26030B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71396B - COVER, CENTER SEAT HINGE, LH
71396-26010B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71398H - COVER, CENTER SEAT HINGE, UPPER LH
71398-26010B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-26080

KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA)

 1
71788B - WASHER, FRONT SEAT BACK BOARD SETTING
71788-26010

KDH20#,22#,LH20#,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-26020B0

KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA)

GRAY,TRIM1#

 1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-26030B0

KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA)

GRAY,TRIM1#

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-26090

KDH200..5F..ARL;KDH202..STD..TH;KDH200..03S..4FC;TRH201..4D..SP..GEN;TRH201..SP..4FC..GEN;KDH221,TRH221..RHD..(GEN,SA);KDH200,202..RHD..SRF..(06S,12S)..(GEN,MA);KDH202,212,220,222,LH212,222,TRH203,213,223..RHD..(HRF,SMRF)..(03S,12S,16S)..(ARL,GEN,SA)

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26010B0

KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA)

GRAY,TRIM1#

 1
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26030B0

KDH212,TRH213..09S,16S;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..(03S,06S,12S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH)

GRAY,TRIM1#,FRONT SEAT

 1
72848A - CAP, SEAT ARMREST, NO.1
90339-10001P8

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 2
72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH
72881-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
72881A - SUPPORT, REAR SEAT CENTER ARMREST, LH
72881-26010

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
78631 - TABLE, FRONT SEAT SIDE
78061-26030B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
Common parts
72702-26100
72702-26110
72702-26120
78899-52030
90105-10261
90119-10949
90159-40082
90386-12036
93249-14008
93249-54006
93269-54016
C9916-40001

(0610-0709)RHD..SRF..12S..GEN ; (0610- )MA

Click highlighted areas on diagram

FRONT LH(2 PERSONS)

diagram 58801D 58839C 58839C 71014S 71035S 71072S 71074S 71127A 71149C 71365S 71389 71389 71395B 71396B 71398H 71512S 71552S 71788B 71862 71868A 71875E 71876C 72520 72526A 72526E 7270226100 7270226100 7270226110 7270226120 72848A 72881 72881A 78631 7889952030 9010510261 9011910949 9011910949 9011910949 9011910949 9011910949 9011910949 9015940082 9038612036 9324914008 9324954006 9326954016 9356054012 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
58801D - BOX ASSY, CONSOLE
58801-26100B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26040B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.1

 1
58839-26050B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.2

 1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26040B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.1

 1
58839-26050B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#,NO.2

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26170

KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA)

 1
71127A - PLATE, FR0NT SEAT CUSHION COVER SET
71377-26030

KDH200,201,202,LH20#,TRH20#..RHD

 1
71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT)
71148-26010

KDH212,221,222,TRH213,22#..RHD..(03S,16S)..(GEN,SA);KDH20#,220,LH20#,212,222,TRH20#..RHD..(03S,06S,12S,15S,16S)

 1
71365S - PAD, CENTER SEAT BACK
71033-26020

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
71389 - SPACER, CENTER SEAT HINGE
71389-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 2
71389 - SPACER, CENTER SEAT HINGE
71389-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 2
71395B - COVER, CENTER SEAT HINGE, RH
71395-26030B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71396B - COVER, CENTER SEAT HINGE, LH
71396-26010B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71398H - COVER, CENTER SEAT HINGE, UPPER LH
71398-26010B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-26080

KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA)

 1
71788B - WASHER, FRONT SEAT BACK BOARD SETTING
71788-26010

KDH20#,22#,LH20#,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-26020B0

KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA)

GRAY,TRIM1#

 1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-26030B0

KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA)

GRAY,TRIM1#

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-26090

KDH200..5F..ARL;KDH202..STD..TH;KDH200..03S..4FC;TRH201..4D..SP..GEN;TRH201..SP..4FC..GEN;KDH221,TRH221..RHD..(GEN,SA);KDH200,202..RHD..SRF..(06S,12S)..(GEN,MA);KDH202,212,220,222,LH212,222,TRH203,213,223..RHD..(HRF,SMRF)..(03S,12S,16S)..(ARL,GEN,SA)

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26010B0

KDH200..ARL,MA;KDH220..RHD..(ARL,GEN);KDH200,202,TRH203..RHD..(06S,12S)..(GEN,MA)

GRAY,TRIM1#

 1
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26030B0

KDH212,TRH213..09S,16S;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..(03S,06S,12S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH)

GRAY,TRIM1#,FRONT SEAT

 1
72848A - CAP, SEAT ARMREST, NO.1
90339-10001P8

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 2
72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH
72881-26020

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
72881A - SUPPORT, REAR SEAT CENTER ARMREST, LH
72881-26010

KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

 1
78631 - TABLE, FRONT SEAT SIDE
78061-26030B0

KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S)

GRAY,TRIM1#

 1
Common parts
72702-26100
72702-26110
72702-26120
78899-52030
90105-10261
90119-10949
90159-40082
90386-12036
93249-14008
93249-54006
93269-54016
93560-54012
C9916-40001
