KDH202R-EDMDYE (2007)

Toyota Hiace

Production Sep 2007 - Jan 2014
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

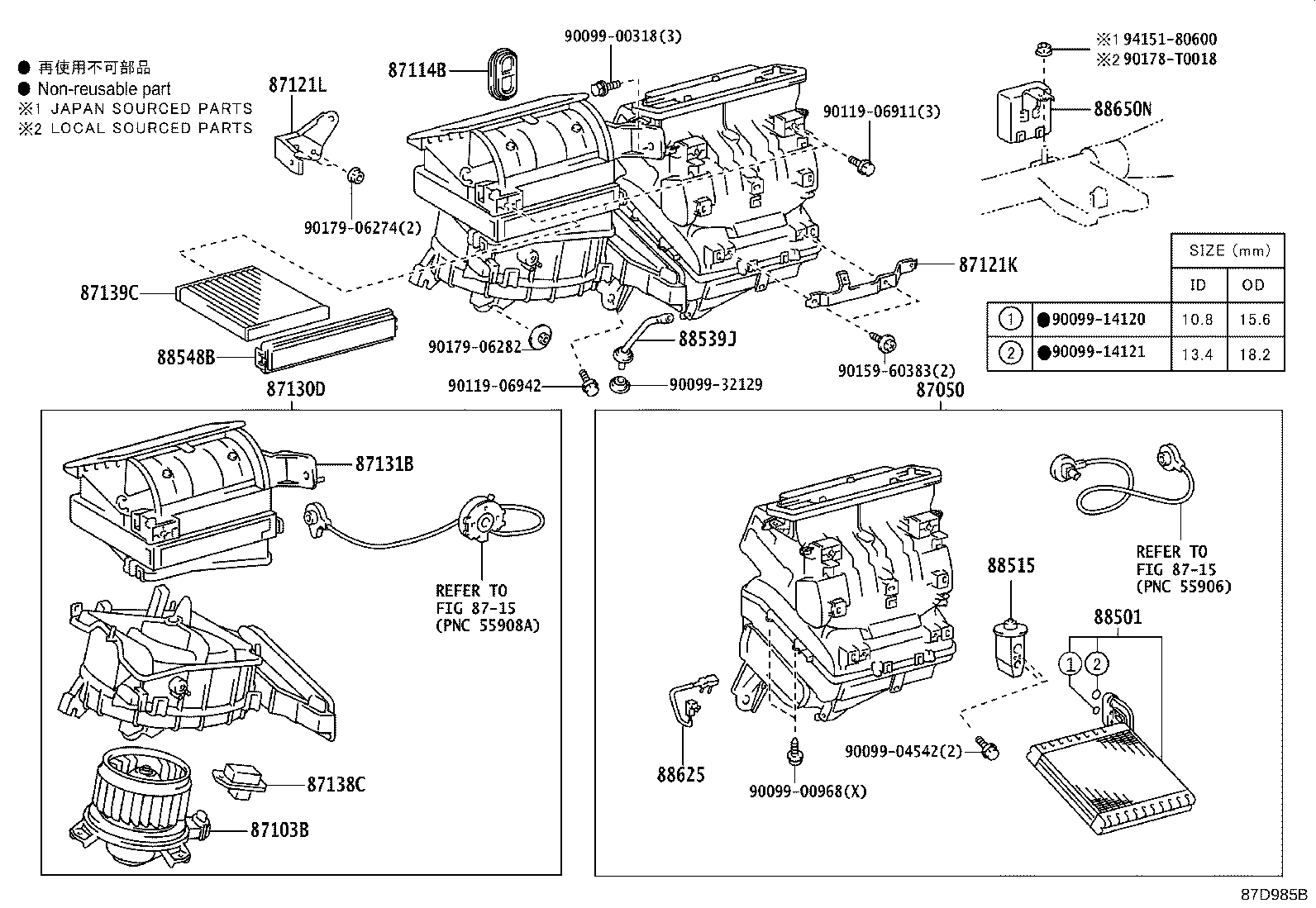

ILLUST NO. 2 OF 3(0709-0808)KDH202,TRH203..MA

Click highlighted areas on diagram

REAR

diagram 82600H 8271126230 8271126230 87105C 87105C 87138G 8718 88501R 88502R 88502R 88539C 88539E 88550B 88550B 8856905010 88605A 88625A 8889726110 8889726110 9009900310 9009900310 9009900968 9009900968 9009902210 9009902210 9009905164 9009905164 9011906911 9354015012 9354015012
Part # Description Qty Price
82600H - FUSE, FUSE BLOCK
90982-09009

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

10A,MINI FUSE,RED

 1
90982-09009

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

10A,MINI FUSE,RED

 1
90982-09009

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

10A,MINI FUSE,RED

 1
90982-09009

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

10A,MINI FUSE,RED

 1
90982-09009

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

10A,MINI FUSE,RED

 1
90982-09009

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

10A,MINI FUSE,RED

 1
90982-09009

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

10A,MINI FUSE,RED

 1
90982-09009

KDH202,TRH203..MA

10A,MINI FUSE,RED

 2
90982-09009

KDH202,TRH203..MA

10A,MINI FUSE,RED

 2
90982-09009

KDH202,TRH203..MA

10A,MINI FUSE,RED

 2
90982-09009

KDH202,TRH203..MA

10A,MINI FUSE,RED

 2
90982-09009

KDH202,TRH203..MA

10A,MINI FUSE,RED

 2
90982-09009

KDH202,TRH203..MA

10A,MINI FUSE,RED

 2
90982-09009

KDH202,TRH203..MA

10A,MINI FUSE,RED

 2
87105C - FAN SUB-ASSY, BLOWER, REAR
87105-26040

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
87105-26040

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
87105-26040

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
87105-26040

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
87105-26040

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
87105-26040

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
87105-26040

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
87105-26030

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
87105-26030

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
87105-26030

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
87105-26030

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
87105-26030

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
87105-26030

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
87105-26030

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
87103-26080

KDH202,TRH203..MA

RH

 1
87103-26080

KDH202,TRH203..MA

RH

 1
87103-26080

KDH202,TRH203..MA

RH

 1
87103-26080

KDH202,TRH203..MA

RH

 1
87103-26080

KDH202,TRH203..MA

RH

 1
87103-26080

KDH202,TRH203..MA

RH

 1
87103-26080

KDH202,TRH203..MA

RH

 1
87103-26090

KDH202,TRH203..MA

LH

 1
87103-26090

KDH202,TRH203..MA

LH

 1
87103-26090

KDH202,TRH203..MA

LH

 1
87103-26090

KDH202,TRH203..MA

LH

 1
87103-26090

KDH202,TRH203..MA

LH

 1
87103-26090

KDH202,TRH203..MA

LH

 1
87103-26090

KDH202,TRH203..MA

LH

 1
87103-26081

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

RH

 1
87103-26081

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

RH

 1
87103-26081

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

RH

 1
87103-26081

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

RH

 1
87103-26081

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

RH

 1
87103-26081

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

RH

 1
87103-26081

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

RH

 1
87103-26091

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

LH

 1
87103-26091

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

LH

 1
87103-26091

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

LH

 1
87103-26091

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

LH

 1
87103-26091

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

LH

 1
87103-26091

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

LH

 1
87103-26091

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

LH

 1
87105C - FAN SUB-ASSY, BLOWER, REAR
87105-26040

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
87105-26040

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
87105-26040

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
87105-26040

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
87105-26040

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
87105-26040

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
87105-26040

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
87105-26030

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
87105-26030

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
87105-26030

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
87105-26030

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
87105-26030

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
87105-26030

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
87105-26030

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
87103-26080

KDH202,TRH203..MA

RH

 1
87103-26080

KDH202,TRH203..MA

RH

 1
87103-26080

KDH202,TRH203..MA

RH

 1
87103-26080

KDH202,TRH203..MA

RH

 1
87103-26080

KDH202,TRH203..MA

RH

 1
87103-26080

KDH202,TRH203..MA

RH

 1
87103-26080

KDH202,TRH203..MA

RH

 1
87103-26090

KDH202,TRH203..MA

LH

 1
87103-26090

KDH202,TRH203..MA

LH

 1
87103-26090

KDH202,TRH203..MA

LH

 1
87103-26090

KDH202,TRH203..MA

LH

 1
87103-26090

KDH202,TRH203..MA

LH

 1
87103-26090

KDH202,TRH203..MA

LH

 1
87103-26090

KDH202,TRH203..MA

LH

 1
87103-26081

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

RH

 1
87103-26081

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

RH

 1
87103-26081

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

RH

 1
87103-26081

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

RH

 1
87103-26081

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

RH

 1
87103-26081

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

RH

 1
87103-26081

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

RH

 1
87103-26091

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

LH

 1
87103-26091

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

LH

 1
87103-26091

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

LH

 1
87103-26091

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

LH

 1
87103-26091

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

LH

 1
87103-26091

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

LH

 1
87103-26091

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

LH

 1
87138G - RESISTOR, REAR COOLER BLOWER
87138-26200

KDH202,TRH203..MA

MARK = 627

 1
87138-26200

KDH202,TRH203..MA

MARK = 627

 1
87138-26200

KDH202,TRH203..MA

MARK = 627

 1
87138-26200

KDH202,TRH203..MA

MARK = 627

 1
87138-26200

KDH202,TRH203..MA

MARK = 627

 1
87138-26200

KDH202,TRH203..MA

MARK = 627

 1
87138-26200

KDH202,TRH203..MA

MARK = 627

 1
87138-48020

KDH202,TRH203..HRF..MA

MARK = 349 OR 541

 1
87138-48020

KDH202,TRH203..HRF..MA

MARK = 349 OR 541

 1
87138-48020

KDH202,TRH203..HRF..MA

MARK = 349 OR 541

 1
87138-48020

KDH202,TRH203..HRF..MA

MARK = 349 OR 541

 1
87138-48020

KDH202,TRH203..HRF..MA

MARK = 349 OR 541

 1
87138-48020

KDH202,TRH203..HRF..MA

MARK = 349 OR 541

 1
87138-48020

KDH202,TRH203..HRF..MA

MARK = 349 OR 541

 1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-26200

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

 1
88501-26200

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

 1
88501-26200

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

 1
88501-26200

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

 1
88501-26200

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

 1
88501-26200

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

 1
88501-26200

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

 1
88501-26270

KDH202,TRH203..MA

 1
88501-26270

KDH202,TRH203..MA

 1
88501-26270

KDH202,TRH203..MA

 1
88501-26270

KDH202,TRH203..MA

 1
88501-26270

KDH202,TRH203..MA

 1
88501-26270

KDH202,TRH203..MA

 1
88501-26270

KDH202,TRH203..MA

 1
88502R - CASE SUB-ASSY, COOLING UNIT
88502-26130

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LOWER

 1
88502-26130

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LOWER

 1
88502-26130

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LOWER

 1
88502-26130

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LOWER

 1
88502-26130

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LOWER

 1
88502-26130

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LOWER

 1
88502-26130

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LOWER

 1
88502-26120

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

UPPER

 1
88502-26120

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

UPPER

 1
88502-26120

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

UPPER

 1
88502-26120

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

UPPER

 1
88502-26120

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

UPPER

 1
88502-26120

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

UPPER

 1
88502-26120

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

UPPER

 1
88502-26160

KDH202,TRH203..MA

UPPER

 1
88502-26160

KDH202,TRH203..MA

UPPER

 1
88502-26160

KDH202,TRH203..MA

UPPER

 1
88502-26160

KDH202,TRH203..MA

UPPER

 1
88502-26160

KDH202,TRH203..MA

UPPER

 1
88502-26160

KDH202,TRH203..MA

UPPER

 1
88502-26160

KDH202,TRH203..MA

UPPER

 1
88502-26170

KDH202,TRH203..MA

LOWER

 1
88502-26170

KDH202,TRH203..MA

LOWER

 1
88502-26170

KDH202,TRH203..MA

LOWER

 1
88502-26170

KDH202,TRH203..MA

LOWER

 1
88502-26170

KDH202,TRH203..MA

LOWER

 1
88502-26170

KDH202,TRH203..MA

LOWER

 1
88502-26170

KDH202,TRH203..MA

LOWER

 1
88502R - CASE SUB-ASSY, COOLING UNIT
88502-26130

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LOWER

 1
88502-26130

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LOWER

 1
88502-26130

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LOWER

 1
88502-26130

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LOWER

 1
88502-26130

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LOWER

 1
88502-26130

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LOWER

 1
88502-26130

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LOWER

 1
88502-26120

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

UPPER

 1
88502-26120

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

UPPER

 1
88502-26120

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

UPPER

 1
88502-26120

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

UPPER

 1
88502-26120

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

UPPER

 1
88502-26120

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

UPPER

 1
88502-26120

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

UPPER

 1
88502-26160

KDH202,TRH203..MA

UPPER

 1
88502-26160

KDH202,TRH203..MA

UPPER

 1
88502-26160

KDH202,TRH203..MA

UPPER

 1
88502-26160

KDH202,TRH203..MA

UPPER

 1
88502-26160

KDH202,TRH203..MA

UPPER

 1
88502-26160

KDH202,TRH203..MA

UPPER

 1
88502-26160

KDH202,TRH203..MA

UPPER

 1
88502-26170

KDH202,TRH203..MA

LOWER

 1
88502-26170

KDH202,TRH203..MA

LOWER

 1
88502-26170

KDH202,TRH203..MA

LOWER

 1
88502-26170

KDH202,TRH203..MA

LOWER

 1
88502-26170

KDH202,TRH203..MA

LOWER

 1
88502-26170

KDH202,TRH203..MA

LOWER

 1
88502-26170

KDH202,TRH203..MA

LOWER

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-26551

KDH202,TRH203..MA

 1
88539-26551

KDH202,TRH203..MA

 1
88539-26551

KDH202,TRH203..MA

 1
88539-26551

KDH202,TRH203..MA

 1
88539-26551

KDH202,TRH203..MA

 1
88539-26551

KDH202,TRH203..MA

 1
88539-26551

KDH202,TRH203..MA

 1
88539E - HOSE, COOLER UNIT DRAIN, NO.3
88539-26561

KDH202,TRH203..MA

 1
88539-26561

KDH202,TRH203..MA

 1
88539-26561

KDH202,TRH203..MA

 1
88539-26561

KDH202,TRH203..MA

 1
88539-26561

KDH202,TRH203..MA

 1
88539-26561

KDH202,TRH203..MA

 1
88539-26561

KDH202,TRH203..MA

 1
88550B - MOTOR ASSY, BLOWER
88550-26090

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
88550-26090

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
88550-26090

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
88550-26090

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
88550-26090

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
88550-26090

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
88550-26090

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
88550-26080

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
88550-26080

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
88550-26080

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
88550-26080

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
88550-26080

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
88550-26080

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
88550-26080

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
88550B - MOTOR ASSY, BLOWER
88550-26090

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
88550-26090

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
88550-26090

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
88550-26090

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
88550-26090

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
88550-26090

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
88550-26090

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
88550-26080

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
88550-26080

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
88550-26080

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
88550-26080

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
88550-26080

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
88550-26080

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
88550-26080

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
88605A - HARNESS SUB-ASSY, COOLER WIRING
88605-2F720

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

 1
88605-2F720

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

 1
88605-2F720

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

 1
88605-2F720

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

 1
88605-2F720

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

 1
88605-2F720

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

 1
88605-2F720

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

 1
88605-2F770

KDH202,TRH203..MA

 1
88605-2F770

KDH202,TRH203..MA

 1
88605-2F770

KDH202,TRH203..MA

 1
88605-2F770

KDH202,TRH203..MA

 1
88605-2F770

KDH202,TRH203..MA

 1
88605-2F770

KDH202,TRH203..MA

 1
88605-2F770

KDH202,TRH203..MA

 1
88625A - THERMISTOR, COOLER NO.2
88625-22250

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
88625-22250

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
88625-22250

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
88625-22250

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
88625-22250

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
88625-22250

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
88625-22250

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
Common parts
82711-26230
88569-05010
88897-26110
90099-00310
90099-00968
90099-02210
90099-05164
90119-06911
93540-15012
Linked diagrams
8718

ILLUST NO. 1 OF 3(0709- )KDH200,203..TH ; (0709- )KDH202,TRH203..RHD..12S

Click highlighted areas on diagram

FRONT:BOOST VENTILATOR(CKD PACKAGE)

diagram 87050 87103B 87114B 87121K 87121L 87130D 87131B 87138C 87139C 8715 8715 88501 88515 88539J 88548B 88625 88650 9009932129 9011906911 9011906942 90119T0209 9015960383 90159T0005 90178T0018 90178T0065 9017906274 9017906282 9415180600
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0L011

KDH200,TRH203..MA;KDH202,203..RHD..12S

 1
87050-0L011

KDH200,TRH203..MA;KDH202,203..RHD..12S

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0L010

KDH202..RHD..12S;KDH200,TRH203..MA

 1
87103-0L010

KDH202..RHD..12S;KDH200,TRH203..MA

 1
87103-0L011

KDH200,TRH203..MA;KDH202,203..RHD..12S

 1
87103-0L011

KDH200,TRH203..MA;KDH202,203..RHD..12S

 1
87114B - COVER, HEATER
87114-26040

KDH202..RHD..12S;KDH200,TRH203..MA

 1
87114-26040

KDH202..RHD..12S;KDH200,TRH203..MA

 1
87114-26110

TRH201..LHD;KDH20#,212,220,222,223,LH20#,212,222,TRH203,213,22#..(03S,11S,12S,14S,15S,16S)..(GCC,GEN,MA,TH)

 1
87114-26110

TRH201..LHD;KDH20#,212,220,222,223,LH20#,212,222,TRH203,213,22#..(03S,11S,12S,14S,15S,16S)..(GCC,GEN,MA,TH)

 1
87121L - BRACKET, HEATER
87121-26050

KDH20#,LH20#,TRH20#..RHD

 1
87121-26050

KDH20#,LH20#,TRH20#..RHD

 1
87130D - BLOWER ASSY
87130-0L011

KDH200,TRH203..MA;KDH202,203..RHD..12S

 1
87130-0L011

KDH200,TRH203..MA;KDH202,203..RHD..12S

 1
87131B - CASE, HEATER BLOWER
87131-0L010

KDH200,TRH203..MA;KDH202,203..RHD..12S

 1
87131-0L010

KDH200,TRH203..MA;KDH202,203..RHD..12S

 1
87139C - FILTER, CLEAN AIR
87139-06080

KDH200,TRH203..MA;KDH202,203..RHD..12S

 1
87139-06080

KDH200,TRH203..MA;KDH202,203..RHD..12S

 1
88515 - VALVE, COOLER EXPANSION
88515-26070

KDH200..MA;KDH200..SP..06S;KDH202..HRF..GEN;TRH201..SP..4FC..GEN;KDH202,203,222..(12S,14S)..(ARL,MA,TH);TRH203,213..(HRF,SMRF)..(09S,11S,12S)..(GEN,MA)

 1
88515-26070

KDH200..MA;KDH200..SP..06S;KDH202..HRF..GEN;TRH201..SP..4FC..GEN;KDH202,203,222..(12S,14S)..(ARL,MA,TH);TRH203,213..(HRF,SMRF)..(09S,11S,12S)..(GEN,MA)

 1
88539J - HOSE, DRAIN COOLER
88539-26470

KDH20#,LH20#,TRH20#..RHD

 1
88539-26470

KDH20#,LH20#,TRH20#..RHD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

KDH200..MA;KDH201..TH;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH200,201,TRH201..SP..06S;KDH222,TRH200,203..RHD..(06S,12S,14S)..(ARL,GEN,MA);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN);KDH202,203,212,223,TRH213,223..(12S,14S,16S)..(ARL,CIS,MA,RUS,TH,VN)

 1
88625-26090

KDH200..MA;KDH201..TH;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH200,201,TRH201..SP..06S;KDH222,TRH200,203..RHD..(06S,12S,14S)..(ARL,GEN,MA);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN);KDH202,203,212,223,TRH213,223..(12S,14S,16S)..(ARL,CIS,MA,RUS,TH,VN)

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-26380

KDH200,202..MA;KDH200,201..SP..06S;KDH202,212,222,223..(HRF,SMRF)..(10S,11S,12S,14S)

 1
88650-26380

KDH200,202..MA;KDH200,201..SP..06S;KDH202,212,222,223..(HRF,SMRF)..(10S,11S,12S,14S)

 1
88650-26381

KDH201..SP..06S;KDH202,203..RHD..12S;KDH212,222..GL..(GEN,SA);KDH200,212,223..ARL,MA,VN

 1
88650-26381

KDH201..SP..06S;KDH202,203..RHD..12S;KDH212,222..GL..(GEN,SA);KDH200,212,223..ARL,MA,VN

 1
Common parts
90099-32129
90119-06911
90119-06942
90119-T0209
90159-60383
90159-T0005
90178-T0018
90178-T0065
90179-06274
90179-06282
94151-80600
Linked diagrams
8715

ILLUST NO. 2 OF 3(0709- )SMRF,SRF..ARL,GCC,GEN,SA,TH,VN ; (0808- )KDH202,TRH203..MA

Click highlighted areas on diagram

REAR

diagram 82600H 8271126230 8271126230 82817S 82817S 87105C 87105C 87138G 8718 8719387101 8719387101 88501R 88502A 88502A 88502R 88502R 88539C 88539E 8856905010 88605A 88625A 8889726110 8889726110 9009900968 9011906911 9354014012 9354014012
Part # Description Qty Price
82600H - FUSE, FUSE BLOCK
90982-09009

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

10A,MINI FUSE,RED

 1
90982-09009

KDH202,TRH203..MA

10A,MINI FUSE,RED

 2
82817S - PROTECTOR, WIRING HARNESS
82817-95J55

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

 2
82817S - PROTECTOR, WIRING HARNESS
82817-95J55

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

 2
87105C - FAN SUB-ASSY, BLOWER, REAR
87105-26040

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
87105-26030

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
87103-26080

KDH202,TRH203..MA

RH

 1
87103-26090

KDH202,TRH203..MA

LH

 1
87103-26081

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

RH

 1
87103-26091

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

LH

 1
87105C - FAN SUB-ASSY, BLOWER, REAR
87105-26040

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LH

 1
87105-26030

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

RH

 1
87103-26080

KDH202,TRH203..MA

RH

 1
87103-26090

KDH202,TRH203..MA

LH

 1
87103-26081

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

RH

 1
87103-26091

KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..GL;KDH201,TRH200,201..SP..06S;KDH202,203,223,TRH203,223..(12S,14S)..(ARL,MA,RUS,TH)

LH

 1
87138G - RESISTOR, REAR COOLER BLOWER
87138-26200

KDH202,TRH203..MA

MARK = 627

 1
87138-48020

KDH202,TRH203..HRF..MA

MARK = 349 OR 541

 1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-26200

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

 1
88501-26270

KDH202,TRH203..MA

 1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-26180

KDH202,TRH203..MA

 2
88502A - CASE SUB-ASSY, COOLING UNIT
88502-26180

KDH202,TRH203..MA

 2
88502R - CASE SUB-ASSY, COOLING UNIT
88502-26130

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LOWER

 1
88502-26120

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

UPPER

 1
88502-26160

KDH202,TRH203..MA

UPPER

 1
88502-26170

KDH202,TRH203..MA

LOWER

 1
88502R - CASE SUB-ASSY, COOLING UNIT
88502-26130

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

LOWER

 1
88502-26120

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

UPPER

 1
88502-26160

KDH202,TRH203..MA

UPPER

 1
88502-26170

KDH202,TRH203..MA

LOWER

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-26551

KDH202,TRH203..MA

 1
88539E - HOSE, COOLER UNIT DRAIN, NO.3
88539-26561

KDH202,TRH203..MA

 1
88605A - HARNESS SUB-ASSY, COOLER WIRING
88605-2F720

KDH202..MA;KDH202..HRF..GEN;KDH222,TRH203,213..(HRF,SMRF)..(09S,11S,12S,14S)..(ARL,GEN,MA)

 1
88605-2F770

KDH202,TRH203..MA

 1
88625A - THERMISTOR, COOLER NO.2
88625-22250

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
Common parts
82711-26230
87193-87101
88569-05010
88897-26110
90099-00968
90119-06911
93540-14012
Linked diagrams
8718

ILLUST NO. 1 OF 2(1312- )KDH201..RHD..02S,06S ; (1312- )KDH200,202,212,22#,LH20#,212,222,TRH20

Click highlighted areas on diagram

FRONT

diagram 87050 87103B 87107A 87121K 87121L 8712826030 87130D 87131B 87138C 87139C 8715 8715 8715 87710G 88482 88501 88515 88539J 88548B 88625 88650N 9009900318 9009914120 9009914121 9009932129 9011906911 9011906942 9015960383 90159T0005 90178T0018 9017906274 9017906282 9155380616 9415180600
Part # Description Qty Price
Common parts
87128-26030
90099-00318
90099-14120
90099-14121
90099-32129
90119-06911
90119-06942
90159-60383
90159-T0005
90178-T0018
90179-06274
90179-06282
91553-80616
94151-80600
Linked diagrams
8715

ILLUST NO. 1 OF 2(1312- )KDH200,202,203,TRH203..MA,TH

Click highlighted areas on diagram

FRONT:BOOST VENTILATOR(CKD PACKAGE)

diagram 87050 87103B 87114B 87121K 87121L 87130D 87131B 87138C 87139C 8715 8715 88501 88515 88539J 88548B 88625 88650N 9009900318 9009900968 9009904542 9009914120 9009914121 9009932129 9011906911 9011906942 9015960383 90178T0018 9017906274 9017906282 9415180600
Part # Description Qty Price
Common parts
90099-00318
90099-00968
90099-04542
90099-14120
90099-14121
90099-32129
90119-06911
90119-06942
90159-60383
90178-T0018
90179-06274
90179-06282
94151-80600
Linked diagrams
8715
