KDH202L-REMDYV (2013)

Toyota Hiace

Production Dec 2013 - Sep 9999
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1312- )TRH201,22#..4FC,5F ; (1312- )GDH201,KDH20#,21#,22#,LH20#,212,222,TRH2

Click highlighted areas on diagram

diagram 04477 31478D 47900 47910 47910B 47920 47920A 47920A 47920A 47920B 47920C 47920C 47924 47924 47931 47935 47936 47937 47938 90015AA103 90015AA103 9017008016 9020123360 9020123360 9020123360 9020123360 9413000802 9413000802 9413000802 9413000802 9451200800 9451200800 9451200800 9461210800
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-26090

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
31478D - CAP, BLEEDER PLUG(FOR LSPV)
31478-30010

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26510

LH200..4D;KDH200..MA;TRH201..4FC;KDH200..LHD..5D..GEN;KDH201,TRH200,201..SP..(4FC,5F)..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..SRF..(5F,6FC)

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-26510

KDH200..MA;TRH201..4FC;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;KDH201,TRH200,201..SP..(4FC,5F)..(GEN,SA,TH);KDH222,223,LH200..4D..(03S,14S,16S)..(GEN,KEN,VN);GDH201,KDH202,203,LH202,222,TRH203..(5F,6FC)..(GCC,GEN,TH)

 1
47910B - PLUG, BLEEDER
47547-27030

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47920 - SPRING ASSY, LOAD SENSING
47920-26510

LH200..4D;KDH200..MA;TRH201..4FC;KDH200..LHD..5D..GEN;KDH201,TRH200,201..SP..(4FC,5F)..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..SRF..(5F,6FC)

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 3
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 3
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 3
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 2
47924 - BUSH, LOAD SENSING VALVE
47924-35010

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 2
47924 - BUSH, LOAD SENSING VALVE
47924-35010

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-26510

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35030

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35050

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-26020

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47938 - INSULATOR, LOAD SENSING SPRING SHACKLE HAET
47938-26010

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(03S,06S,10S,11S,13S,14S,16S)..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
Common parts
90015-AA103
90170-08016
90201-23360
94130-00802
94512-00800
94612-10800

ILLUST NO. 2 OF 3(1312- )TRH201,22#..4FC,5F ; (1312- )GDH201,KDH20#,21#,22#,LH20#,212,222,TRH2

Click highlighted areas on diagram

W(ABS)

diagram 44510 44546A 44546A 44546A 44591 44598A 9009905278 9009905278 9009905278 9009905278 9167380820 9167380820 9167380820
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-26092

KDH203..TH;LH212,TRH201..LHD;KDH200,201,202,212,LH20#,TRH203,213..(03S,12S,13S,15S,16S)..(GCC,GEN,MA,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26102

 1
44050-26190

KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,LH20#,212,TRH201,203,213..LHD..STD

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26180

 1
44050-26191

KDH202..LHD;KDH200..LHD..5D..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26181

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060

KDH202..LHD;KDH200..LHD..5D..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060

KDH202..LHD;KDH200..LHD..5D..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060

KDH202..LHD;KDH200..LHD..5D..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 3
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44590-26040

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
44598A - COVER, BRAKE ACTUATOR
44598-26010

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
Common parts
90099-05278
91673-80820

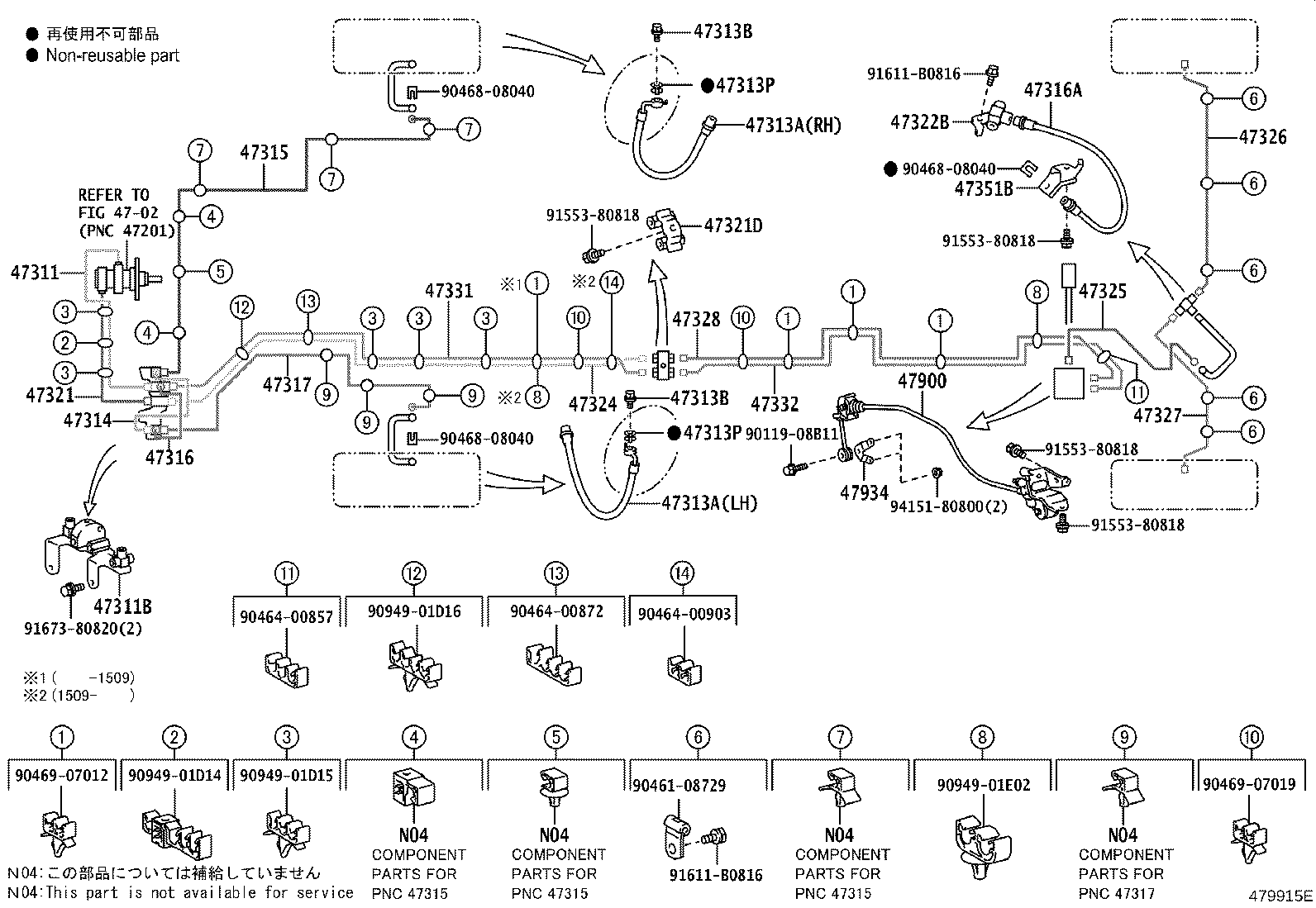

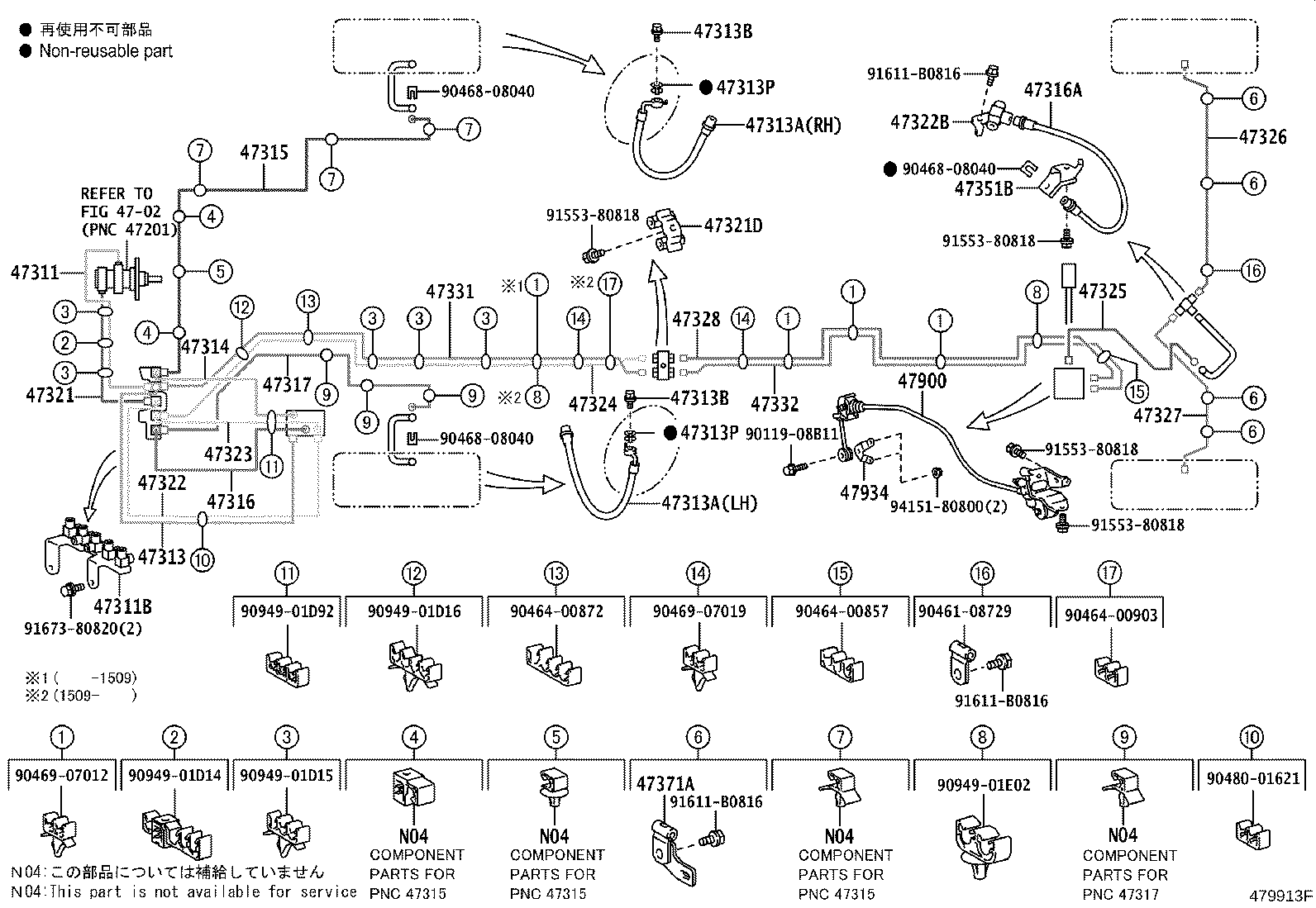

ILLUST NO. 1 OF 3(1501- )KDH20#,LH20#,TRH201,203..LHD

Click highlighted areas on diagram

diagram 4702 47311 47311B 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47315 47316 47316A 47317 47321 47321D 47322 47322B 47323 47324 47325 47326 47327 47328 47331 47332 47351B 47371A 47900 47934 9011908B11 9046108729 9046400857 9046400872 9046400903 9046808040 9046808040 9046808040 9046907012 9046907019 9048001621 9094901D14 9094901D15 9094901D16 9094901D92 9094901E02 9155380818 9155380818 9155380818 9155380818 91611B0816 91611B0816 91611B0816 9167380820 9415180800
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26A20

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
47311-26A50

TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10305

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
90413-10306

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
90413-10338

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
90413-10339

LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26320

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47313-26390

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

RH

 1
90947-02F54

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

LH

 1
90947-02G74

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

RH

 1
90947-02H54

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

RH

 1
90947-02F54

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

LH

 1
90947-02G74

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

RH

 1
90947-02H54

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 2
47389-50021

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 2
47389-50021

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26370

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47314-26380

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
47314-26390

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47314-26400

LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26290

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47315-26330

KDH200..LHD..5D;GDH201,KDH201,202,LH202,TRH201..SRF;KDH203,LH200,TRH203..SRF..4D..5F..STD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26490

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47316-26470

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47316-26480

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
47316-26500

LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
90947-02H57

KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-26360

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
47317-26340

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26770

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
47321-26800

TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

 1
90412-10285

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-26420

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47322-26430

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10307

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
90413-10337

KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26410

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47323-26420

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26560

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
47324-26550

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324-26570

TRH223..LHD..16S;KDH222..LHD..GL..GEN;KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH201,203,213,221..LHD..STD

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324-26580

KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)

 1
47324-26571

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324-26581

LH222..RHD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,TRH213..LHD..(03S,16S);KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26400

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47325-26420

LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26470

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47326-26500

LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-26320

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47327-26350

LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-26150

KDH203,TRH201..5F..STD;KDH200,201,202,21#,LH20#,212,TRH203,213..ARL,GCC,GEN,SA,TH

 1
47328-26170

TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN

 1
47331 - TUBE, REAR BRAKE, NO.10
47331-26260

KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)

 1
47331-26250

TRH223..LHD..16S;KDH222..LHD..GL..GEN;KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH201,203,213,221..LHD..STD

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47331-26251

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47331-26261

LH222..RHD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,TRH213..LHD..(03S,16S);KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47332 - TUBE, REAR BRAKE, NO.11
47332-26160

TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26210

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-26200

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 4
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26510

LH200..4D;KDH200..MA;TRH201..4FC;KDH200..LHD..5D..GEN;KDH201,TRH200,201..SP..(4FC,5F)..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..SRF..(5F,6FC)

 1
47934 - BRACKET, LOAD SENSING
47934-26110

KDH223..4FC..TH;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
Common parts
90119-08B11
90461-08729
90464-00857
90464-00872
90464-00903
90468-08040
90469-07012
90469-07019
90480-01621
90949-01D14
90949-01D15
90949-01D16
90949-01D92
90949-01E02
91553-80818
91611-B0816
91673-80820
94151-80800
Linked diagrams
4702

ILLUST NO. 1 OF 3(1501- )KDH20#,LH20#,TRH201,203..LHD..03S,06S,12S,15S

Click highlighted areas on diagram

diagram 4702 47311 47311B 47313A 47313A 47313B 47313B 47313P 47313P 47314 47315 47316 47316A 47317 47321 47321D 47322B 47324 47325 47326 47327 47328 47331 47332 47351B 47900 47934 9011908B11 9046108729 9046400857 9046400872 9046400903 9046808040 9046808040 9046808040 9046907012 9046907019 9094901D14 9094901D15 9094901D16 9094901E02 9155380818 9155380818 9155380818 9155380818 91611B0816 91611B0816 9167380820 9415180800
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26A20

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
47311-26A50

TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10305

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
90413-10306

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
90413-10338

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
90413-10339

LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

RH

 1
90947-02F54

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

LH

 1
90947-02G74

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

RH

 1
90947-02H54

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

RH

 1
90947-02F54

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

LH

 1
90947-02G74

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

RH

 1
90947-02H54

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 2
47389-50021

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 2
47389-50021

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26370

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47314-26380

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
47314-26390

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47314-26400

LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26290

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47315-26330

KDH200..LHD..5D;GDH201,KDH201,202,LH202,TRH201..SRF;KDH203,LH200,TRH203..SRF..4D..5F..STD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26490

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47316-26470

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47316-26480

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
47316-26500

LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
90947-02H57

KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-26360

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
47317-26340

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26770

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
47321-26800

TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

 1
90412-10285

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10307

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
90413-10337

KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26560

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
47324-26550

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324-26570

TRH223..LHD..16S;KDH222..LHD..GL..GEN;KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH201,203,213,221..LHD..STD

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324-26580

KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)

 1
47324-26571

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324-26581

LH222..RHD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,TRH213..LHD..(03S,16S);KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26400

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47325-26420

LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26470

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47326-26500

LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-26320

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47327-26350

LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-26150

KDH203,TRH201..5F..STD;KDH200,201,202,21#,LH20#,212,TRH203,213..ARL,GCC,GEN,SA,TH

 1
47328-26170

TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN

 1
47331 - TUBE, REAR BRAKE, NO.10
47331-26260

KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)

 1
47331-26250

TRH223..LHD..16S;KDH222..LHD..GL..GEN;KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH201,203,213,221..LHD..STD

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47331-26251

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47331-26261

LH222..RHD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,TRH213..LHD..(03S,16S);KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47332 - TUBE, REAR BRAKE, NO.11
47332-26160

TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26210

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26510

LH200..4D;KDH200..MA;TRH201..4FC;KDH200..LHD..5D..GEN;KDH201,TRH200,201..SP..(4FC,5F)..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..SRF..(5F,6FC)

 1
47934 - BRACKET, LOAD SENSING
47934-26110

KDH223..4FC..TH;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
Common parts
90119-08B11
90461-08729
90464-00857
90464-00872
90464-00903
90468-08040
90469-07012
90469-07019
90949-01D14
90949-01D15
90949-01D16
90949-01E02
91553-80818
91611-B0816
91673-80820
94151-80800
Linked diagrams
4702

ILLUST NO. 1 OF 3(1501- )KDH201..ARL ; (1501- )TRH201..RHD..ARL,GEN ; (1501- )KDH201,202,TR

Click highlighted areas on diagram

diagram 4702 47311 47311B 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47315 47316 47316A 47316A 47317 47321 47321D 47322 47323 47324 47326 47327 47328 47329 47331 47332 47351B 47352B 47371A 47934 9046108729 9046400872 9046400903 9046400904 9046808040 9046808040 9046808040 9046907012 9046907019 9094901540 9094901D15 9094901D16 9094901E02 9094901E12 9094901E13 9094901E14 9155380818 9155380818 91611B0816 91611B0816 91611B0816 9167380820 9415180800
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26A20

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
47311-26A50

TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10305

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
90413-10306

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
90413-10338

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
90413-10339

LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26320

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47313-26390

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

RH

 1
90947-02F54

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

LH

 1
90947-02G74

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

RH

 1
90947-02H54

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

RH

 1
90947-02F54

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

LH

 1
90947-02G74

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

RH

 1
90947-02H54

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 2
47389-50021

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 2
47389-50021

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26370

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47314-26380

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
47314-26390

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47314-26400

LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26290

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47315-26330

KDH200..LHD..5D;GDH201,KDH201,202,LH202,TRH201..SRF;KDH203,LH200,TRH203..SRF..4D..5F..STD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26490

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47316-26470

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47316-26480

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
47316-26500

LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
90947-02H57

KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
90947-02H57

KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-26360

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
47317-26340

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26770

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
47321-26800

TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

 1
90412-10285

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-26420

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47322-26430

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26410

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47323-26420

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26560

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
47324-26550

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324-26570

TRH223..LHD..16S;KDH222..LHD..GL..GEN;KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH201,203,213,221..LHD..STD

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324-26580

KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)

 1
47324-26571

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324-26581

LH222..RHD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,TRH213..LHD..(03S,16S);KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26470

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47326-26500

LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-26320

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47327-26350

LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-26150

KDH203,TRH201..5F..STD;KDH200,201,202,21#,LH20#,212,TRH203,213..ARL,GCC,GEN,SA,TH

 1
47328-26170

TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN

 1
47331 - TUBE, REAR BRAKE, NO.10
47331-26260

KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)

 1
47331-26250

TRH223..LHD..16S;KDH222..LHD..GL..GEN;KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH201,203,213,221..LHD..STD

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47331-26251

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47331-26261

LH222..RHD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,TRH213..LHD..(03S,16S);KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47332 - TUBE, REAR BRAKE, NO.11
47332-26160

TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26210

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-26200

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 4
47934 - BRACKET, LOAD SENSING
47934-26110

KDH223..4FC..TH;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
Common parts
90461-08729
90464-00872
90464-00903
90464-00904
90468-08040
90469-07012
90469-07019
90949-01540
90949-01D15
90949-01D16
90949-01E02
90949-01E12
90949-01E13
90949-01E14
91553-80818
91611-B0816
91673-80820
94151-80800
Linked diagrams
4702

ILLUST NO. 1 OF 3(1501- )KDH201,TRH201..RHD..SP..03S,06S ; (1501- )GDH201,KDH200,202,203,LH20#

Click highlighted areas on diagram

diagram 4702 47311 47311B 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47315 47316 47316A 47317 47321 47321D 47322 47322B 47323 47324 47325 47326 47327 47328 47331 47332 47351B 47371A 47900 47934 9011908B11 9046108729 9046400857 9046400872 9046400903 9046808040 9046808040 9046808040 9046907012 9046907019 9048001621 9094901D14 9094901D15 9094901D16 9094901D92 9094901E02 9155380818 9155380818 9155380818 9155380818 91611B0816 91611B0816 91611B0816 9167380820 9415180800
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26A20

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
47311-26A50

TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10305

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
90413-10306

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
90413-10338

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
90413-10339

LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26320

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47313-26390

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

RH

 1
90947-02F54

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

LH

 1
90947-02G74

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

RH

 1
90947-02H54

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

RH

 1
90947-02F54

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

LH

 1
90947-02G74

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

RH

 1
90947-02H54

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 2
47389-50021

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 2
47389-50021

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26370

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47314-26380

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
47314-26390

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47314-26400

LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26290

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47315-26330

KDH200..LHD..5D;GDH201,KDH201,202,LH202,TRH201..SRF;KDH203,LH200,TRH203..SRF..4D..5F..STD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26490

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47316-26470

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47316-26480

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
47316-26500

LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
90947-02H57

KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-26360

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
47317-26340

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26770

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
47321-26800

TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

 1
90412-10285

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-26420

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47322-26430

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10307

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
90413-10337

KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26410

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47323-26420

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26560

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
47324-26550

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324-26570

TRH223..LHD..16S;KDH222..LHD..GL..GEN;KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH201,203,213,221..LHD..STD

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324-26580

KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)

 1
47324-26571

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324-26581

LH222..RHD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,TRH213..LHD..(03S,16S);KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26400

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47325-26420

LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26470

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47326-26500

LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-26320

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47327-26350

LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-26150

KDH203,TRH201..5F..STD;KDH200,201,202,21#,LH20#,212,TRH203,213..ARL,GCC,GEN,SA,TH

 1
47328-26170

TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN

 1
47331 - TUBE, REAR BRAKE, NO.10
47331-26260

KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)

 1
47331-26250

TRH223..LHD..16S;KDH222..LHD..GL..GEN;KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH201,203,213,221..LHD..STD

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47331-26251

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47331-26261

LH222..RHD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,TRH213..LHD..(03S,16S);KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47332 - TUBE, REAR BRAKE, NO.11
47332-26160

TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26210

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-26200

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 4
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26510

LH200..4D;KDH200..MA;TRH201..4FC;KDH200..LHD..5D..GEN;KDH201,TRH200,201..SP..(4FC,5F)..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..SRF..(5F,6FC)

 1
47934 - BRACKET, LOAD SENSING
47934-26110

KDH223..4FC..TH;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
Common parts
90119-08B11
90461-08729
90464-00857
90464-00872
90464-00903
90468-08040
90469-07012
90469-07019
90480-01621
90949-01D14
90949-01D15
90949-01D16
90949-01D92
90949-01E02
91553-80818
91611-B0816
91673-80820
94151-80800
Linked diagrams
4702

ILLUST NO. 1 OF 3(1501- )KDH223..4FC..ARL ; (1501- )KDH222,LH222,TRH22#..RHD..GEN,KEN,SA,TH ;

Click highlighted areas on diagram

diagram 4702 47311 47311B 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47315 47316 47316A 47317 47321 47321D 47322 47322B 47323 47324 47325 47326 47327 47328 47331 47332 47351B 47371A 47900 47934 9011908B11 9046108729 9046400857 9046400872 9046400903 9046808040 9046808040 9046808040 9046907012 9046907019 9048001621 9094901D14 9094901D15 9094901D16 9094901D92 9094901E02 9155380818 9155380818 9155380818 9155380818 91611B0816 91611B0816 91611B0816 9167380820 9415180800
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26A20

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
47311-26A50

TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10305

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
90413-10306

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
90413-10338

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
90413-10339

LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26320

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47313-26390

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

RH

 1
90947-02F54

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

LH

 1
90947-02G74

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

RH

 1
90947-02H54

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F53

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

RH

 1
90947-02F54

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH20#,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

LH

 1
90947-02G74

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

RH

 1
90947-02H54

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 2
47389-50021

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 2
47389-50021

KDH223..4FC..TH;TRH223..4FC..GL;TRH223..5F..GL..GCC;LH200,TRH203..4D..5F;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,220,223,TRH221..(02S,06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,12S,13S,15S,16S

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26370

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47314-26380

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
47314-26390

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47314-26400

LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26290

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47315-26330

KDH200..LHD..5D;GDH201,KDH201,202,LH202,TRH201..SRF;KDH203,LH200,TRH203..SRF..4D..5F..STD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26490

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47316-26470

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47316-26480

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
47316-26500

LH222..RHD;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
90947-02H57

KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-26360

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
47317-26340

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26770

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
47321-26800

TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,VN)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166

KDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH20#,212,222,TRH203,213..ARL,GCC,GEN,SA,TH

 1
90412-10285

TRH221..GCC;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH203,213,220,222,223..ARL,GEN,KEN,RUS,VN;KDH220,TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-26420

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47322-26430

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10307

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
90413-10337

KDH200..MA;TRH213..LHD;TRH223..4FC..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;KDH213,220,222,223..GEN,KEN,VN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26410

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47323-26420

KDH202..LHD;KDH200..LHD..5D;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26560

TRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

 1
47324-26550

KDH222..LHD..GL..GEN;LH212,222,TRH201..LHD;KDH222..STD..(GCC,GEN);TRH223..16S..(GCC,GEN);KDH200,201,202,212,220,LH20#,TRH203,213,221..(03S,12S,13S,15S,16S)..(GCC,GEN,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324-26570

TRH223..LHD..16S;KDH222..LHD..GL..GEN;KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH201,203,213,221..LHD..STD

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324-26580

KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)

 1
47324-26571

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47324-26581

LH222..RHD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,TRH213..LHD..(03S,16S);KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26400

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47325-26420

LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26470

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47326-26500

LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-26320

KDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH

 1
47327-26350

LH200..4D;KDH200..LHD..5D..GEN;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..(5F,6FC)..(GCC,GEN)

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-26150

KDH203,TRH201..5F..STD;KDH200,201,202,21#,LH20#,212,TRH203,213..ARL,GCC,GEN,SA,TH

 1
47328-26170

TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN

 1
47331 - TUBE, REAR BRAKE, NO.10
47331-26260

KDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)

 1
47331-26250

TRH223..LHD..16S;KDH222..LHD..GL..GEN;KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH201,203,213,221..LHD..STD

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47331-26251

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
47331-26261

LH222..RHD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,TRH213..LHD..(03S,16S);KDH202,203,212,220,LH202,212,TRH203..(03S,12S,13S,15S,16S)..5F..(GCC,GEN)

 1
47332 - TUBE, REAR BRAKE, NO.11
47332-26160

TRH213..LHD;KDH200..LHD..5D..GEN;LH200,TRH203..SRF..4D..5F;KDH201,TRH201..SP..(GEN,SA,TH);GDH201,KDH202,203,21#,LH202,212..GCC,GEN

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26210

KDH200..MA;TRH213..LHD;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;LH200,TRH203..SRF..4D..5F;TRH201,22#..4FC..(ARL,GEN);KDH201,TRH201..SP..(GEN,SA,TH);KDH213,220,222,223,TRH200..(4FC,5F)..(GEN,KEN,VN);GDH201,KDH202,203,212,220,LH202,212,222,TRH221..(02S,06S,11S,12S,13S,15S,16S)..(GCC,GEN,SA,TH)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-26200

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 4
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26510

LH200..4D;KDH200..MA;TRH201..4FC;KDH200..LHD..5D..GEN;KDH201,TRH200,201..SP..(4FC,5F)..(GEN,SA,TH);GDH201,KDH202,203,LH202,TRH203..SRF..(5F,6FC)

 1
47934 - BRACKET, LOAD SENSING
47934-26110

KDH223..4FC..TH;TRH203..15S..5F;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..LHD..STD..GEN;KDH200,220..LHD..5D..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);KDH213,220,223,TRH200..(06S,10S,11S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,SA,VN);GDH201,KDH201,202,203,212,221,LH202,212,222,TRH201..02S,03S,05S,06S,11S,12S,13S,15S,16S

 1
Common parts
90119-08B11
90461-08729
90464-00857
90464-00872
90464-00903
90468-08040
90469-07012
90469-07019
90480-01621
90949-01D14
90949-01D15
90949-01D16
90949-01D92
90949-01E02
91553-80818
91611-B0816
91673-80820
94151-80800
Linked diagrams
4702

ILLUST NO. 2 OF 3(1501- )KDH201..SG ; (1501- )KDH201,223,TRH223..ARL,RUS ; (1501- )KDH202,2

Click highlighted areas on diagram

W(VSC)

diagram 44510 4452112050 4452112050 4452112050 44546A 44546A 44546A 44591 9011906844 9011906844 9011906844 9167380820 9167380820 9167380820
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-26092

KDH203..TH;LH212,TRH201..LHD;KDH200,201,202,212,LH20#,TRH203,213..(03S,12S,13S,15S,16S)..(GCC,GEN,MA,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26102

 1
44050-26092

KDH203..TH;LH212,TRH201..LHD;KDH200,201,202,212,LH20#,TRH203,213..(03S,12S,13S,15S,16S)..(GCC,GEN,MA,TH)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26102

 1
44050-26190

KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,LH20#,212,TRH201,203,213..LHD..STD

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26180

 1
44050-26190

KDH203,212..LHD..(13S,15S,16S)..5F;KDH200,202,LH20#,212,TRH201,203,213..LHD..STD

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26180

 1
44050-26191

KDH202..LHD;KDH200..LHD..5D..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26181

 1
44050-26191

KDH202..LHD;KDH200..LHD..5D..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY),MARK=44510-26181

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060

KDH202..LHD;KDH200..LHD..5D..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 3
44546-60060

KDH202..LHD;KDH200..LHD..5D..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060

KDH202..LHD;KDH200..LHD..5D..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 3
44546-60060

KDH202..LHD;KDH200..LHD..5D..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060

KDH202..LHD;KDH200..LHD..5D..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 3
44546-60060

KDH202..LHD;KDH200..LHD..5D..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 3
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44590-26040

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
44590-26040

KDH202..LHD;KDH200..LHD..5D..GEN;KDH222..LHD..STD..GEN

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

 1
Common parts
44521-12050
90119-06844
91673-80820
