KDH202L-REMDYV (2005)
Toyota Hiace
(7702- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||

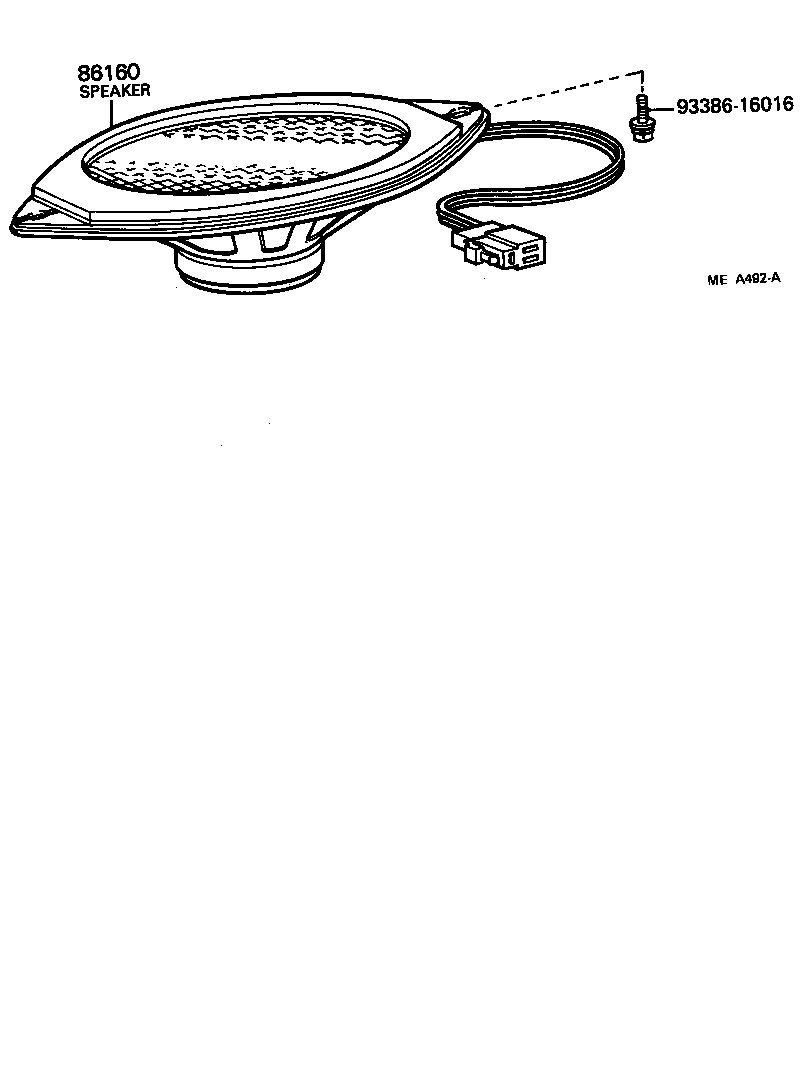

| 93386-16016 | ||||
(0501-1008)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

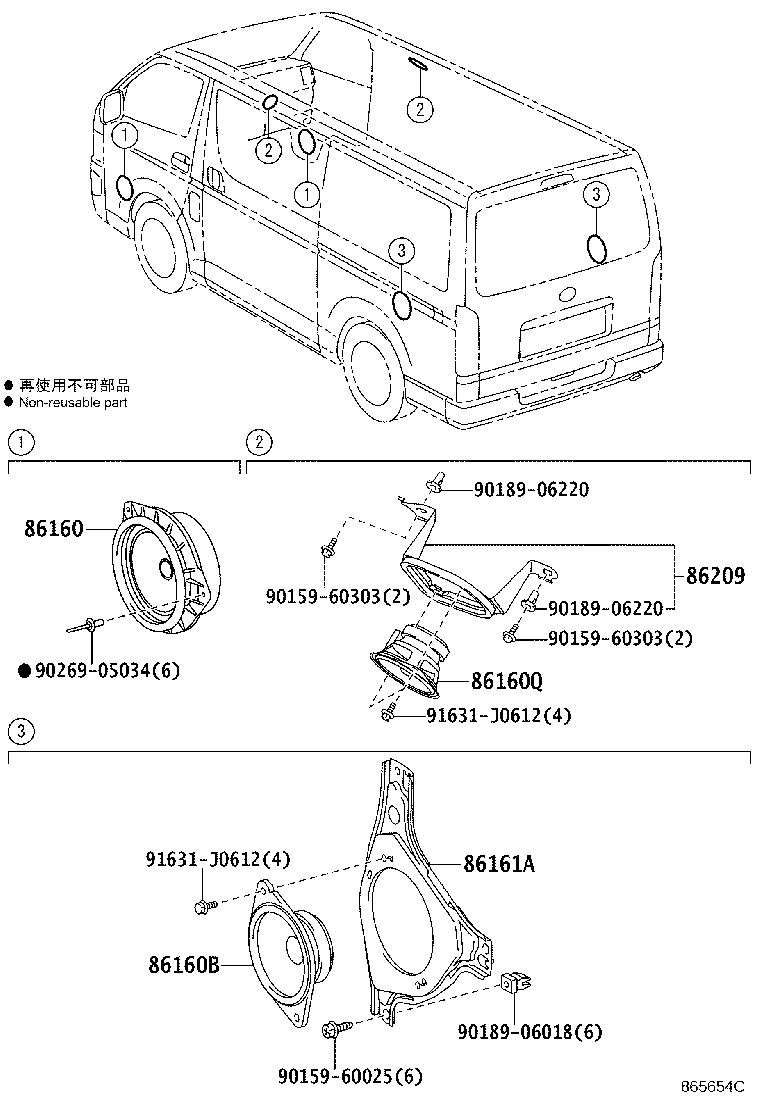

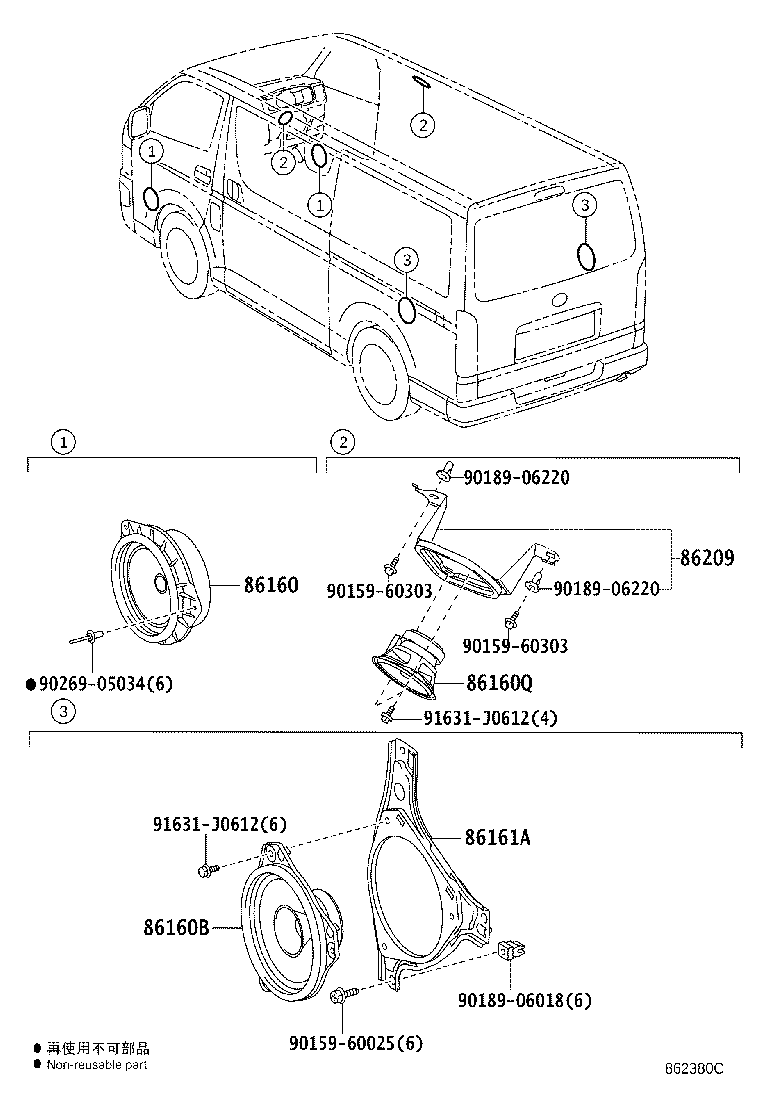

| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-26550 |
KDH202..15S;KDH212,TRH213..GCC;LH202,212,TRH203..SMRF,SRF;KDH212,TRH213..RHD..STD..GEN;KDH200,202,TRH201..LHD..(06S,12S);KDH200,220,LH200,TRH201,221..SP..03S..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 2SPEAKER |
2 | ||
| 86160-26550 |
KDH202..15S;KDH202..LHD..12S;KDH212,LH202,212,TRH203,213..(SMRF,SRF)..STD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER |
2 | ||
| 86160-26550 |
TRH203..SRF;KDH202..15S;KDH222..LHD..GEN;TRH223..STD..GEN;KDH212,TRH213..RHD..STD..GEN;KDH200,212,TRH201,213..SG..GCC;KDH201,202,203,220,TRH221..LHD..(03S,12S);KDH200,LH20#,212,222,TRH201..(03S,10S,12S,15S,16S)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 2SPEAKER |
2 | ||
| 86160-26550 |
KDH202,212,TRH203,213..5F..GCC AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER |
2 | ||
| 86160-26550 |
KDH200,202,212,TRH20#,213,221..5F..GCC AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 2SPEAKER |
2 | ||
| 86160-26550 |
KDH202..15S;TRH221..LHD..SP;TRH223..STD..GEN;KDH212,TRH213..RHD..STD..GEN;KDH200,212,TRH201,213..SG..GCC;TRH201,203..SRF..(03S,12S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)..GEN;KDH200,LH20#,212,222..(03S,10S,12S,15S,16S)..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM 2SPEAKER |
2 | ||
| 86160-26550 |
KDH202..4FC;TRH203..SRF..5F;KDH212,TRH213..5F..GCC;KDH212,TRH213..RHD..STD..GEN;KDH202,LH202,212..10S,15S,16S AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER |
2 | ||
| 86160-26550 |
KDH201,TRH201,221..LHD..5D;KDH200,202,203,212,220,LH20#,212,TRH203,213..(03S,12S,15S,16S)..(GCC,GEN) AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 2SPEAKER |
2 | ||
| 86160-26550 |
TRH223..4FC..STD..GCC;KDH222,TRH223..STD..GEN;KDH202,212,LH202,212,222,TRH203,213..(15S,16S)..(GCC,GEN) AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER |
2 | ||
| 86160-26550 |
TRH223..STD..GEN;TRH201,221..LHD..5D;KDH200,202,212..GCC;LH20#,212,222,TRH203,213..STD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM 4SPEAKER |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-28550 |
KDH202..15S;KDH202..LHD..12S;KDH212,TRH213..GCC;LH202,212,TRH203..SMRF,SRF;KDH212,TRH213..RHD..STD..GEN AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER |
2 | ||
| 86160-52110 |
KDH202,212,222,TRH203,213,223..5F..STD..GCC AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER |
2 | ||
| 86160-52110 |
TRH223..4FC..STD..GCC;KDH222,TRH223..STD..GEN;KDH202,212,LH202,212,222,TRH203,213..(15S,16S)..(GCC,GEN) AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER |
2 | ||
| 86160-28550 |
KDH202..15S;KDH202..LHD..12S;KDH212,LH202,212,TRH203,213..(SMRF,SRF)..STD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER |
2 | ||
| 86160-28550 |
KDH202,212,TRH203,213..GCC AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER |
2 | ||
| 86160-52110 |
KDH202,212,222,LH202,212,222,TRH203,213,223..(15S,16S)..STD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER |
2 | ||
| 86161A - BRACKET, SPEAKER, REAR | ||||
| 86161-26090 |
KDH202,212,TRH203,213..GCC AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER,RH |
1 | ||
| 86161-26090 |
KDH202..15S;KDH202..LHD..12S;KDH212,LH202,212,TRH203,213..(SMRF,SRF)..STD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER,RH |
1 | ||
| 86161-26090 |
KDH202..15S;KDH202..LHD..12S;KDH212,TRH213..GCC;LH202,212,TRH203..SMRF,SRF;KDH212,TRH213..RHD..STD..GEN AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER,RH |
1 | ||
| 86161-26100 |
KDH202,212,TRH203,213..GCC AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER,LH |
1 | ||
| 86161-26100 |
KDH202..15S;KDH202..LHD..12S;KDH212,TRH213..GCC;LH202,212,TRH203..SMRF,SRF;KDH212,TRH213..RHD..STD..GEN AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER,LH |
1 | ||
| 86161-26100 |
KDH202..15S;KDH202..LHD..12S;KDH212,LH202,212,TRH203,213..(SMRF,SRF)..STD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER,LH |
1 | ||
| 86161-26091 |
KDH202,212,222,TRH203,213,223..5F..STD..GCC AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER,RH |
1 | ||
| 86161-26101 |
KDH202,212,222,LH202,212,222,TRH203,213,223..(15S,16S)..STD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER,LH |
1 | ||
| 86161-26091 |
TRH223..4FC..STD..GCC;KDH222,TRH223..STD..GEN;KDH202,212,LH202,212,222,TRH203,213..(15S,16S)..(GCC,GEN) AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER,RH |
1 | ||
| 86161-26101 |
TRH223..4FC..STD..GCC;KDH222,TRH223..STD..GEN;KDH202,212,LH202,212,222,TRH203,213..(15S,16S)..(GCC,GEN) AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER,LH |
1 | ||
| 86161-26101 |
KDH202,212,222,TRH203,213,223..5F..STD..GCC AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER,LH |
1 | ||
| 86161-26091 |
KDH202,212,222,LH202,212,222,TRH203,213,223..(15S,16S)..STD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER,RH |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90159-60303 | ||||
| 90189-06018 | ||||
| 90189-06220 | ||||
| 90269-05034 | ||||
| 91631-J0612 | ||||
(1312- )GDH201,KDH20#,212,220,221,222,LH20#,212,222,TRH20#,22#..ARL,GCC,GEN,KEN,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60025 | ||||
| 90159-60303 | ||||
| 90189-06018 | ||||
| 90189-06220 | ||||
| 90269-05034 | ||||
| 91631-J0612 | ||||
