KDH202L-REMDYV (2005)
Toyota Hiace
Production
Jan 2005
-
Dec 2013
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0501- )1KDFTV,2KDFTV

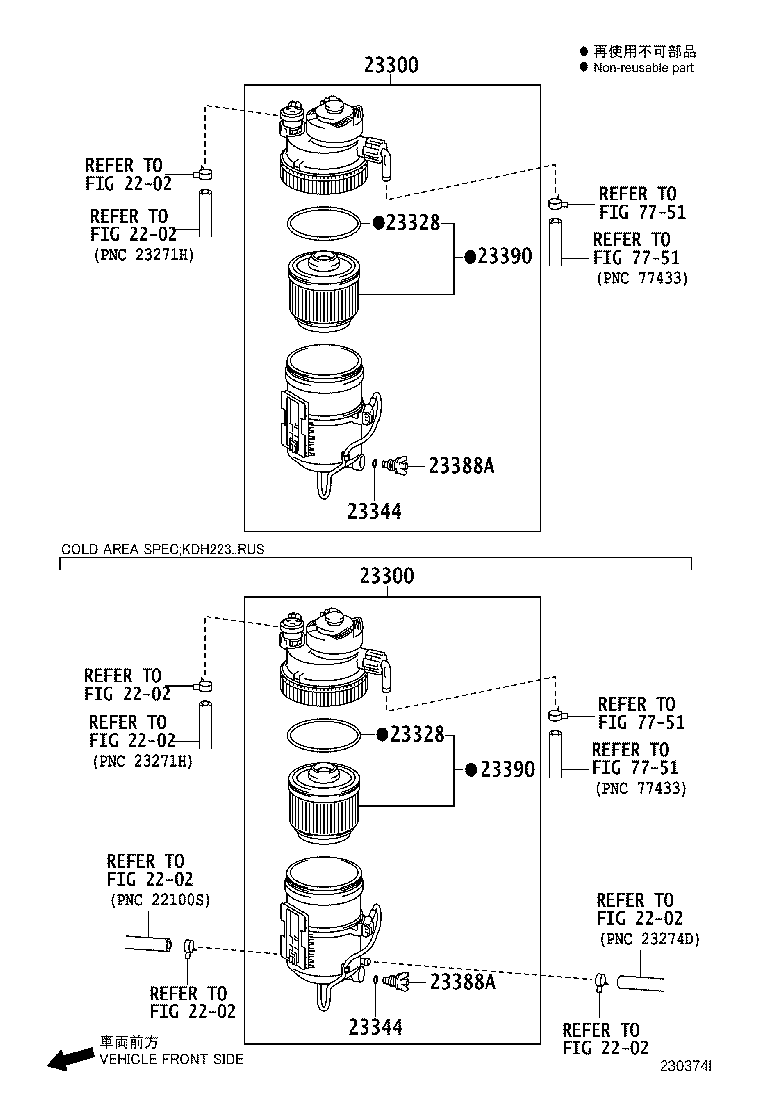

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300 - FILTER ASSY, FUEL | ||||
| 23300-30200 |
2KDFTV..KDH20#,22# |
1 | ||
| 23300-30202 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 23300-30201 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 23300-30203 |
1KDFTV,2KDFTV..KDH20#,212,22#..ARL,GCC,GEN,MA,SA,TH,VN |
1 | ||
| 23300 - FILTER ASSY, FUEL | ||||
| 23300-30200 |
2KDFTV..KDH20#,22# |
1 | ||
| 23300-30202 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 23300-30201 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 23300-30203 |
1KDFTV,2KDFTV..KDH20#,212,22#..ARL,GCC,GEN,MA,SA,TH,VN |
1 | ||
| 23328 - GASKET(FOR FUEL FILTER) | ||||
| 23344-0L010 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 23328 - GASKET(FOR FUEL FILTER) | ||||
| 23344-0L010 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER) | ||||
| 23344-0L041 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER) | ||||
| 23344-0L041 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 23388A - PLUG, FUEL FILTER DRAIN | ||||
| 23388-0L041 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 23388A - PLUG, FUEL FILTER DRAIN | ||||
| 23388-0L041 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 23390 - ELEMENT ASSY, FUEL FILTER | ||||
| 23390-0L010 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 23390 - ELEMENT ASSY, FUEL FILTER | ||||
| 23390-0L010 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| Linked diagrams | ||||
| 2202 | ||||
| 7751 | ||||
(1312- )1KDFTV,2KDFTV
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 2202 | ||||
| 7751 | ||||
