KDH202L-RDMDY (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )

Click highlighted areas on diagram

diagram 6133595A00 6133595A00 6779595700 72911 73163 73164 73210 73210 73210B 73220 73220 73230 73230 73240 73240 73250 73330 73340 73340 73350 73360 73370 73380 73390 73520 73520 73520 9010511003 9020411025 9095001030 9095001059 9095001126 9095001126 9095006002
Part # Description Qty Price
Common parts
61335-95A00
67795-95700
90105-11003
90204-11025
90950-01030
90950-01059
90950-01126
90950-06002

(0501- )

Click highlighted areas on diagram

FRONT SEAT BELT

diagram 73115 73139B 73210 73210 73219 73220 73220 73230 73240 9010511053 9010511053 9010911058 9010911058 9010911058 9010911058 9090119040 9090119040 9155380612 9155380612
Part # Description Qty Price
73115 - CLIP, BELT COMFORT NO.1
73115-26010B0

TRH213,223..RHD;TRH223..CIS,GCC;TRH213..LHD..10S;KDH212,222,LH222..RHD..GEN;KDH20#,220,221,223,LH20#,212,TRH20#;KDH212,TRH223..(10S,11S,13S,15S)..(GEN,SA);KDH212,222,TRH213,221..(03S,14S,16S)..(ARL,GCC,SA,TH,VN)

GRAY,TRIM1#

 2
73139B - COVER, SEAT BELT ANCHOR
73139-26030B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26730B0

KDH220..ARL;KDH200,TRH201..LHD..SG;KDH200,TRH201..SP..(GCC,GEN);KDH202,212,222,LH20#,222,TRH203,213,22#..(03S,09S,12S,15S,16S)..(ARL,GCC,GEN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#

 1
73210-26690B0

TRH213..09S,16S;KDH20#,212,222,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,10S,11S,12S,15S,16S)

GRAY,TRIM1#

 1
73210-26691B0

TRH213..GL..VN;TRH201..LHD..SG;KDH201..SP..06S;TRH201..SP..(GCC,GEN);KDH202,212,TRH203,213..(SMRF,SRF)..4D..(09S,11S,12S,15S,16S)..(GCC,GEN,SA,VN);KDH200,220,222,LH20#,212,222,TRH22#..(03S,06S,10S,12S,15S,16S)..(CIS,GCC,GEN,TH)

GRAY,TRIM1#

 1
73210-26731B0

KDH220,221..SP;KDH201..SP..06S;KDH200,TRH201..LHD..SG;KDH222,TRH223..15S,16S;KDH200,TRH201..SP..(GCC,GEN,MA,TH);KDH202,212,LH20#,212,222,TRH203,213,221..(03S,09S,12S,15S,16S)..(ARL,GCC,GEN,MA,SA,VN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#

 1
73210-26691C0

TRH201..5D..SP;TRH213..GL..VN;TRH201..LHD..SG;KDH201,TRH221..LHD..GEN;KDH212,222,TRH213,223..(11S,15S,16S)..5F..(GEN,TH,VN);KDH200,202,203,220,LH20#,212,222,TRH203..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

BLACK,TRIM1#

 1
73210-26691C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26731C0

KDH201..LHD;TRH201..5D..SP;TRH201..LHD..SG;KDH212,220,222,TRH213,22#..(03S,15S,16S)..(GEN,SA,TH,VN);KDH200,202,203,LH20#,212,222,TRH203..(03S,12S,15S,16S)..STD..(GCC,GEN,MA,TH)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26692C0

KDH201..TH;KDH201..LHD;TRH201..5D..SP;TRH223..15S,16S;TRH201..LHD..SG;KDH212,222..5F..(GCC,GEN);KDH200,202,203,220,223,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

TRH201..5D..SP;TRH223..15S,16S;KDH222..GCC,GEN;LH212,TRH201..LHD..SG;KDH201,212..4D..5F..(GCC,GEN,TH);KDH200,202,203,220,223,LH20#,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,MA,TH)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26692C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26733C0

TRH201..5D..SP;LH212,TRH201..LHD..SG;KDH222,TRH223..16S..(GCC,GEN);KDH201,212..4D..5F..(GCC,GEN,TH);KDH200,202,203,220,LH20#,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,MA,TH)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26693C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26693C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26693C0

KDH201..LHD;TRH201..5D..SP;TRH201..LHD..SG;KDH212,222,TRH223..4D..(11S,16S)..(GCC,GEN);KDH200,202,203,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26730B0

KDH220..ARL;KDH200,TRH201..LHD..SG;KDH200,TRH201..SP..(GCC,GEN);KDH202,212,222,LH20#,222,TRH203,213,22#..(03S,09S,12S,15S,16S)..(ARL,GCC,GEN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#

 1
73210-26690B0

TRH213..09S,16S;KDH20#,212,222,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,10S,11S,12S,15S,16S)

GRAY,TRIM1#

 1
73210-26691B0

TRH213..GL..VN;TRH201..LHD..SG;KDH201..SP..06S;TRH201..SP..(GCC,GEN);KDH202,212,TRH203,213..(SMRF,SRF)..4D..(09S,11S,12S,15S,16S)..(GCC,GEN,SA,VN);KDH200,220,222,LH20#,212,222,TRH22#..(03S,06S,10S,12S,15S,16S)..(CIS,GCC,GEN,TH)

GRAY,TRIM1#

 1
73210-26731B0

KDH220,221..SP;KDH201..SP..06S;KDH200,TRH201..LHD..SG;KDH222,TRH223..15S,16S;KDH200,TRH201..SP..(GCC,GEN,MA,TH);KDH202,212,LH20#,212,222,TRH203,213,221..(03S,09S,12S,15S,16S)..(ARL,GCC,GEN,MA,SA,VN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#

 1
73210-26691C0

TRH201..5D..SP;TRH213..GL..VN;TRH201..LHD..SG;KDH201,TRH221..LHD..GEN;KDH212,222,TRH213,223..(11S,15S,16S)..5F..(GEN,TH,VN);KDH200,202,203,220,LH20#,212,222,TRH203..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

BLACK,TRIM1#

 1
73210-26691C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26731C0

KDH201..LHD;TRH201..5D..SP;TRH201..LHD..SG;KDH212,220,222,TRH213,22#..(03S,15S,16S)..(GEN,SA,TH,VN);KDH200,202,203,LH20#,212,222,TRH203..(03S,12S,15S,16S)..STD..(GCC,GEN,MA,TH)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26692C0

KDH201..TH;KDH201..LHD;TRH201..5D..SP;TRH223..15S,16S;TRH201..LHD..SG;KDH212,222..5F..(GCC,GEN);KDH200,202,203,220,223,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

TRH201..5D..SP;TRH223..15S,16S;KDH222..GCC,GEN;LH212,TRH201..LHD..SG;KDH201,212..4D..5F..(GCC,GEN,TH);KDH200,202,203,220,223,LH20#,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,MA,TH)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26692C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26733C0

TRH201..5D..SP;LH212,TRH201..LHD..SG;KDH222,TRH223..16S..(GCC,GEN);KDH201,212..4D..5F..(GCC,GEN,TH);KDH200,202,203,220,LH20#,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,MA,TH)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26693C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26693C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26693C0

KDH201..LHD;TRH201..5D..SP;TRH201..LHD..SG;KDH212,222,TRH223..4D..(11S,16S)..(GCC,GEN);KDH200,202,203,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73219 - STOPPER, TONGUE PLATE
73219-33030

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

BEIGE

 1
73219-33010

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

BLACK

 1
73219-33020

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

GRAY

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-26730B0

TRH213..09S,16S;KDH20#,212,222,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,10S,11S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#

 1
73210-26730B0

KDH200,220,TRH201..SP;KDH200,TRH201..LHD..SG;KDH202,212,222,LH20#,222,TRH203,213,22#..(03S,09S,12S,14S,15S,16S)..(ARL,GCC,GEN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#

 1
73210-26690B0

KDH222,TRH223..ARL,CIS,GCC;KDH222,TRH213,223..LHD..(09S,16S)..GEN;KDH20#,212,LH20#,212,222,TRH20#,221..LHD

GRAY,TRIM1#

 1
73210-26691B0

KDH222,TRH213,223..ARL,CIS,GCC,SA,VN;KDH203,212,223..4D..(10S,11S,14S,15S);KDH222,TRH213,223..LHD..(09S,16S)..GEN;KDH200,202,212,220,LH20#,212,222,TRH20#,221..LHD..STD

GRAY,TRIM1#

 1
73210-26731B0

KDH203,223;TRH213..GCC,SA;KDH212,222,TRH223..LHD..16S..GEN;KDH212,222,TRH223..ARL,GCC,SA,VN;TRH213..LHD..(09S,16S)..(GEN,VN);KDH200,202,220,LH20#,212,222,TRH20#,221..LHD..(03S,06S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#

 1
73210-26731B0

TRH213..GL..VN;KDH212,TRH213..LHD..(09S,11S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,10S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#

 1
73210-26691C0

TRH213..GL..VN;KDH203,223,TRH221..ARL,GEN;KDH221,222,TRH223..STD..(ARL,SA);KDH200,201,202,220,LH20#,212,222,TRH20#..LHD;KDH212,222,TRH213,223..LHD..(11S,16S)..5F..(GEN,VN)

BLACK,TRIM1#

 1
73210-26691C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26731C0

TRH213..GL..VN;KDH20#,220,LH20#,212,222,TRH20#..LHD;KDH212,222,TRH213,22#..LHD..(03S,11S,12S,16S)..5F..(CIS,GEN,VN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26731C0

KDH203,223,TRH221..ARL,GEN;KDH221,222,TRH223..STD..(ARL,SA);KDH212,222,TRH213,223..LHD..16S..(GEN,VN);KDH200,201,202,220,LH20#,212,222,TRH20#..LHD

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26692C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,201,202,220,222,LH20#,212,222,TRH20#,213..LHD..(03S,06S,12S,15S,16S)

BLACK,TRIM1#

 1
73210-26692C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26732C0

KDH212..LHD..5F;KDH200,202,203,220,222,LH20#,212,222,TRH20#,213,22#..LHD..(03S,06S,12S,15S,16S)..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26732C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,202,220,222,LH20#,212,222,TRH20#,213..LHD..(03S,06S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26693C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26733C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,202,220,222,LH20#,212,222,TRH20#,213..LHD..(03S,06S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26733C0

KDH212..LHD..5F;KDH200,202,203,220,222,LH20#,212,222,TRH20#,213,22#..LHD..(03S,06S,12S,15S,16S)..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26734C0

KDH212..LHD..5F;KDH20#,220,222,LH20#,212,222,TRH201,203,213,22#..LHD..(03S,06S,12S,15S,16S)..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26693C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,201,202,220,222,LH20#,212,222,TRH201,203,213..LHD..(03S,06S,12S,15S,16S)

BLACK,TRIM1#

 1
73210-26693C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26734C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,201,202,220,222,LH20#,212,222,TRH201,203,213..LHD..(03S,06S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-26730B0

TRH213..09S,16S;KDH20#,212,222,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,10S,11S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#

 1
73210-26730B0

KDH200,220,TRH201..SP;KDH200,TRH201..LHD..SG;KDH202,212,222,LH20#,222,TRH203,213,22#..(03S,09S,12S,14S,15S,16S)..(ARL,GCC,GEN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#

 1
73210-26690B0

KDH222,TRH223..ARL,CIS,GCC;KDH222,TRH213,223..LHD..(09S,16S)..GEN;KDH20#,212,LH20#,212,222,TRH20#,221..LHD

GRAY,TRIM1#

 1
73210-26691B0

KDH222,TRH213,223..ARL,CIS,GCC,SA,VN;KDH203,212,223..4D..(10S,11S,14S,15S);KDH222,TRH213,223..LHD..(09S,16S)..GEN;KDH200,202,212,220,LH20#,212,222,TRH20#,221..LHD..STD

GRAY,TRIM1#

 1
73210-26731B0

KDH203,223;TRH213..GCC,SA;KDH212,222,TRH223..LHD..16S..GEN;KDH212,222,TRH223..ARL,GCC,SA,VN;TRH213..LHD..(09S,16S)..(GEN,VN);KDH200,202,220,LH20#,212,222,TRH20#,221..LHD..(03S,06S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#

 1
73210-26731B0

TRH213..GL..VN;KDH212,TRH213..LHD..(09S,11S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,10S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#

 1
73210-26691C0

TRH213..GL..VN;KDH203,223,TRH221..ARL,GEN;KDH221,222,TRH223..STD..(ARL,SA);KDH200,201,202,220,LH20#,212,222,TRH20#..LHD;KDH212,222,TRH213,223..LHD..(11S,16S)..5F..(GEN,VN)

BLACK,TRIM1#

 1
73210-26691C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26731C0

TRH213..GL..VN;KDH20#,220,LH20#,212,222,TRH20#..LHD;KDH212,222,TRH213,22#..LHD..(03S,11S,12S,16S)..5F..(CIS,GEN,VN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26731C0

KDH203,223,TRH221..ARL,GEN;KDH221,222,TRH223..STD..(ARL,SA);KDH212,222,TRH213,223..LHD..16S..(GEN,VN);KDH200,201,202,220,LH20#,212,222,TRH20#..LHD

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26692C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,201,202,220,222,LH20#,212,222,TRH20#,213..LHD..(03S,06S,12S,15S,16S)

BLACK,TRIM1#

 1
73210-26692C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26732C0

KDH212..LHD..5F;KDH200,202,203,220,222,LH20#,212,222,TRH20#,213,22#..LHD..(03S,06S,12S,15S,16S)..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26732C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,202,220,222,LH20#,212,222,TRH20#,213..LHD..(03S,06S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26693C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26733C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,202,220,222,LH20#,212,222,TRH20#,213..LHD..(03S,06S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26733C0

KDH212..LHD..5F;KDH200,202,203,220,222,LH20#,212,222,TRH20#,213,22#..LHD..(03S,06S,12S,15S,16S)..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26734C0

KDH212..LHD..5F;KDH20#,220,222,LH20#,212,222,TRH201,203,213,22#..LHD..(03S,06S,12S,15S,16S)..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26693C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,201,202,220,222,LH20#,212,222,TRH201,203,213..LHD..(03S,06S,12S,15S,16S)

BLACK,TRIM1#

 1
73210-26693C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26734C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,201,202,220,222,LH20#,212,222,TRH201,203,213..LHD..(03S,06S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-26250B0

KDH201..SP..06S;TRH201..SP..(GCC,GEN);TRH201,213..LHD..SG..(03S,06S,10S);KDH200,220,222,LH20#,212,222,TRH22#..CIS,GCC,GEN,TH;KDH202,212,TRH203,213..(SMRF,SRF)..4D..(09S,11S,12S,15S,16S)..(GCC,GEN,SA,VN)

GRAY,TRIM1#

 1
73230-26250C0

KDH201..LHD;TRH201..5D..SP;TRH201..LHD..SG;KDH212,222,TRH213,223..4D..(CIS,GCC,GEN,VN);KDH200,202,203,220,LH20#,212,222,TRH203,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

BLACK,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-26250B0

TRH213..09S,10S,15S;TRH223..LHD..5F..GEN;KDH203,212,222,223,TRH223..(10S,11S,12S,13S,14S,15S)..(ARL,CIS,GEN,SA);KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,221..LHD..STD..(GEN,VN)

GRAY,TRIM1#

 1
Common parts
90105-11053
90109-11058
90901-19040
91553-80612

(0501- )

Click highlighted areas on diagram

FRONT SEAT BELT-W(CENTER SEAT)

diagram 73115 73139B 73150 73160A 73210 73210 73219 73220 73220 73230 73240 73240 9010511053 90105T0063 9010911057 9010911058 90109T0001 90109T0012 9090119040 9090119040 9155380612 9155380612
Part # Description Qty Price
73115 - CLIP, BELT COMFORT NO.1
73115-26010B0

TRH213,223..RHD;TRH223..CIS,GCC;TRH213..LHD..10S;KDH212,222,LH222..RHD..GEN;KDH20#,220,221,223,LH20#,212,TRH20#;KDH212,TRH223..(10S,11S,13S,15S)..(GEN,SA);KDH212,222,TRH213,221..(03S,14S,16S)..(ARL,GCC,SA,TH,VN)

GRAY,TRIM1#

 2
73139B - COVER, SEAT BELT ANCHOR
73139-26030B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

GRAY,TRIM1#

 1
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-26010B0

TRH223..15S,16S;KDH202,LH202,TRH203..SRF..(GCC,GEN);KDH200,201,212,220,221,222,LH200,212,222,TRH201,213,221..(03S,06S,09S,16S)..(ARL,GCC,GEN,SA,TH,VN)

GRAY,TRIM1#

 1
73150-26010C0

KDH221..ARL;KDH202..SRF..STD;KDH212,222,TRH213,22#..(03S,15S,16S)..(ARL,GEN,SA,TH,VN);KDH200,201,203,220,LH20#,212,222,TRH20#..(03S,06S,12S,15S,16S)..(ARL,GCC,GEN,SA,TH)

BLACK,TRIM1#

 1
73150-26011C0

KDH202,222..GCC,GEN;KDH200,201,203,212,220,221,223,LH20#,212,222,TRH20#,213,22#..(03S,06S,12S,15S,16S)..(ARL,GCC,GEN,SA,TH)

BLACK,TRIM1#

 1
73160A - SEAT BELT ASSY, FRONT CENTER, RH
73160-26090B0

KDH202,TRH203..SRF..(GCC,GEN);KDH200,201,LH20#,TRH201..ARL,GCC,GEN,SA,TH

GRAY,TRIM1#

 1
73160-26090C0

KDH20#,LH20#,TRH201,203..LHD

BLACK,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26730B0

KDH220..ARL;KDH200,TRH201..LHD..SG;KDH200,TRH201..SP..(GCC,GEN);KDH202,212,222,LH20#,222,TRH203,213,22#..(03S,09S,12S,15S,16S)..(ARL,GCC,GEN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#

 1
73210-26690B0

TRH213..09S,16S;KDH20#,212,222,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,10S,11S,12S,15S,16S)

GRAY,TRIM1#

 1
73210-26691B0

TRH213..GL..VN;TRH201..LHD..SG;KDH201..SP..06S;TRH201..SP..(GCC,GEN);KDH202,212,TRH203,213..(SMRF,SRF)..4D..(09S,11S,12S,15S,16S)..(GCC,GEN,SA,VN);KDH200,220,222,LH20#,212,222,TRH22#..(03S,06S,10S,12S,15S,16S)..(CIS,GCC,GEN,TH)

GRAY,TRIM1#

 1
73210-26731B0

KDH220,221..SP;KDH201..SP..06S;KDH200,TRH201..LHD..SG;KDH222,TRH223..15S,16S;KDH200,TRH201..SP..(GCC,GEN,MA,TH);KDH202,212,LH20#,212,222,TRH203,213,221..(03S,09S,12S,15S,16S)..(ARL,GCC,GEN,MA,SA,VN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#

 1
73210-26691C0

TRH201..5D..SP;TRH213..GL..VN;TRH201..LHD..SG;KDH201,TRH221..LHD..GEN;KDH212,222,TRH213,223..(11S,15S,16S)..5F..(GEN,TH,VN);KDH200,202,203,220,LH20#,212,222,TRH203..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

BLACK,TRIM1#

 1
73210-26691C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26731C0

KDH201..LHD;TRH201..5D..SP;TRH201..LHD..SG;KDH212,220,222,TRH213,22#..(03S,15S,16S)..(GEN,SA,TH,VN);KDH200,202,203,LH20#,212,222,TRH203..(03S,12S,15S,16S)..STD..(GCC,GEN,MA,TH)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26692C0

KDH201..TH;KDH201..LHD;TRH201..5D..SP;TRH223..15S,16S;TRH201..LHD..SG;KDH212,222..5F..(GCC,GEN);KDH200,202,203,220,223,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

TRH201..5D..SP;TRH223..15S,16S;KDH222..GCC,GEN;LH212,TRH201..LHD..SG;KDH201,212..4D..5F..(GCC,GEN,TH);KDH200,202,203,220,223,LH20#,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,MA,TH)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26692C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26733C0

TRH201..5D..SP;LH212,TRH201..LHD..SG;KDH222,TRH223..16S..(GCC,GEN);KDH201,212..4D..5F..(GCC,GEN,TH);KDH200,202,203,220,LH20#,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,MA,TH)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26693C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26693C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26693C0

KDH201..LHD;TRH201..5D..SP;TRH201..LHD..SG;KDH212,222,TRH223..4D..(11S,16S)..(GCC,GEN);KDH200,202,203,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26730B0

KDH220..ARL;KDH200,TRH201..LHD..SG;KDH200,TRH201..SP..(GCC,GEN);KDH202,212,222,LH20#,222,TRH203,213,22#..(03S,09S,12S,15S,16S)..(ARL,GCC,GEN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#

 1
73210-26690B0

TRH213..09S,16S;KDH20#,212,222,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,10S,11S,12S,15S,16S)

GRAY,TRIM1#

 1
73210-26691B0

TRH213..GL..VN;TRH201..LHD..SG;KDH201..SP..06S;TRH201..SP..(GCC,GEN);KDH202,212,TRH203,213..(SMRF,SRF)..4D..(09S,11S,12S,15S,16S)..(GCC,GEN,SA,VN);KDH200,220,222,LH20#,212,222,TRH22#..(03S,06S,10S,12S,15S,16S)..(CIS,GCC,GEN,TH)

GRAY,TRIM1#

 1
73210-26731B0

KDH220,221..SP;KDH201..SP..06S;KDH200,TRH201..LHD..SG;KDH222,TRH223..15S,16S;KDH200,TRH201..SP..(GCC,GEN,MA,TH);KDH202,212,LH20#,212,222,TRH203,213,221..(03S,09S,12S,15S,16S)..(ARL,GCC,GEN,MA,SA,VN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#

 1
73210-26691C0

TRH201..5D..SP;TRH213..GL..VN;TRH201..LHD..SG;KDH201,TRH221..LHD..GEN;KDH212,222,TRH213,223..(11S,15S,16S)..5F..(GEN,TH,VN);KDH200,202,203,220,LH20#,212,222,TRH203..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

BLACK,TRIM1#

 1
73210-26691C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26731C0

KDH201..LHD;TRH201..5D..SP;TRH201..LHD..SG;KDH212,220,222,TRH213,22#..(03S,15S,16S)..(GEN,SA,TH,VN);KDH200,202,203,LH20#,212,222,TRH203..(03S,12S,15S,16S)..STD..(GCC,GEN,MA,TH)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26692C0

KDH201..TH;KDH201..LHD;TRH201..5D..SP;TRH223..15S,16S;TRH201..LHD..SG;KDH212,222..5F..(GCC,GEN);KDH200,202,203,220,223,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

TRH201..5D..SP;TRH223..15S,16S;KDH222..GCC,GEN;LH212,TRH201..LHD..SG;KDH201,212..4D..5F..(GCC,GEN,TH);KDH200,202,203,220,223,LH20#,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,MA,TH)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26692C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26733C0

TRH201..5D..SP;LH212,TRH201..LHD..SG;KDH222,TRH223..16S..(GCC,GEN);KDH201,212..4D..5F..(GCC,GEN,TH);KDH200,202,203,220,LH20#,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,MA,TH)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26693C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26693C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26693C0

KDH201..LHD;TRH201..5D..SP;TRH201..LHD..SG;KDH212,222,TRH223..4D..(11S,16S)..(GCC,GEN);KDH200,202,203,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73219 - STOPPER, TONGUE PLATE
73219-33030

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

BEIGE

 1
73219-33010

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

BLACK

 1
73219-33020

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

GRAY

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-26730B0

TRH213..09S,16S;KDH20#,212,222,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,10S,11S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#

 1
73210-26730B0

KDH200,220,TRH201..SP;KDH200,TRH201..LHD..SG;KDH202,212,222,LH20#,222,TRH203,213,22#..(03S,09S,12S,14S,15S,16S)..(ARL,GCC,GEN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#

 1
73210-26690B0

KDH222,TRH223..ARL,CIS,GCC;KDH222,TRH213,223..LHD..(09S,16S)..GEN;KDH20#,212,LH20#,212,222,TRH20#,221..LHD

GRAY,TRIM1#

 1
73210-26691B0

KDH222,TRH213,223..ARL,CIS,GCC,SA,VN;KDH203,212,223..4D..(10S,11S,14S,15S);KDH222,TRH213,223..LHD..(09S,16S)..GEN;KDH200,202,212,220,LH20#,212,222,TRH20#,221..LHD..STD

GRAY,TRIM1#

 1
73210-26731B0

KDH203,223;TRH213..GCC,SA;KDH212,222,TRH223..LHD..16S..GEN;KDH212,222,TRH223..ARL,GCC,SA,VN;TRH213..LHD..(09S,16S)..(GEN,VN);KDH200,202,220,LH20#,212,222,TRH20#,221..LHD..(03S,06S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#

 1
73210-26731B0

TRH213..GL..VN;KDH212,TRH213..LHD..(09S,11S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,10S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#

 1
73210-26691C0

TRH213..GL..VN;KDH203,223,TRH221..ARL,GEN;KDH221,222,TRH223..STD..(ARL,SA);KDH200,201,202,220,LH20#,212,222,TRH20#..LHD;KDH212,222,TRH213,223..LHD..(11S,16S)..5F..(GEN,VN)

BLACK,TRIM1#

 1
73210-26691C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26731C0

TRH213..GL..VN;KDH20#,220,LH20#,212,222,TRH20#..LHD;KDH212,222,TRH213,22#..LHD..(03S,11S,12S,16S)..5F..(CIS,GEN,VN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26731C0

KDH203,223,TRH221..ARL,GEN;KDH221,222,TRH223..STD..(ARL,SA);KDH212,222,TRH213,223..LHD..16S..(GEN,VN);KDH200,201,202,220,LH20#,212,222,TRH20#..LHD

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26692C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,201,202,220,222,LH20#,212,222,TRH20#,213..LHD..(03S,06S,12S,15S,16S)

BLACK,TRIM1#

 1
73210-26692C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26732C0

KDH212..LHD..5F;KDH200,202,203,220,222,LH20#,212,222,TRH20#,213,22#..LHD..(03S,06S,12S,15S,16S)..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26732C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,202,220,222,LH20#,212,222,TRH20#,213..LHD..(03S,06S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26693C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26733C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,202,220,222,LH20#,212,222,TRH20#,213..LHD..(03S,06S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26733C0

KDH212..LHD..5F;KDH200,202,203,220,222,LH20#,212,222,TRH20#,213,22#..LHD..(03S,06S,12S,15S,16S)..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26734C0

KDH212..LHD..5F;KDH20#,220,222,LH20#,212,222,TRH201,203,213,22#..LHD..(03S,06S,12S,15S,16S)..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26693C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,201,202,220,222,LH20#,212,222,TRH201,203,213..LHD..(03S,06S,12S,15S,16S)

BLACK,TRIM1#

 1
73210-26693C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26734C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,201,202,220,222,LH20#,212,222,TRH201,203,213..LHD..(03S,06S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-26730B0

TRH213..09S,16S;KDH20#,212,222,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,10S,11S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#

 1
73210-26730B0

KDH200,220,TRH201..SP;KDH200,TRH201..LHD..SG;KDH202,212,222,LH20#,222,TRH203,213,22#..(03S,09S,12S,14S,15S,16S)..(ARL,GCC,GEN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#

 1
73210-26690B0

KDH222,TRH223..ARL,CIS,GCC;KDH222,TRH213,223..LHD..(09S,16S)..GEN;KDH20#,212,LH20#,212,222,TRH20#,221..LHD

GRAY,TRIM1#

 1
73210-26691B0

KDH222,TRH213,223..ARL,CIS,GCC,SA,VN;KDH203,212,223..4D..(10S,11S,14S,15S);KDH222,TRH213,223..LHD..(09S,16S)..GEN;KDH200,202,212,220,LH20#,212,222,TRH20#,221..LHD..STD

GRAY,TRIM1#

 1
73210-26731B0

KDH203,223;TRH213..GCC,SA;KDH212,222,TRH223..LHD..16S..GEN;KDH212,222,TRH223..ARL,GCC,SA,VN;TRH213..LHD..(09S,16S)..(GEN,VN);KDH200,202,220,LH20#,212,222,TRH20#,221..LHD..(03S,06S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#

 1
73210-26731B0

TRH213..GL..VN;KDH212,TRH213..LHD..(09S,11S,16S)..5F;KDH200,202,220,222,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,10S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#

 1
73210-26691C0

TRH213..GL..VN;KDH203,223,TRH221..ARL,GEN;KDH221,222,TRH223..STD..(ARL,SA);KDH200,201,202,220,LH20#,212,222,TRH20#..LHD;KDH212,222,TRH213,223..LHD..(11S,16S)..5F..(GEN,VN)

BLACK,TRIM1#

 1
73210-26691C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26731C0

TRH213..GL..VN;KDH20#,220,LH20#,212,222,TRH20#..LHD;KDH212,222,TRH213,22#..LHD..(03S,11S,12S,16S)..5F..(CIS,GEN,VN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26731C0

KDH203,223,TRH221..ARL,GEN;KDH221,222,TRH223..STD..(ARL,SA);KDH212,222,TRH213,223..LHD..16S..(GEN,VN);KDH200,201,202,220,LH20#,212,222,TRH20#..LHD

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26731C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26692C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,201,202,220,222,LH20#,212,222,TRH20#,213..LHD..(03S,06S,12S,15S,16S)

BLACK,TRIM1#

 1
73210-26692C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26732C0

KDH212..LHD..5F;KDH200,202,203,220,222,LH20#,212,222,TRH20#,213,22#..LHD..(03S,06S,12S,15S,16S)..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26732C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,202,220,222,LH20#,212,222,TRH20#,213..LHD..(03S,06S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26732C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26693C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26733C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,202,220,222,LH20#,212,222,TRH20#,213..LHD..(03S,06S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26733C0

KDH212..LHD..5F;KDH200,202,203,220,222,LH20#,212,222,TRH20#,213,22#..LHD..(03S,06S,12S,15S,16S)..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26733C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26734C0

KDH212..LHD..5F;KDH20#,220,222,LH20#,212,222,TRH201,203,213,22#..LHD..(03S,06S,12S,15S,16S)..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26693C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,201,202,220,222,LH20#,212,222,TRH201,203,213..LHD..(03S,06S,12S,15S,16S)

BLACK,TRIM1#

 1
73210-26693C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE,BLACK,TRIM1#

 1
73210-26734C0

KDH212..LHD..5F;TRH223..LHD..5F..GEN;KDH221,TRH223..ARL,GCC;KDH203,223,TRH221..ARL,GCC,GEN;KDH200,201,202,220,222,LH20#,212,222,TRH201,203,213..LHD..(03S,06S,12S,15S,16S)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73210-26734C0

KDH202..12S..GEN

TUNISIA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-26250B0

KDH201..SP..06S;TRH201..SP..(GCC,GEN);TRH201,213..LHD..SG..(03S,06S,10S);KDH200,220,222,LH20#,212,222,TRH22#..CIS,GCC,GEN,TH;KDH202,212,TRH203,213..(SMRF,SRF)..4D..(09S,11S,12S,15S,16S)..(GCC,GEN,SA,VN)

GRAY,TRIM1#

 1
73230-26250C0

KDH201..LHD;TRH201..5D..SP;TRH201..LHD..SG;KDH212,222,TRH213,223..4D..(CIS,GCC,GEN,VN);KDH200,202,203,220,LH20#,212,222,TRH203,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)

BLACK,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-26250B0

TRH213..09S,10S,15S;TRH223..LHD..5F..GEN;KDH203,212,222,223,TRH223..(10S,11S,12S,13S,14S,15S)..(ARL,CIS,GEN,SA);KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,221..LHD..STD..(GEN,VN)

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-26250B0

TRH213..09S,10S,15S;TRH223..LHD..5F..GEN;KDH203,212,222,223,TRH223..(10S,11S,12S,13S,14S,15S)..(ARL,CIS,GEN,SA);KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,221..LHD..STD..(GEN,VN)

GRAY,TRIM1#

 1
Common parts
90105-11053
90105-T0063
90109-11057
90109-11058
90109-T0001
90109-T0012
90901-19040
91553-80612

(0501- )KDH202,203,212,222,LH202,212,222,TRH203,213,223..LHD

Click highlighted areas on diagram

REAR SEAT-FOR 3 PERSONS

diagram 73310 73310 73330B 73330B 73330B 73330G 73330G 73330G 73380D 73380D 73380D 73380D 73380E 73380E 73380H 73380H 73380H 73460A 73460A 73460C 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058
Part # Description Qty Price
73330B - BELT ASSY, SEAT LAP TYPE, NO.1
73330-26130B0

KDH202,LH202,TRH203..LHD..12S

REAR SEAT BELT-2 POINT TYPE X 9(FOR 9 PERSONS),GRAY,TRIM1#

 5
73330-26130B0

KDH202,212,LH202,212,TRH203,213..(12S,16S)..(GCC,GEN)

GRAY,TRIM1#

 5
73330-26130B0

KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1#

 5
73330-26130B0

KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE,GRAY,TRIM1#

 5
73330-26130C0

KDH202..12S..GEN

TUNISIA SPEC&REAR SEAT-3-ROW(FOR 7 PERSONS),BLACK,TRIM1#

 3
73330-26130C0

KDH202,LH202..12S..GEN

AMBURANCE BASE,BLACK,TRIM1#

 5
73330-26130C0

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR SEAT-WITHOUT,BLACK,TRIM1#

 5
73330B - BELT ASSY, SEAT LAP TYPE, NO.1
73330-26130B0

KDH202,LH202,TRH203..LHD..12S

REAR SEAT BELT-2 POINT TYPE X 9(FOR 9 PERSONS),GRAY,TRIM1#

 5
73330-26130B0

KDH202,212,LH202,212,TRH203,213..(12S,16S)..(GCC,GEN)

GRAY,TRIM1#

 5
73330-26130B0

KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1#

 5
73330-26130B0

KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE,GRAY,TRIM1#

 5
73330-26130C0

KDH202..12S..GEN

TUNISIA SPEC&REAR SEAT-3-ROW(FOR 7 PERSONS),BLACK,TRIM1#

 3
73330-26130C0

KDH202,LH202..12S..GEN

AMBURANCE BASE,BLACK,TRIM1#

 5
73330-26130C0

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR SEAT-WITHOUT,BLACK,TRIM1#

 5
73330B - BELT ASSY, SEAT LAP TYPE, NO.1
73330-26130B0

KDH202,LH202,TRH203..LHD..12S

REAR SEAT BELT-2 POINT TYPE X 9(FOR 9 PERSONS),GRAY,TRIM1#

 5
73330-26130B0

KDH202,212,LH202,212,TRH203,213..(12S,16S)..(GCC,GEN)

GRAY,TRIM1#

 5
73330-26130B0

KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1#

 5
73330-26130B0

KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE,GRAY,TRIM1#

 5
73330-26130C0

KDH202..12S..GEN

TUNISIA SPEC&REAR SEAT-3-ROW(FOR 7 PERSONS),BLACK,TRIM1#

 3
73330-26130C0

KDH202,LH202..12S..GEN

AMBURANCE BASE,BLACK,TRIM1#

 5
73330-26130C0

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR SEAT-WITHOUT,BLACK,TRIM1#

 5
73380D - BELT ASSY, REAR SEAT, INNER
73380-26340B0

KDH202,LH202,TRH203..LHD..12S

REAR SEAT BELT-2 POINT TYPE X 9(FOR 9 PERSONS),GRAY,TRIM1#

 3
73380-26340B0

KDH202,222,LH202,222,TRH203,223..STD..(GCC,GEN)

AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1#

 3
73380-26340B0

KDH222,TRH223..STD..GCC;KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE,GRAY,TRIM1#

 3
73380-26340B0

TRH223..15S,16S;KDH202,212,222,LH202,212,222,TRH203,213..(12S,15S,16S)..(GCC,GEN)

GRAY,TRIM1#

 3
73380-26340C0

KDH202,LH202..12S..GEN;KDH222,TRH223..5F..STD..GCC

AMBURANCE BASE,BLACK,TRIM1#

 3
73380-26340C0

TRH223..16S..5F..STD;KDH202,203,222,LH202,222,TRH203..(12S,15S,16S)..STD..(GCC,GEN)

AMBURANCE BASE&REAR SEAT-WITHOUT,BLACK,TRIM1#

 3
73380D - BELT ASSY, REAR SEAT, INNER
73380-26340B0

KDH202,LH202,TRH203..LHD..12S

REAR SEAT BELT-2 POINT TYPE X 9(FOR 9 PERSONS),GRAY,TRIM1#

 3
73380-26340B0

KDH202,222,LH202,222,TRH203,223..STD..(GCC,GEN)

AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1#

 3
73380-26340B0

KDH222,TRH223..STD..GCC;KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE,GRAY,TRIM1#

 3
73380-26340B0

TRH223..15S,16S;KDH202,212,222,LH202,212,222,TRH203,213..(12S,15S,16S)..(GCC,GEN)

GRAY,TRIM1#

 3
73380-26340C0

KDH202,LH202..12S..GEN;KDH222,TRH223..5F..STD..GCC

AMBURANCE BASE,BLACK,TRIM1#

 3
73380-26340C0

TRH223..16S..5F..STD;KDH202,203,222,LH202,222,TRH203..(12S,15S,16S)..STD..(GCC,GEN)

AMBURANCE BASE&REAR SEAT-WITHOUT,BLACK,TRIM1#

 3
73380D - BELT ASSY, REAR SEAT, INNER
73380-26340B0

KDH202,LH202,TRH203..LHD..12S

REAR SEAT BELT-2 POINT TYPE X 9(FOR 9 PERSONS),GRAY,TRIM1#

 3
73380-26340B0

KDH202,222,LH202,222,TRH203,223..STD..(GCC,GEN)

AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1#

 3
73380-26340B0

KDH222,TRH223..STD..GCC;KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE,GRAY,TRIM1#

 3
73380-26340B0

TRH223..15S,16S;KDH202,212,222,LH202,212,222,TRH203,213..(12S,15S,16S)..(GCC,GEN)

GRAY,TRIM1#

 3
73380-26340C0

KDH202,LH202..12S..GEN;KDH222,TRH223..5F..STD..GCC

AMBURANCE BASE,BLACK,TRIM1#

 3
73380-26340C0

TRH223..16S..5F..STD;KDH202,203,222,LH202,222,TRH203..(12S,15S,16S)..STD..(GCC,GEN)

AMBURANCE BASE&REAR SEAT-WITHOUT,BLACK,TRIM1#

 3
73380D - BELT ASSY, REAR SEAT, INNER
73380-26340B0

KDH202,LH202,TRH203..LHD..12S

REAR SEAT BELT-2 POINT TYPE X 9(FOR 9 PERSONS),GRAY,TRIM1#

 3
73380-26340B0

KDH202,222,LH202,222,TRH203,223..STD..(GCC,GEN)

AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1#

 3
73380-26340B0

KDH222,TRH223..STD..GCC;KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE,GRAY,TRIM1#

 3
73380-26340B0

TRH223..15S,16S;KDH202,212,222,LH202,212,222,TRH203,213..(12S,15S,16S)..(GCC,GEN)

GRAY,TRIM1#

 3
73380-26340C0

KDH202,LH202..12S..GEN;KDH222,TRH223..5F..STD..GCC

AMBURANCE BASE,BLACK,TRIM1#

 3
73380-26340C0

TRH223..16S..5F..STD;KDH202,203,222,LH202,222,TRH203..(12S,15S,16S)..STD..(GCC,GEN)

AMBURANCE BASE&REAR SEAT-WITHOUT,BLACK,TRIM1#

 3
73460A - BELT ASSY, REAR SEAT CENTER, INNER
73460-26040B0

KDH202,LH202,TRH203..LHD..12S

REAR SEAT BELT-2 POINT TYPE X 9(FOR 9 PERSONS),GRAY,TRIM1#

 3
73460-26040B0

KDH202,212,222,LH202,212,222,TRH203,213,223..LHD..(12S,15S,16S)..STD..(GCC,GEN)

GRAY,TRIM1#

 3
73460-26040B0

KDH202,222,LH202,222,TRH203,223..LHD..STD

AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1#

 3
73460-26040B0

KDH222,TRH223..STD..GCC;KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE,GRAY,TRIM1#

 3
73460-26040C0

KDH202,203,212,222,LH202,212,222,TRH203,213,223..LHD..STD

BLACK,TRIM1#

 3
73460-26040C0

KDH202,LH202..12S..GEN;KDH222,TRH223..5F..STD..GCC

AMBURANCE BASE,BLACK,TRIM1#

 3
73460-26040C0

TRH223..LHD..5F..STD;KDH202,203,222,LH202,222,TRH203..LHD..STD

AMBURANCE BASE&REAR SEAT-WITHOUT,BLACK,TRIM1#

 3
73460A - BELT ASSY, REAR SEAT CENTER, INNER
73460-26040B0

KDH202,LH202,TRH203..LHD..12S

REAR SEAT BELT-2 POINT TYPE X 9(FOR 9 PERSONS),GRAY,TRIM1#

 3
73460-26040B0

KDH202,212,222,LH202,212,222,TRH203,213,223..LHD..(12S,15S,16S)..STD..(GCC,GEN)

GRAY,TRIM1#

 3
73460-26040B0

KDH202,222,LH202,222,TRH203,223..LHD..STD

AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1#

 3
73460-26040B0

KDH222,TRH223..STD..GCC;KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE,GRAY,TRIM1#

 3
73460-26040C0

KDH202,203,212,222,LH202,212,222,TRH203,213,223..LHD..STD

BLACK,TRIM1#

 3
73460-26040C0

KDH202,LH202..12S..GEN;KDH222,TRH223..5F..STD..GCC

AMBURANCE BASE,BLACK,TRIM1#

 3
73460-26040C0

TRH223..LHD..5F..STD;KDH202,203,222,LH202,222,TRH203..LHD..STD

AMBURANCE BASE&REAR SEAT-WITHOUT,BLACK,TRIM1#

 3
73460C - BELT ASSY, REAR SEAT CENTER, INNER
73460-26050B0

KDH202,LH202,TRH203..LHD..12S

REAR SEAT BELT-2 POINT TYPE X 9(FOR 9 PERSONS),GRAY,TRIM1#

 1
73460-26050B0

KDH222,TRH223..STD..GCC;KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE,GRAY,TRIM1#

 1
73460-26050C0

KDH202,LH202..12S..GEN;KDH222,TRH223..5F..STD..GCC

AMBURANCE BASE,BLACK,TRIM1#

 1
73460-26050B0

KDH202,222,LH202,222,TRH203,223..LHD..STD

GRAY,TRIM1#

 1
73460-26050C0

KDH202,203,222,LH202,222,TRH203,223..LHD..STD

BLACK,TRIM1#

 1
73460-26050B0

KDH202,222,LH202,222,TRH203,223..LHD..STD

AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1#

 1
73460-26050C0

TRH223..LHD..5F..STD;KDH202,203,222,LH202,222,TRH203..LHD..STD

AMBURANCE BASE&REAR SEAT-WITHOUT,BLACK,TRIM1#

 1
Common parts
90105-11058

(0501- )KDH202,203,212,222,223,LH202,212,222,TRH203,213,223..LHD

Click highlighted areas on diagram

REAR SEAT-FOR 2 PERSON

diagram 73310 73330B 73330B 73330G 73380D 73380D 73380D 73380E 73380E 73460A 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058
Part # Description Qty Price
73330B - BELT ASSY, SEAT LAP TYPE, NO.1
73330-26130B0

KDH202,LH202,TRH203..LHD..12S

REAR SEAT BELT-2 POINT TYPE X 9(FOR 9 PERSONS),GRAY,TRIM1#

 5
73330-26130B0

KDH202,212,LH202,212,TRH203,213..(12S,16S)..(GCC,GEN)

GRAY,TRIM1#

 5
73330-26130B0

KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1#

 5
73330-26130B0

KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE,GRAY,TRIM1#

 5
73330-26130C0

KDH202..12S..GEN

TUNISIA SPEC&REAR SEAT-3-ROW(FOR 7 PERSONS),BLACK,TRIM1#

 3
73330-26130C0

KDH202,LH202..12S..GEN

AMBURANCE BASE,BLACK,TRIM1#

 5
73330-26130C0

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR SEAT-WITHOUT,BLACK,TRIM1#

 5
73330B - BELT ASSY, SEAT LAP TYPE, NO.1
73330-26130B0

KDH202,LH202,TRH203..LHD..12S

REAR SEAT BELT-2 POINT TYPE X 9(FOR 9 PERSONS),GRAY,TRIM1#

 5
73330-26130B0

KDH202,212,LH202,212,TRH203,213..(12S,16S)..(GCC,GEN)

GRAY,TRIM1#

 5
73330-26130B0

KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1#

 5
73330-26130B0

KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE,GRAY,TRIM1#

 5
73330-26130C0

KDH202..12S..GEN

TUNISIA SPEC&REAR SEAT-3-ROW(FOR 7 PERSONS),BLACK,TRIM1#

 3
73330-26130C0

KDH202,LH202..12S..GEN

AMBURANCE BASE,BLACK,TRIM1#

 5
73330-26130C0

KDH202,203,LH202..12S..GEN

AMBURANCE BASE&REAR SEAT-WITHOUT,BLACK,TRIM1#

 5
73380D - BELT ASSY, REAR SEAT, INNER
73380-26340B0

KDH202,LH202,TRH203..LHD..12S

REAR SEAT BELT-2 POINT TYPE X 9(FOR 9 PERSONS),GRAY,TRIM1#

 3
73380-26340B0

KDH202,222,LH202,222,TRH203,223..STD..(GCC,GEN)

AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1#

 3
73380-26340B0

KDH222,TRH223..STD..GCC;KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE,GRAY,TRIM1#

 3
73380-26340B0

TRH223..15S,16S;KDH202,212,222,LH202,212,222,TRH203,213..(12S,15S,16S)..(GCC,GEN)

GRAY,TRIM1#

 3
73380-26340C0

KDH202,LH202..12S..GEN;KDH222,TRH223..5F..STD..GCC

AMBURANCE BASE,BLACK,TRIM1#

 3
73380-26340C0

TRH223..16S..5F..STD;KDH202,203,222,LH202,222,TRH203..(12S,15S,16S)..STD..(GCC,GEN)

AMBURANCE BASE&REAR SEAT-WITHOUT,BLACK,TRIM1#

 3
73380D - BELT ASSY, REAR SEAT, INNER
73380-26340B0

KDH202,LH202,TRH203..LHD..12S

REAR SEAT BELT-2 POINT TYPE X 9(FOR 9 PERSONS),GRAY,TRIM1#

 3
73380-26340B0

KDH202,222,LH202,222,TRH203,223..STD..(GCC,GEN)

AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1#

 3
73380-26340B0

KDH222,TRH223..STD..GCC;KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE,GRAY,TRIM1#

 3
73380-26340B0

TRH223..15S,16S;KDH202,212,222,LH202,212,222,TRH203,213..(12S,15S,16S)..(GCC,GEN)

GRAY,TRIM1#

 3
73380-26340C0

KDH202,LH202..12S..GEN;KDH222,TRH223..5F..STD..GCC

AMBURANCE BASE,BLACK,TRIM1#

 3
73380-26340C0

TRH223..16S..5F..STD;KDH202,203,222,LH202,222,TRH203..(12S,15S,16S)..STD..(GCC,GEN)

AMBURANCE BASE&REAR SEAT-WITHOUT,BLACK,TRIM1#

 3
73380D - BELT ASSY, REAR SEAT, INNER
73380-26340B0

KDH202,LH202,TRH203..LHD..12S

REAR SEAT BELT-2 POINT TYPE X 9(FOR 9 PERSONS),GRAY,TRIM1#

 3
73380-26340B0

KDH202,222,LH202,222,TRH203,223..STD..(GCC,GEN)

AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1#

 3
73380-26340B0

KDH222,TRH223..STD..GCC;KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE,GRAY,TRIM1#

 3
73380-26340B0

TRH223..15S,16S;KDH202,212,222,LH202,212,222,TRH203,213..(12S,15S,16S)..(GCC,GEN)

GRAY,TRIM1#

 3
73380-26340C0

KDH202,LH202..12S..GEN;KDH222,TRH223..5F..STD..GCC

AMBURANCE BASE,BLACK,TRIM1#

 3
73380-26340C0

TRH223..16S..5F..STD;KDH202,203,222,LH202,222,TRH203..(12S,15S,16S)..STD..(GCC,GEN)

AMBURANCE BASE&REAR SEAT-WITHOUT,BLACK,TRIM1#

 3
73460A - BELT ASSY, REAR SEAT CENTER, INNER
73460-26040B0

KDH202,LH202,TRH203..LHD..12S

REAR SEAT BELT-2 POINT TYPE X 9(FOR 9 PERSONS),GRAY,TRIM1#

 3
73460-26040B0

KDH202,212,222,LH202,212,222,TRH203,213,223..LHD..(12S,15S,16S)..STD..(GCC,GEN)

GRAY,TRIM1#

 3
73460-26040B0

KDH202,222,LH202,222,TRH203,223..LHD..STD

AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1#

 3
73460-26040B0

KDH222,TRH223..STD..GCC;KDH202,LH202,TRH203..12S..GEN

AMBURANCE BASE,GRAY,TRIM1#

 3
73460-26040C0

KDH202,203,212,222,LH202,212,222,TRH203,213,223..LHD..STD

BLACK,TRIM1#

 3
73460-26040C0

KDH202,LH202..12S..GEN;KDH222,TRH223..5F..STD..GCC

AMBURANCE BASE,BLACK,TRIM1#

 3
73460-26040C0

TRH223..LHD..5F..STD;KDH202,203,222,LH202,222,TRH203..LHD..STD

AMBURANCE BASE&REAR SEAT-WITHOUT,BLACK,TRIM1#

 3
Common parts
90105-11058

(0501- )KDH202,222,223,TRH203,223..LHD

Click highlighted areas on diagram

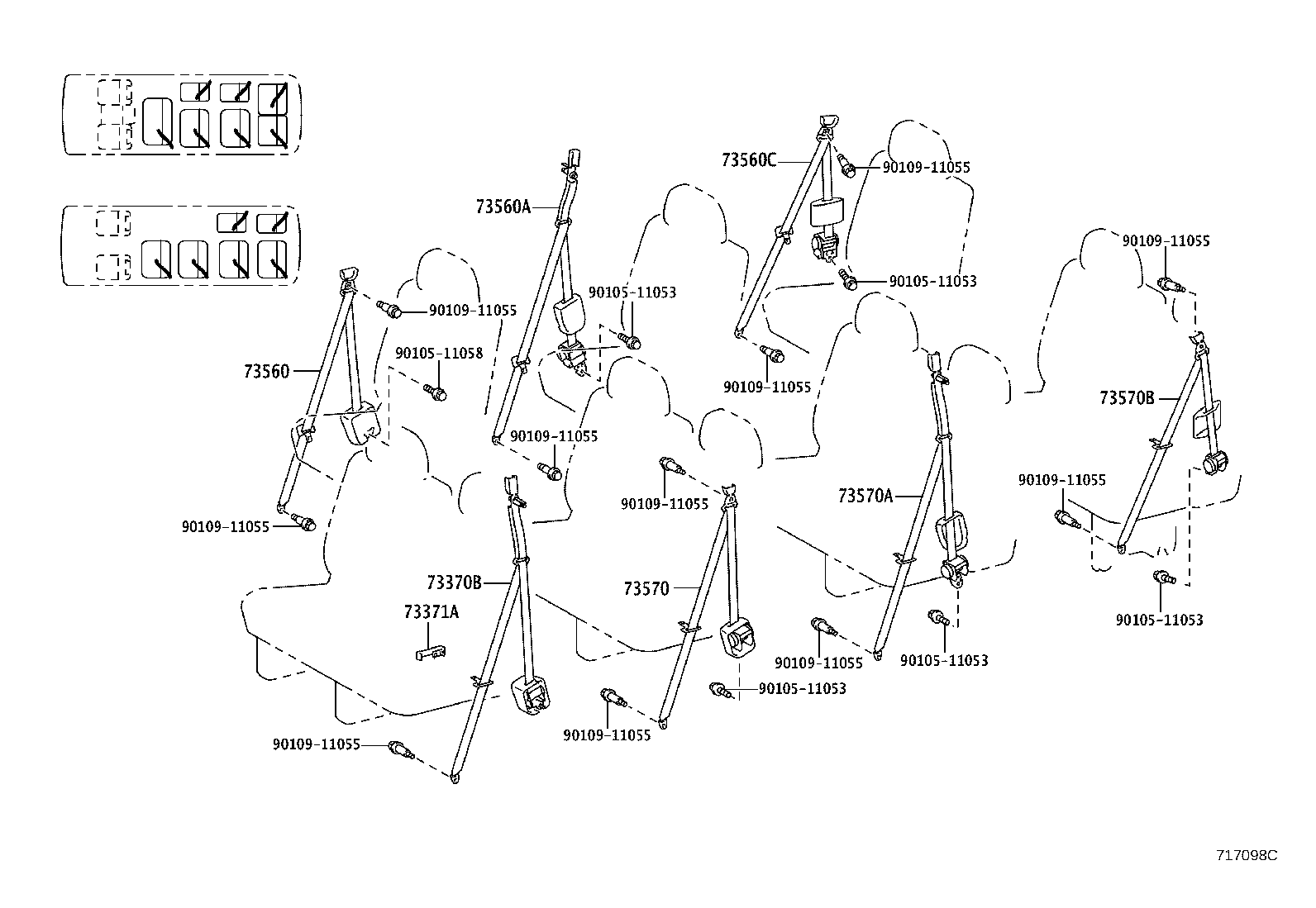

REAR SEAT(OUTER SEAT BELT)

diagram 73370B 73371A 73560 73560A 73560C 73570 73570A 73570B 9010511053 9010511053 9010511053 9010511053 9010511053 9010511058 9010911055 9010911055 9010911055 9010911055 9010911055 9010911055 9010911055 9010911055 9010911055 9010911055 9010911055
Part # Description Qty Price
Common parts
90105-11053
90105-11058
90109-11055

(1312- )LHD

Click highlighted areas on diagram

*RSE, FOR 3 PERSON

diagram 73310 73310 73330B 73330B 73330B 73330G 73330G 73330G 73380D 73380D 73380D 73380D 73380E 73380E 73380H 73380H 73380H 73460A 73460A 73460C 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058
Part # Description Qty Price
Common parts
90105-11058

(1312- )LHD

Click highlighted areas on diagram

*RES, FOR 2 PERSON

diagram 73310 73330B 73330B 73330G 73380D 73380D 73380D 73380E 73380E 73460A 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058
Part # Description Qty Price
Common parts
90105-11058

(1312- )KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#..ARL,GCC,GEN,MA,RUS,SA,TH,VN

Click highlighted areas on diagram

*RSE, SPACE UP SEAT

diagram 73233 73233 73233 73233 73320C 73320C 73330B 73330B 73330H 73330H 73380F 73380F 73380F 73380F 73380G 73380G 73380G 73380G 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010911057 9010911057 9010911057 9010911057 9017005004 9017811002 9017811002
Part # Description Qty Price
Common parts
90105-11058
90109-11057
90170-05004
90178-11002

(1312- )ARL,GCC,GEN,MA,RUS,SA,TH,VN

Click highlighted areas on diagram

FRONT SEAT BELT

diagram 73115 73139B 73210 73210 73219 73220 73220 73230 73240 9010511053 9010511053 9010911058 9010911058 9010911058 9010911058 9090119040 9090119040 9155380612 9155380612
Part # Description Qty Price
Common parts
90105-11053
90109-11058
90901-19040
91553-80612

(1312- )GDH201,KDH20#,213,220,223,LH20#,212,222,TRH200,201,221..03S,06S,10S,12S,

Click highlighted areas on diagram

FRONT SEAT BELT, W(CENTER SEAT)

diagram 73115 73139B 73150 73160A 73210 73210 73219 73220 73220 73230 73240 73240 9010511053 90105T0063 9010911057 9010911058 90109T0001 90109T0012 9090119040 9090119040 9155380612 9155380612
Part # Description Qty Price
Common parts
90105-11053
90105-T0063
90109-11057
90109-11058
90109-T0001
90109-T0012
90901-19040
91553-80612
