KDH202L-RDMDY (2005)
Toyota Hiace

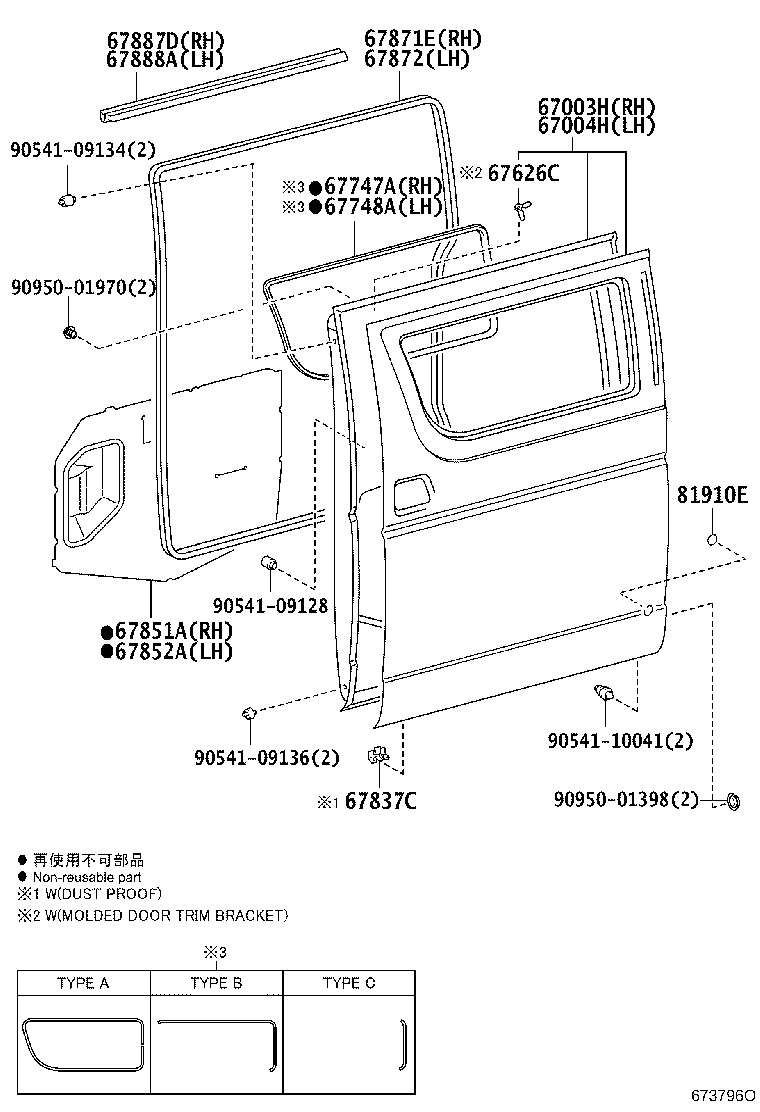

ILLUST NO. 1 OF 2(0501- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003H - DOOR SUB-ASSY, SLIDE, RH | ||||
| 67003-26330 |
TRH213..LHD..STD..(GCC,GEN);KDH200,202,203,212,LH202,212,TRH201,203..LHD..SG..STD |
1 | ||
| 67003-26340 |
TRH213..LHD..STD..(GCC,GEN);KDH200,202,203,212,LH202,212,TRH201,203..LHD..SG..STD POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH) |
1 | ||
| 67747A - MOULDING, REAR DOOR TRIM, NO.2 RH | ||||
| 67745-26010 |
KDH221..5D..GEN;TRH213..LHD..STD..(GCC,GEN);KDH200,201,203,TRH200,201..(06S,12S)..(GCC,GEN);KDH202,212,222,LH202,212,222,TRH201,203,22#..LHD..4D..STD TYPE A:REFER ILLUST. |
1 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-26030 |
KDH222..GL;TRH213..GL..VN;TRH223..GL..SA;KDH202..STD..TH;TRH213..RHD..5F;KDH222..STD..(GCC,GEN);TRH213..LHD..(09S,16S);KDH200,201,TRH223..4D..(03S,16S)..(GCC,GEN,MA,SA,TH);KDH202,203,212,220,221,LH20#,212,222,TRH201,203,221..4D..(GCC,GEN,MA,SA,VN) DUST PROTECTION DEVICE-WITH SPECIAL PROTECTION |
2 | ||
| 67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1 | ||||
| 67851-26030 |
TRH221;KDH200,201,220,221,LH200,TRH200,201..5D;KDH200,202,203,212,222,LH20#,212,222,TRH201,203,213,223..LHD..4D..STD |
1 | ||
| 67871E - WEATHERSTRIP, SLIDE DOOR, NO.1 RH | ||||
| 67871-26010 |
TRH213..GL..(GEN,TH);KDH200,201,LH200,TRH200,201..5D;KDH202,203,212,LH20#,212,TRH203..LHD;KDH200,TRH201,213..LHD..4D..STD..(GCC,GEN) |
1 | ||
| 67887D - WEATHERSTRIP, SLIDE DOOR, NO.2 RH | ||||
| 67887-26020 |
TRH201,221..HRF;TRH213..GL..(GEN,TH);KDH200,TRH213..LHD..4D..STD..(GCC,GEN);KDH200,201,220,221,LH200,TRH200,201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223..LHD |
1 | ||
| Common parts | ||||
| 90541-09128 | ||||
| 90541-09134 | ||||
| 90541-09136 | ||||
| 90541-10041 | ||||
| 90950-01398 | ||||
| 90950-01970 | ||||

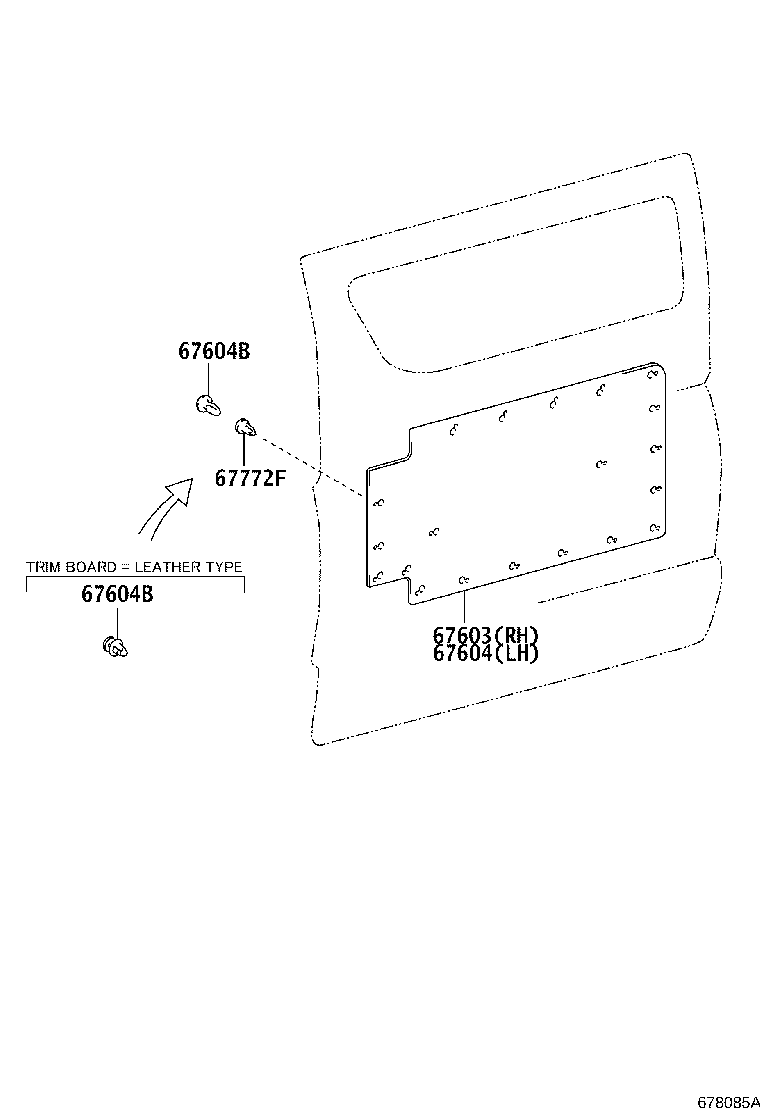

ILLUST NO. 2 OF 2(0501- )
DOOR TRIM (BOARD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67613-26090B0 |
KDH202,212,222,LH202,212,222,TRH20#,213,22#..LHD..4D..STD GRAY,TRIM1# |
1 | ||
| 67613-26090B1 |
KDH202,203,212,222,LH202,212,222,TRH201,203,213,22#..LHD..4D..STD DK.GRAY,TRIM1# |
1 | ||
| 67604B - CLIP(FOR SLIDE DOOR TRIM BOARD) | ||||
| 75867-33030 |
KDH202..GL..TH;KDH202,222,LH212,TRH223..STD;KDH203,212,223,LH202,222,TRH201,203,213,221..SG..(03S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH,VN) |
20 | ||
| 67604B - CLIP(FOR SLIDE DOOR TRIM BOARD) | ||||
| 75867-33030 |
KDH202..GL..TH;KDH202,222,LH212,TRH223..STD;KDH203,212,223,LH202,222,TRH201,203,213,221..SG..(03S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH,VN) |
20 | ||

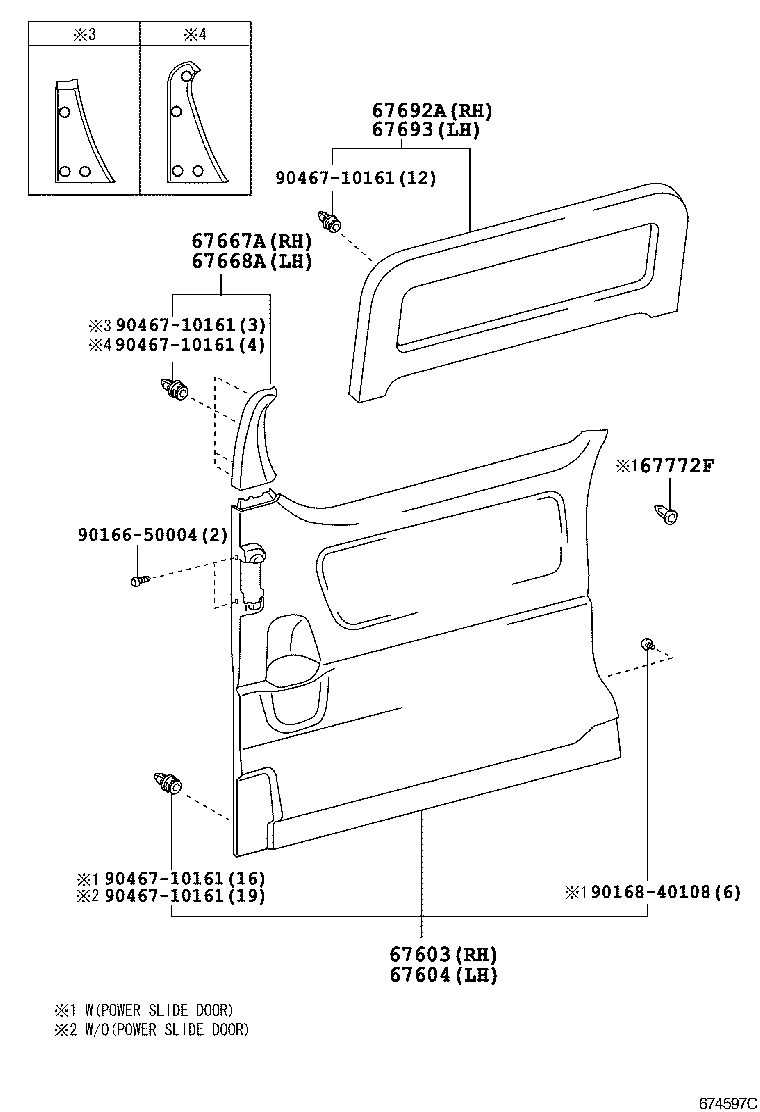

ILLUST NO. 2 OF 2(0501- )
DOOR TRIM (MOLDED DOOR TRIM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67613-26090B0 |
KDH202,212,222,LH202,212,222,TRH20#,213,22#..LHD..4D..STD GRAY,TRIM1# |
1 | ||
| 67613-26090B1 |
KDH202,203,212,222,LH202,212,222,TRH201,203,213,22#..LHD..4D..STD DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90166-50004 | ||||
| 90168-40108 | ||||
| 90467-10161 | ||||
ILLUST NO. 1 OF 2(1312- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90541-09128 | ||||
| 90541-09134 | ||||
| 90541-09136 | ||||
| 90541-10041 | ||||
| 90950-01398 | ||||
| 90950-01970 | ||||
ILLUST NO. 2 OF 2(1312- )
DOOR TRIM(MOLDED DOOR TRIM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90166-50004 | ||||
| 90168-40108 | ||||
| 90467-10161 | ||||

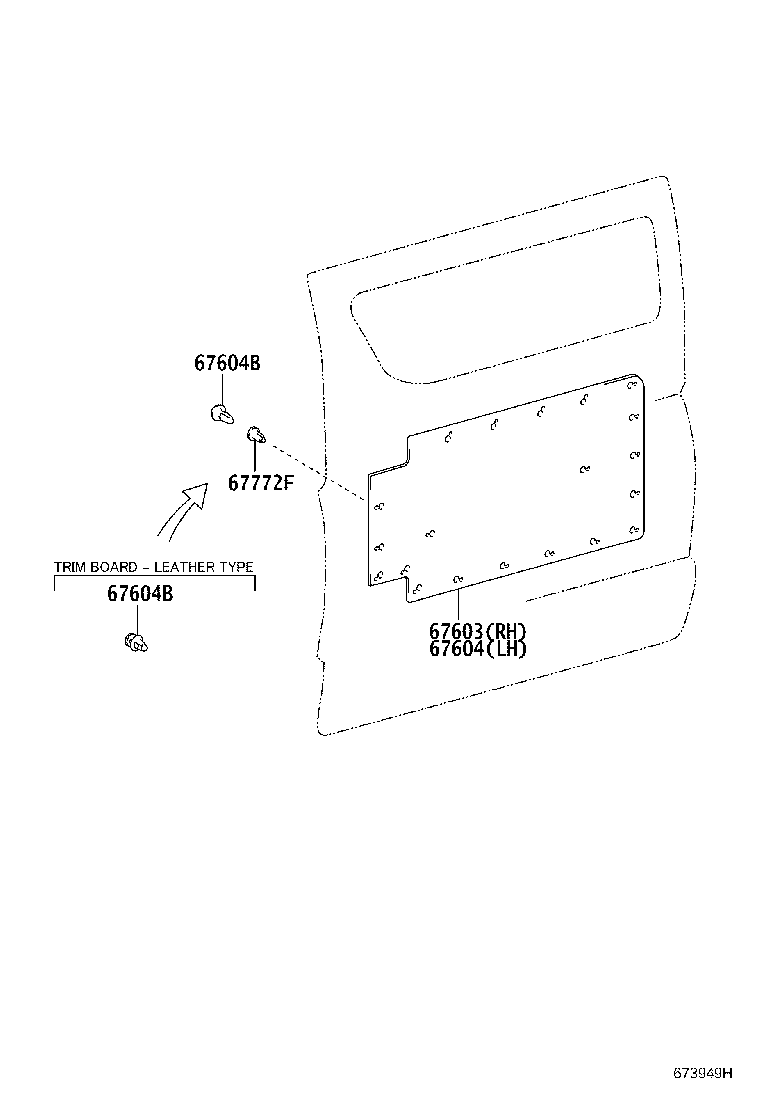

ILLUST NO. 2 OF 2(1312- )
DOOR TRIM(BOARD)
| Part # | Description | Qty | Price |
|---|
