KDH202L-RDMDY (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )KDH20#..LHD

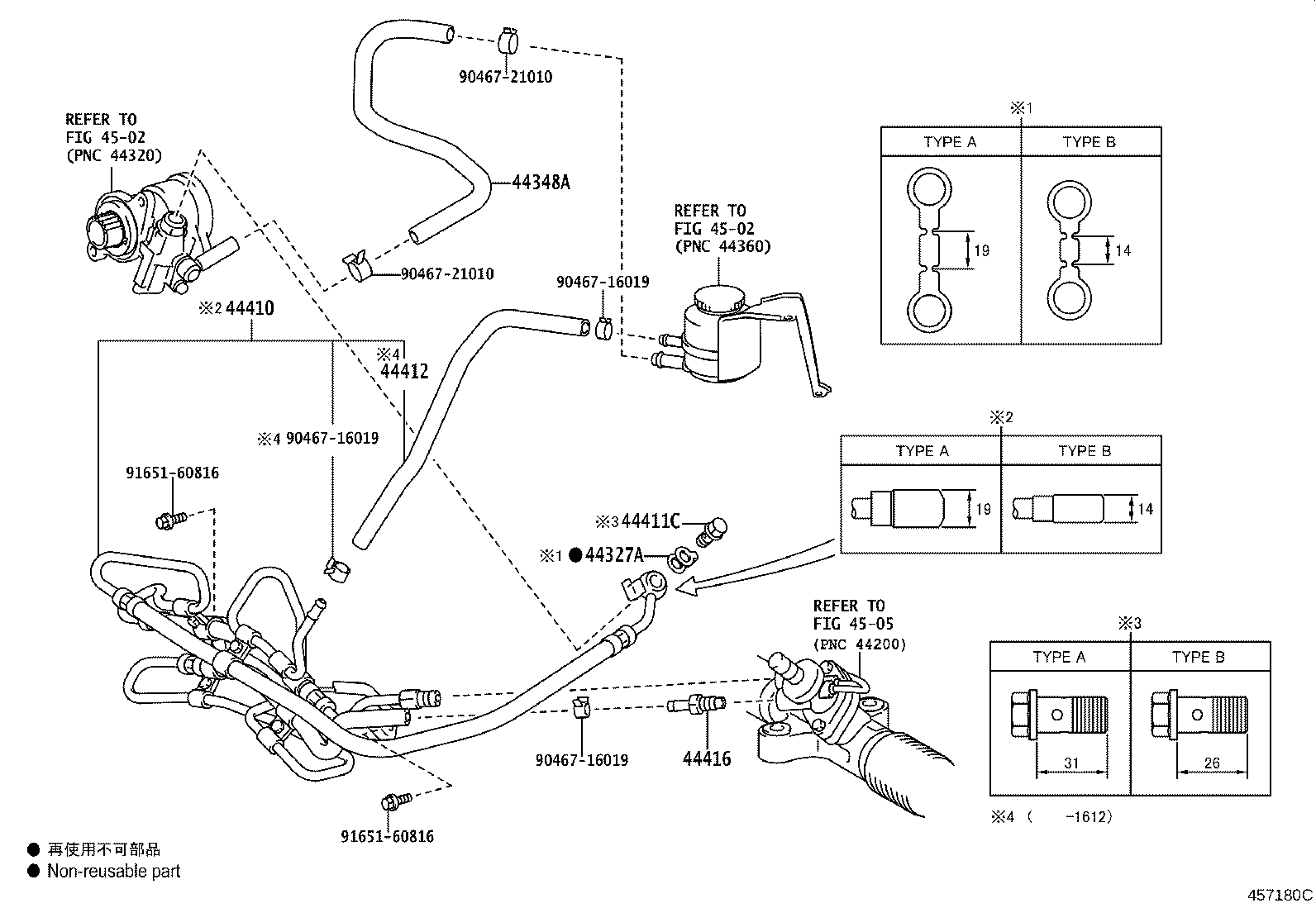

Click highlighted areas on diagram

diagram 44327A 44348A 44410 44411C 44412 44416 4502 4502 4505 9046716019 9046716019 9046716019 9046721010 9046721010 9165160816 9165160816
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30040

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-26250

KDH20#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-26B00

KDH20#..LHD

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16014

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
44412 - HOSE, RETURN
44412-26430

KDH20#,LH20#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-26080

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
Common parts
90467-16019
90467-21010
91651-60816
Linked diagrams
4502
4505

(1312- )KDH20#..LHD

Click highlighted areas on diagram

diagram 44327A 44348A 44410 44411C 44412 44416 4502 4502 4505 9046716019 9046716019 9046716019 9046721010 9046721010 9165160816 9165160816
Part # Description Qty Price
Common parts
90467-16019
90467-21010
91651-60816
Linked diagrams
4502
4505
