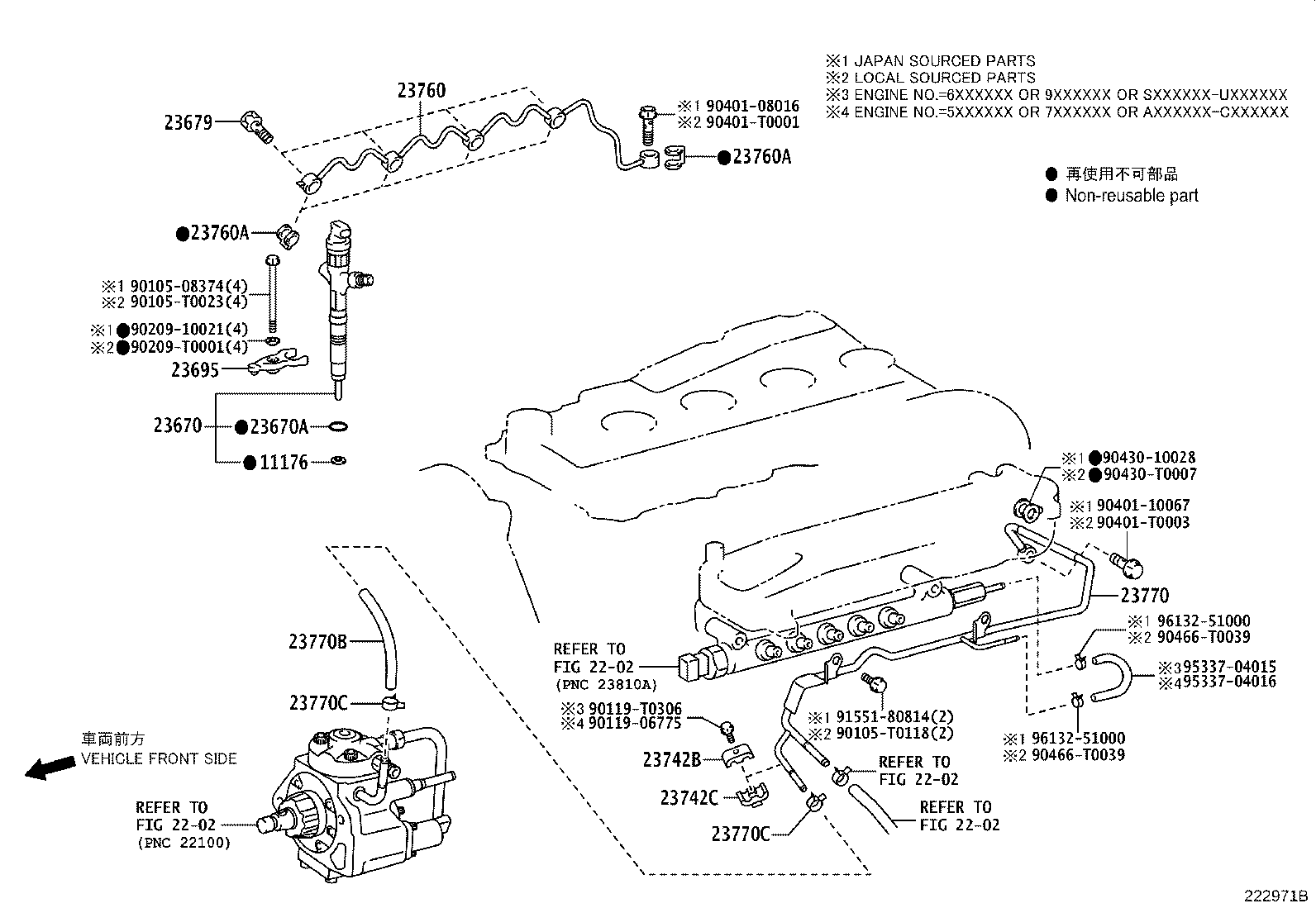

KDH202L-RDMDY (2005)
Toyota Hiace
(0501- )2KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-39095 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 23670-39096 |
2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-39095 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 23670-39096 |
2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-39095 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 23670-39096 |
2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-39095 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 23670-39096 |
2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH |
4 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 96721-19017 |
2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..(GCC,GEN,SA,TH) |
4 | ||
| 90301-T0013 |
2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH |
4 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 96721-19017 |
2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..(GCC,GEN,SA,TH) |
4 | ||
| 90301-T0013 |
2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH |
4 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 96721-19017 |
2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..(GCC,GEN,SA,TH) |
4 | ||
| 90301-T0013 |
2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH |
4 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 96721-19017 |
2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..(GCC,GEN,SA,TH) |
4 | ||
| 90301-T0013 |
2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH |
4 | ||
| 23679 - SCREW, INJECTOR FOLLOW | ||||
| 23679-30020 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 23695 - CLAMP, NOZZLE HOLDER, NO.1 | ||||
| 23695-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
4 | ||
| 23695-30011 |
2KDFTV..KDH202..GCC,GEN;1KDFTV,2KDFTV..KDH200,201,203,212,22#..ARL,GCC,GEN,SA,TH |
4 | ||
| 23695-0L010 |
2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH |
4 | ||
| 23742B - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,SA) |
1 | ||
| 23742C - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-58020 |
2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,SA) |
1 | ||
| 23760 - PIPE ASSY, NOZZLE LEAKAGE | ||||
| 23760-30020 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 23760A - GASKET | ||||
| 90904-30013 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
5 | ||
| 23760A - GASKET | ||||
| 90904-30013 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
5 | ||
| 23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2 | ||||
| 23770-30050 |
2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,212,22#..ARL,GCC,GEN |
1 | ||
| 23770B - HOSE, FUEL | ||||
| 95333-06010 |
2KDFTV..KDH20#,212,22# *H,L=100 |
1 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 96135-51100 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
2 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 96135-51100 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
2 | ||
| Common parts | ||||
| 90105-08374 | ||||
| 90105-T0023 | ||||
| 90105-T0118 | ||||
| 90119-06775 | ||||
| 90119-T0306 | ||||
| 90209-10021 | ||||
| 90209-T0001 | ||||
| 90401-08016 | ||||
| 90401-10067 | ||||
| 90401-T0001 | ||||
| 90401-T0003 | ||||
| 90430-10028 | ||||
| 90430-T0007 | ||||
| 90466-T0039 | ||||
| 91551-80814 | ||||
| 91631-60625 | ||||
| 95333-04015 | ||||
| 95337-04015 | ||||
| 95337-04016 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 2202 | ||||
(1312- )2KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08374 | ||||
| 90105-T0023 | ||||
| 90105-T0118 | ||||
| 90119-06775 | ||||
| 90119-T0306 | ||||
| 90209-10021 | ||||
| 90209-T0001 | ||||
| 90401-08016 | ||||
| 90401-10067 | ||||
| 90401-T0001 | ||||
| 90401-T0003 | ||||
| 90430-10028 | ||||
| 90430-T0007 | ||||
| 90466-T0039 | ||||
| 91551-80814 | ||||
| 95337-04015 | ||||
| 95337-04016 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 2202 | ||||
