KDH202L-RDMDY (2005)
Toyota Hiace
(0910- )2KDFTV..GCC,GEN,SA,TH
E/G NO.=7XXXXXX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-30060 |
2KDFTV..KDH222..LHD;2KDFTV..KDH212..RHD;2KDFTV..KDH212..GCC;2KDFTV..KDH20#,212..(SMRF,SRF)..(03S,06S,11S,12S,15S)..(ARL,GCC,GEN) |
1 | ||
| 04175-30030 |
2KDFTV..KDH222..GCC,SA;2KDFTV..KDH222..LHD..GEN;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,212..ARL,GCC,GEN,SA,TH |
1 | ||
| 04175-30030 |
2KDFTV..KDH200..LHD..4D;2KDFTV..KDH222..GL..GCC;2KDFTV..KDH202,212,220,222..LHD..STD..GEN ALGERIA SPEC |
1 | ||
| 04175-30081 |
2KDFTV..KDH200..LHD..4D;2KDFTV..KDH222..GL..GCC;2KDFTV..KDH202,212,220,222..LHD..STD..GEN ALGERIA SPEC |
1 | ||
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-30040 |
2KDFTV..KDH200,202,212,220,222 |
1 | ||
| 15407-30041 |
2KDFTV..KDH200,202,212,220,222 |
1 | ||
| 15407-30042 |
2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..GCC,GEN,SA |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-12097 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90904-30004 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) |
1 | ||
| 15471-30011 |
1KDFTV,2KDFTV..KDH202,203,222,223..ARL,GCC,GEN,RUS,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221..ARL,GCC,GEN,SA,TH |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-67010 |
2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..(GCC,GEN,SA,TH) |
1 | ||
| 15472-30010 |
1KDFTV..KDH201..TH;1KDFTV..KDH201..LHD;1KDFTV..KDH221..5D..GEN;2KDFTV..KDH202,222..GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,203,212,220,223..(03S,10S,11S,12S,16S)..(GCC,GEN,RUS,SA,TH) |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-30020 |
2KDFTV..KDH200,202,212,220,222 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80822 |
2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH202,222..(14S,15S,16S)..(GCC,GEN,SA);2KDFTV..KDH200,220..SP..03S..5F..(GCC,GEN,SA,TH) |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-30040 |
1KDFTV..KDH201..RHD..03S;1KDFTV..KDH201,203..RHD..SG;2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,202,212,220,221,223 NO.1 |
1 | ||
| 17118-30050 |
2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..ARL,GCC,GEN,SA NO.2 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-30040 |
1KDFTV..KDH201..RHD..03S;1KDFTV..KDH201,203..RHD..SG;2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,202,212,220,221,223 NO.1 |
1 | ||
| 17118-30050 |
2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..ARL,GCC,GEN,SA NO.2 |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-30011 |
2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,SA) |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-30050 |
2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..ARL,GCC,GEN,SA |
1 | ||
| 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-10037 |
2KDFTV..KDH212..RHD;2KDFTV..KDH212..GCC;2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,212..LHD..(06S,11S);2KDFTV..KDH200,222..(03S,16S)..(GCC,GEN) |
6 | ||
| 90126-10017 |
2KDFTV..KDH20#,22# |
6 | ||
| 90126-10037 |
2KDFTV..KDH200..06S..GCC;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,212,222..(03S,10S,11S,14S,15S,16S)..(GCC,GEN,SA,TH) |
8 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-30020 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-30011 |
1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-30080 |
2KDFTV..KDH200,202,212;2KDFTV..KDH222..GCC,SA;2KDFTV..KDH222..LHD..GEN;2KDFTV..KDH220..SP..(GEN,SA) |
1 | ||
| 17230 - ACTUATOR ASSY, W/BRACKET | ||||
| 17230-39105 |
2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH202,222..HRF..(GCC,MA,SA);2KDFTV..KDH212..(10S,11S,16S)..(GCC,GEN,SA);2KDFTV..KDH202,222..LHD..(12S,16S)..5F..GEN;2KDFTV..KDH200,202..(03S,15S)..5F..(GCC,GEN,MA,SA) |
1 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-06045 |
2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH212..(10S,11S,16S)..(GCC,GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,MA,SA) T=3.0 |
2 | ||
| 90201-06043 |
2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH212..(10S,11S,16S)..(GCC,GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,MA,SA) T=1.0 |
2 | ||
| 90201-06042 |
2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH212..(10S,11S,16S)..(GCC,GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,MA,SA) T=0.5 |
2 | ||
| 90201-06044 |
2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH212..(10S,11S,16S)..(GCC,GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,MA,SA) T=2.0 |
2 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-06045 |
2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH212..(10S,11S,16S)..(GCC,GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,MA,SA) T=3.0 |
2 | ||
| 90201-06043 |
2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH212..(10S,11S,16S)..(GCC,GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,MA,SA) T=1.0 |
2 | ||
| 90201-06042 |
2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH212..(10S,11S,16S)..(GCC,GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,MA,SA) T=0.5 |
2 | ||
| 90201-06044 |
2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH212..(10S,11S,16S)..(GCC,GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,MA,SA) T=2.0 |
2 | ||
| 17230C - BOLT, W/WASHER(FOR REPAIR ACTUATOR SET) | ||||
| 91551-80618 |
2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH212..(10S,11S,16S)..(GCC,GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,MA,SA) |
2 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-30020 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH222..ARL,GCC,GEN,SA;2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,212,220..(03S,06S,10S,11S,15S)..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-30030 |
2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..ARL,GCC,GEN,SA |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-30030 |
2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..ARL,GCC,GEN,SA |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 90445-12251 |
2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH212..(10S,11S,16S)..(GCC,GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,MA,SA) |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-51100 |
2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH212..(10S,11S,16S)..(GCC,GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,MA,SA) |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-51100 |
2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH212..(10S,11S,16S)..(GCC,GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,MA,SA) |
2 | ||
| 17860 - CONNECTOR ASSY, INTAKE AIR | ||||
| 17860-30050 |
2KDFTV..KDH200,202,212,220;1KDFTV,2KDFTV..KDH221,222..4D..(ARL,GCC,GEN,SA) |
1 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17862-30010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,202..(03S,15S)..5F..(GCC,GEN);2KDFTV..KDH202,220,222..LHD..(03S,12S,16S)..5F |
1 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 26171-30013 |
2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,212,22#..ARL,GCC,GEN |
2 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 26171-30013 |
2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,212,22#..ARL,GCC,GEN |
2 | ||
| Common parts | ||||
| 90116-08160 | ||||
| 90116-08260 | ||||
| 90116-08408 | ||||
| 90116-10175 | ||||
| 90119-06748 | ||||
| 90179-08101 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90201-10109 | ||||
| 90339-03005 | ||||
| 90341-16021 | ||||
| 90430-16010 | ||||
| 90999-92002 | ||||
| 91551-80814 | ||||
| 91551-80822 | ||||
| 91551-80870 | ||||
| 91671-00816 | ||||
| 92122-60825 | ||||
| 92122-80814 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
| 96132-40700 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 2501 | ||||
| 8405 | ||||

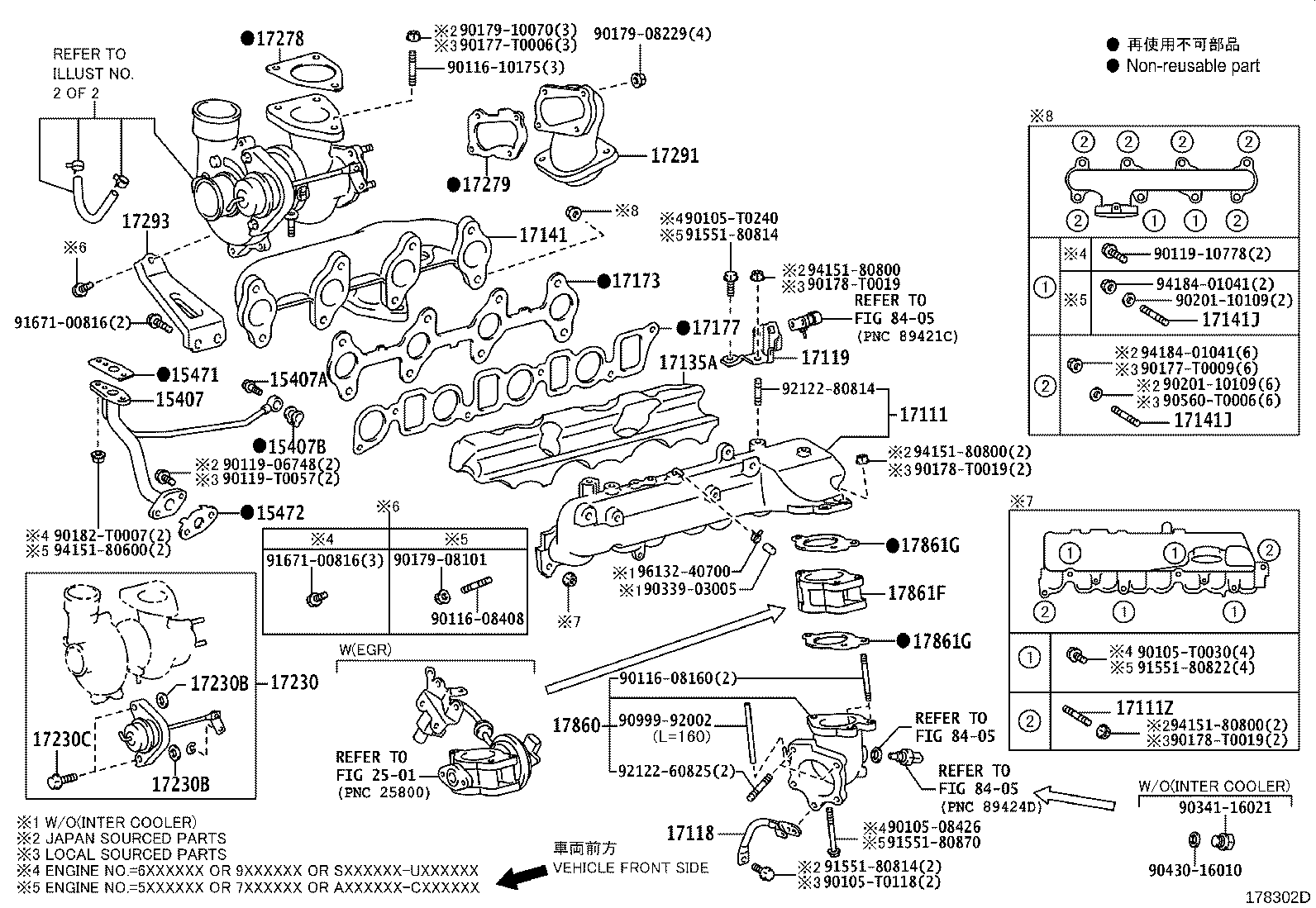

ILLUST NO. 1 OF 2(1312- )2KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08426 | ||||
| 90105-T0030 | ||||
| 90105-T0118 | ||||
| 90105-T0240 | ||||
| 90116-08160 | ||||
| 90116-08408 | ||||
| 90116-10175 | ||||
| 90119-06748 | ||||
| 90119-10778 | ||||
| 90119-T0057 | ||||
| 90177-T0006 | ||||
| 90177-T0009 | ||||
| 90178-T0019 | ||||
| 90179-08101 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90182-T0007 | ||||
| 90201-10109 | ||||
| 90339-03005 | ||||
| 90341-16021 | ||||
| 90430-16010 | ||||
| 90560-T0006 | ||||
| 90999-92002 | ||||
| 91551-80814 | ||||
| 91551-80822 | ||||
| 91551-80870 | ||||
| 91671-00816 | ||||
| 92122-60825 | ||||
| 92122-80814 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
| 96132-40700 | ||||
| Linked diagrams | ||||
| 2501 | ||||
| 8405 | ||||
ILLUST NO. 2 OF 2(1312- )2KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-08260 | ||||
