KDH202L-RDMDY (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )1KDFTV,2KDFTV

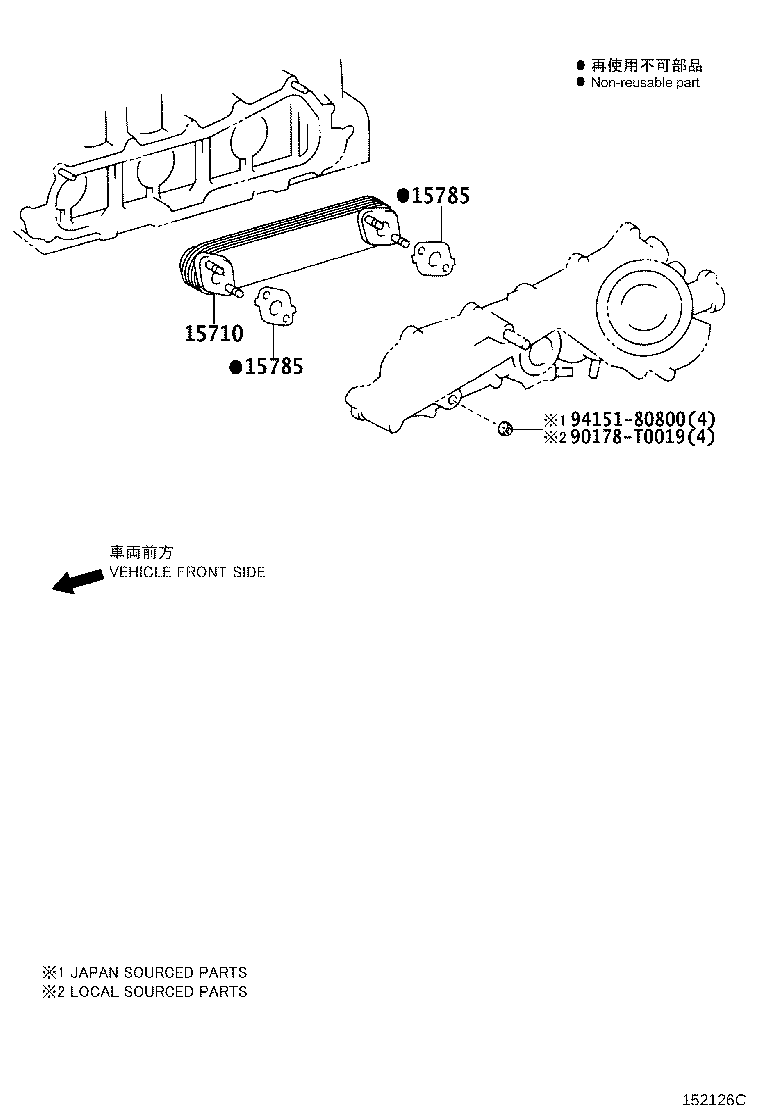

Click highlighted areas on diagram

diagram 15710 15785 15785 90178T0019 9017908040 9415180800
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-30020

1KDFTV..KDH201..TH;1KDFTV..KDH201..LHD;1KDFTV..KDH221..5D..GEN;2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,202,203,212,220,223..03S,06S,10S,11S,12S,15S,16S

 1
15785 - GASKET, OIL COOLER
15785-30010

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 2
15785 - GASKET, OIL COOLER
15785-30010

2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH)

 2
Common parts
90178-T0019
90179-08040
94151-80800

(1312- )1KDFTV,2KDFTV

Click highlighted areas on diagram

diagram 15710 15785 15785 90178T0019 9415180800
Part # Description Qty Price
Common parts
90178-T0019
94151-80800
