KDH201R-SRPDY (2013)
Toyota Hiace
(0501- )KDH200,201,212,22#,LH20#,212,222,TRH200,201,213,22#..ARL,CIS,GCC,GEN,RUS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91551-80812 | ||||
| 91553-80814 | ||||
| 91651-B0618 | ||||
(1312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

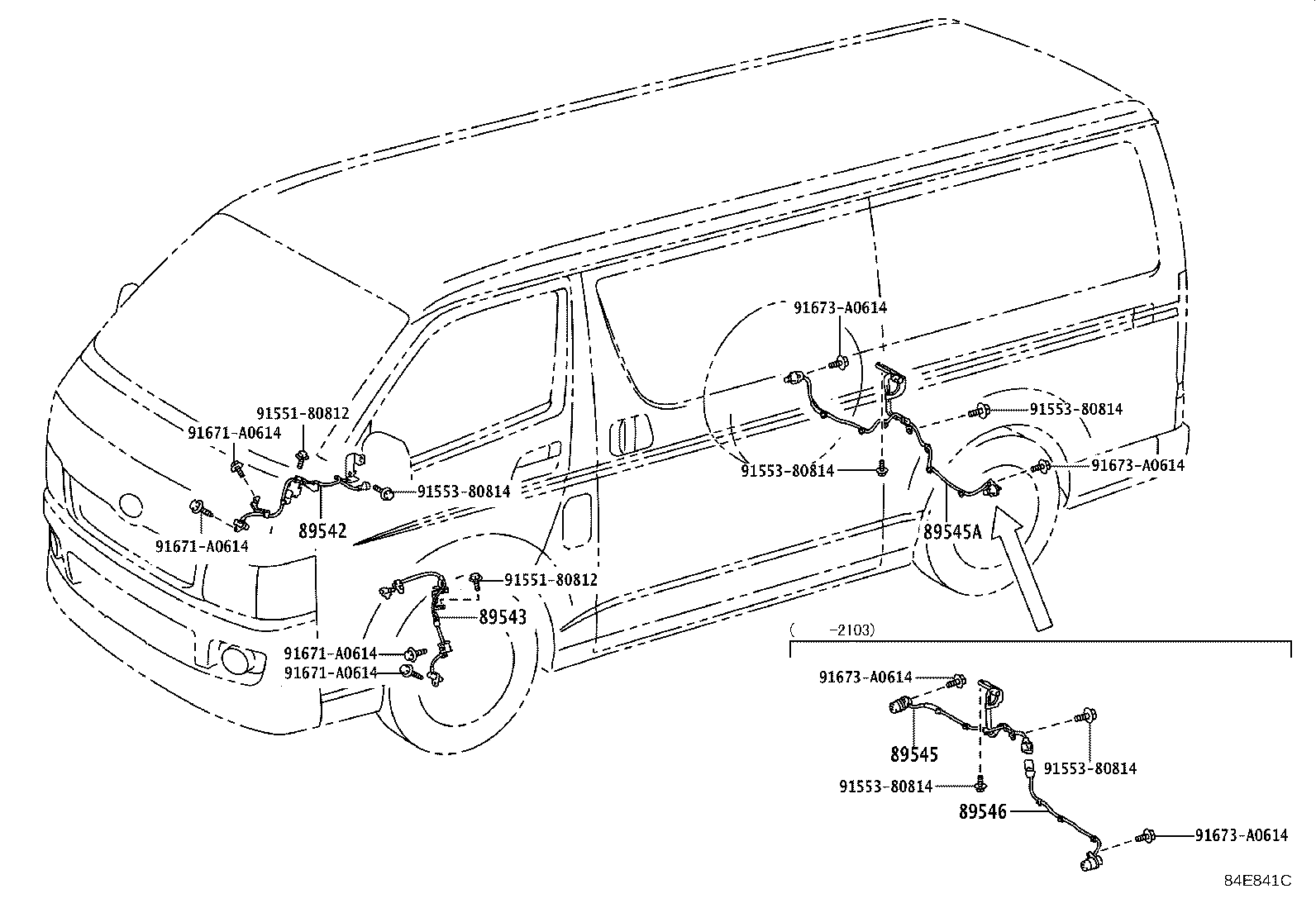

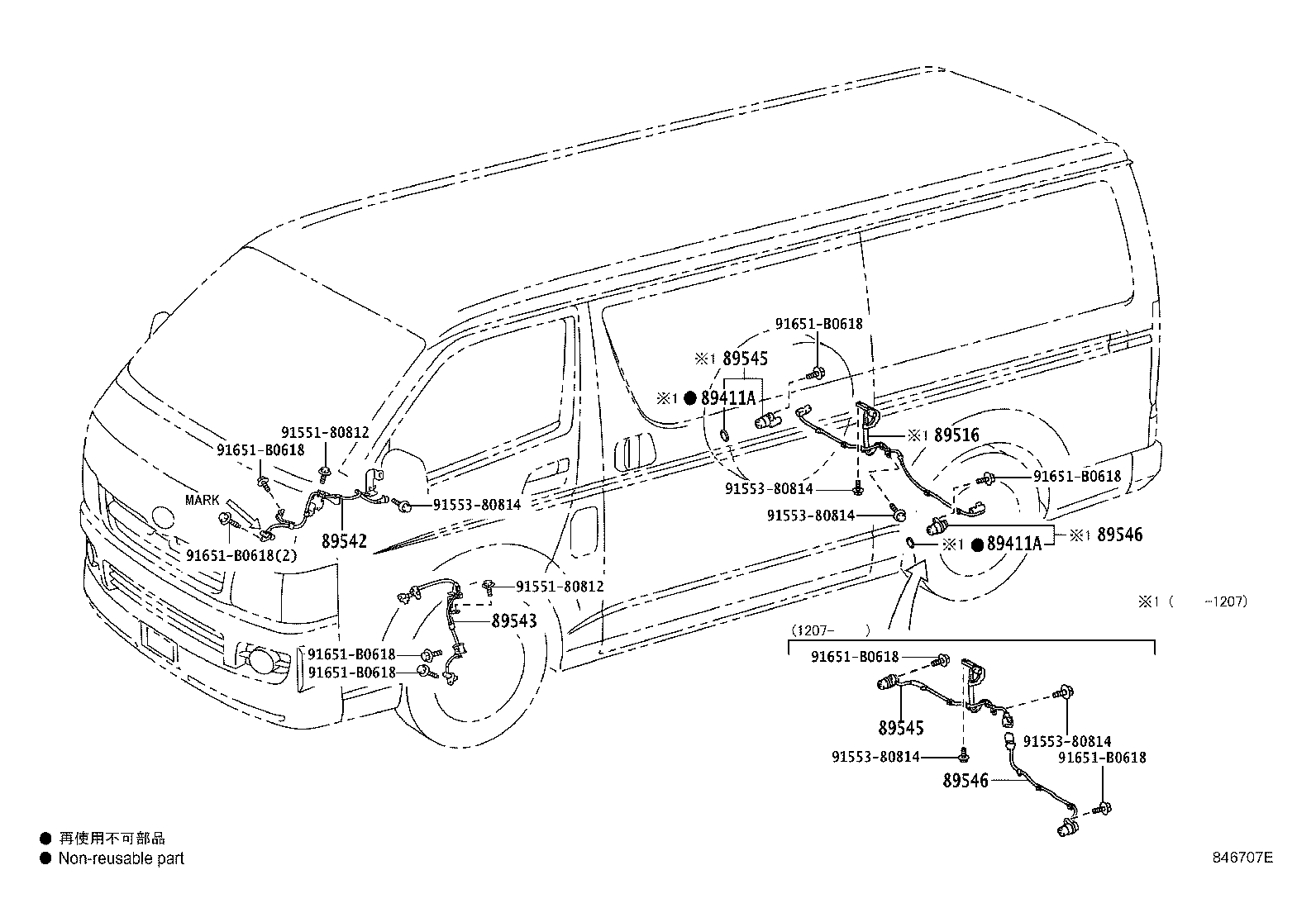

| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-26140 |
TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH) |
1 | ||
| 89542-26140 |
KDH222,TRH223..STD..SA;TRH200,201,22#..RHD..4FC |
1 | ||
| 89542-26160 |
KDH212..4FC;KDH201..RHD..03S;KDH223..ARL,GEN,RUS,VN;KDH221,222,TRH201..RHD..(02S,03S,05S,06S);TRH213,223..(10S,11S,12S,13S,14S)..(ARL,GEN,RUS,TH);GDH201,KDH201,203,213,220,TRH221..(02S,05S,06S,10S,11S,13S)..(ARL,GEN,SA) |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-26150 |
TRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA,TH) |
1 | ||
| 89543-26150 |
KDH222,TRH223..STD..SA;TRH200,201,22#..RHD..4FC |
1 | ||
| 89543-26170 |
KDH212..4FC;KDH201..RHD..03S;KDH223..ARL,GEN,RUS,VN;KDH221,222,TRH201..RHD..(02S,03S,05S,06S);TRH213,223..(10S,11S,12S,13S,14S)..(ARL,GEN,RUS,TH);GDH201,KDH201,203,213,220,TRH221..(02S,05S,06S,10S,11S,13S)..(ARL,GEN,SA) |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-26110 |
KDH200..SA;TRH201..RHD..5F;KDH201,203..02S,06S |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-26120 |
KDH200..SA;TRH201..RHD..5F;KDH201,203..02S,06S |
1 | ||
| Common parts | ||||
| 91551-80812 | ||||
| 91553-80814 | ||||
| 91671-A0614 | ||||
| 91673-A0614 | ||||
