KDH201R-SRPDY (2013)
Toyota Hiace
(1312- )KEN ; (1312- )KDH201,21#,221,222,223,TRH201,203,213,22#..4FC
A340E,A343E

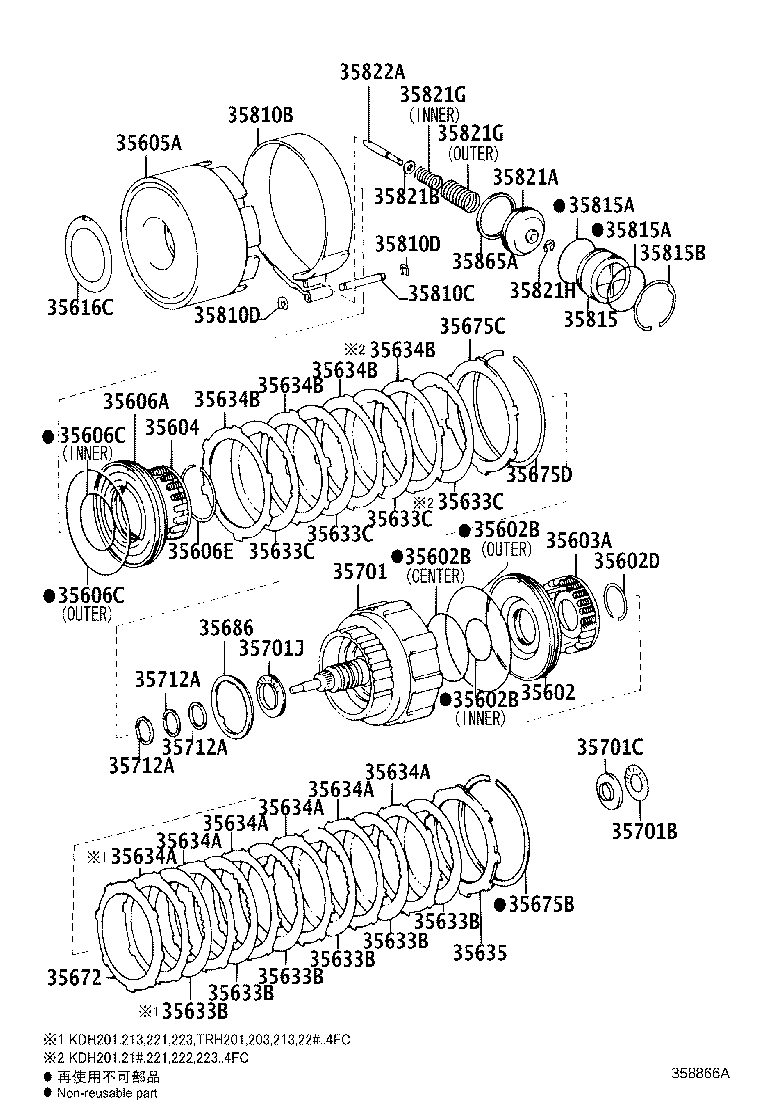

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35602 - PISTON SUB-ASSY, FRONT CLUTCH | ||||
| 35602-14012 |
KDH201..SG..4FC |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-72003 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC CENTER |
1 | ||
| 90301-39005 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC INNER |
1 | ||
| 90301-99058 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC OUTER |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-72003 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC CENTER |
1 | ||
| 90301-39005 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC INNER |
1 | ||
| 90301-99058 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC OUTER |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-72003 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC CENTER |
1 | ||
| 90301-39005 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC INNER |
1 | ||
| 90301-99058 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC OUTER |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-35001 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-30011 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-35010 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-30060 |
KDH213..4FC..GEN;KDH201,212,221,222,223..4FC |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35606-35010 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-65006 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC INNER |
1 | ||
| 90301-99058 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC OUTER |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-65006 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC INNER |
1 | ||
| 90301-99058 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC OUTER |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-58001 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM) | ||||
| 35616-30050 |
KDH201..SG..4FC |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-26010 |
KDH213..4FC..GEN;KDH201,221,223..4FC |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-26010 |
KDH213..4FC..GEN;KDH201,221,223..4FC |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-26010 |
KDH213..4FC..GEN;KDH201,221,223..4FC |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-26010 |
KDH213..4FC..GEN;KDH201,221,223..4FC |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-26010 |
KDH213..4FC..GEN;KDH201,221,223..4FC |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-26010 |
KDH213..4FC..GEN;KDH201,221,223..4FC |
6 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-40020 |
KDH201..SG..4FC |
4 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-40020 |
KDH201..SG..4FC |
4 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-40020 |
KDH201..SG..4FC |
4 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-40020 |
KDH201..SG..4FC |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
KDH213..4FC..GEN;KDH201,221,223..4FC T=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
KDH213..4FC..GEN;KDH201,221,223..4FC T=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
KDH213..4FC..GEN;KDH201,221,223..4FC T=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
KDH213..4FC..GEN;KDH201,221,223..4FC T=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
KDH213..4FC..GEN;KDH201,221,223..4FC T=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
KDH213..4FC..GEN;KDH201,221,223..4FC T=1.8 |
6 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-22030 |
KDH201..SG..4FC T=2.3 |
4 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-22030 |
KDH201..SG..4FC T=2.3 |
4 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-22030 |
KDH201..SG..4FC T=2.3 |
4 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-22030 |
KDH201..SG..4FC T=2.3 |
4 | ||
| 35635 - FLANGE, FORWARD CLUTCH | ||||
| 35635-30080 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=3.2,MARK 91 |
1 | ||
| 35635-30040 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=4.0,MARK 95 |
1 | ||
| 35635-30050 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=3.8,MARK 94 |
1 | ||
| 35635-30060 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=3.6,MARK 93 |
1 | ||
| 35635-30070 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=3.4,MARK 92 |
1 | ||
| 35635-30100 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=4.2,MARK 96 |
1 | ||
| 35635-30110 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=4.4,MARK 97 |
1 | ||
| 35635-30090 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=3.0,MARK 90 |
1 | ||
| 35672 - PLATE, CLUTCH CUSHION | ||||
| 35672-30010 |
KDH201..SG..4FC |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90521-99001 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-30220 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=3.6,MARK 56 |
1 | ||
| 35675-30230 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=3.7,MARK 57 |
1 | ||
| 35675-30210 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=3.5,MARK 55 |
1 | ||
| 35675-30240 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=3.3,MARK 53 |
1 | ||
| 35675-30280 |
KDH213..4FC..GEN;KDH201,212,221,222,223..4FC T=4.2,MARK 62 |
1 | ||
| 35675-30250 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=3.4,MARK 54 |
1 | ||
| 35675-30270 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=4.0,MARK 60 |
1 | ||
| 35675-30260 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC T=3.8,MARK 58 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90520-99018 |
KDH201..SG..4FC |
1 | ||
| 35686 - WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT) | ||||
| 35686-30010 |
KDH201..SG..4FC |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-60030 |
KDH201..SG..4FC |
1 | ||
| 35701B - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR) | ||||
| 90374-25005 |
KDH201..SG..4FC |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-30110 |
KDH201..SG..4FC |
1 | ||
| 35701J - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT) | ||||
| 90374-33001 |
TRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
KDH201..SG..4FC |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
KDH201..SG..4FC |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
KDH201..SG..4FC |
3 | ||
| 35810B - BAND ASSY, 2ND COAST BRAKE | ||||
| 35810-50020 |
KDH201..SG..4FC |
1 | ||
| 35810C - PIN (FOR 2ND COAST BRAKE BAND) | ||||
| 90249-07011 |
KDH201..SG..4FC |
1 | ||
| 35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN) | ||||
| 96160-00500 |
KDH201..SG..4FC |
2 | ||
| 35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN) | ||||
| 96160-00500 |
KDH201..SG..4FC |
2 | ||
| 35815 - COVER, 2ND COAST BRAKE | ||||
| 35815-22010 |
KDH201..SG..4FC |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
KDH201..SG..4FC |
2 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
KDH201..SG..4FC |
2 | ||
| 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) | ||||
| 90521-60003 |
KDH201..SG..4FC |
1 | ||
| 35821A - PISTON, 2ND COAST BRAKE | ||||
| 35821-22020 |
KDH201..SG..4FC |
1 | ||
| 35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON) | ||||
| 90201-06557 |
KDH201..SG..4FC |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-26024 |
KDH201..SG..4FC OUTER |
1 | ||
| 90501-32037 |
KDH201..SG..4FC INNER |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-26024 |
KDH201..SG..4FC OUTER |
1 | ||
| 90501-32037 |
KDH201..SG..4FC INNER |
1 | ||
| 35821H - RING, E (FOR 2ND COAST BRAKE PISTON) | ||||
| 96160-00500 |
KDH201..SG..4FC |
1 | ||
| 35822A - ROD, 2ND COAST BRAKE PISTON | ||||
| 35822-22020 |
KDH201..SG..4FC L=79.9 |
1 | ||
| 35822-22010 |
KDH201..SG..4FC L=78.4 |
1 | ||
| 35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL | ||||
| 35865-30010 |
KDH201..SG..4FC |
1 | ||
