KDH201R-SRPDY (2013)

Toyota Hiace

Production Dec 2013 - Apr 2020
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )

Click highlighted areas on diagram

diagram 86300 86391 9016250032 9016750007 9016750007 9351015016
Part # Description Qty Price
Common parts
90162-50032
90167-50007
93510-15016

(0501- )

Click highlighted areas on diagram

diagram 86101 86300 9014840007 9048001537 9048001537
Part # Description Qty Price
Common parts
90148-40007
90480-01537

(1312- )02S,03S,05S,06S,10S,12S,13S,14S,15S,16S

Click highlighted areas on diagram

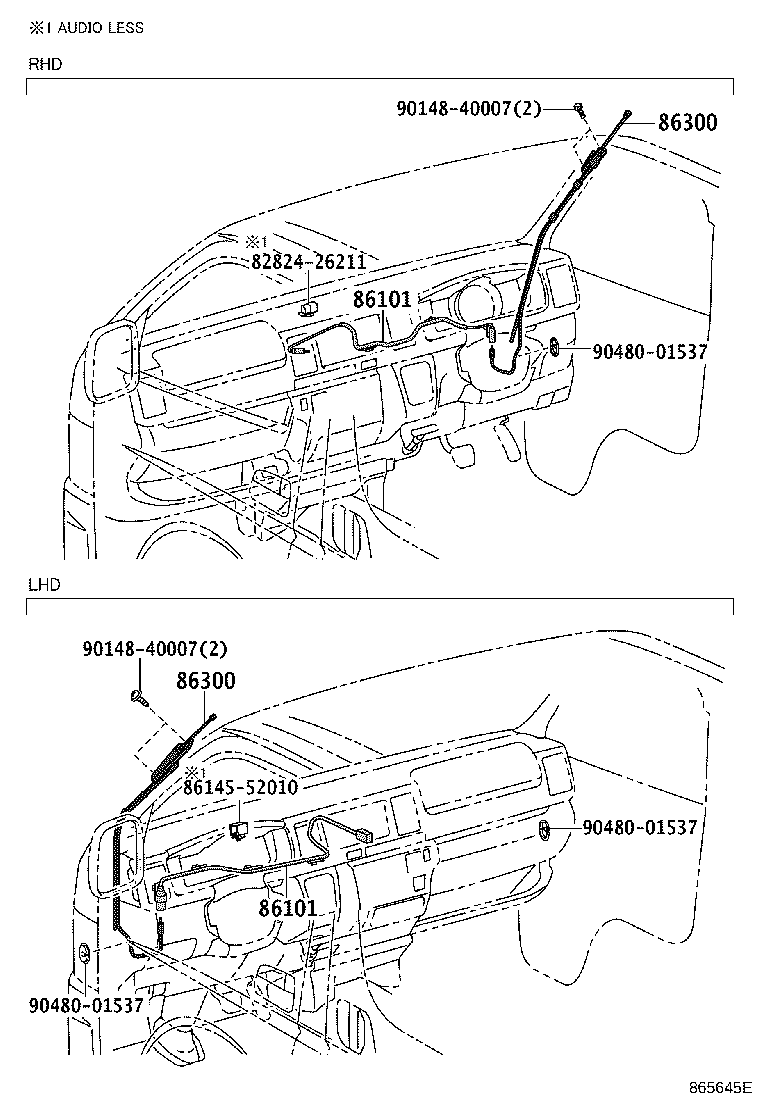

PILLAR ANTENNA

diagram 8282426211 86101 86101 8614552010 86300 86300 9014840007 9014840007 9048001537 9048001537 9048001537
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-26300

KDH222..RHD..GL..GEN;KDH222..STD..(KEN,SA);KDH220,TRH200..06S..(4FC,5F);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);GDH201,KDH201,203,221,223,TRH201..RHD..(02S,03S,05S,06S,14S)

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-26300

KDH222..RHD..GL..GEN;KDH222..STD..(KEN,SA);KDH220,TRH200..06S..(4FC,5F);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);GDH201,KDH201,203,221,223,TRH201..RHD..(02S,03S,05S,06S,14S)

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-26130

TRH223..4FC..GL;TRH223..5F..GL..(GCC,RUS);GDH201,KDH201,221,TRH201..RHD;KDH212,222,TRH213..4D..GL..GEN;KDH222,TRH223..STD..(ARL,KEN,SA);KDH223,TRH221..(02S,06S,12S)..(ARL,RUS,SA);KDH203,213,220,223,TRH200..(02S,06S,10S,13S,14S,15S)..(4FC,5F)

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-26130

TRH223..4FC..GL;TRH223..5F..GL..(GCC,RUS);GDH201,KDH201,221,TRH201..RHD;KDH212,222,TRH213..4D..GL..GEN;KDH222,TRH223..STD..(ARL,KEN,SA);KDH223,TRH221..(02S,06S,12S)..(ARL,RUS,SA);KDH203,213,220,223,TRH200..(02S,06S,10S,13S,14S,15S)..(4FC,5F)

 1
Common parts
82824-26211
86145-52010
90148-40007
90480-01537
