KDH201R-SRPDY (2013)

Toyota Hiace

Production Dec 2013 - Apr 2020
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0501- )KDH20#,212,LH20#,212

Click highlighted areas on diagram

FUEL TANK

diagram 4646726060 4646726060 4646726070 4646726070 4646726080 4646726080 77013 77014A 77023 77024 77026A 77035 77035 77037 77037 77100 77168A 77169A 77201 77204A 77209D 77213B 77216A 77229D 77241L 77241W 77269A 77276 77291A 77295F 77298A 77306 77306 77310A 77316 77350 77366 77419 77601A 77603A 77641A 77651A 77652A 77681A 77681B 8401 9010506298 9010506312 90105T0198 90105T0198 9011906767 9011908967 9011908C49 9015950343 9018210005 9018210005 9020106558 9026903029 9046022002 9046022002 9046046005 9046046005 90466T0037 90466T0037 9054109024 9095904001 9095904001 9155380818 9155380818 91626B0614 9167380820 9167380820
Part # Description Qty Price
Common parts
46467-26060
46467-26070
46467-26080
90105-06298
90105-06312
90105-T0198
90119-06767
90119-08967
90119-08C49
90159-50343
90182-10005
90201-06558
90269-03029
90460-22002
90460-46005
90466-T0037
90541-09024
90959-04001
91553-80818
91626-B0614
91673-80820
Linked diagrams
8401

ILLUST NO. 2 OF 2(0501- )KDH20#,212,22#

Click highlighted areas on diagram

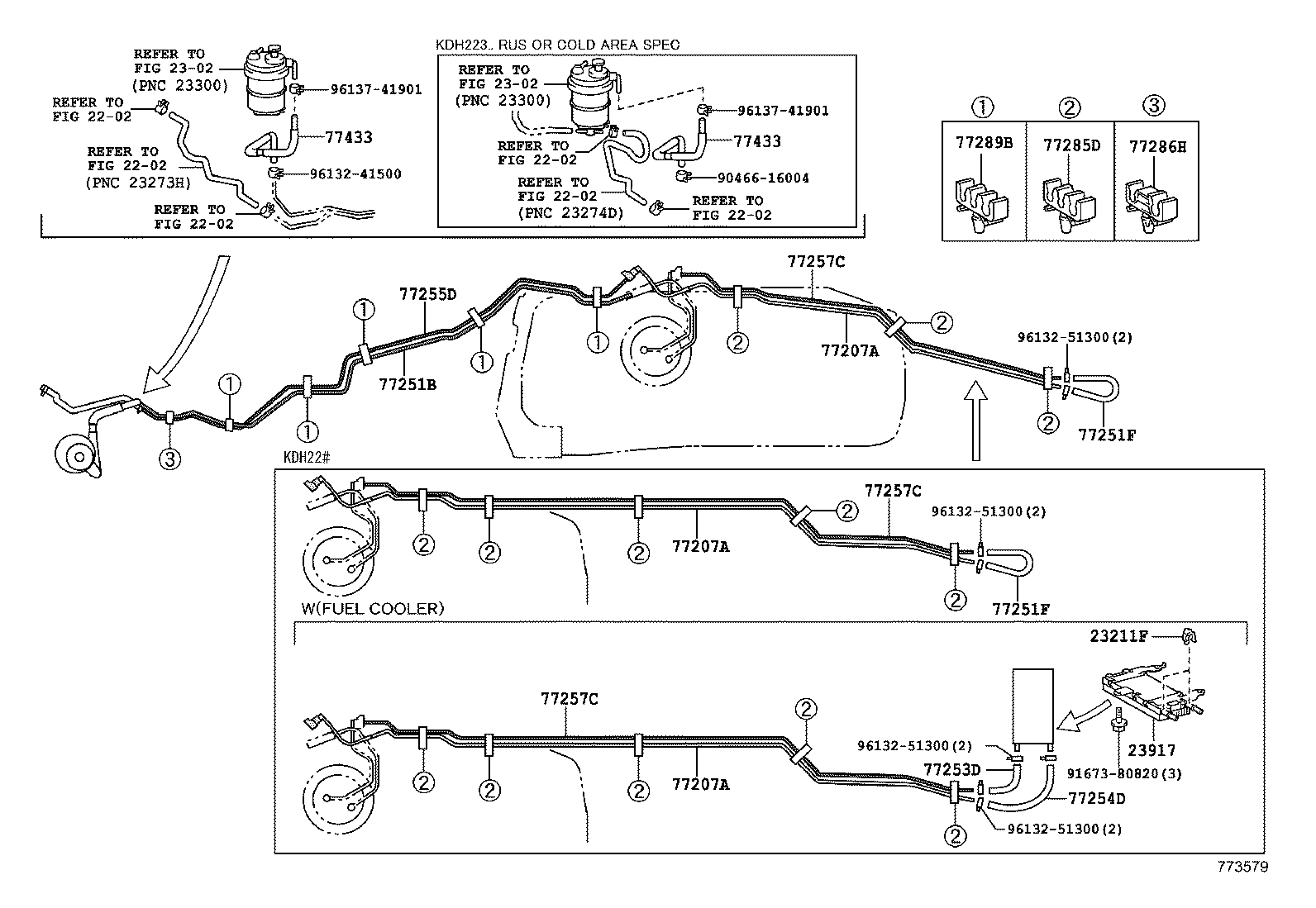

FUEL TUBE

diagram 2202 2202 2202 2202 2202 2202 2302 2302 23211F 23917 77207A 77207A 77207A 77251B 77251F 77251F 77253D 77254D 77255D 77257C 77257C 77257C 77285D 77286H 77289B 77289B 77433 77433 9046616004 9167380820 9613241500 9613251300 9613251300 9613251300 9613251300 9613741901 9613741901
Part # Description Qty Price
Common parts
90466-16004
91673-80820
96132-41500
96132-51300
96137-41901
Linked diagrams
2202
2302

ILLUST NO. 1 OF 2(1312- )GDH201,KDH20#,21#,LH20#,212

Click highlighted areas on diagram

FUEL TANK

diagram 77013 77014A 77023 77024 77026A 77100 77168A 77169A 77201 77204A 77209D 77213B 77216A 77229D 77241L 77241W 77269A 77276 77291A 77295F 77298A 77310A 77316 77419 77601A 77603A 77641A 77651A 77652A 77681A 77681B 8401 9010508158 90105T0195 90105T0198 9011906767 9011908967 9011908C49 9015950343 9046022002 9046022002 9046046005 9046046005 9046623006 90466T0037 9095904001 9155380818 91626B0614 9167380820 9167380820
Part # Description Qty Price
77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77013-26120

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77014-26050

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
77014-26060

KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-60040

KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)

 1
77024 - TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT
77024-26020

KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)

 1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-26080

KDH200..GCC,MA;KDH223..4FC..TH;KDH200,TRH201..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH203..(06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GEN,RUS,SA,VN)

 1
77100 - TANK ASSY, FUEL
77001-26692

TRH200,201;TRH203..5F;TRH221..GCC;TRH223..GL..(GCC,RUS);TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH)

 1
77001-26701

KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,SA);KDH220,223..(06S,12S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,203,21#,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH

 1
77001-26702

KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH222,LH200..4D..STD..(GEN,KEN,SA);KDH201,202,203,212,223,LH202,222..ARL,GCC,GEN

 1
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-52020

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-52010

KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-26360

KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH223..4FC..(GEN,TH);KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);KDH213,220,223..(06S,10S,11S,12S,13S)..(GEN,RUS,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..GCC,GEN,TH

 1
77201-26250

KDH223..RUS;KDH223..(14S,16S)..(GEN,TH);GDH201,KDH20#,21#,220,221,222,LH20#,212,222..GCC,GEN,MA,SA,TH

 1
77201-26240

TRH200,201..RHD;TRH201,203..GCC,MA;TRH213,22#..ARL,GCC,RUS,SA,TH;TRH213,22#..SG..(03S,10S,13S)..GEN

 1
77204A - TUBE, FUEL TANK RETURN
77204-26050

KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)

 1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-26150

KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-26120

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
77213-26140

KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH

 1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77104-26010

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77229D - SUPPORT, FUEL TANK FILLER PIPE, NO.4
77229-26020

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77241L - TUBE, FUEL TANK SUCTION
77241-35450

KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)

 1
77241W - CLIP, TUBE JOINT
77241-33011

KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)

 1
77269A - HOSE, FUEL TANK BREATHER
77269-26010

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
95313-13010

KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA,VN;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH

 1
77276 - PROTECTOR, FUEL HOSE
77276-26090

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-26021

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77295F - GROMMET, FUEL HOSE
77295-26050

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77298A - CLAMP, FUEL TUBE, NO.4
77298-52030

KDH200..GCC,MA;KDH223..4FC..TH;KDH200,TRH201..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH203..(06S,10S,11S,12S,13S,14S,15S,16S)..(ARL,GEN,RUS,SA,VN)

 1
77310A - CAP ASSY, FUEL TANK
77300-20020

KDH223..RUS;KDH223..14S,16S;GDH201,KDH20#,21#,220,221,222,LH20#,212,222

 1
77300-12030

KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH222,LH200..4D..(03S,16S)..(GEN,KEN,SA);KDH213,220,223..(06S,10S,11S,12S,13S,14S)..(ARL,GEN,RUS,SA);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,TH

 1
77316 - GASKET, FUEL TANK CAP
77316-52040

TRH201;TRH223..4FC..GL;TRH213..LHD..GEN;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;TRH223..STD..(ARL,SA);TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,223,TRH221..GCC,MA,RUS;KDH222..(03S,16S)..(GEN,KEN,SA);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,13S,14S)..(4FC,5F)..(ARL,GEN,SA)

 1
77419 - HOSE, FUEL, NO.3
77419-26010

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-26100

KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#

 1
77601-26101

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77602-26020

KDH20#,21#,LH20#,212,TRH20#,213

 1
77602-26021

TRH201;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;KDH200,TRH213..GCC,MA,TH;KDH213,TRH200..(4FC,5F)..GEN;GDH201,KDH201,202,203,212,LH202,212..ARL,GCC,GEN,MA,TH

 1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-26040

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77651A - CUSHION, FUEL TANK, NO.1
77651-26080

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77652A - CUSHION, FUEL TANK, NO.2
77652-26070

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77681A - SEAT, FUEL TANK BAND
77681-32060

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77681B - SEAT, FUEL TANK BAND
77681-34030

TRH201;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;KDH200,TRH213..GCC,MA,TH;KDH213,TRH200..(4FC,5F)..GEN;GDH201,KDH201,202,203,212,LH202,212..ARL,GCC,GEN,MA,TH

 1
Common parts
90105-08158
90105-T0195
90105-T0198
90119-06767
90119-08967
90119-08C49
90159-50343
90460-22002
90460-46005
90466-23006
90466-T0037
90959-04001
91553-80818
91626-B0614
91673-80820
Linked diagrams
8401

ILLUST NO. 2 OF 2(1312- )GDH201,KDH20#,21#,22#

Click highlighted areas on diagram

FUEL TUBE

diagram 2202 2202 2202 2202 2202 2202 2302 2302 23211F 23917 77207A 77207A 77207A 77251B 77251F 77251F 77253D 77254D 77255D 77257C 77257C 77257C 77285D 77286H 77289B 77433 77433 9046616004 9167380820 9613241500 9613251300 9613251300 9613251300 9613251300 9613741901 9613741901
Part # Description Qty Price
23211F - BRACKET
23211-30040

1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN)

 2
23917 - COOLER, FUEL
23917-30032

1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN)

 1
77207A - TUBE SUB-ASSY, FUEL RETURN
77207-26040

KDH200..GCC,MA;KDH200..LHD..5D..GEN;GDH201,KDH201,202,203

 1
77207A - TUBE SUB-ASSY, FUEL RETURN
77207-26040

KDH200..GCC,MA;KDH200..LHD..5D..GEN;GDH201,KDH201,202,203

 1
77207A - TUBE SUB-ASSY, FUEL RETURN
77207-26040

KDH200..GCC,MA;KDH200..LHD..5D..GEN;GDH201,KDH201,202,203

 1
77251B - TUBE, FUEL MAIN
77251-26B31

KDH220..06S;KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH213,222,223..ARL,GEN,KEN,RUS;GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH

 1
77251F - HOSE, FUEL
77259-26130

KDH201..SG;KDH201..ARL;KDH221,223..RHD..(ARL,GEN)

 1
77251F - HOSE, FUEL
77259-26130

KDH201..SG;KDH201..ARL;KDH221,223..RHD..(ARL,GEN)

 1
77253D - HOSE, FUEL
95337-08020

KDH201..SG;KDH201..ARL;KDH221,223..RHD..(ARL,GEN)

 1
77254D - HOSE, FUEL
95337-08024

KDH201..SG;KDH201..ARL;KDH221,223..RHD..(ARL,GEN)

 1
77255D - TUBE, FUEL RETURN
77255-26700

KDH220..06S;KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH213,222,223..ARL,GEN,KEN,RUS;GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH

 1
77257C - TUBE, FUEL RETURN, NO.3
77257-26040

KDH200..GCC,MA;KDH200..LHD..5D..GEN;GDH201,KDH201,202,203

 1
77257C - TUBE, FUEL RETURN, NO.3
77257-26040

KDH200..GCC,MA;KDH200..LHD..5D..GEN;GDH201,KDH201,202,203

 1
77257C - TUBE, FUEL RETURN, NO.3
77257-26040

KDH200..GCC,MA;KDH200..LHD..5D..GEN;GDH201,KDH201,202,203

 1
77285D - CLAMP, FUEL TUBE, NO.1
77289-26010

KDH213..GEN;KDH200..GCC,MA;KDH200..LHD..5D..GEN;GDH201,KDH201,202,203,212..ARL,GCC,GEN,MA,TH

 3
77286H - CLAMP, FUEL TUBE, NO.3
77289-26030

KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-26010

TRH201;TRH203..5F;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 5
77433 - HOSE, FUEL MAIN, NO.1
77433-26011

KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)

 1
77433 - HOSE, FUEL MAIN, NO.1
77433-26011

KDH200..GCC,MA;KDH223..4FC..TH;KDH200..LHD..5D..GEN;KDH222..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)

 1
Common parts
90466-16004
91673-80820
96132-41500
96132-51300
96137-41901
Linked diagrams
2202
2302

ILLUST NO. 3 OF 3(1312- )

Click highlighted areas on diagram

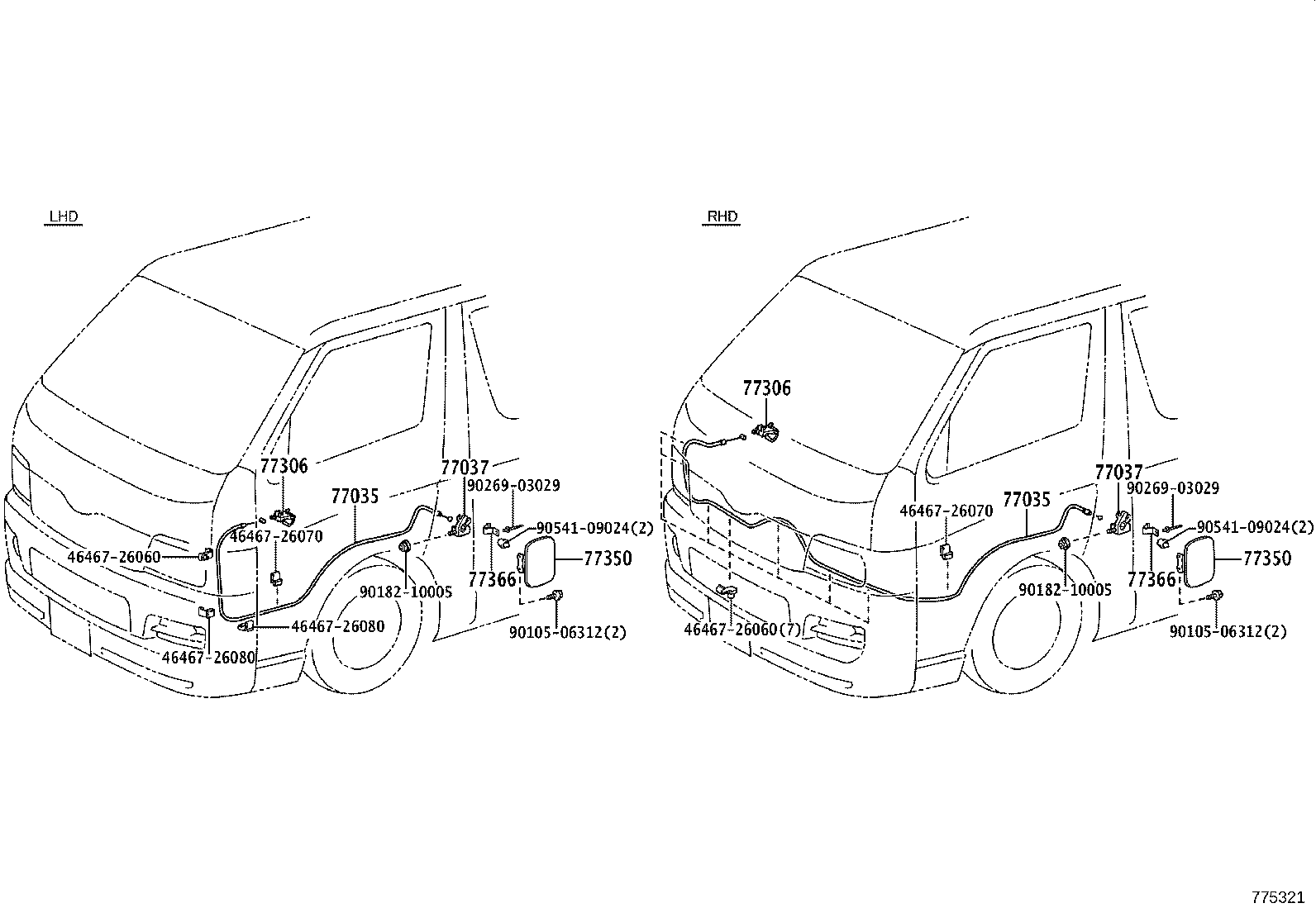

FUEL LID OPENER

diagram 4646726060 4646726060 4646726070 4646726070 4646726080 4646726080 77035 77035 77037 77037 77306 77306 77350 77350 77366 77366 9010506312 9010506312 9018210005 9018210005 9026903029 9026903029 9054109024 9054109024
Part # Description Qty Price
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-26130

TRH200..4FC;LH200..RHD..4D;GDH201,KDH201,202,203,LH202,TRH201,203..RHD..(02S,03S,05S,06S,15S)

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-26130

TRH200..4FC;LH200..RHD..4D;GDH201,KDH201,202,203,LH202,TRH201,203..RHD..(02S,03S,05S,06S,15S)

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-95D01

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-95D01

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-28050B1

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

MD.GRAY,TRIM1#

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-28050B1

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

MD.GRAY,TRIM1#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-26030

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-26030

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-26011

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-26011

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
Common parts
46467-26060
46467-26070
46467-26080
90105-06312
90182-10005
90269-03029
90541-09024
