KDH201R-SRPDY (2013)

Toyota Hiace

Production Dec 2013 - Apr 2020
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )SG..06S ; (0501- )KDH200,201,LH200,TRH201..SP..03S..GCC,GEN,MA,TH

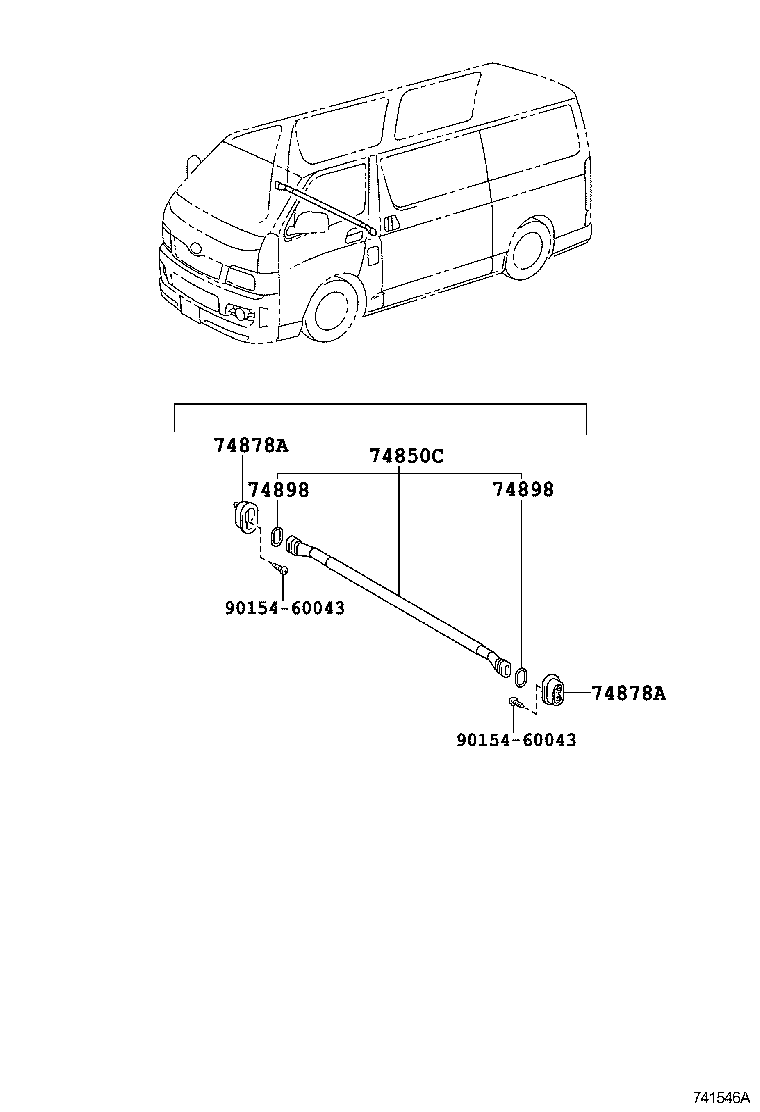

Click highlighted areas on diagram

diagram 74850C 74878A 74878A 74898 74898 9015460043 9015460043
Part # Description Qty Price
Common parts
90154-60043

(1312- )KDH201..SG ; (1312- )TRH201..5D ;(1312- )TRH201..5F..ARL ; (1312-

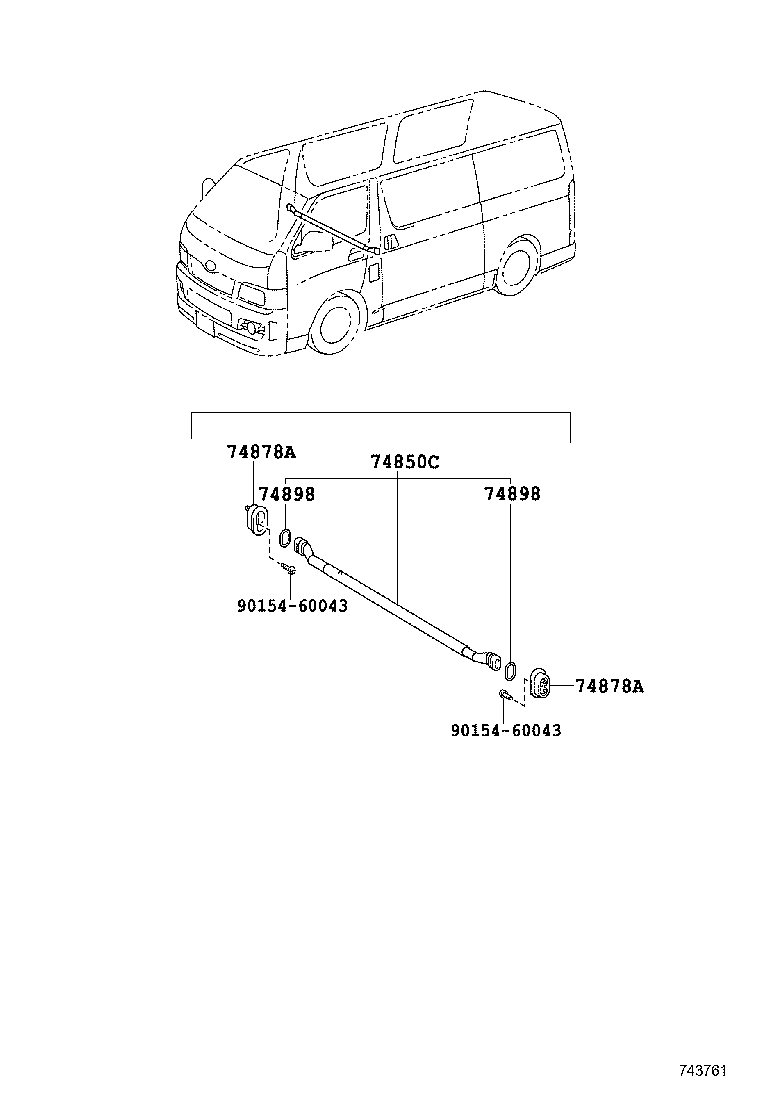

Click highlighted areas on diagram

diagram 74850C 74878A 74878A 74898 74898 9015460043 9015460043
Part # Description Qty Price
74850C - BAR ASSY, SEPARATOR
74850-26060B2

LH200..4D;KDH200..MA;KDH201..SG;TRH201..GEN;KDH200..LHD..5D..GEN;KDH201..(02S,03S)..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED),LT.GRAY,TRIM1#

 1
74850-26060B2

LH200..4D;KDH200..MA;KDH201..SG;TRH201..GEN;KDH200..LHD..5D..GEN;KDH201..(02S,03S)..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED),LT.GRAY,TRIM1#

 1
74878A - BRACKET, SEPARATOR BAR, LOWER
74867-26080B0

LH200..4D;KDH200..MA;KDH201..SG;TRH201..GEN;KDH200..LHD..5D..GEN;KDH201..(02S,03S)..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED),DK.GRAY,TRIM1#,RH

 1
74867-26080B0

LH200..4D;KDH200..MA;KDH201..SG;TRH201..GEN;KDH200..LHD..5D..GEN;KDH201..(02S,03S)..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED),DK.GRAY,TRIM1#,RH

 1
74867-26130B1

LH200..4D;KDH200..MA;KDH201..SG;TRH201..GEN;KDH200..LHD..5D..GEN;KDH201..(02S,03S)..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED),DK.GRAY,TRIM1#,LH

 1
74867-26130B1

LH200..4D;KDH200..MA;KDH201..SG;TRH201..GEN;KDH200..LHD..5D..GEN;KDH201..(02S,03S)..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED),DK.GRAY,TRIM1#,LH

 1
74878A - BRACKET, SEPARATOR BAR, LOWER
74867-26080B0

LH200..4D;KDH200..MA;KDH201..SG;TRH201..GEN;KDH200..LHD..5D..GEN;KDH201..(02S,03S)..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED),DK.GRAY,TRIM1#,RH

 1
74867-26080B0

LH200..4D;KDH200..MA;KDH201..SG;TRH201..GEN;KDH200..LHD..5D..GEN;KDH201..(02S,03S)..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED),DK.GRAY,TRIM1#,RH

 1
74867-26130B1

LH200..4D;KDH200..MA;KDH201..SG;TRH201..GEN;KDH200..LHD..5D..GEN;KDH201..(02S,03S)..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED),DK.GRAY,TRIM1#,LH

 1
74867-26130B1

LH200..4D;KDH200..MA;KDH201..SG;TRH201..GEN;KDH200..LHD..5D..GEN;KDH201..(02S,03S)..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED),DK.GRAY,TRIM1#,LH

 1
74898 - PAD, SEPARATOR BAR
74898-26020

LH200..4D;KDH200..MA;KDH201..SG;TRH201..GEN;KDH200..LHD..5D..GEN;KDH201..(02S,03S)..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED)

 2
74898-26020

LH200..4D;KDH200..MA;KDH201..SG;TRH201..GEN;KDH200..LHD..5D..GEN;KDH201..(02S,03S)..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED)

 2
74898 - PAD, SEPARATOR BAR
74898-26020

LH200..4D;KDH200..MA;KDH201..SG;TRH201..GEN;KDH200..LHD..5D..GEN;KDH201..(02S,03S)..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED)

 2
74898-26020

LH200..4D;KDH200..MA;KDH201..SG;TRH201..GEN;KDH200..LHD..5D..GEN;KDH201..(02S,03S)..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE TYPE:FIXED)

 2
Common parts
90154-60043
