KDH201R-SRPDY (2013)

Toyota Hiace

Production Dec 2013 - Apr 2020
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )KDH200,201,212,LH200,TRH200,201..5D

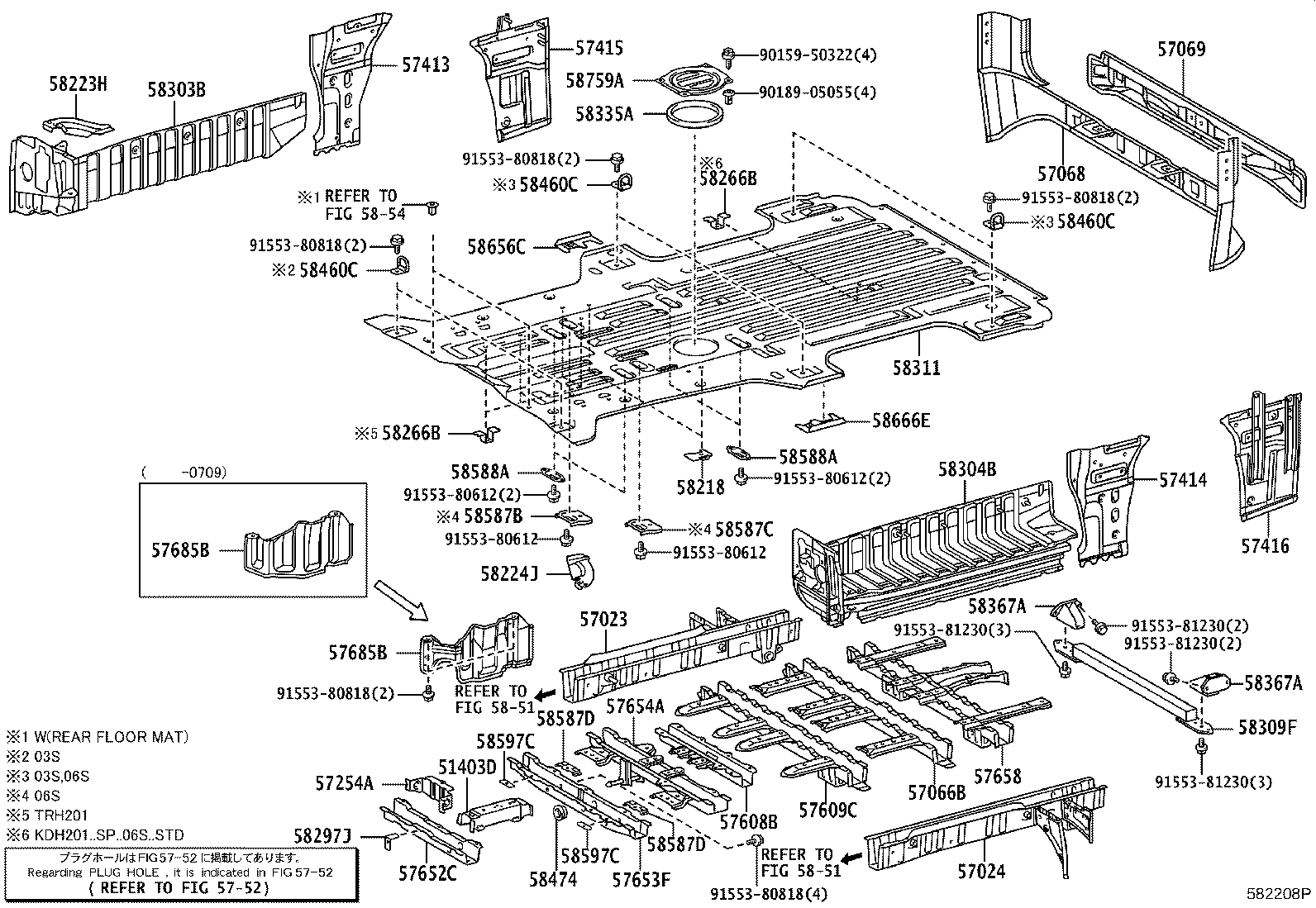

Click highlighted areas on diagram

diagram 51403D 57023 57024 57066B 57068 57069 57254A 57413 57414 57415 57416 5752 57608B 57609C 57652C 57653F 57654A 57658 57685B 57685B 58218 58223H 58224J 58266B 58266B 58297J 58303B 58304B 58309F 58311 58335A 58367A 58367A 58460C 58460C 58460C 58474 5851 5851 5854 58587B 58587C 58587D 58587D 58588A 58588A 58597C 58597C 58656C 58666E 58759A 9015950322 9018905055 9155380612 9155380612 9155380612 9155380612 9155380818 9155380818 9155380818 9155380818 9155380818 9155381230 9155381230 9155381230 9155381230
Part # Description Qty Price
Common parts
90159-50322
90189-05055
91553-80612
91553-80818
91553-81230
Linked diagrams
5752
5851
5854

(1312- )GDH201,KDH200,201,LH200,TRH200,201..5D

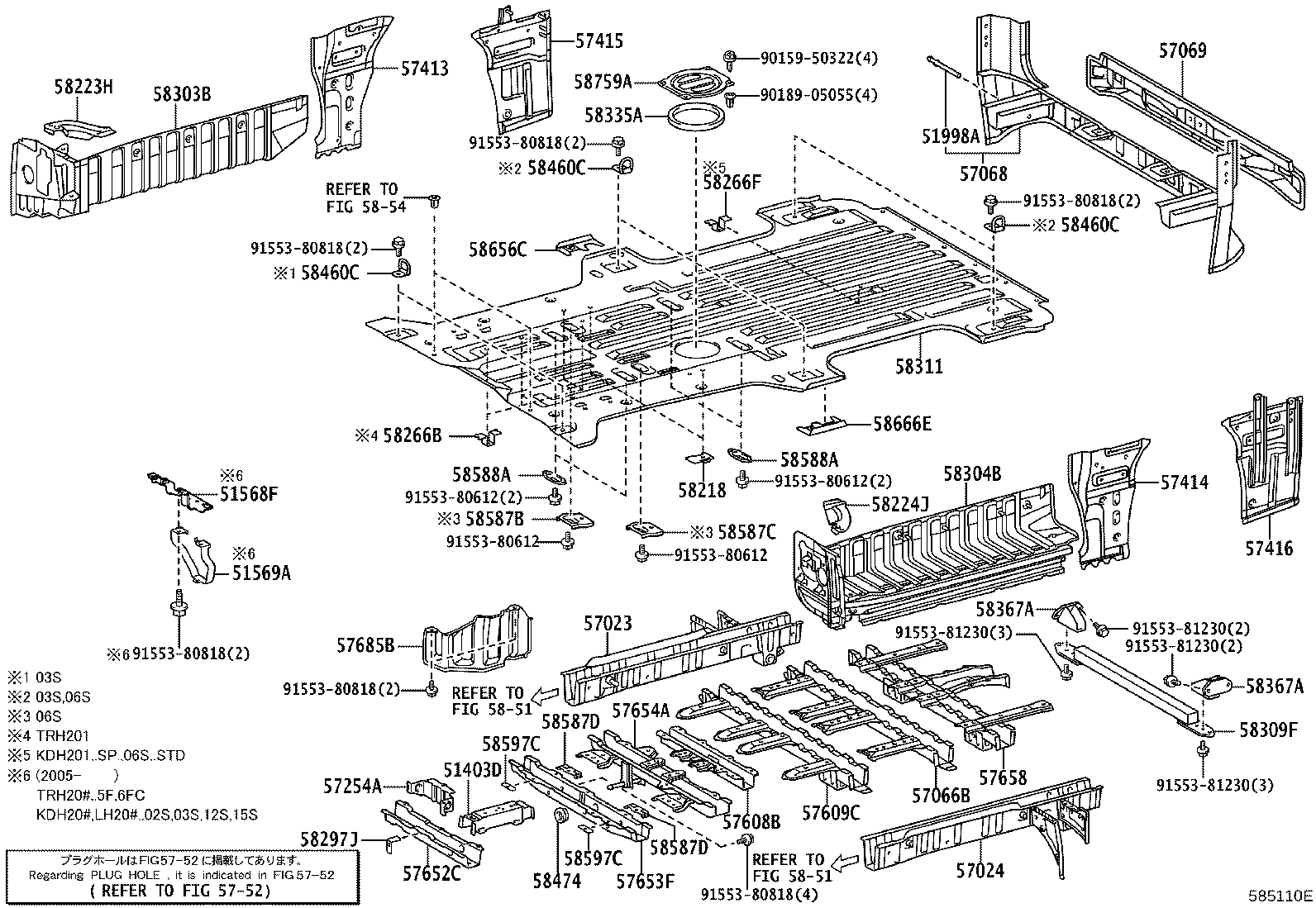

Click highlighted areas on diagram

diagram 51403D 51568F 51569A 51998A 57023 57024 57066B 57068 57069 57254A 57413 57414 57415 57416 5752 57608B 57609C 57652C 57653F 57654A 57658 57685B 58218 58223H 58224J 58266B 58266F 58297J 58303B 58304B 58309F 58311 58335A 58367A 58367A 58460C 58460C 58460C 58474 5851 5851 5854 58587B 58587C 58587D 58587D 58588A 58588A 58597C 58597C 58656C 58666E 58759A 9015950322 9018905055 9155380612 9155380612 9155380612 9155380612 9155380818 9155380818 9155380818 9155380818 9155380818 9155380818 9155381230 9155381230 9155381230 9155381230
Part # Description Qty Price
51403D - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-26232

TRH223..TH;TRH200,201,22#..RHD..4FC

 1
51403-26290

KDH201..RHD;KDH223..ARL,RUS;KDH201..LHD..03S;KDH200,202,203,21#,220,221,222

 1
51403-26330

KDH200..GCC,MA;KDH200..LHD..5D..GEN;KDH222..(03S,16S)..(GEN,KEN,SA);GDH201,KDH201,202,203,212,220,221..ARL,GCC,GEN,MA,TH;KDH213,220,223..(06S,10S,11S,12S,13S,14S,16S)..(ARL,GEN,RUS,SA,VN)

 1
51998A - HANGER, EXHAUST PIPE SUPPORT, NO.6
51998-26080

TRH223..4FC..GL;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;LH222,TRH213,223..LHD..STD..GEN;KDH222..(03S,16S)..(GEN,KEN,SA);KDH213,223,TRH201..ARL,GCC,GEN,RUS,SA;KDH220,TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA);GDH201,KDH201,202,203,212,220,221,LH202,212..ARL,GCC,GEN,MA,TH

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-26650

LH200..4D;TRH200..4FC;TRH221..ARL,GCC;KDH200..LHD..5D;GDH201,KDH201,220,221,TRH201..ARL,GCC,GEN,TH

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-26660

LH200..4D;TRH200..4FC;TRH221..ARL,GCC;KDH200..LHD..5D;GDH201,KDH201,220,221,TRH201..ARL,GCC,GEN,TH

 1
57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6
57066-26121

LH200..4D;TRH200..4FC;KDH200..GCC,MA;KDH200..LHD..5D..GEN;GDH201,KDH201,203,TRH201..02S,03S,05S,06S

 1
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57068-26230

KDH201..SG;TRH201..06S..5F..GEN

 1
57068-26320

KDH201,TRH201..SG..06S..GEN

 1
57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57069-26140

GDH201,KDH201,TRH200,201..(05S,06S)..GEN

 1
57254A - REINFORCEMENT, ENGINE REAR MOUNTING MEMBER
57254-26041

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
57413 - RAIL, FLOOR SIDE, CENTER RH
57413-26A70

KDH201,TRH201..SG..GEN

REAR SEAT-WITHOUT

 1
57405-26A80

TRH200..4FC;GDH201,KDH201,TRH201..RHD..(05S,06S)

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57414-26510

KDH201,TRH201..SG..GEN

REAR SEAT-WITHOUT

 1
57406-26500

TRH200..4FC;GDH201,KDH201,TRH201..RHD..(05S,06S)

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57415-26210

TRH221..02S,06S;TRH213..LHD..STD;KDH200,TRH221..GCC,MA;KDH200,220..LHD..5D..GEN;KDH220,TRH200..06S..(4FC,5F);KDH212,LH200,TRH203..4D..5F..STD..(GCC,GEN);GDH201,KDH201,202,203,221,LH202,212,TRH201..02S,03S,05S,06S,15S,16S

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57416-26160

TRH221..02S,06S;TRH213..LHD..STD;KDH200,TRH221..GCC,MA;KDH200,220..LHD..5D..GEN;KDH220,TRH200..06S..(4FC,5F);KDH212,LH200,TRH203..4D..5F..STD..(GCC,GEN);GDH201,KDH201,202,203,221,LH202,212,TRH201..02S,03S,05S,06S,15S,16S

 1
57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57608-26301

LH200..4D;TRH200..4FC;KDH200..GCC,MA;KDH200..LHD..5D..GEN;GDH201,KDH201,203,TRH201..02S,03S,05S,06S

 1
57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57609-26182

LH200..4D;TRH200..4FC;KDH200..LHD..5D;GDH201,KDH201,203,TRH201..(02S,03S,05S,06S)..(ARL,GCC,GEN,TH)

 1
57652C - MEMBER, REAR FLOOR CROSS, NO.1
57652-26120

TRH200..4FC;KDH200..GCC,MA;LH200,TRH203..4D..5F;KDH200..LHD..5D..GEN;GDH201,KDH201,202,203,LH202,TRH201

 1
57653F - MEMBER, REAR FLOOR CROSS, NO.2
57653-26131

KDH201..SG;KDH201..ARL

 1
57663-26031

KDH201..SG;KDH201..ARL

 1
57654A - MEMBER, REAR FLOOR CROSS, NO.3
57607-26591

KDH201,TRH201..SG..GEN

REAR SEAT-WITHOUT

 1
57607-26601

KDH201,TRH200,201..05S,06S

 1
57607-26A20

KDH201,TRH201..SG..GEN

REAR SEAT-WITHOUT

 1
57607-26A30

GDH201,KDH201,TRH201..05S,06S

 1
57658 - MEMBER, REAR FLOOR CROSS, NO.7
57067-26101

LH200..4D;TRH200..4FC;KDH200..GCC,MA;KDH200..LHD..5D..GEN;GDH201,KDH201,203,TRH201..02S,03S,05S,06S

 1
58218 - PLATE, SEAT FLOOR PANEL
58218-26010

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 2
58223H - REINFORCEMENT, FLOOR PANEL SIDE, RH
58223-26071

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
58224J - REINFORCEMENT, FLOOR PANEL SIDE, LH
58224-26091

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
58266B - BRACKET, FUEL TUBE CLAMP
58266-95J00

KDH201..SG;KDH201..ARL

 1
58266-95J00

KDH201..SG;KDH201..ARL;KDH221,223..RHD..(ARL,GEN)

 4
58297J - RETAINER, FLOOR CLAMP
58297-26020

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
58303B - STEP SUB-ASSY, REAR FLOOR, RH
58303-26440

KDH201..SG

 1
58304B - STEP SUB-ASSY, REAR FLOOR, LH
58304-26710

KDH201..SG

 1
58311 - PAN, REAR FLOOR
58311-26B30

KDH201,TRH201..SG..GEN

REAR SEAT-WITHOUT

 1
58311-26B50

KDH201,TRH201..SG..GEN

 1
58311-26B51

KDH201..05S;KDH201,TRH201..SG..GEN

 1
58311-26B31

KDH201,TRH201..SG..GEN

REAR SEAT-WITHOUT

 1
58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER
58335-26030

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
58460C - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33010

TRH200..4FC;GDH201,KDH201,220,TRH201,221..05S,06S

 4
58460C - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33010

TRH200..4FC;GDH201,KDH201,220,TRH201,221..05S,06S

 4
58460C - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33010

TRH200..4FC;GDH201,KDH201,220,TRH201,221..05S,06S

 4
58474 - COVER, INSPECTION HOLE
58474-26010

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH200,TRH213,221..GCC,MA,TH;KDH222..(03S,16S)..(GEN,KEN,SA);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH;KDH213,220,223,TRH200..(06S,10S,11S,12S,13S,14S,16S)..(4FC,5F)..(ARL,GEN,RUS,SA,VN)

 1
58587B - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 RH
58587-26060

KDH213,223,TRH200..(06S,11S,14S)..4FC..GEN;GDH201,KDH201,212,220,TRH201,213,221..05S,06S,11S

 1
58587C - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 LH
58587-26080

KDH213,223,TRH200..(06S,11S,14S)..4FC..GEN;GDH201,KDH201,212,220,TRH201,213,221..05S,06S,11S

 1
58587D - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1
58587-26010

KDH213,223,TRH200..(06S,11S,14S)..4FC..GEN;GDH201,KDH201,212,220,TRH201,213,221..05S,06S,11S

 2
58587D - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1
58587-26010

KDH213,223,TRH200..(06S,11S,14S)..4FC..GEN;GDH201,KDH201,212,220,TRH201,213,221..05S,06S,11S

 2
58588A - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.2
58588-26010

GDH201,KDH201,TRH200,201..RHD..(05S,06S)

 2
58588A - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.2
58588-26010

GDH201,KDH201,TRH200,201..RHD..(05S,06S)

 2
58597C - PLATE, SEAT TRACK SET
58597-26030

GDH201,KDH201,TRH200,201..RHD..(05S,06S)

 2
58597C - PLATE, SEAT TRACK SET
58597-26030

GDH201,KDH201,TRH200,201..RHD..(05S,06S)

 2
58656C - PLATE, REAR FLOOR, CENTER LOWER NO.2 RH
58656-26020

TRH213..GCC,TH;KDH200..LHD..5D;TRH213..LHD..GEN;KDH202,212,LH20#,212..LHD;KDH201,TRH203..LHD..4D..5F;KDH201,TRH200..5D..(4FC,5F);GDH201,KDH203,213,TRH201..(03S,05S,06S,10S,11S,12S,13S,15S)..(GCC,GEN)

 1
58666E - PLATE, REAR FLOOR, CENTER LOWER NO.2 LH
58666-26010

KDH200..GCC,MA;LH200..RHD..4D;TRH200,213..5D..4FC;KDH212..(11S,16S)..GEN;KDH200,201..LHD..5D..GEN;GDH201,KDH201,202,203,LH202,212,TRH203..RHD;KDH213,TRH201..(02S,03S,05S,06S,11S)..(ARL,GCC,GEN,SA)

 1
58759A - COVER, FUEL TANK INSPECTION HOLE
58759-26010

TRH201;KDH223..4FC..TH;TRH223..4FC..GL;TRH213..LHD..GEN;TRH223..ARL,RUS,TH;TRH223..5F..GL..GCC;KDH200..LHD..5D..GEN;LH200,TRH203..4D..5F;TRH223..LHD..STD..GEN;KDH220,TRH221..02S,06S;KDH200,TRH213,221..GCC,MA,TH;KDH213,222,223,TRH200..(4FC,5F)..(ARL,GEN,KEN,RUS,VN);GDH201,KDH201,202,203,212,220,221,LH202,212,222..ARL,GCC,GEN,MA,TH

 1
Common parts
90159-50322
90189-05055
91553-80612
91553-80818
91553-81230
Linked diagrams
5752
5851
5854
